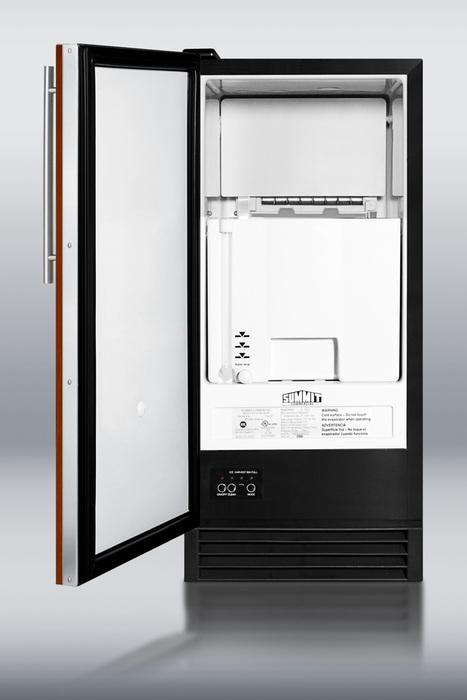

ADA compliant built-in NSF-listed automatic defrost icemaker with integrated door frame to accept full overlay panels
Model: BIM44IFADA
ADA compliant built-in NSF-listed automatic defrost icemaker with integrated door frame to accept full overlay panels
Model: BIM44IFADAQuick Specs
ADA compliant built-in NSF-listed automatic defrost icemaker with integrated door frame to accept full overlay panels is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 32 3/8" height for use in ADA compliant settings
- Flexible design allows built-in or freestanding use in 15" wide spaces

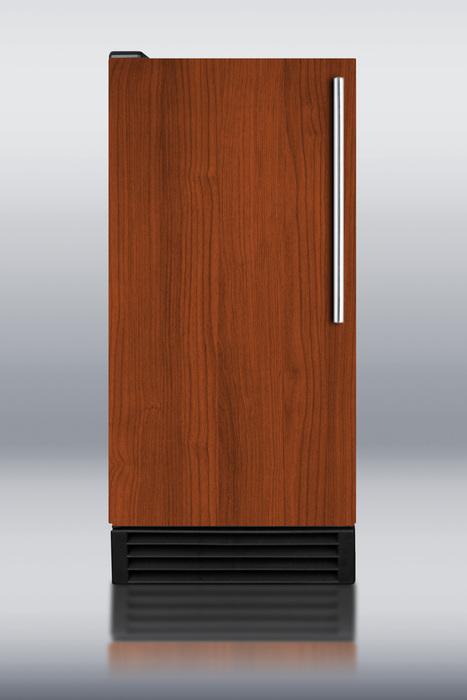

- Integrated door frame accepts full overlay panels for a true custom look
- Save time and energy with low maintenance automatic defrost
- Makes up to 44 lbs. of ice in a day cycle
- NSF listed for commercial use
(P) SUMMIT BIM44IFADA is an auto defrost icemaker designed for true convenience under the counter in ADA compliant settings.(/P)
(P) At just under 15" wide, the BIM44IFADA is ideal for finishing any kitchen or wet bar. The door includes an integrated stainless steel frame that can accept full overlay panels for a seamless look that blends into matching cabinetry. Users supply their own handles. This unit is 32 3/8" high to fit under lower counters following ADA guidelines. NOTE: The hinge cap reaches a height of 33". If you are installing this unit under an ADA compliant counter, be sure to create a notch sized to accommodate the hinge cap.
(/P)
(P)Automatic defrost makes maintenance simple and stress-free, while the BIM44IFADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use. (/P) (P)The BIM44IFADA can make up to 44 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. This unit must be used with a drain. An optional pump is available for purchase. (/P)
(P)This unit is NSF listed for use in commercial establishments. (/P)
| Height | 32.38" |
| Width | 14.5" |
| Depth | 23.5" |
| Interior Height 1 | 18.5" |
| Interior Width 1 | 12.0" |
| Interior Depth 1 | 16.0" |
| Shipping Weight | 115.0lbs. |
| Canadian Electrical Safety | ULC |
| Amps | 4.8 |
| US Electrical Safety | UL |
| Voltage/Frequency | 115 V AC/60 Hz |
| Reversible | Yes |
| Door Swing | LHD |
| Defrost Type | Automatic |
| Height to Hinge Cap | 33.0" |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Level Legs Quantity | 4 |
| Low Side PSI | 120.0 |
| High Side PSI | 350.0 |
| Freon Oz | 6.35 |
| Parts/Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Sanitation | NSF |
- 32 3/8" height for use in ADA compliant settings
- Flexible design allows built-in or freestanding use in 15" wide spaces
- Integrated door frame accepts full overlay panels for a true custom look
- Save time and energy with low maintenance automatic defrost
- Makes up to 44 lbs. of ice in a day cycle
- NSF listed for commercial use
