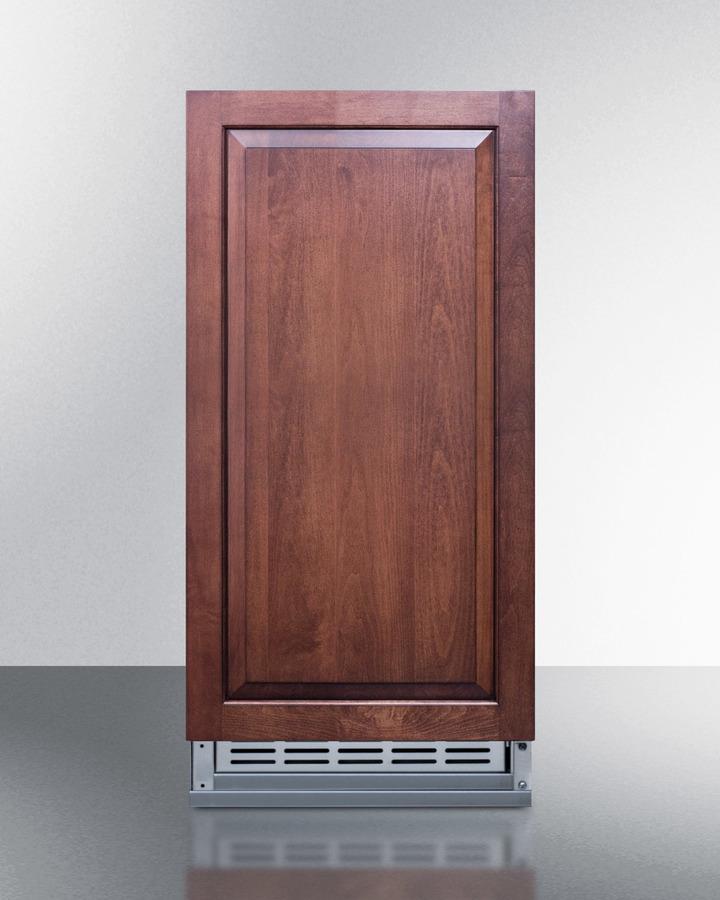

12 Lb. Drain-free Icemaker (panel Not Included)
Model BIM25H34IF
12 Lb. Drain-free Icemaker (panel Not Included)
Model BIM25H34IFQuick Specs
12 Lb. Drain-free Icemaker (panel Not Included) is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Convenient design allows more flexibility in positioning the unit
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Large plastic ice scoop included for your convenience
- Flush design with no exposed coils for easier cleanup
- Rear-mounted drain for easier cleaning
- Allows the icemaker to be used freestanding
- Unit ships with right hand door swing. For a left hand door swing, order with the "LHD" option
- Environmentally friendly design without ozone-damaging chemicals
- Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 28 1/2" H x 15 3/8" W)
- Door, cabinet, and kickplate feature full 304 grade stainless steel construction made in the USA
- Produces and stores up to 12 pounds of ice per day cycle
- Bucket can be removed for fast and easy cleaning
- Includes lower compartment for storing non-refrigerated items
- Ice stays solid longer in this cold-protected bin
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
SUMMIT brings convenient luxury under the counter with built-in icemakers in complete stainless steel. Sized at just 15 3/8" wide, the BIM25H34IF features a front-breathing design for built-in installation, but also has a fully finished stainless steel wrapped cabinet to allow freestanding use. The door is equipped with an integrated stainless steel frame designed to accept overlay panels (sized 28 1/2" H x 15 3/8" W), allowing you to create a custom look that blends into your existing cabinetry. This unit includes a lower non-refrigerated storage compartment with a swing door. It has a sealed back and right angle plug to allow more flush installation. Inside, the BIM25H34IF can produce up to 12 pounds of crescent-shaped ice per day, storing it inside a removable insulated bin. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required for use, offering more flexibility in where you place the unit. The BIM25H34IF ships with a connection hose. Other hardware should be supplied by your plumber. With its complete stainless steel construction and low maintenance design, the BIM25H34IF is a great way to finish any undercounter kitchen space.
| Overview | |
| Height of Cabinet | 34.0" (86 cm) |
| Height to Hinge Cap | 34.25" (87 cm) |
| Width | 15.38" (39 cm) |
| Depth | 21.0" (53 cm) |
| Depth with door at 90° | 34.0" (86 cm) |
| Capacity | 1.0 cu.ft. (28 L) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101059419 |
| Icemaker | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Daily Ice Production | 12.0 lbs. (5 kg) |
| Ice Storage Capacity | 12.0 lbs. (5 kg) |
| Ice Shape | Crescent |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.63 oz. |
| High Side PSI | 250.0 |
| Low Side PSI | 110.0 |
| Interior Height | 11.5" (29 cm) |
| Interior Width | 10.0" (25 cm) |
| Interior Depth | 12.63" (32 cm) |
| Level Legs | 2 |
- Convenient design allows more flexibility in positioning the unit
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Large plastic ice scoop included for your convenience
- Flush design with no exposed coils for easier cleanup
- Rear-mounted drain for easier cleaning
- Allows the icemaker to be used freestanding
- Unit ships with right hand door swing. For a left hand door swing, order with the "LHD" option
- Environmentally friendly design without ozone-damaging chemicals
- Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 28 1/2" H x 15 3/8" W)
- Door, cabinet, and kickplate feature full 304 grade stainless steel construction made in the USA
- Produces and stores up to 12 pounds of ice per day cycle
- Bucket can be removed for fast and easy cleaning
- Includes lower compartment for storing non-refrigerated items
- Ice stays solid longer in this cold-protected bin
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
