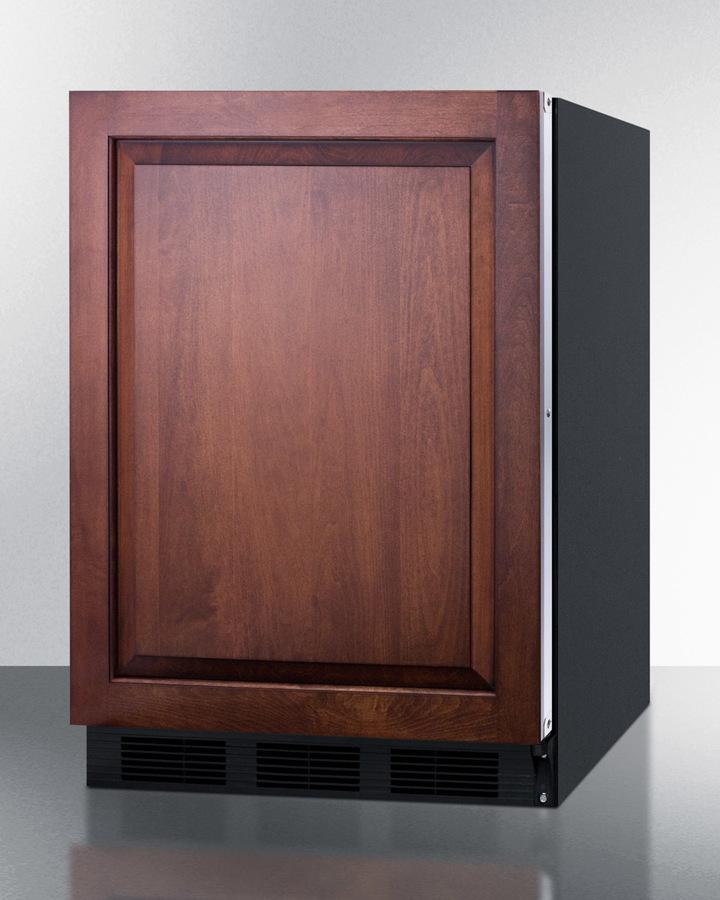

24" Wide Built-in Refrigerator-freezer
Model BI541BIF
24" Wide Built-in Refrigerator-freezer
Model BI541BIFQuick Specs
24" Wide Built-in Refrigerator-freezer is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Less than 24 inches wide to fit tight spaces
- Keep tall bottles and condiments right on the door for convenient access
- Allows the refrigerator to be used freestanding
- Our refrigerator freezers are environmentally friendly because they do not run on ozone-damaging chemicals
- Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
- This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Static manual defrost freezer section offers more stability
- Our unique and efficient design separately cools the refrigerator while maintaining zero degrees in the freezer with two evaporators
- Dial thermostat located inside for easy temperature management
- Automatically illuminates when you open the door
- Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Get the longest life and best taste out of produce by storing it in a convenient slide drawer
Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The BI540 Series includes built-in undercounter refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions. Sized with a 24" footprint, the BI541BIF can be used built-in under counters or freestanding. The interior offers over 5 cu.ft. of storage capacity. This model has a black cabinet. The door includes an integrated frame designed to accept full overlay panels for a custom look. Users provide their own handle. Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, while the manual defrost freezer compartment can maintain zero degrees. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting. The BI541BIF has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full BI540 Series. NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.
| Overview | |
| Height of Cabinet | 32.75" (83 cm) |
| Height to Hinge Cap | 33.25" (84 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.13" (64 cm) |
| Depth with door at 90° | 45.63" (116 cm) |
| Capacity | 5.1 cu.ft. (144 L) |
| Defrost Type | Cycle |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | UL |
| Amps | 1.3 |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101028026 |
| Refrigerator-Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 19.5" (50 cm) |
| Refrigerator - Interior Width | 20.5" (52 cm) |
| Refrigerator - Interior Depth | 17.0" (43 cm) |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 3 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 5.0" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.6 oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 20.5" (52 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
