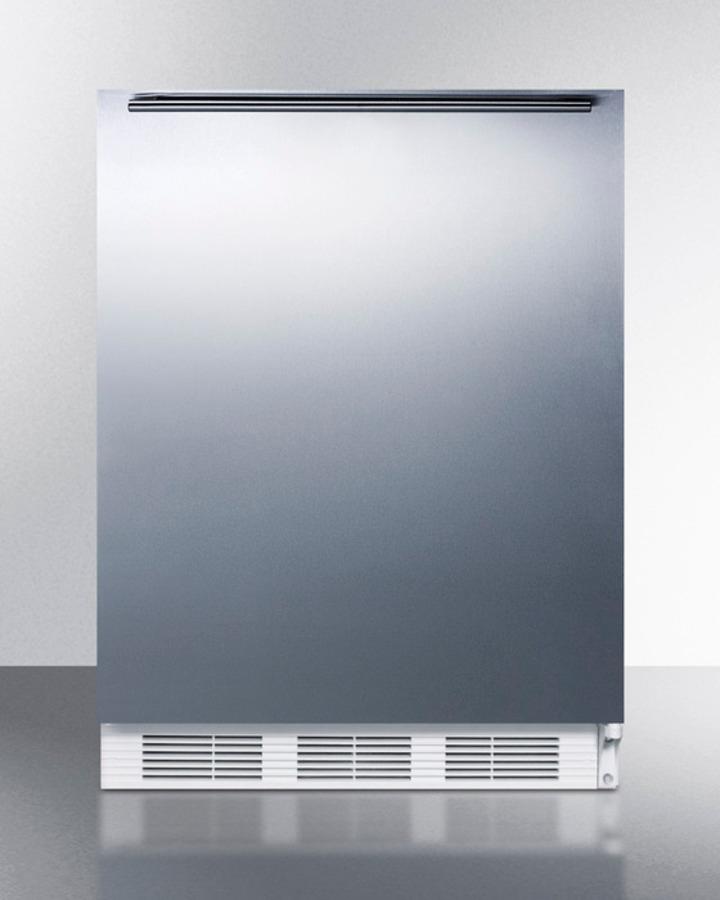

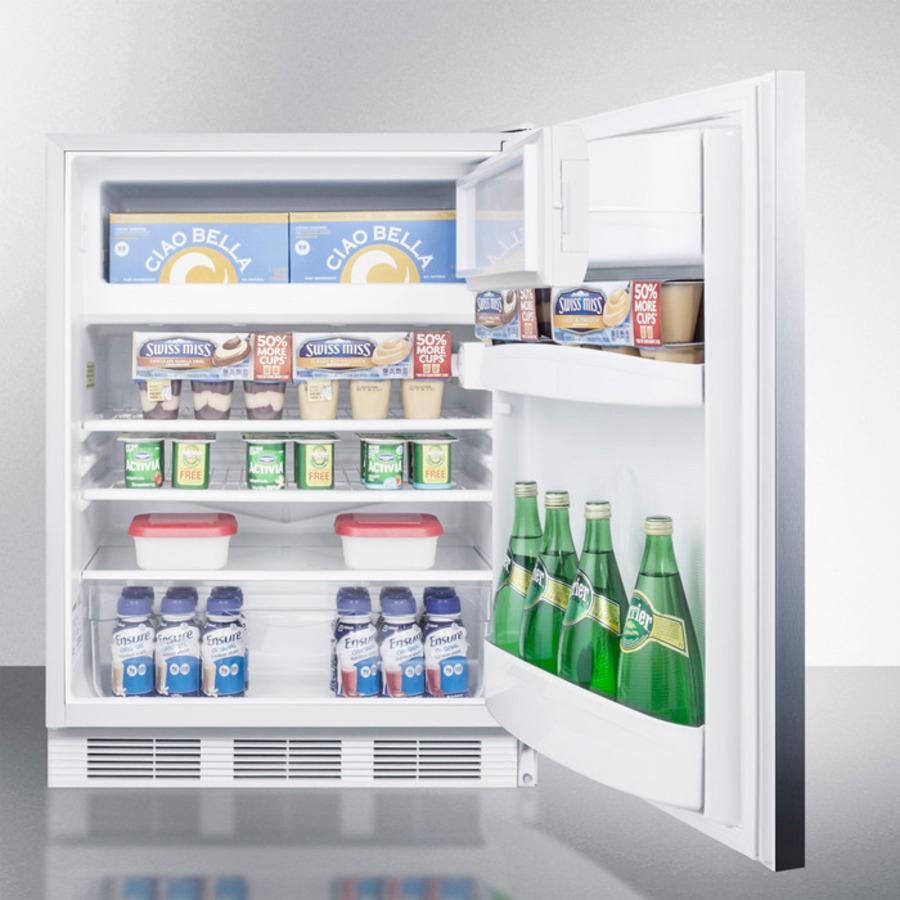

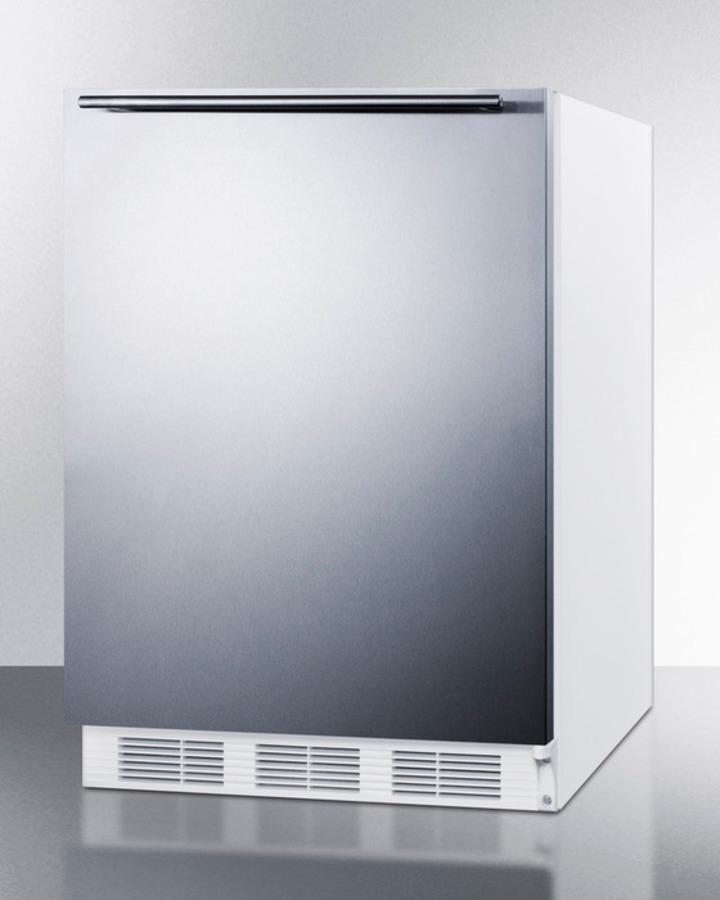

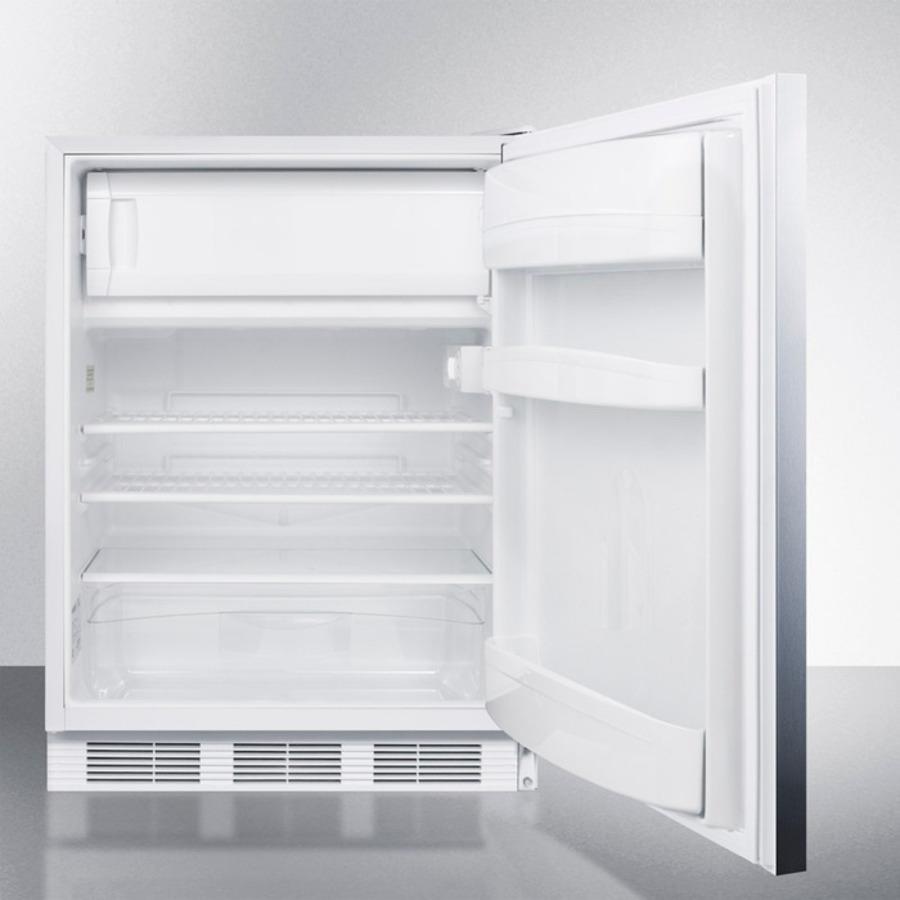

24" Wide Built-in Refrigerator-freezer
Model BI540SSHH
24" Wide Built-in Refrigerator-freezer
Model BI540SSHHQuick Specs
24" Wide Built-in Refrigerator-freezer is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Ideal 24" footprint offers full 5.1 cu.ft. storage capacity in a slim fit
- Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Automatically illuminates when you open the door
- Cold wall design with hidden evaporator and seamless interior
- User-reversible door swing for added flexibility
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Durable design with lasting elegance
- Thin (14mm diameter) stainless steel handle mounted horizontally for a sleek look that matches many popular styles of cabinetry
- This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Stable interior allows you to store sensitive items under reliable freezer conditions
- Our unique and efficient design separately cools the refrigerator while maintaining zero degrees in the freezer with two evaporators
- Dial thermostat located inside for easy temperature management
- Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Keep tall bottles and condiments right on the door for convenient access
Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The BI540 Series includes built-in undercounter refrigerator-freezers equipped with dual evaporator cooling for optimum storage conditions. Sized with a 24" footprint, the BI540SSHH can be used built-in under counters or freestanding. The interior offers over 5 cu.ft. of storage capacity. This model has a white cabinet and reversible stainless steel wrapped door. A thin handle with a 14mm diameter is mounted horizontally for a sleek, modern look. Inside, our unique dual evaporator system separately cools the refrigerator and freezer section to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, while the manual defrost freezer compartment can maintain zero degrees. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting. The BI540SSHH has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full BI540 Series. NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.
| Overview | |
| Height of Cabinet | 32.75" (83 cm) |
| Height to Hinge Cap | 33.25" (84 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.75" (63 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Capacity | 5.1 cu.ft. (144 L) |
| Defrost Type | Cycle |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | UL |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101009865 |
| Refrigerator-Freezer | |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 19.5" (50 cm) |
| Refrigerator - Interior Width | 20.5" (52 cm) |
| Refrigerator - Interior Depth | 17.0" (43 cm) |
| Refrigerator - Shelf Type | Wire |
| Refrigerator - Shelf Qty | 3 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 5.0" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.6 oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 20.5" (52 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
