24" Wide Built-in All-refrigerator, ADA Compliant
Model: AR5S
24" Wide Built-in All-refrigerator, ADA Compliant
Model: AR5SQuick Specs
24" Wide Built-in All-refrigerator, ADA Compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 32" height to fit under lower ADA compliant counters
- Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Cold wall design with hidden evaporator creates a seamless, easy to clean interior

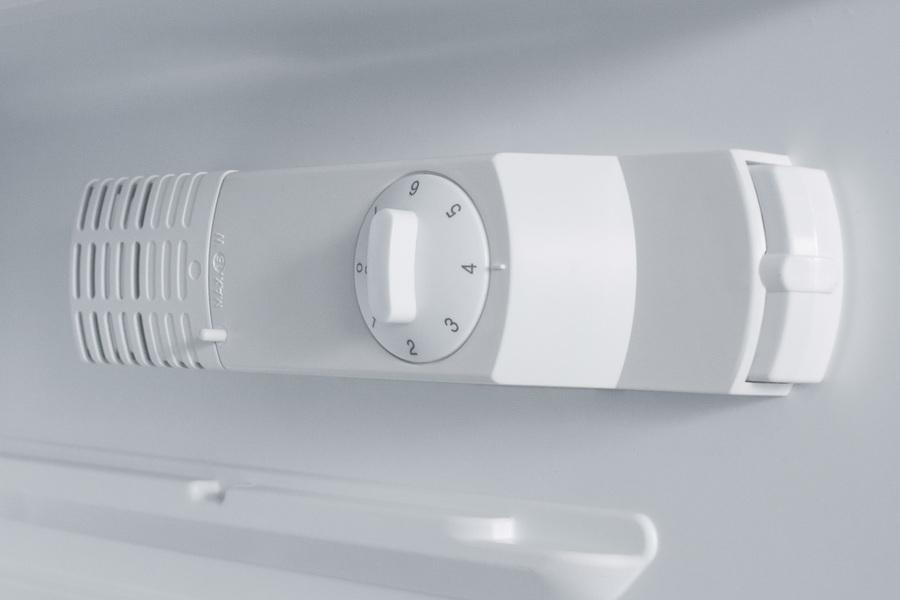

- Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management
- User-reversible door swing for added flexibility
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Durable design with lasting elegance

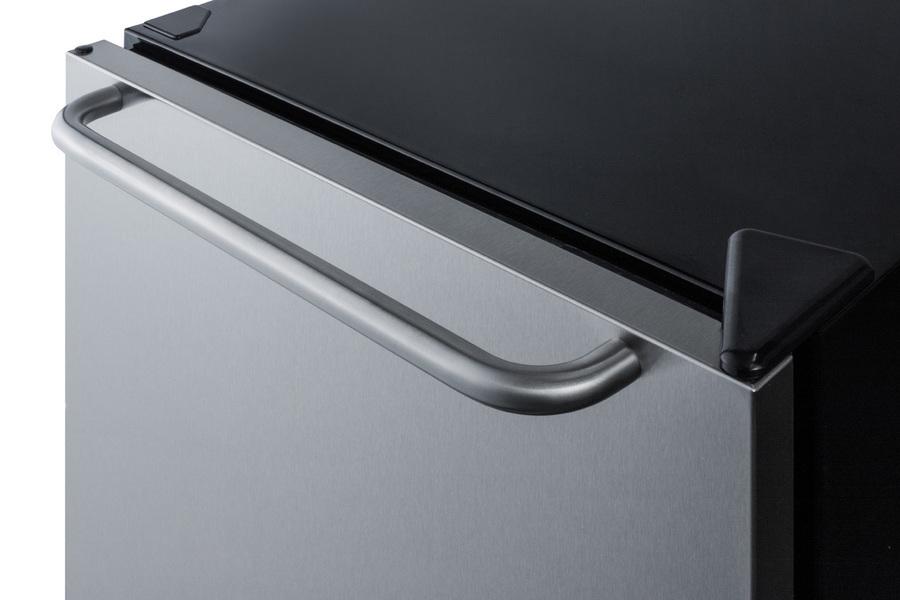

- Brushed stainless steel handle is mounted horizontally for an attractive look
- Reduced maintenance with auto defrost system
- Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Store tall bottles and condiments right on the door for convenient access
- Removable scalloped wine shelf is included to store champagne and wine bottles
- Automatically illuminates when you open the door
SUMMIT offers the industry's largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. Sized with a 24" footprint and 32" height, the AR5S is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a curved towel bar style handle mounted horizontally for a modern look. Inside, the AR5S utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5S features Summit's intuitive dial thermostat for easy temperature management. Designed and constructed in Europe, the AR5S brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF.
| Overview | |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Energy Usage/Year | 307.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101064338 |
| Refrigerator Features | |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 1.7oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Interior Light | Yes |
| Dimensions | |
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
