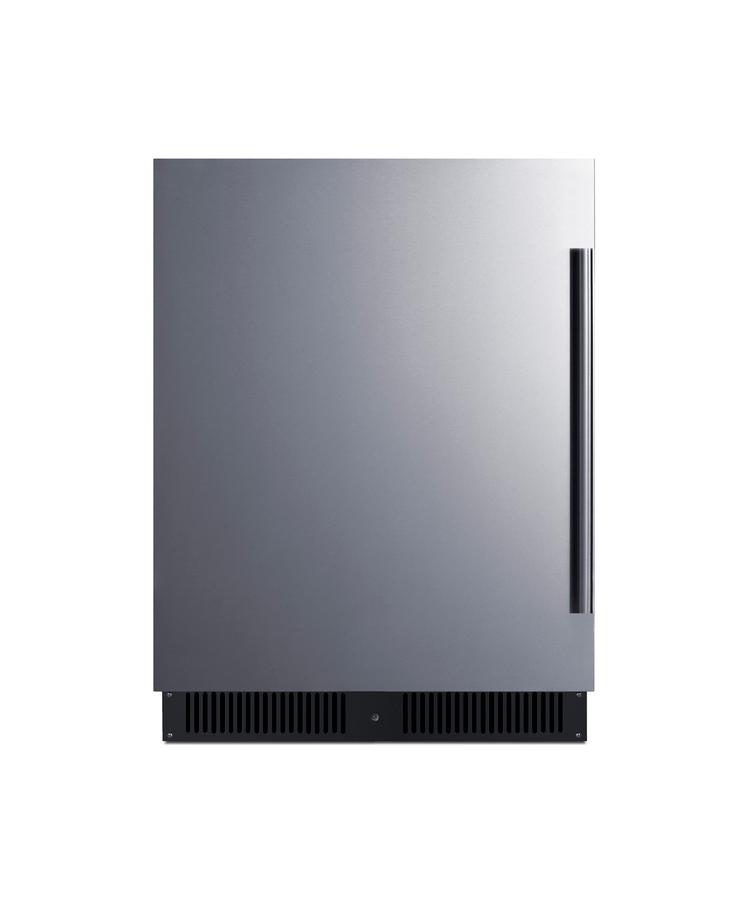

24" Wide Built-in All-freezer With Icemaker, ADA Compliant
Model: ALFZ53IMLHD
Authorized Dealer
Loading...
Authorized Dealer
24" Wide Built-in All-freezer With Icemaker, ADA Compliant
Model: ALFZ53IMLHDQuick Specs
Depth
22.88
Freezer
3.7
ADA
YES
Wifi
NO
24" Wide Built-in All-freezer With Icemaker, ADA Compliant is backordered and will ship as soon as it is back in stock.
Estimated to ship in 1-4 weeks
Available to Order
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Depth
22.88
Freezer Capacity
3.7
ADA
YES
Wifi Connected
NO
- 24" Wide All-Freezer with Icemaker
- Frost-free freezer for installation under the counter
- Factory-installed icemaker
- Interior icemaker holds up to 5 lbs. of cubes
- ADA compliant design
- 32" height allows easy installation under lower ADA compliant counters
- Built-in capable
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Frost-free operation
- No-frost convenience eliminates the need to manually defrost the unit
- Stainless steel door
- Durable construction with a professional look
- Digital thermostat
- Electronic controls offer easy and intuitive temperature management
- Recessed LED light
- Elegant lighting with an on/off switch located on the control panel
- Adjustable shelves
- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Factory installed lock
- Keyed lock for a secure interior
- Professional handle
- Attractive chrome handle adds a touch of modern style
- Open door alarm
- Audible alarm will sound if the door is left open longer than one minute
- Sabbath mode setting
- Optional setting lets you disable the lighting and alarm for up to 96 hours
- High temperature alarm
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss
- Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Sealed back
- Space-saving design with no exposed coils for easier cleanability
- STAR-K Certified
- Complies with kosher requirements for use during the Sabbath and Jewish holidays
- Fully finished cabinet
- Allows the freezer to be used as a freestanding model
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Lead-free certified
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
- Frost-free freezer for installation under the counter
- Interior icemaker holds up to 5 lbs. of cubes
- Attractive chrome handle adds a touch of modern style
- Audible alarm will sound if the door is left open longer than one minute
- Optional setting lets you disable the lighting and alarm for up to 96 hours
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Unit will retain its last settings when power is restored in the event of power loss
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space-saving design with no exposed coils for easier cleanability
- Complies with kosher requirements for use during the Sabbath and Jewish holidays
- Allows the freezer to be used as a freestanding model
- Environmentally friendly design without ozone-damaging chemicals
- 32" height allows easy installation under lower ADA compliant counters
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- No-frost convenience eliminates the need to manually defrost the unit
- Durable construction with a professional look
- Electronic controls offer easy and intuitive temperature management
- Elegant lighting with an on/off switch located on the control panel
- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Keyed lock for a secure interior
Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers equipped with factory-installed icemakers. Model ALFZ53IMLHD is a 24" wide all-freezer. Sized at just 32" high, it can easily be installed under an ADA compliant counter. This freezer features a jet black cabinet and stainless steel door with a pro style handle. A factory-installed lock offers added security. This unit comes with a front-breathing system that enables recessed built-in installation, while the fully finished exterior also allows freestanding use as needed. A right angle plug and sealed back design offers added space savings. Inside, this freezer utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. A factory-installed icemaker keeps a steady supply of crescent cubes for easy refreshment. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls for easy temperature management. With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant kitchens. Additional sizes and styles are available. Browse the full selection to explore your options.
| Overview | |
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.38" (59 cm) |
| Depth | 22.88" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 46.88" (119 cm) |
| Capacity | 3.7 cu.ft. (105 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 345.0kWh/year |
| Amps | 1.5 |
| Plug Type | NEMA 5-15P (Right Angle) |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 82.0 lbs. (37 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101161334 |
| Freezer | |
| Door Swing | LHD |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 18.63" (47 cm) |
| Interior Depth | 15.5" (39 cm) |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Compressor Step Height | 5.0" (13 cm) |
| Compressor Step Width | 18.63" (47 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Temperature Range | -11°F to 11°F |
| Star-K Certified | Yes |
| Sabbath Mode | Yes |
