24" Wide Built-in All-refrigerator, ADA Compliant
Model AL752BKBISSHV
24" Wide Built-in All-refrigerator, ADA Compliant
Model AL752BKBISSHVQuick Specs
24" Wide Built-in All-refrigerator, ADA Compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- ADA compliant
- 32 inch height fits under standard ADA counters
- Slim undercounter dimensions
- Less than 24 inches wide with a full 5.5 c.f. capacity
- Built-in capable
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Fully finished black cabinet
- Allows the unit to be used freestanding
- Stainless steel door
- Durable design with lasting elegance
- Professional stainless steel handle
- Thin 14mm diameter on vertical stainless steel handle
- Automatic defrost
- Reduced user maintenance with automatic defrost operation
- One piece interior liner
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Hidden evaporator
- Cold wall design with hidden evaporator and seamless interior
- Adjustable glass shelves
- Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Flat door liner
- An easy-to-clean flat liner accepts large trays
- Deep shelf space
- Interior accommodates large trays up to 19 1/2" x 15 1/2"
- Interior light on rocker switch
- Turn the light on when you need it and off when you're done with a convenient rocker switch
- Adjustable thermostat
- Dial thermostat located inside for easy temperature management
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- 32 inch height fits under standard ADA counters
- Less than 24 inches wide with a full 5.5 c.f. capacity
- An easy-to-clean flat liner accepts large trays
- Interior accommodates large trays up to 19 1/2" x 15 1/2"
- Turn the light on when you need it and off when you're done with a convenient rocker switch
- Dial thermostat located inside for easy temperature management
- Environmentally friendly design without ozone-damaging chemicals
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Allows the unit to be used freestanding
- Durable design with lasting elegance
- Thin 14mm diameter on vertical stainless steel handle
- Reduced user maintenance with automatic defrost operation
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
- Cold wall design with hidden evaporator and seamless interior
- Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

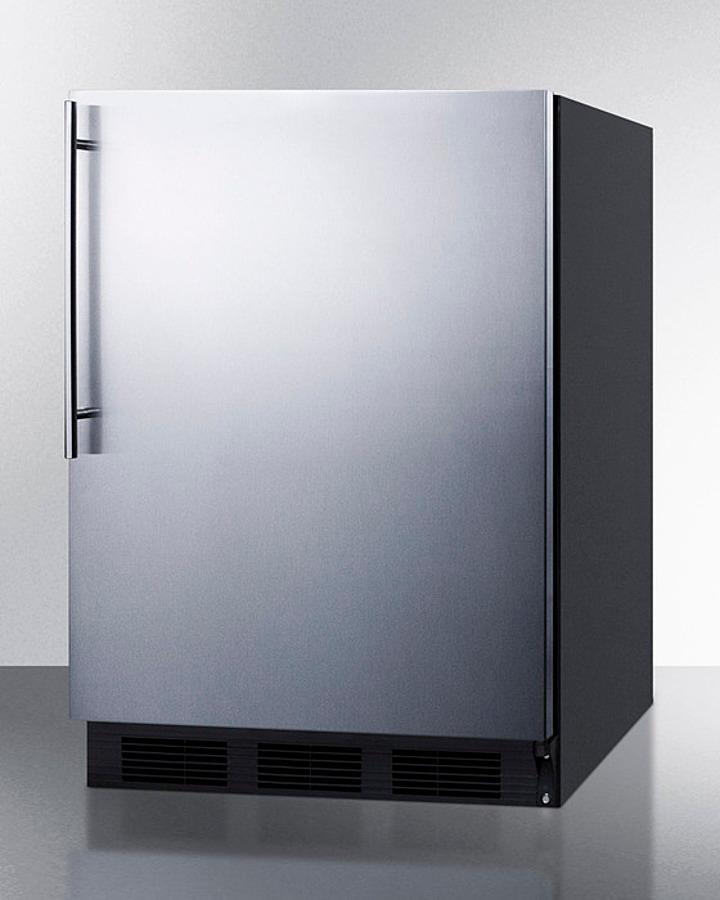

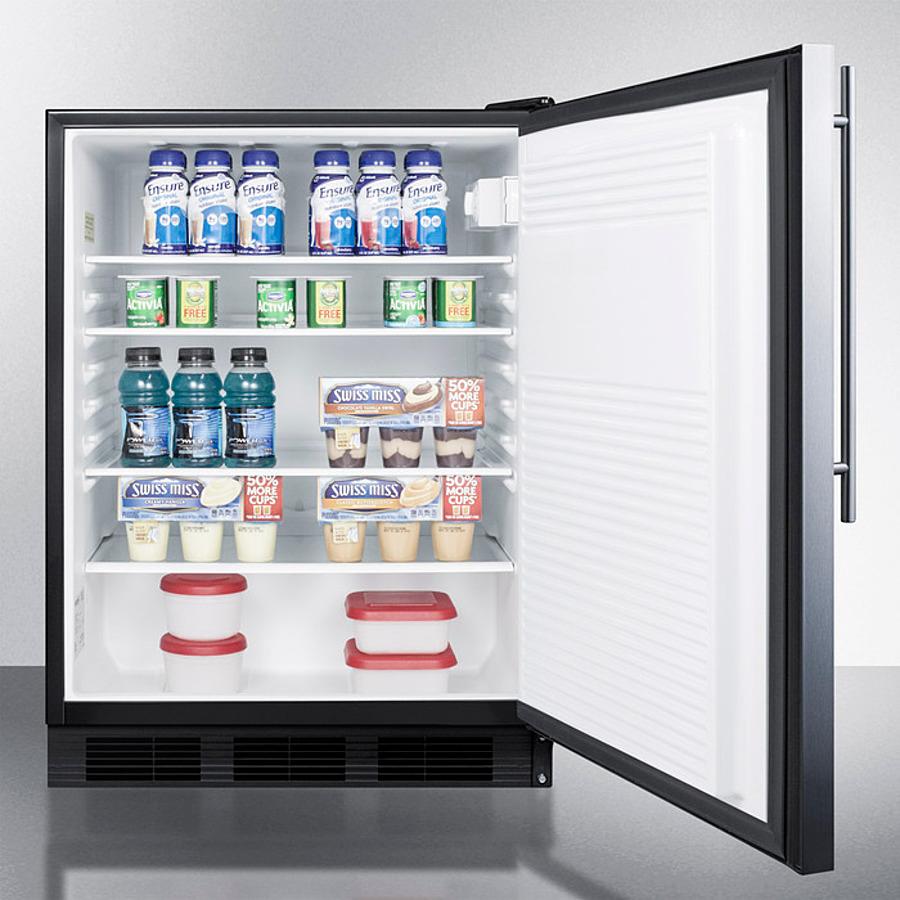

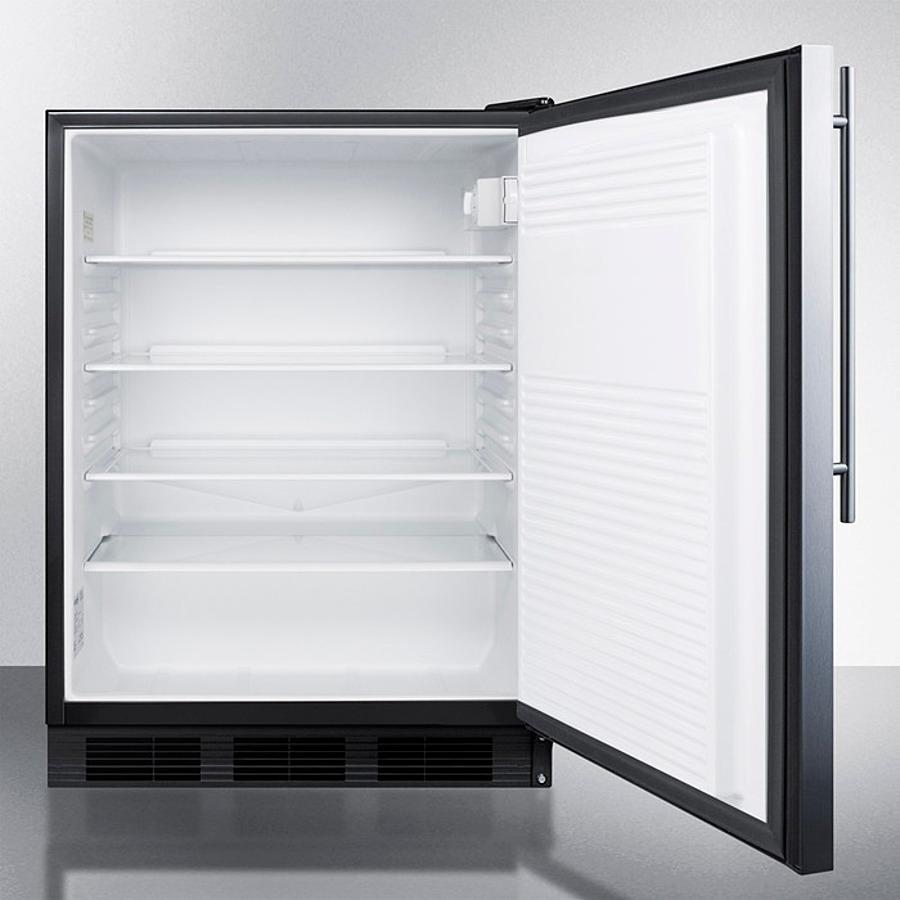

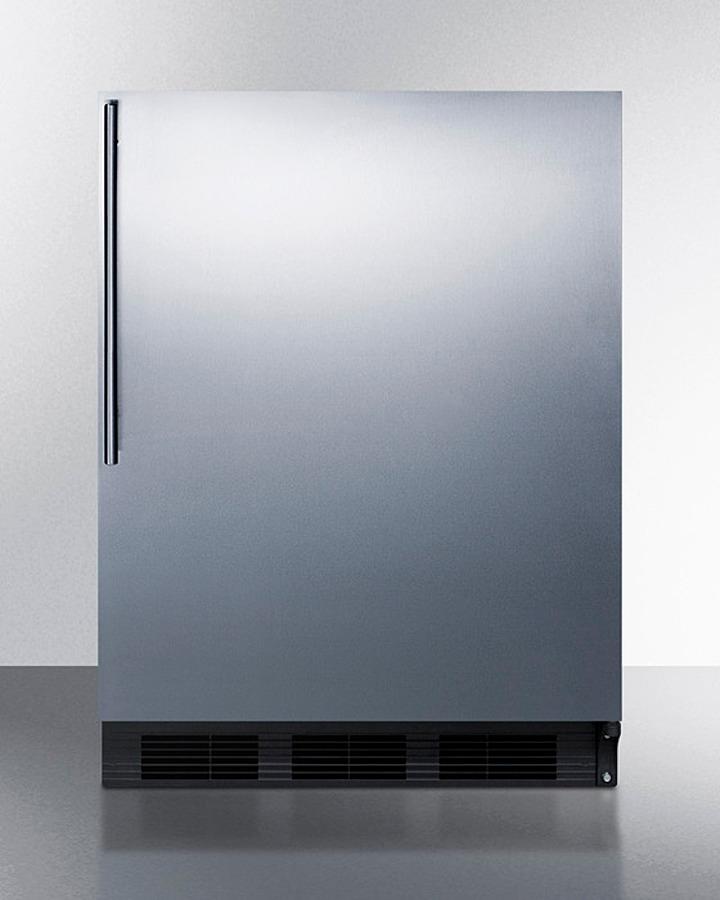

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The AL750BI Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters. The AL752BKBISSHV is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a black cabinet and stainless steel wrapped door. A thin handle with a 14mm diameter completes the sleek, modern look. Inside, the AL752BKBISSHV utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial. For more finish options, browse the entire AL750BI Series. NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.
| Overview | |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.75" (63 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101069326 |
| Refrigerator Features | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Dimensions | |
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 17.75" (45 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
