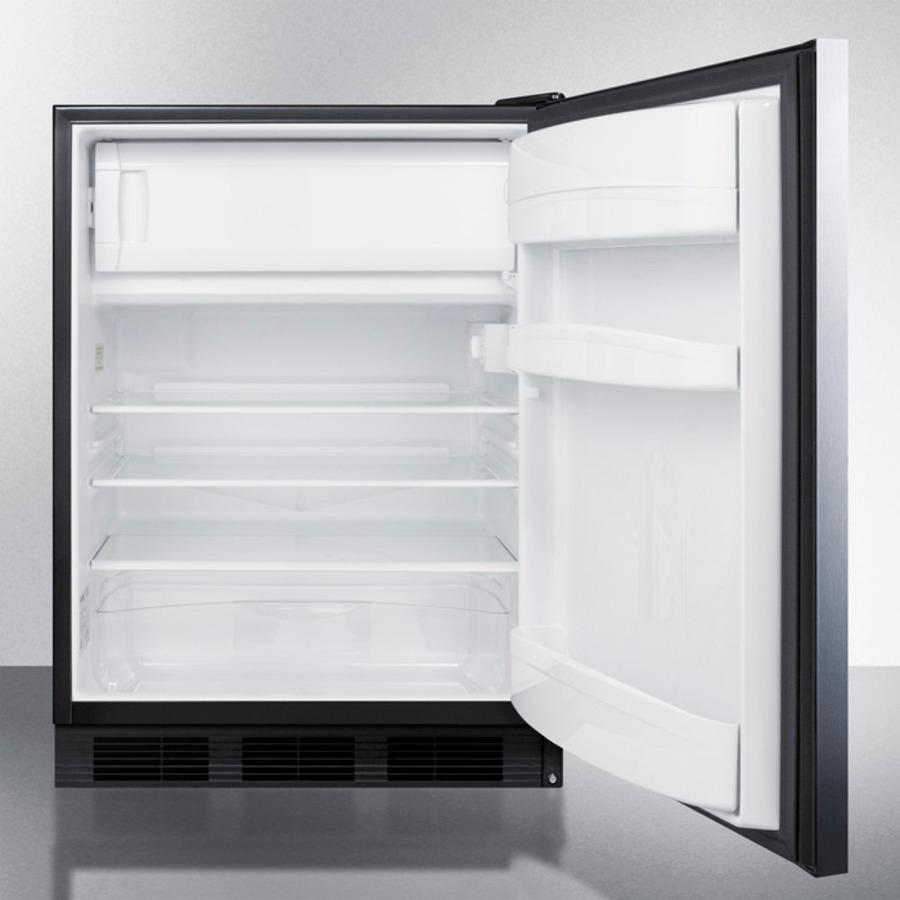

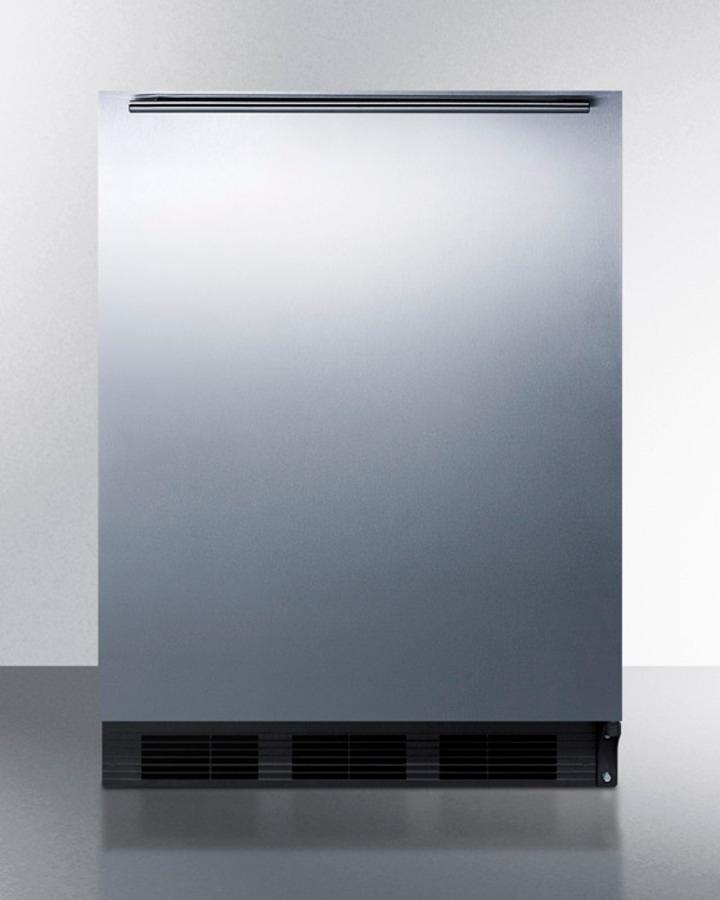

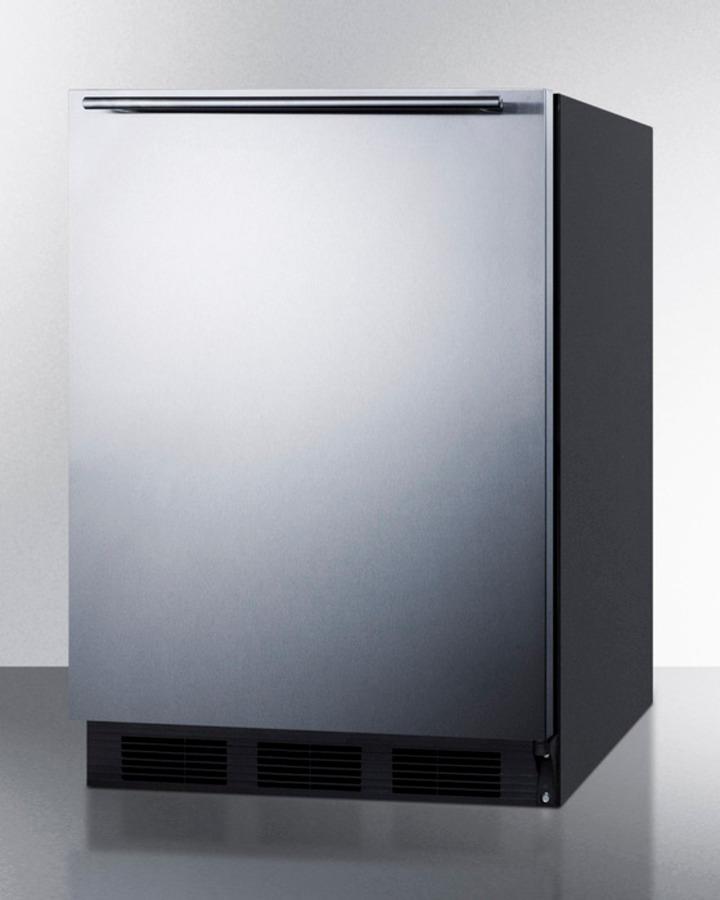

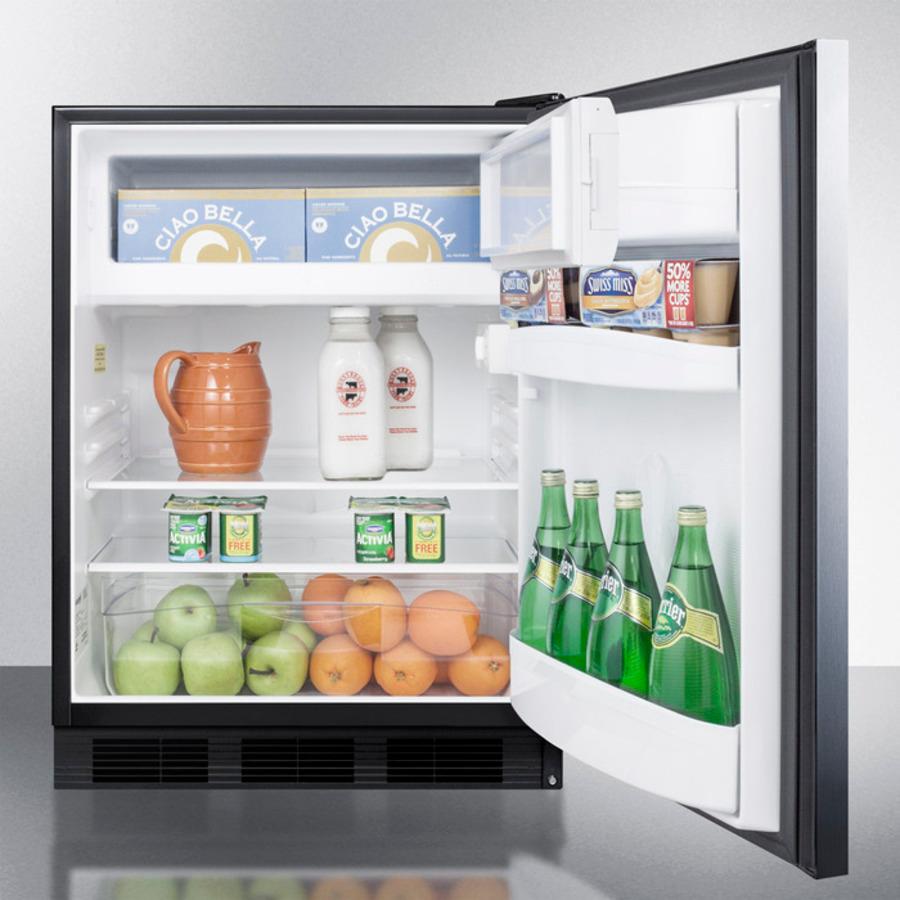

24" Wide Built-in Refrigerator-freezer, ADA Compliant
Model: AL652BBISSHH
24" Wide Built-in Refrigerator-freezer, ADA Compliant
Model: AL652BBISSHHQuick Specs
24" Wide Built-in Refrigerator-freezer, ADA Compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 32 inch height fits under standard ADA counters
- Less than 24 inches wide to fit tight spaces
- Dial thermostat located inside for easy temperature management
- Automatically illuminates when you open the door
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Durable design with lasting elegance
- Thin 14mm diameter on stainless steel handle set horizontally across the door
- This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Store tall bottles and condiments right on the door for convenient access
Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The AL650BI Series includes refrigerator-freezers designed for optimum storage conditions in built-in applications under lower ADA compliant counters. At 32" high, the AL652BBISSHH can be used built-in or freestanding in ADA compliant settings. The 24" footprint fits many popular cutouts while offering over 5 cu.ft. of storage capacity. This model has a black cabinet and reversible stainless steel wrapped door. A thin handle is mounted horizontally to complete the sleek, modern look. Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable glass shelves, a clear crisper, and automatic interior lighting. The AL652BBISSHH has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full AL650BI Series. NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.
| Overview | |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.25" (62 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 5.1 cu.ft. (144 L) |
| Defrost Type | Cycle |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101017181 |
| Refrigerator-Freezer | |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 19.5" (50 cm) |
| Refrigerator - Interior Width | 20.5" (52 cm) |
| Refrigerator - Interior Depth | 17.0" (43 cm) |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 3 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 5.0" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Thermostat Type | Dial |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.6 oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 20.5" (52 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
- 32 inch height fits under standard ADA counters
- Less than 24 inches wide to fit tight spaces
- Dial thermostat located inside for easy temperature management
- Automatically illuminates when you open the door
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Make the best use of space by installing your appliance under the counter and flush with other cabinets
- Durable design with lasting elegance
- Thin 14mm diameter on stainless steel handle set horizontally across the door
- This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
- Store tall bottles and condiments right on the door for convenient access
