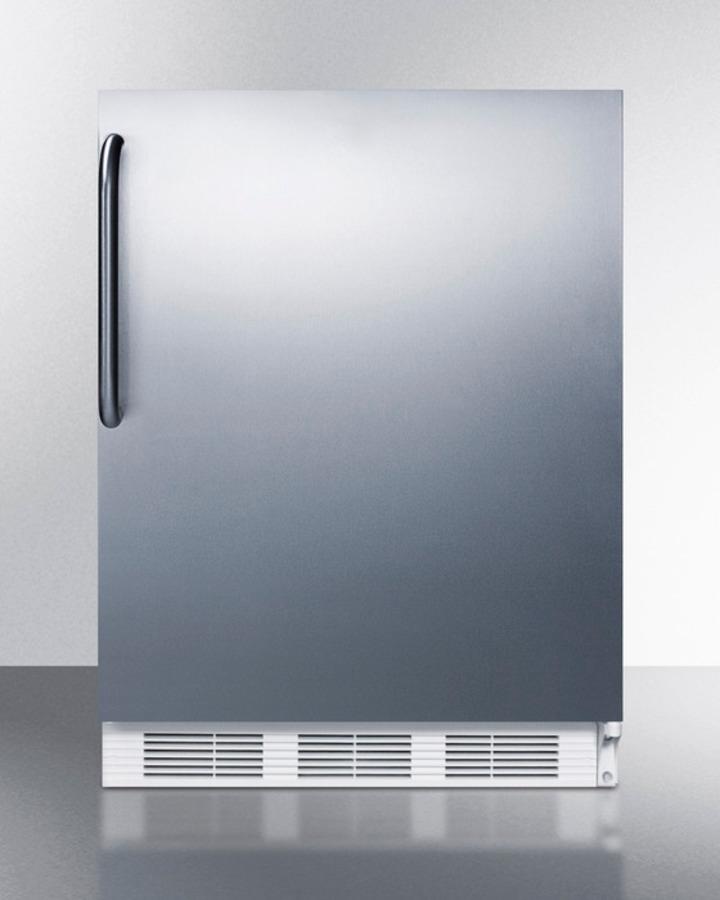

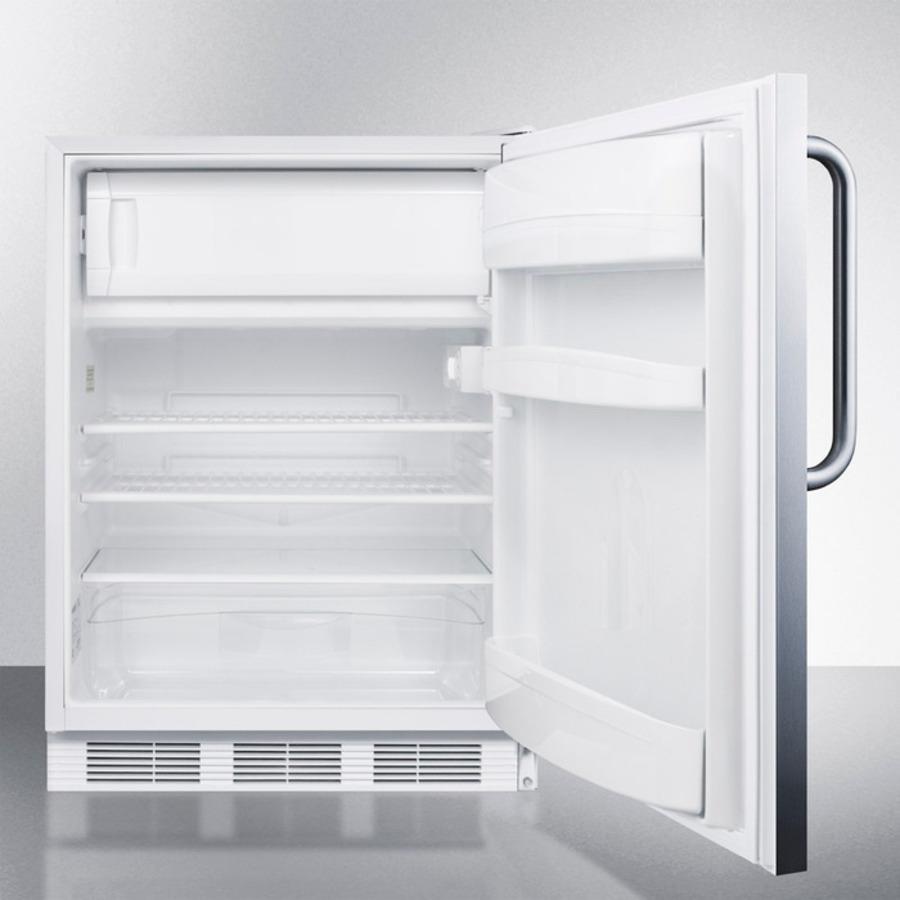

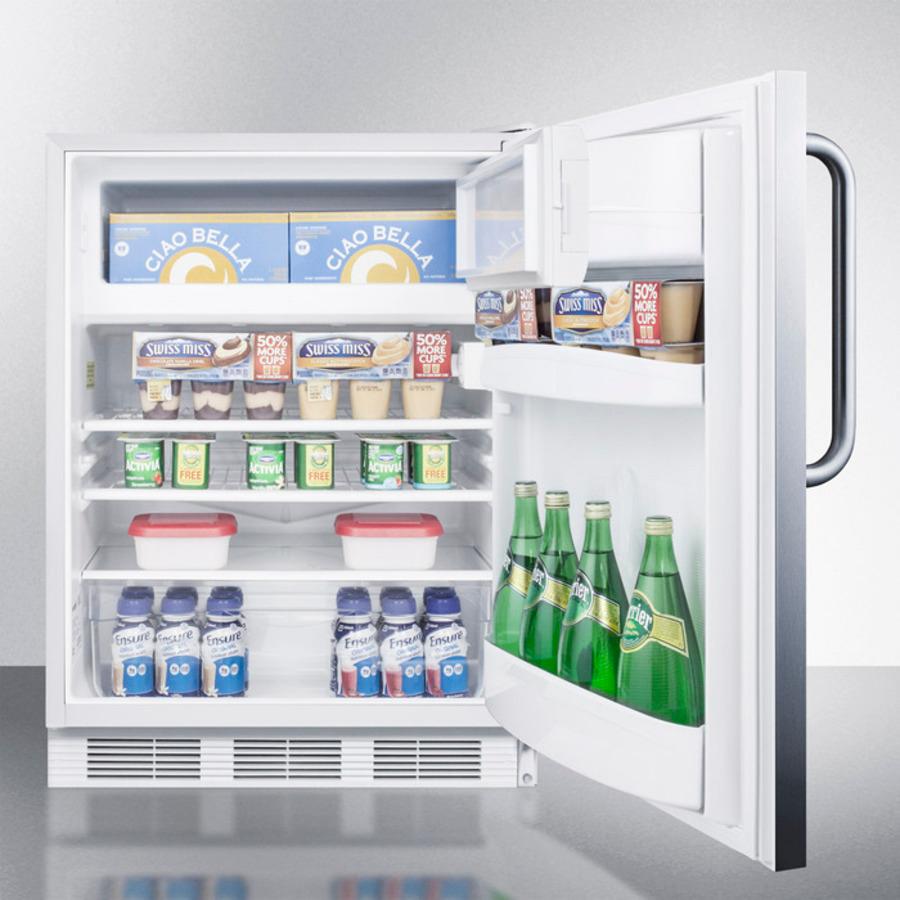

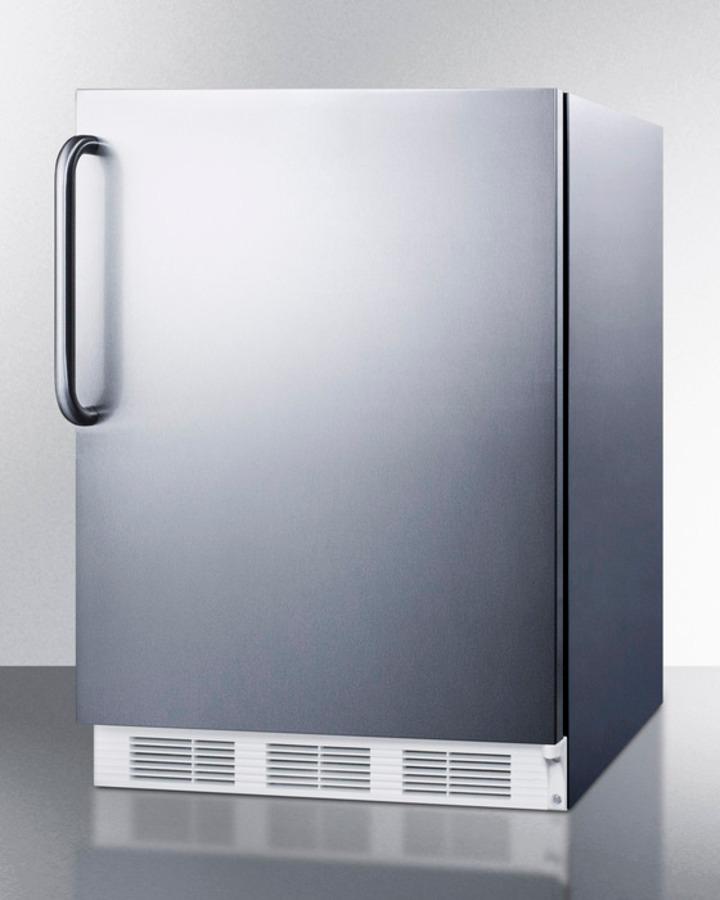

24" Wide Built-in Refrigerator-freezer, ADA Compliant
Model AL650CSS
24" Wide Built-in Refrigerator-freezer, ADA Compliant
Model AL650CSSQuick Specs
24" Wide Built-in Refrigerator-freezer, ADA Compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- 32 inch height fits under standard ADA counters
- Make the best use of space by installing your refrigerator-freezer under the counter and flush with other cabinets
- Automatically illuminates when you open the door
- Store tall bottles and condiments right on the door for convenient access
- Environmentally friendly design without ozone-damaging chemicals
- Allows the refrigerator-freezer to be used as a freestanding model
- Enhance any room with durable luxury
- Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
- This system utilizes user-friendly automatic defrost operation in the fresh food section and efficient manual defrost operation in the freezer compartment
- Our unique and efficient design separately cools the refrigerator while maintaining a lower temperature in the freezer compartment by utilizing two evaporators
- Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- Dial thermostat located inside for easy temperature management
- Get the longest life and best taste out of produce by storing in a convenient slide drawer
Accucold by Summit Appliance offers a wide range of undercounter refrigeration for general purpose storage. The AL650BI Series includes refrigerator-freezers designed for optimum storage conditions in built-in applications under lower ADA compliant counters. At 32" high, the AL650CSS can be used built-in or freestanding in ADA compliant settings. The 24" footprint fits many popular cutouts while offering over 5 cu.ft. of storage capacity. This model has a fully wrapped stainless steel cabinet and door. A curved towel bar handle completes the professional look. Inside, our unique dual evaporator system separately cools the refrigerator and freezer sections to ensure proper storage temperature. Cycle defrost operation reduces user maintenance in the automatic defrost fresh food section, with static manual defrost operation in the freezer compartment. Door storage provides easy access for tall bottles and small condiments. Additional features include adjustable shelves, a clear crisper, and automatic interior lighting. The AL650CSS has long proven itself to have one of the best temperature performance records in the industry. To see additional finish options on this unit, browse the full AL650BI Series. NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.
| Overview | |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Width | 23.75" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.75" (65 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Capacity | 5.1 cu.ft. (144 L) |
| Defrost Type | Cycle |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101017075 |
| Refrigerator-Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 19.5" (50 cm) |
| Refrigerator - Interior Width | 20.5" (52 cm) |
| Refrigerator - Interior Depth | 17.0" (43 cm) |
| Refrigerator - Shelf Type | Wire |
| Refrigerator - Shelf Qty | 2 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 5.0" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.6 oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 20.5" (52 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
