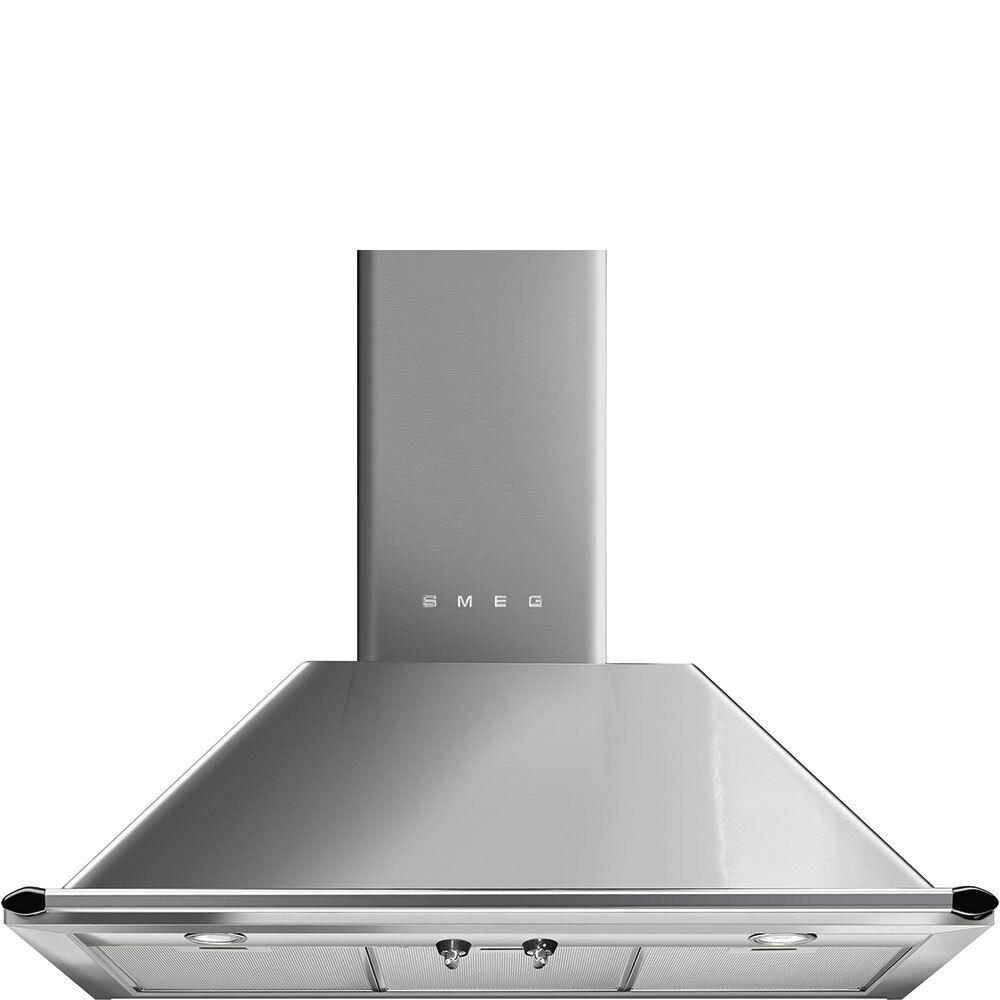

Hood Stainless steel KT90XU
Model KT90XU
Authorized Dealer
Loading...
Authorized Dealer
Hood Stainless steel KT90XU
Model KT90XUQuick Specs
Depth
18.891
Height
45.28
Hood Stainless steel KT90XU is backordered and will ship as soon as it is back in stock.
Regular price
$3,217.54
Unit price
/
Unavailable
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
18.891
Height
45.28
- Product family: Hood
- Hood Type: Decorative wall hood
- Aesthetic: Victoria
- Color: Stainless steel
- Hood width: 36 "
(P)(B)Traditional Design(/B)(/P)(P)Wall mounted ventilation(/P)(P)Stylish ergonomic control knobs(/P)(P)Front mounted controls for lights and vent speeds(/P)(P)1 fan motor (/P)(P)4 speeds(/P)(P)2 Halogen lights (2x20W)(/P)(P)3 Dishwasher-safe stainless steel grease filters(/P)(P)Vented or Recirculating(/P)(P)600 CFM max setting(/P)(P)Vent duct size 6"(/P)(P)Voltage rating 120 V / 60Hz / 4.5 Amps(/P)(P)Power: 485W(/P)
| Type | |
| Product family | Hood |
| Hood Type | Decorative wall hood |
| Hood width | 36 " |
| Extraction | Vented |
| EAN code | 8017709198527 |
| Aesthetic | |
| Color | Stainless steel |
| Finishing | Satin |
| Aesthetic | Victoria |
| Design | Chimney |
| Material | Stainless steel |
| Stainless steel type | Brushed |
| Programs / Functions | |
| Speed levels | 4 |
| Controls | |
| Control setting | Control knobs |
| Control knobs | Victoria |
| No. of controls | 2 |
| Controls color | Stainless steel effect |
| Technical Features | |
| No. of lights | 2 |
| Lighting | Halogen |
| Light power | 20 W |
| Light color temperature scale (°K) | 3000 °K |
| Maximum extraction capacity at free mode | 482.5 CFM |
| Motor power | 445 W |
| No. of filters | 3 |
| Anti-grease filters | Aluminum |
| Minimum distance from gas cooktop | 30 " |
| Vent outlet | 150 " |
| Minimum distance from electric cooktop | 26 " |
| No-return valve | Yes |
| Electrical Connection | |
| Electrical connection rating | 485 W |
| Voltage | 120 V |
| Frequency (Hz) | 60 Hz |
| Power supply cable length | 39 3/8 " |
| Speed level 1 | |
| Extraction rate | 275.5 CFM |
| Noise level | 48 dB(A) |
| Power | 214 W |
| Speed 2 | |
| Extraction rate | 411.5 CFM |
| Noise level | 55 dB(A) |
| Power | 265 W |
| Speed 3 | |
| Extraction rate | 551 CFM |
| Noise level | 61 dB(A) |
| Power | 310 W |
| Speed level 4 | |
| Extraction rate | 665 CFM |
| Noise level | 69 dB(A) |
| Power | 360 W |
| Logistic Information | |
| Dimensions | 1150x900x535 |
| Width | 35 7/16 " |
| Depth | 21 1/16 " |
| Height | 45 1/4 " |
| Net weight | 37 lbs |
| Gross weight | 47 lbs |
- Product family: Hood
- Hood Type: Decorative wall hood
- Aesthetic: Victoria
- Color: Stainless steel
- Hood width: 36 "
