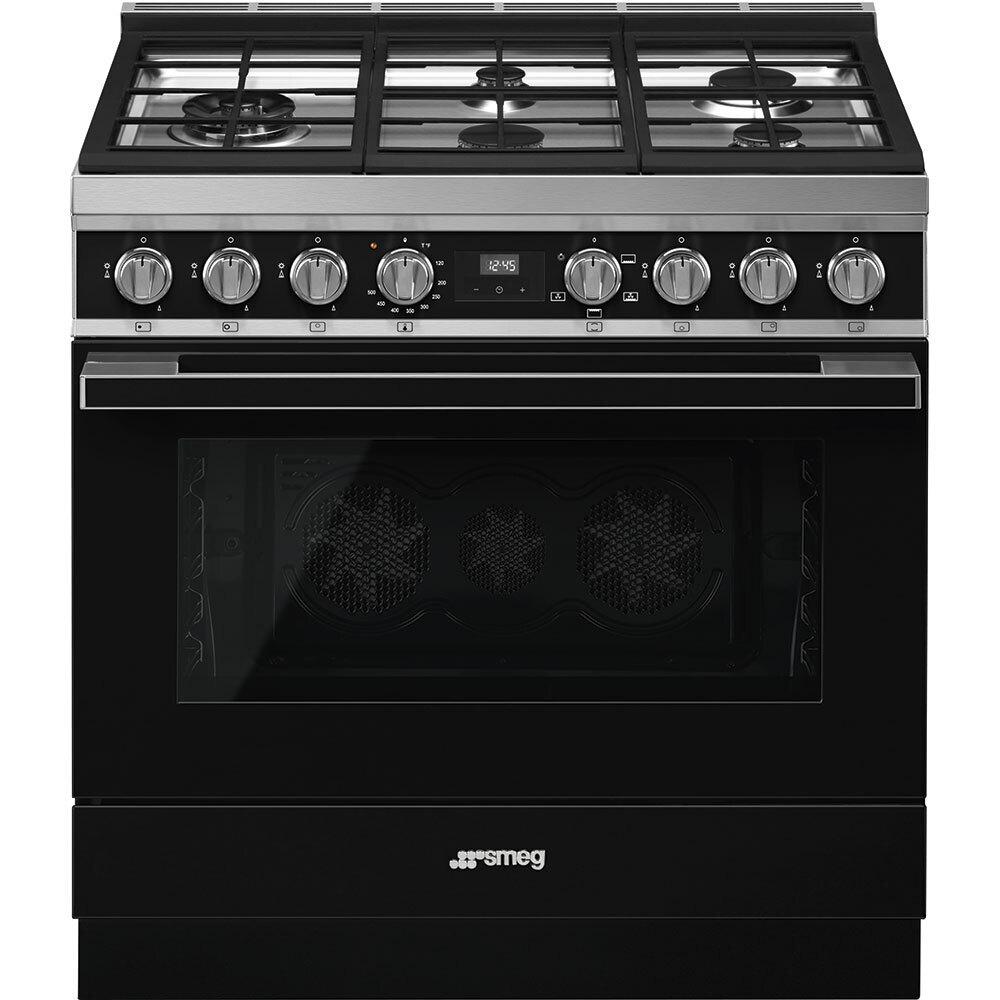

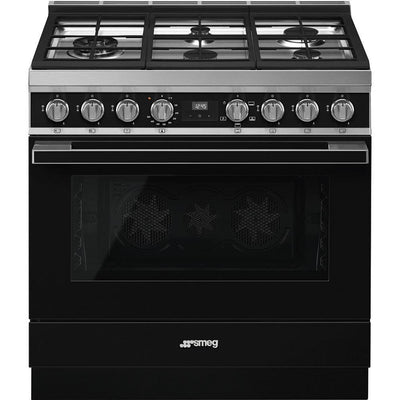

Range Black CPF36UGGBL
Model CPF36UGGBL
Range Black CPF36UGGBL
Model CPF36UGGBLQuick Specs
Range Black CPF36UGGBL is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Product family: Range
- Range size: 36"
- Aesthetics: Portofino
- Color: Black
- Main oven: Gas with grill
(P)(B)PORTOFINO STYLE(/B)(/P)(P)Stainless steel control knobs(/P)(P)(B)Triple Convection(/B)(/P)(P)(B)Soft close oven door(/B)(/P)(P)Full-width continuous grates(/P)(P)Push-pull stainless steel storage compartment(/P)(P)(B)GAS OVEN:(/B)(/P)(P)4 cooking modes (/P)(P)Programmable Timer with Touch display(/P)(P)Adjustable thermostat 120(degree) - 500(degree)F (/P)(P)Air-cooled triple-glazed removable door (/P)(P)(B)Triple Convection(/B)(/P)(P)Oven capacity: 4.5 cu. ft.(/P)(P)(B)Ever Clean enameled interior cavity(/B)(/P)(P)5 shelf positions(/P)(P)2 x halogen oven lights(/P)(P)(B)GAS RANGETOP:(/B)(/P)(P)5 gas burners(/P)(P)Center-rear 4500 BTUs(/P)(P)Center-front 10500 BTUs(/P)(P)Right-rear 12000 BTUs(/P)(P)Right-front 8000 BTUs(/P)(P)(B)Left double-inset super burner 20000 BTUs(/B)(/P)(P)Heavy-duty cast iron grates(/P)(P)Automatic electric ignition(/P)(P)LP gas conversion kit included(/P)(P)(B)SAFETY:(/B)(/P)(P)Gas safety valves(/P)(P)Air-cooled door to prevent overheating(/P)(P)Connected load nominal power: 200W - 2 Amps(/P)(P)Voltage rating: 120V 60Hz(/P)(P)(B)ACCESSORIES INCLUDED:(/B)(/P)(P)1 wok ring(/P)(P)1 deep oven tray(/P)(P)1 total-extraction telescopic guide(/P)(P)2 chrome shelves(/P)(P)1 black toe kick(/P)
| Type | |
| Product family | Range |
| Range size | 36" |
| Range fuel | Gas |
| N. of ovens | 1 |
| Main oven | Gas with grill |
| EAN code | 8017709265205 |
| Aesthetic | |
| Color | Black |
| Aesthetics | Portofino |
| Design | Flush mounted |
| Material | Painted metal |
| Door | With frame |
| Control panel finish | Metal enameled |
| Cooktop color | Stainless steel |
| Handle | Portofino |
| Controls color | Stainless steel |
| Upstand | Yes |
| Display | Touch |
| Grates | Cast Iron |
| Door glass type | Gray |
| Handle color | Colored |
| Control knobs | Portofino |
| No. of controls | 8 |
| Feet | Stainless steel |
| Plinth | Black |
| Storage compartment | Push-pull |
| Main oven options | |
| Timer | Yes |
| End-of-cooking alarm | Yes |
| Minimum Temperature | 120 °F |
| Maximum temperature | 500 °F |
| Cooktop technical features | |
| Cooking zones | 5 |
| Zone 1 - Type | Gas - Dual ultra-rapid |
| Zone 2 - Type | Gas - AUX |
| Zone 3 - Type | Gas - Rapid |
| Zone 4 - Type | Gas - Rapid |
| Zone 5 - Type | Gas - Semi-rapid |
| Zone 1 - Power | 5.86 kW |
| Zone 1 - Power | 20000 BTU |
| Zone 2 - Power | 1.31 kW |
| Zone 2 - Power | 4500 BTU |
| Zone 3 - Power | 3.08 kW |
| Zone 3 - Power | 10500 BTU |
| Zone 4 - Power | 3.51 kW |
| Zone 4 - Power | 12000 BTU |
| Zone 5 - Power | 2.34 kW |
| Zone 5 - Power | 8000 BTU |
| Burners type | Standard |
| Burner caps | Enameled matte black |
| Automatic gas ignition | Yes |
| Gas safety valves | Yes |
| Main Oven Technical Features | |
| Volume | 0.16 cu. ft. |
| Cavity material | EverClean enamel |
| No. of shelves | 5 |
| Shelves type | Metal racks |
| No. of lights | 2 |
| Light type | Halogen |
| Light Power | 40 W |
| Fan number | 3 |
| Time setting | Start and end |
| Door opening | Drop-down |
| Removable door | Yes |
| Full-glass inner door | Yes |
| Removable inner door | Yes |
| Total no. of door glasses | 3 |
| No.of thermo-reflective door glasses | 2 |
| Safety thermostat | Yes |
| Cooling system | Tangential |
| Grill type | Gas |
| Soft Close system | Yes |
| Temperature control | Electro-mechanical |
| Electrical Connection | |
| Electrical connection rating | 200 W |
| Current | 2 A |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Power cord length | 47 1/4 " |
| Gas Connection | |
| Gas Type | G20/G25 - 20/25 mbar |
| Logistic Information | |
| Dimensions | 915x912x635 mm |
| Width | 35 7/8 " |
| Height | 36 1/16 " |
| Depth | 25 1/16 " |
| Packaged dimensions | 976X950X670 mm |
| Gross weight | 265 lbs |
| Net weight | 230 lbs |
| Packaged width | 37 3/8 " |
| Packaged depth | 26 3/8 " |
| Packaged height | 38 7/16 " |
| Maximum stackability | 4 |
| Packaging | Cardboard box |
| Packaging composition - Paper | 13 lbs |
| Packaging composition - Polystyrene | 14 lbs |
| Packaging composition - Wood | 7 lbs |
| Packaging composition - Plastics | 1 lbs |
| Accessories Included | |
| Other gas nozzles included | G30 LPG liquid gas |
| Accessories included for main oven and cooktop | |
| Cast iron wok support | 1 |
| TOP Oven grid with back stop | 2 |
| Grill mesh | 1 |
| 0.8"-deep tray | 1 |
| Telescopic Guide rails, total Extraction | 1 |
- Product family: Range
- Range size: 36"
- Aesthetics: Portofino
- Color: Black
- Main oven: Gas with grill
