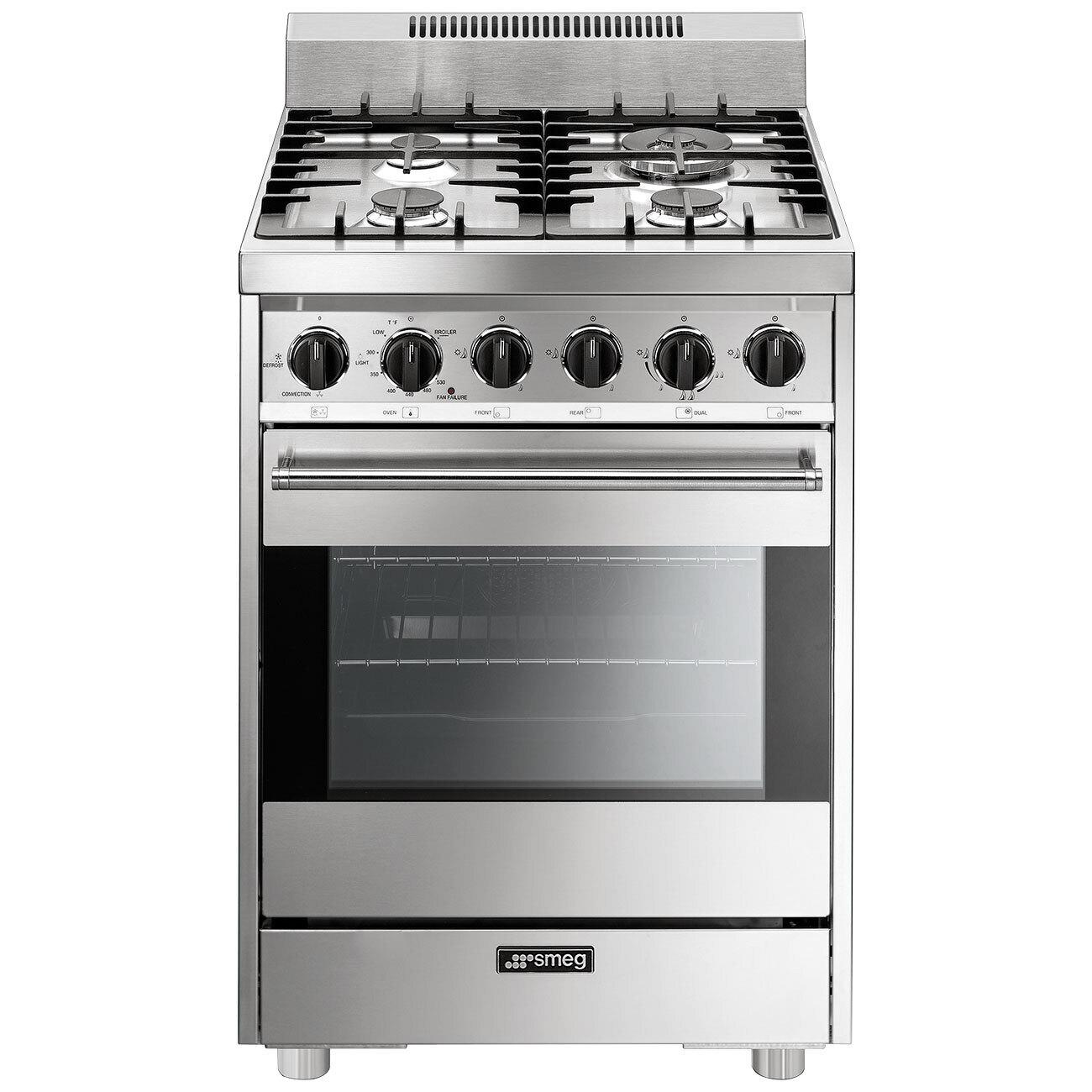

Range Stainless steel C24GGXU
Model: C24GGXU
Range Stainless steel C24GGXU
Model: C24GGXUQuick Specs
Range Stainless steel C24GGXU is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Product family: Range
- Range size: 24"
- Aesthetic: Mixed
- Series: Sinfonia
- Color: Stainless steel
- Cooktop type: Gas
- Main oven: Gas with grill
(P)(B)Professional Style(/B)(/P)(P)AISI 304 stainless steel(/P)(P)Sturdy American style control knobs(/P)(P)4" Polished stainless steel backsplash(/P)(P)(B)Gas oven:(/B)(/P)(P)3 Cooking modes(/P)(P)Gas Convection mode(/P)(P)Broil mode(/P)(P)Defrost mode(/P)(P)Air cooled triple glazed removable door(/P)(P)"Ever-clean" enamelled oven interior(/P)(P)5 Shelf positions(/P)(P)2 halogen oven lights(/P)(P)Oven capacity: 2.8 Cu. Ft(/P)(P)(B)Gas Rangetop:(/B)(/P)(P)Heavy-duty cast iron grates(/P)(P)Full-width grates(/P)(P)Sealed burners(/P)(P)Automatic electronic ignition(/P)(P)Safety valves(/P)(P)LP gas conversion kit included(/P)(P)(B)4 Gas burners:(/B)(/P)(P)(B)Right-rear double-insert super burner 15000 BTUs(/B)(/P)(P)Left-rear 3400 BTUs(/P)(P)Right-front 6200 BTUs(/P)(P)Left-front 6200 BTUs(/P)(P)Connected load nominal power 120V(/P)(P)Amp supply required @120V: 1.2 Amps(/P)(P)Voltage rating: 120V 60Hz(/P)(P)Gas inlet location: back top right(/P)(P)(B)Safety:(/B)(/P)(P)Gas safety valves(/P)(P)Ventilated door with cooling system to prevent(/P)(P)overheating(/P)(P)Anti-tilting norms satisfied(/P)(P)Suitable for building-in(/P)(P)(B)Accessories included:(/B)(/P)(P)1 Baking tray(/P)(P)2 Chrome shelves(/P)(P)1 Wok ring(/P)(P)1 Moka ring(/P)
| Type | |
| Product family | Range |
| Range size | 24" |
| Range fuel | Gas |
| Cooktop type | Gas |
| Main oven | Gas with grill |
| EAN code | 8017709173159 |
| Aesthetic | |
| Color | Stainless steel |
| Aesthetic | Mixed |
| Design | Squared design |
| Series | Sinfonia |
| Material | Stainless steel |
| Door | With 2 horizontal fascias |
| Control panel finish | Stainless steel |
| Cooktop color | Stainless steel |
| Handle | Classic |
| Controls color | Soft-touch black |
| Upstand | Yes |
| Grates | Cast Iron |
| Door glass type | Black |
| Handle color | Brushed stainless steel |
| Control knobs | Smeg Soft Touch |
| No. of controls | 6 |
| Feet | Silver |
| Main oven options | |
| Minimum Temperature | 300 °F |
| Maximum temperature | 529 °F |
| Cooktop technical features | |
| Cooking zones | 4 |
| Zone 1 - Position | Front-right |
| Zone 2 - Position | Rear-right |
| Zone 3 - Position | Rear-left |
| Zone 4 - Position | Front-left |
| Zone 1 - Type | Gas - AUX |
| Zone 2 - Type | Gas - Semi-rapid |
| Zone 3 - Type | Gas - Semi-rapid |
| Zone 4 - Type | Gas - Dual ultra-rapid |
| Zone 1 - Power | 3500 BTU |
| Zone 2 - Power | 5500 (BBQ) BTU |
| Zone 3 - Power | 6000 BTU |
| Zone 4 - Power | 15500 BTU |
| Burners type | Standard |
| Burner caps | Enameled matte black |
| Automatic gas ignition | Yes |
| Gas safety valves | Yes |
| Main Oven Technical Features | |
| Volume | 2.79 cu. ft. |
| Cavity material | EverClean enamel |
| No. of shelves | 5 |
| Shelves type | Metal racks |
| No. of lights | 1 |
| Light type | Halogen |
| Light Power | 40 W |
| Removable door | Yes |
| Full-glass inner door | Yes |
| Removable inner door | Yes |
| Total no. of door glasses | 3 |
| No.of thermo-reflective door glasses | 1 |
| Cooling system | Tangential |
| Grill type | Gas |
| Temperature control | Mechanical |
| Electrical Connection | |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Power cord length | 47 1/4 " |
| Gas Connection | |
| Gas Type | G20 Natural gas |
| Logistic Information | |
| Width | 23 5/8 " |
| Height | 35 7/16 " |
| Depth | 23 5/8 " |
| Gross weight | 162 lbs |
| Net weight | 135 lbs |
| Accessories Included | |
| Other gas nozzles included | G30 LPG liquid gas |
| Accessories included for main oven and cooktop | |
| Cast iron wok support | 1 |
| Moka cast-iron stand | Moka ring |
| Rack with back and side stop | 2 |
| 1.6"-deep tray | 1 |
