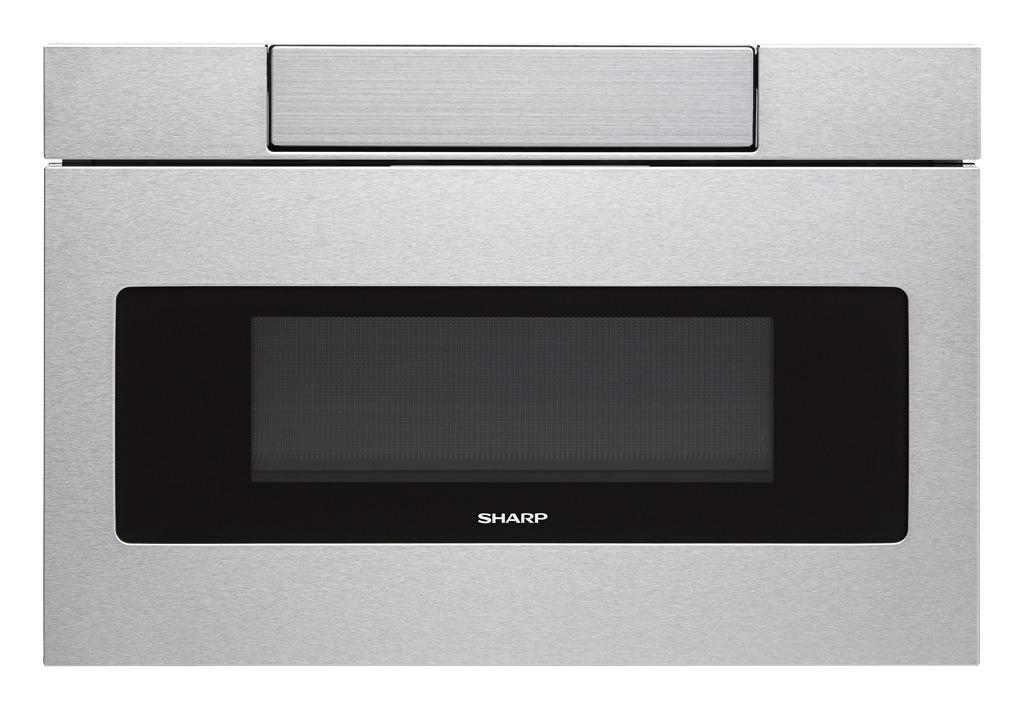

24 in. 1.2 cu. ft. 950W Sharp Stainless Steel Microwave Drawer Oven
Model SMD2470ASQuick Specs
Depth
23 1/2
Height
15 9/16
MW Cap
1.2
Wifi
NO
Conv MW
NO
Turntable
NO
24 in. 1.2 cu. ft. 950W Sharp Stainless Steel Microwave Drawer Oven is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
23 1/2
Height
15 9/16
Microwave Capacity
1.2
Wifi Connected
NO
Convection Microwave
NO
Recessed Turntable
NO
Hidden Control Panel

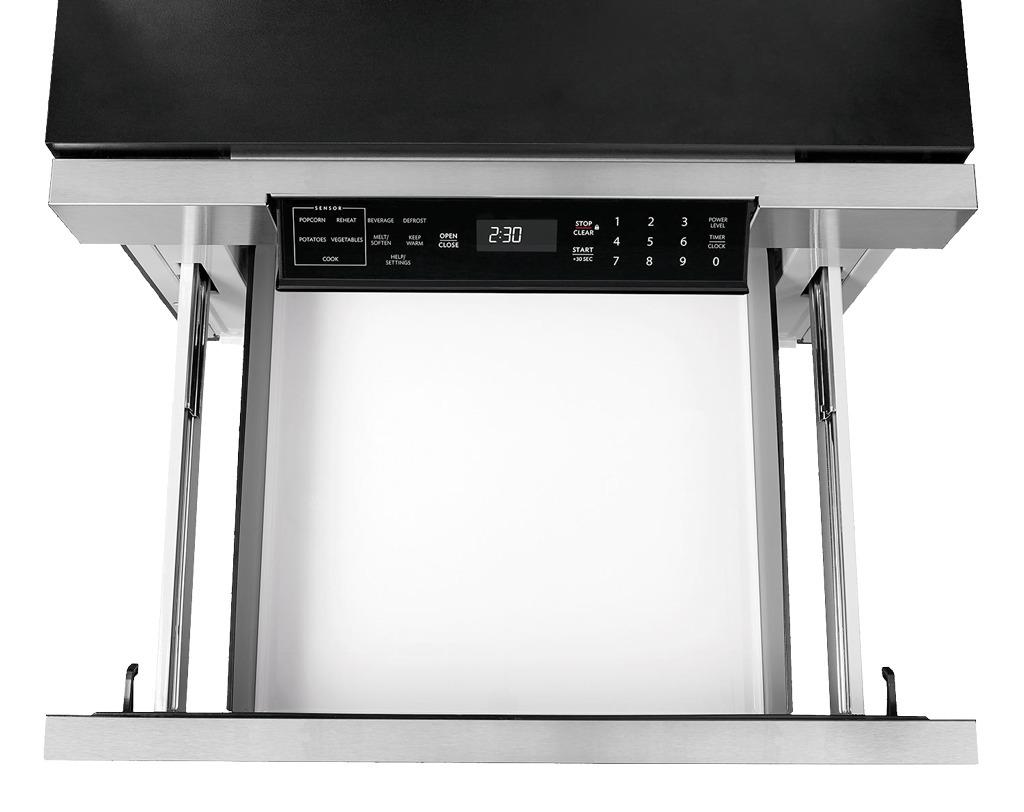

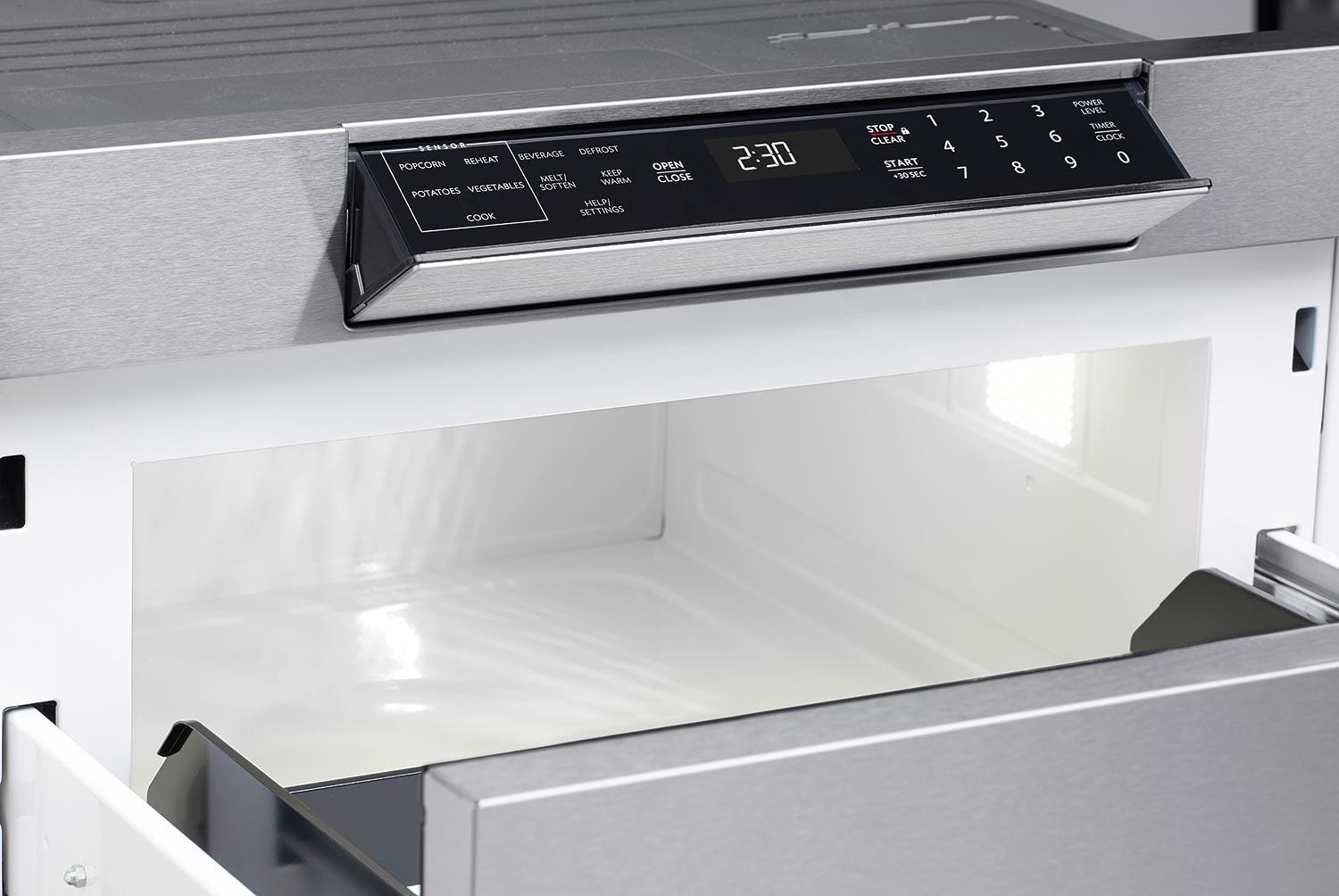

The Sharp Microwave Drawer Oven boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it's easy to read and operate.
- Hidden Control Panel
- The Sharp Microwave Drawer Oven boasts an easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it's easy to read and operate.
- Low-profile design
- Hidden controls
- Stainless-steel finish

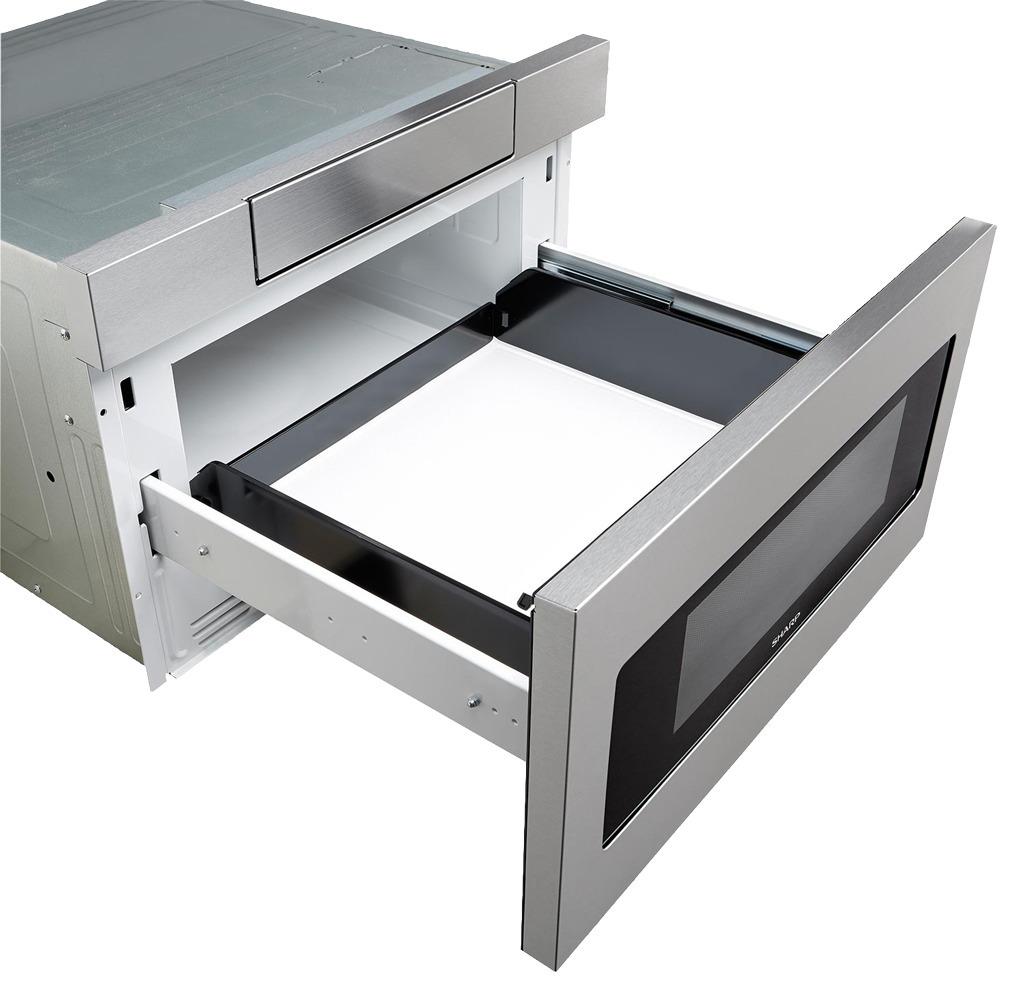

- Easy Touch automatic drawer
- Easier cooking and cleanup
- Fits 4 qt. casserole dish
- Tall enough for a 20-oz. tall coffee cup
- 1.2 cubic feet; 950 watts
| Features | |
| Color : | Stainless Steel |
| Drawer Opening : | Easy Open |
| Sensor Cook®, Reheat, Popcorn : | 12 Settings |
| Preprogrammed Reheat : | 2 Settings |
| Automatic Defrost : | 6 Settings |
| Microwave Keep Warm : | Yes, up to 30 minutes |
| Clock : | Yes |
| Minute Plus : | Yes |
| Front-mounted touch controls : | Yes, angled for easy viewing |
| Digital LCD Display : | Yes |
| Timer/Settings : | Yes |
| Control lock : | Yes |
| Demo mode : | Yes |
| Capacity : | 1.2 cu. ft. capacity (holds 9" x 13" dish) Internal capacity is calculated by measuring maximum width, depth, and height. Actual capacity for holding food is less. |
| Built-in Ready : | Yes, this Microwave Drawer Oven can be installed below any electric or gas wall oven |
| Interior Oven Light : | Yes |
| Wattage : | 950 Watts |
| Additional Specifications | |
| Power Ratings : | 120V, 60Hz / 1.67kW, 14.5 Amps |
| Safety Compliance : | FCC, DHHS, UL listed |
| Limited Warranty : | One-year parts and one-year labor with in-home service. The warranty continues for an additional four years, for a total of five years, on the magnetron tube for parts only. |
| Power Connection : | 3-Prong Grounding Plug (included) |
| Accessories : | 24" Flush Mount Deflector Vent: SKMD24F0AS (1) PREF-B019MRP0 Flush Mount Deflector Vent (2) LX-CZB055MRE0 Mounting screws |
| Dimensions & Weight (in./lbs.) ) (w x h x d) | |
| Cutout Dimensions (w x h x d) : | 22 1/8" x 15 9/16" x 23 1/2" |
| Product Dimensions (w x h x d) : | 23 7/8" x 15 7/8" x 23 1/64" |
| Product Weight (lbs.) : | 74 lbs |
| Shipping Weight (lbs.) : | 86 lbs |
- Low-profile design
- Hidden controls
- Stainless-steel finish
- Easy Touch automatic drawer
- Easier cooking and cleanup
- Fits 4 qt. casserole dish
- Tall enough for a 20-oz. tall coffee cup
- 1.2 cubic feet; 950 watts
