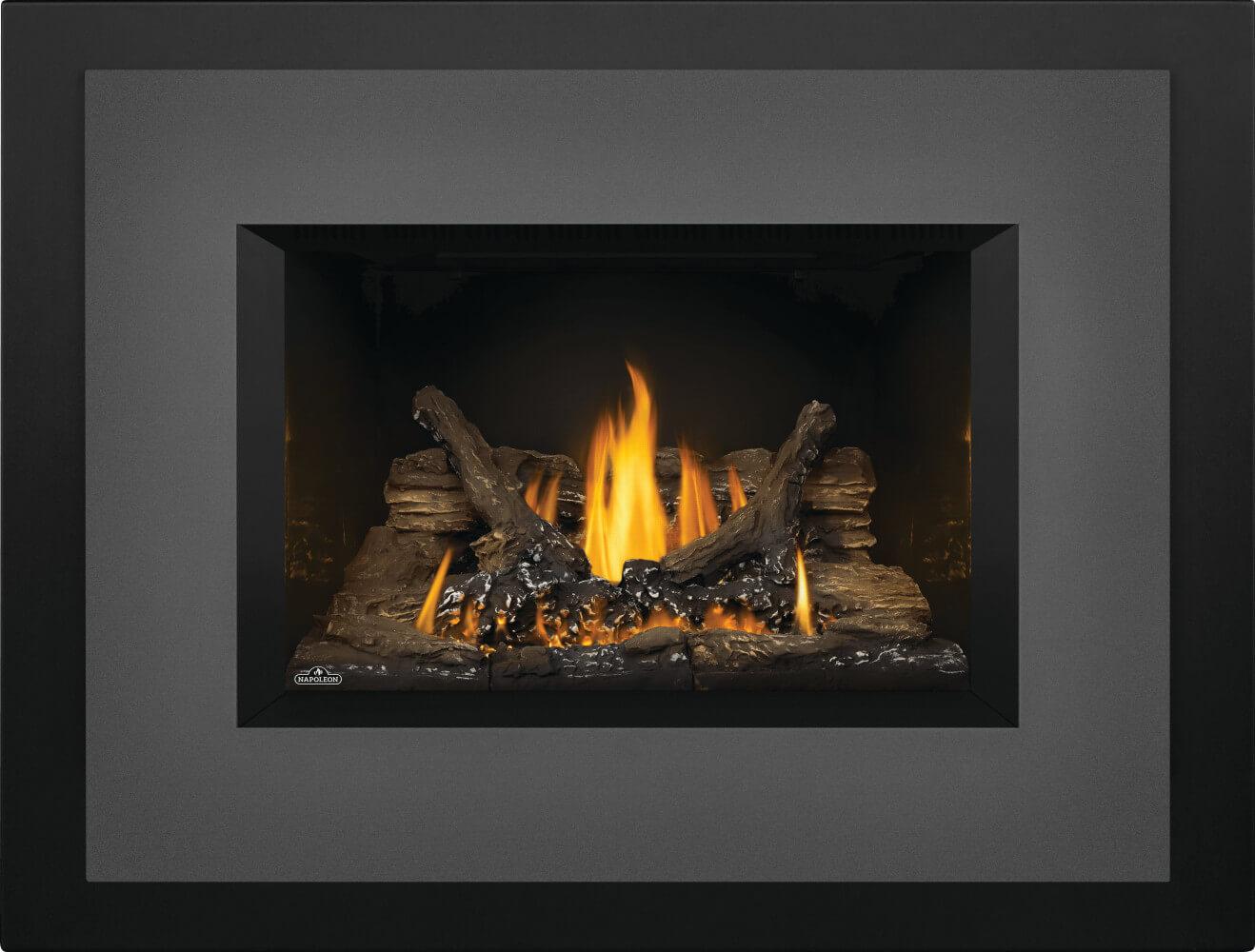

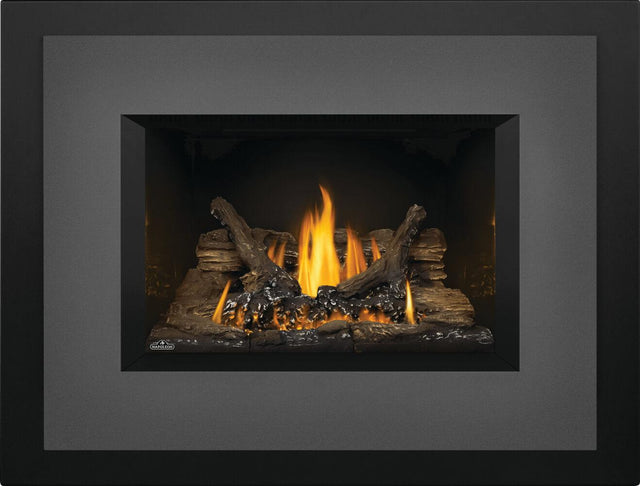

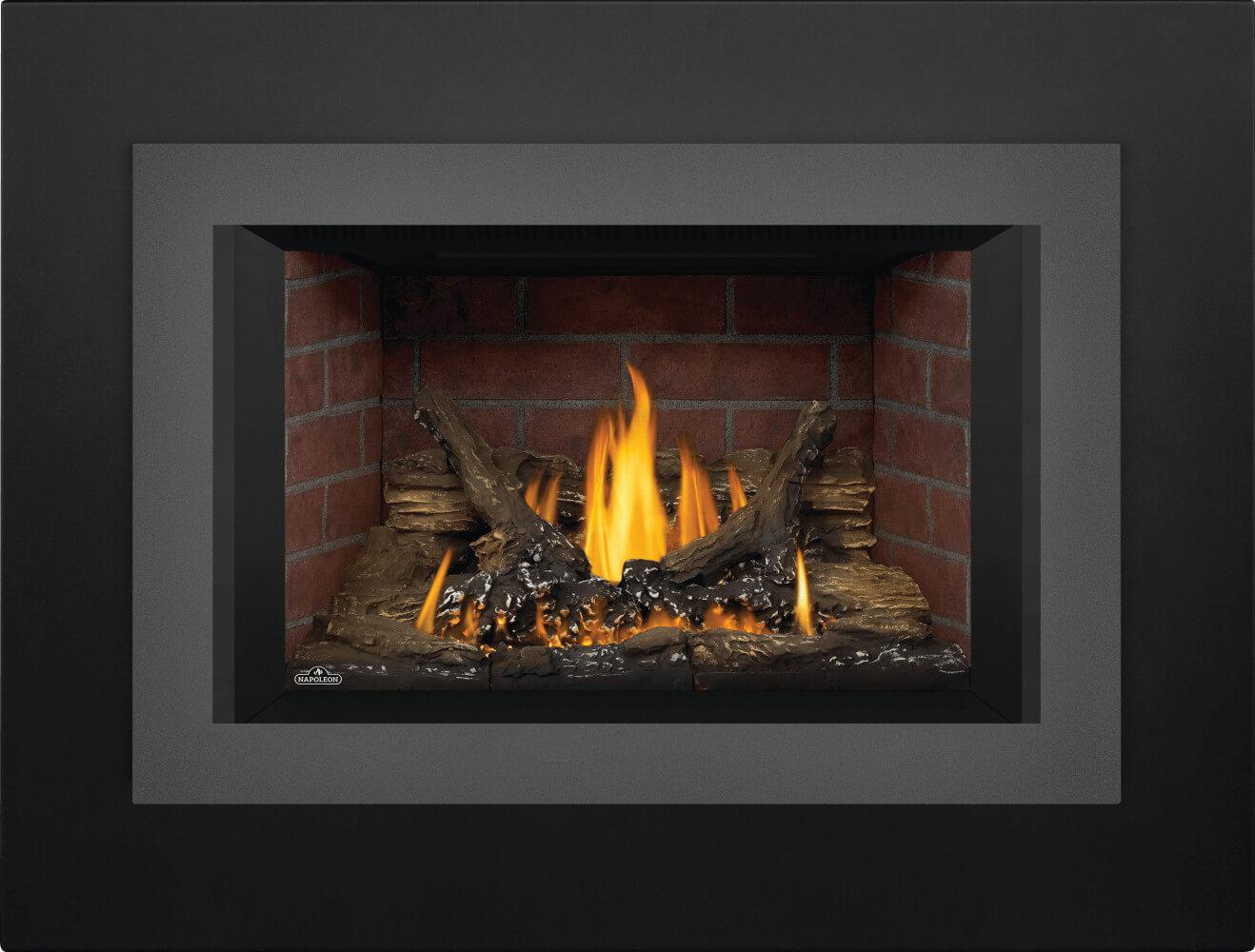

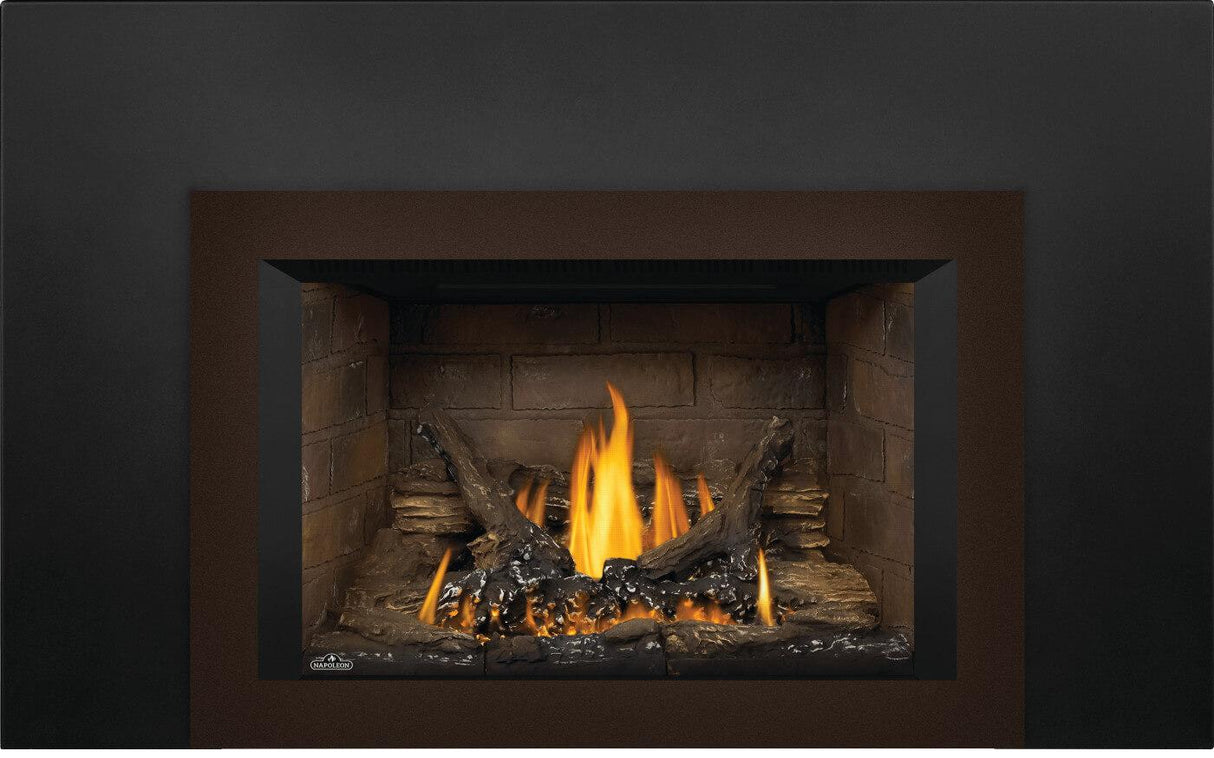

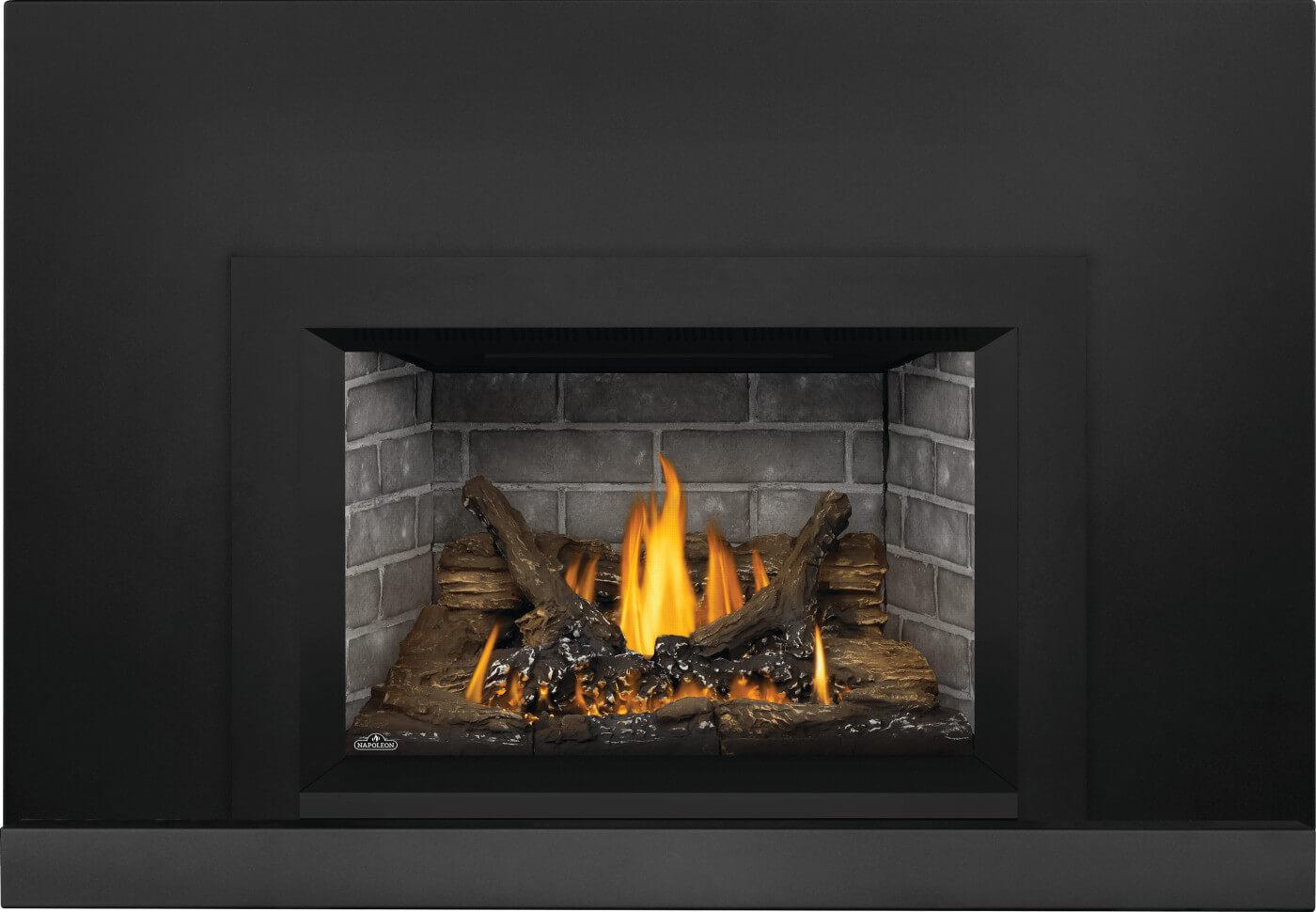

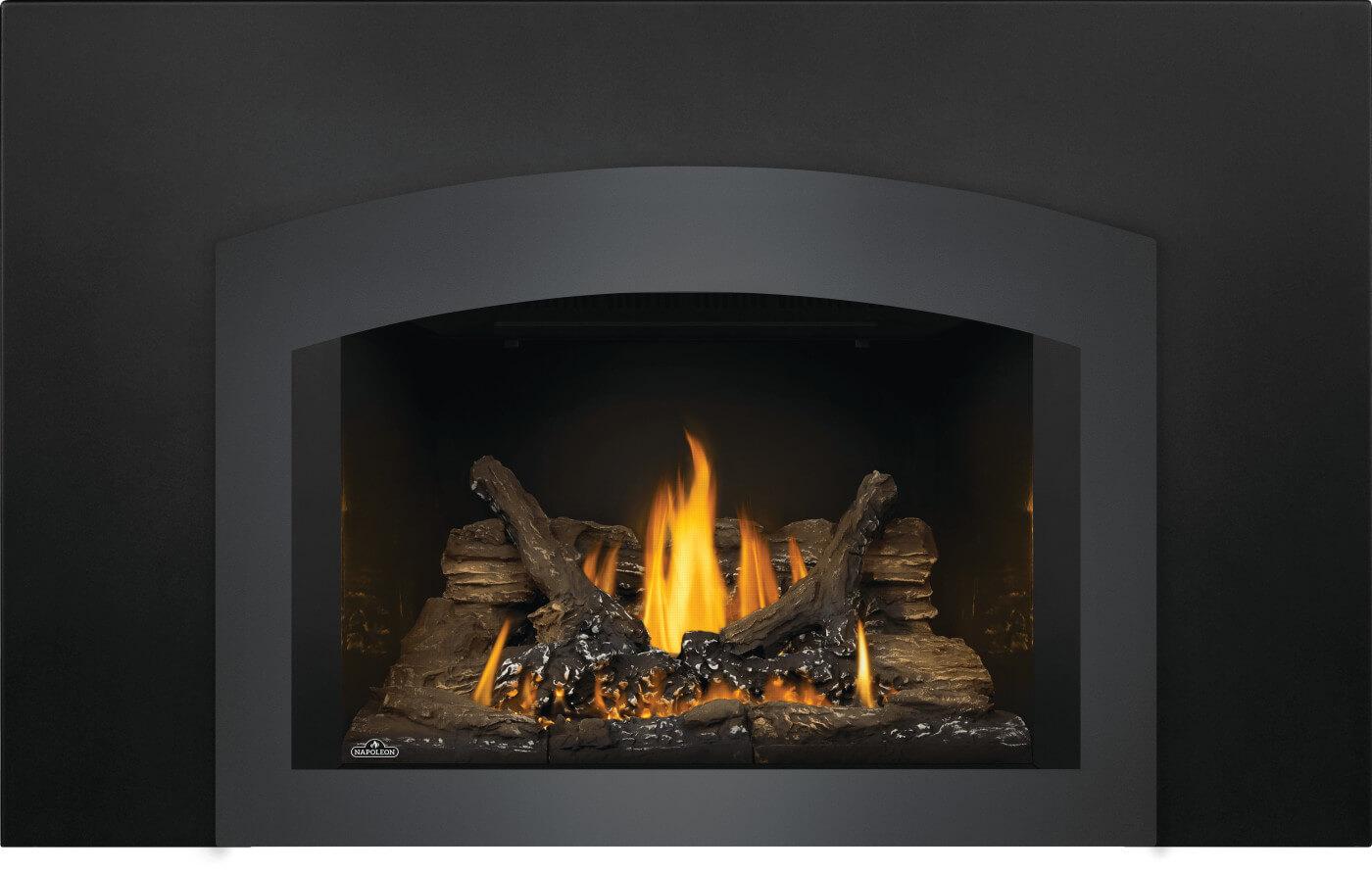

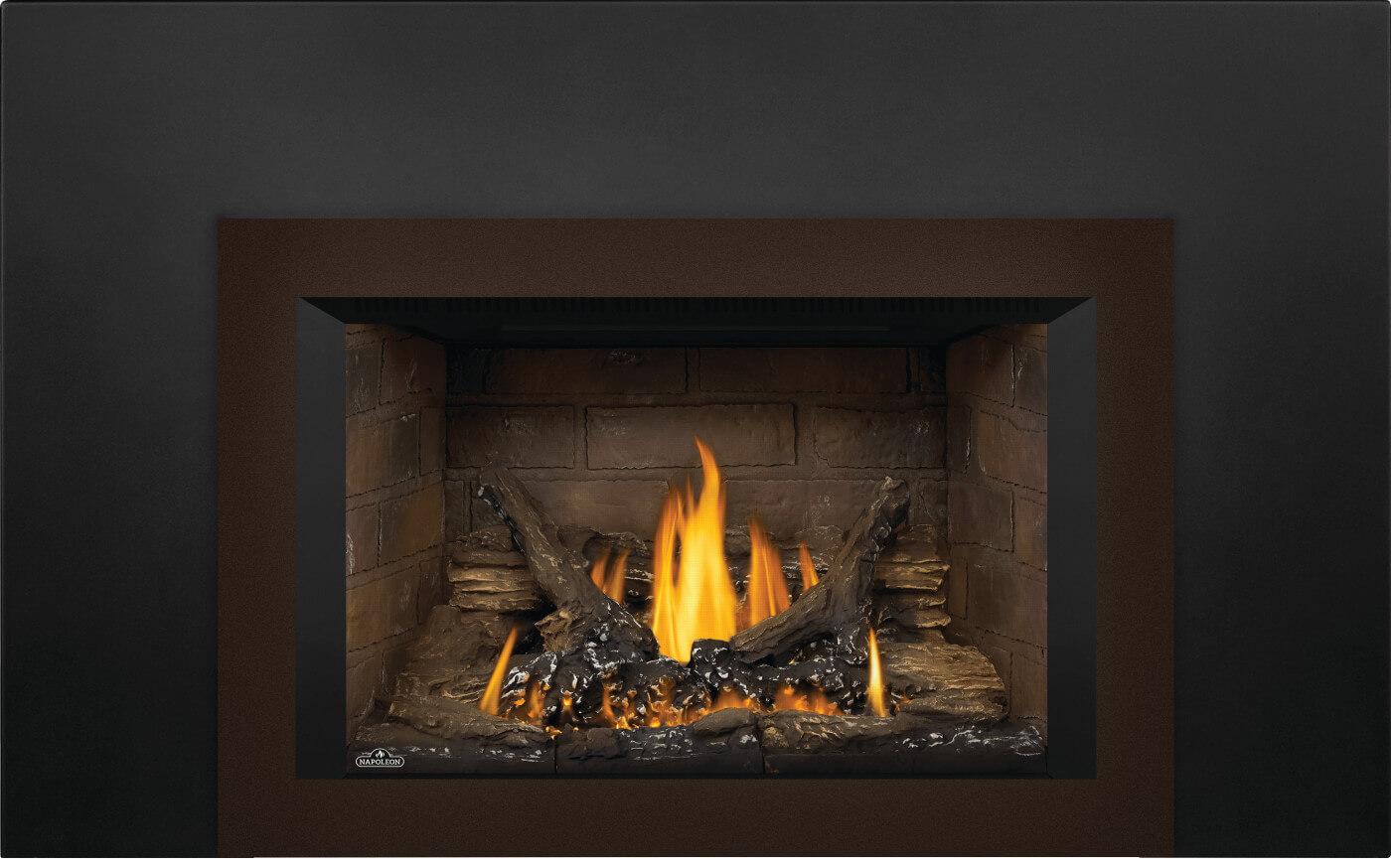

Oakville? 3 Direct Vent Gas Insert
Model: GDI3NE1
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
Oakville? 3 Direct Vent Gas Insert
Model: GDI3NE1Quick Specs
Depth
18.50
Height
21
Oakville? 3 Direct Vent Gas Insert is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
18.50
Height
21
eFire Bluetooth Controller
We have cracked the code and present to you the first fireplaces to be controlled by Bluetooth technology, using an intuitive app on your mobile device.
- eFire Bluetooth Controller
- We have cracked the code and present to you the first fireplaces to be controlled by Bluetooth technology, using an intuitive app on your mobile device.
- Riser Box and Cast Iron Surround available
- eFire Bluetooth Controller
- Wide range of media kits, brick panels and porcelain panels available for endless design possibilities
- Premium clean face safety barrier maximizes viewing area
- Directional baffles increase air flow for maximum blower efficiency
- Slide the unit all the way back into the insert cavity
- Clean Face Design and Flush Finish Accessories
- Superior heat circulating blower available
- Full view design with a massive 340 sq. in. viewing area
- Optional Faceplates 2.5" and 5" Widths In 3-Sided Or 4-Sided Configurations
- SIT Proflame II Electronic Ignition for easy and reliable startups
- Clean contemporary faceplates and backerplates available for design flexibility
- Up to 24,500 BTU's with a high performance 'H? style burner that provides a stunning, full-firebox flame display
| Model | Oakville? 3 |
| Warranty * | President's Limited Lifetime Warranty * |
| Fuel Type | Natural Gas |
| Heat Output (Max.) | 24,500 BTU |
| Heat Management Options | Internal Blower |
| Viewing Area | 22.63 x 15 in (57.48 x 38.10 cm) |
| Framing Width ‡ | |
| Framing Height ‡ | |
| Framing Depth ‡ | |
| Width | 28.50 in (72.39 cm) |
| Height | 21 in (53.34 cm) |
| Depth | 18.50 in (46.99 cm) |
- Riser Box and Cast Iron Surround available
- eFire Bluetooth Controller
- Wide range of media kits, brick panels and porcelain panels available for endless design possibilities
- Premium clean face safety barrier maximizes viewing area
- Directional baffles increase air flow for maximum blower efficiency
- Slide the unit all the way back into the insert cavity
- Clean Face Design and Flush Finish Accessories
- Superior heat circulating blower available
- Full view design with a massive 340 sq. in. viewing area
- Optional Faceplates 2.5" and 5" Widths In 3-Sided Or 4-Sided Configurations
- SIT Proflame II Electronic Ignition for easy and reliable startups
- Clean contemporary faceplates and backerplates available for design flexibility
- Up to 24,500 BTU's with a high performance 'H? style burner that provides a stunning, full-firebox flame display
- Product Manual
- GI-RB3/4 Riser Kit Installation Instructions - W415-1857.pdf
- DBPI30S/WS/NS Brick Panel Installation Instructions - W415-1860.pdf
- Optional 3 or 4 Sided Faceplate Installation Instructions - W415-1859.pdf
- DLKIX3 Driftwood Log Placement Instructions - W415-1958.pdf
- CISI3BK Cast Iron Surround Installation Instructions - W415-1862.pdf
- GDI3-1/GDI3E-1/GDIX3-1 Fuel Conversion Kit Instructions - W415-4090.pdf
- GDI3/GDIX3 Porcelain Reflective Radiant Panels Installation Instructions - W41?
- Installation Manual
- OLKI3 Oak Log Placement Instructions - W415-1901.pdf
- Specifications Sheet
- Brochure
- Optional Insert Backerplate Installation Instructions - W415-1858.pdf
 | |
|---|---|
| Product Type & Dimensions | |
Product Type |
|
Depth |
|
Height |
|
