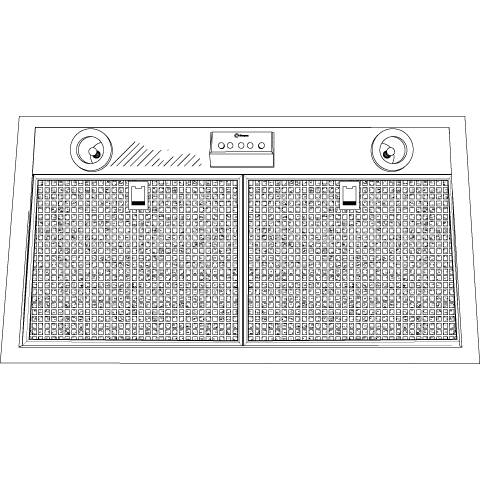

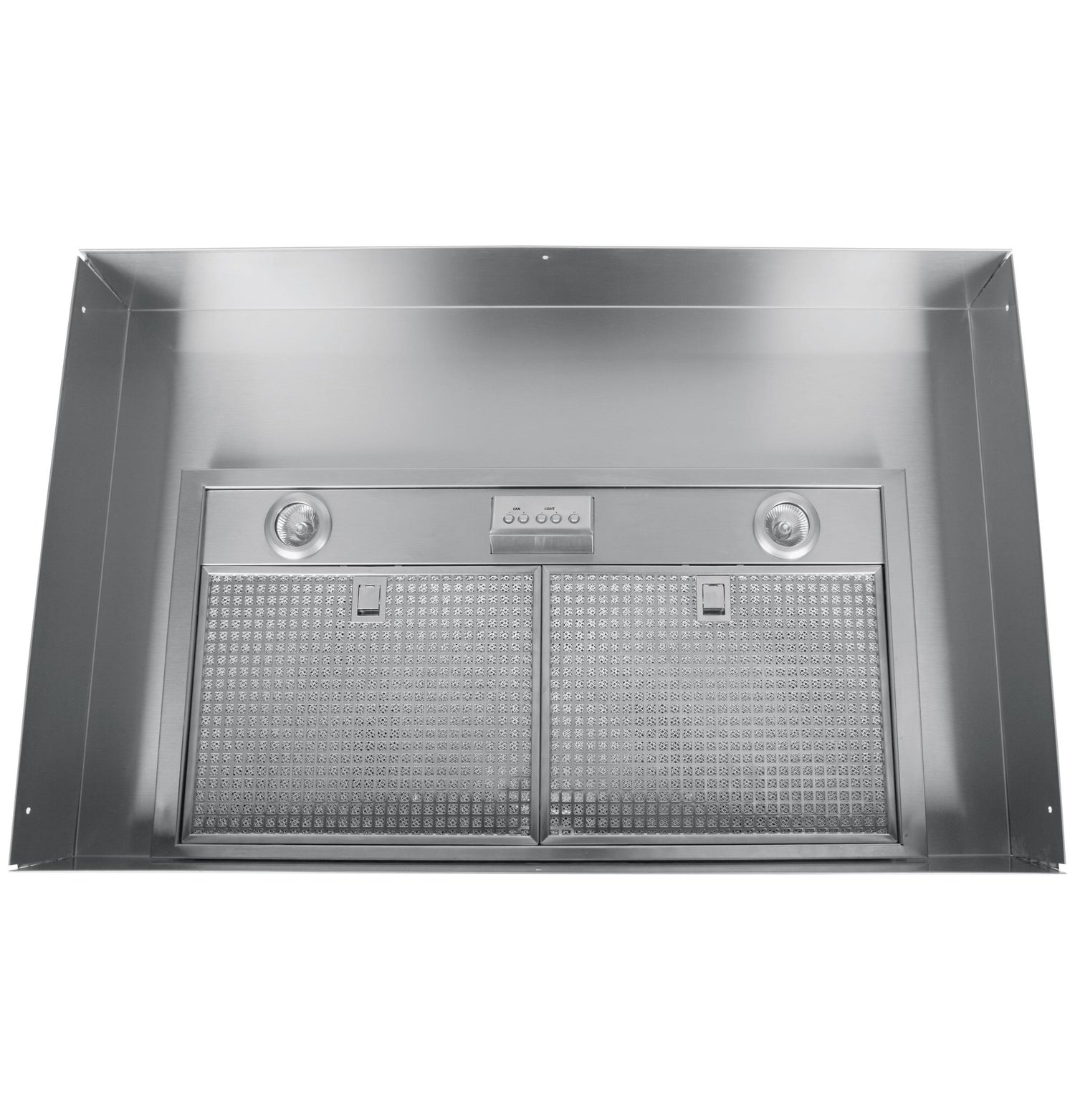

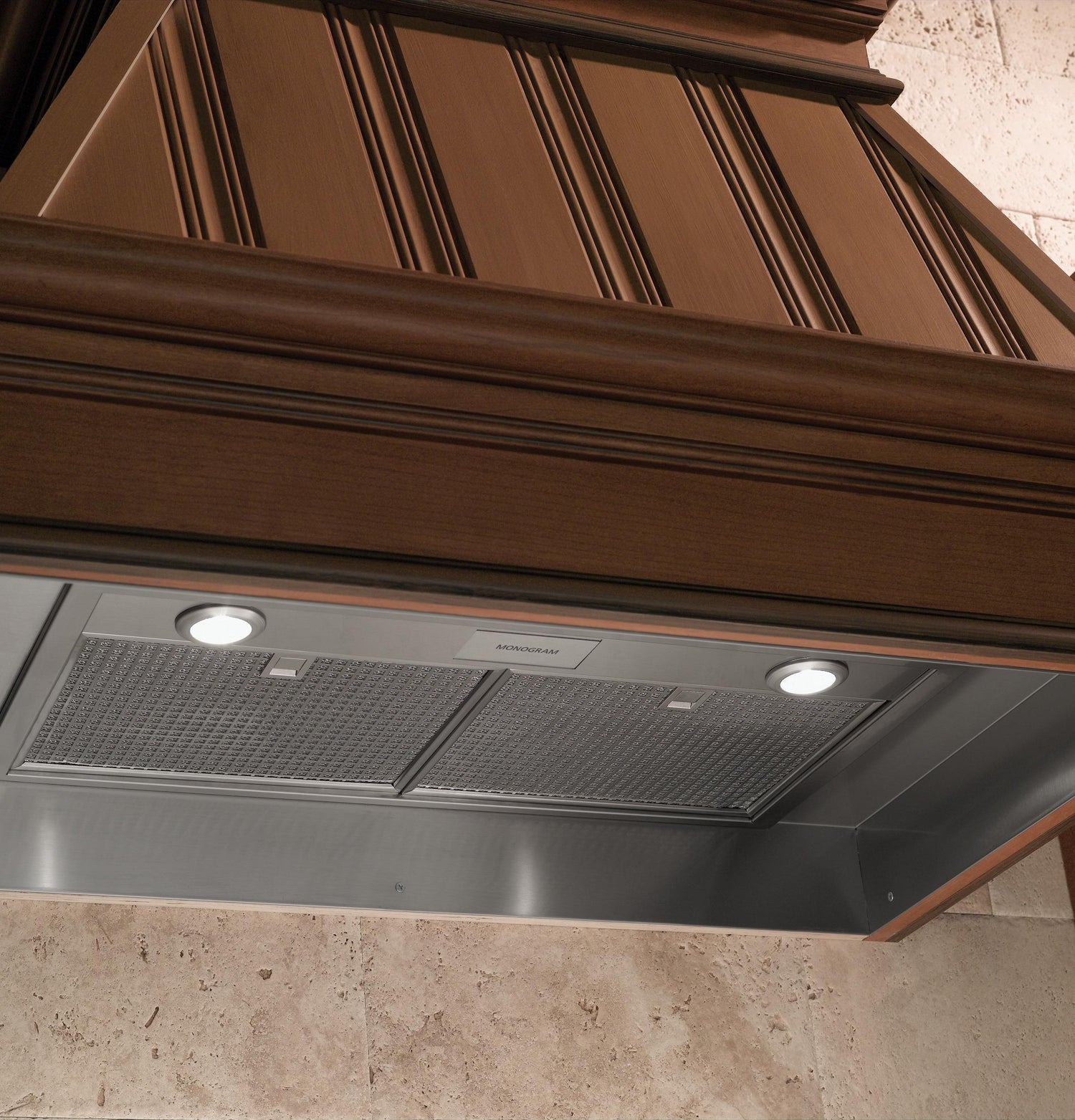

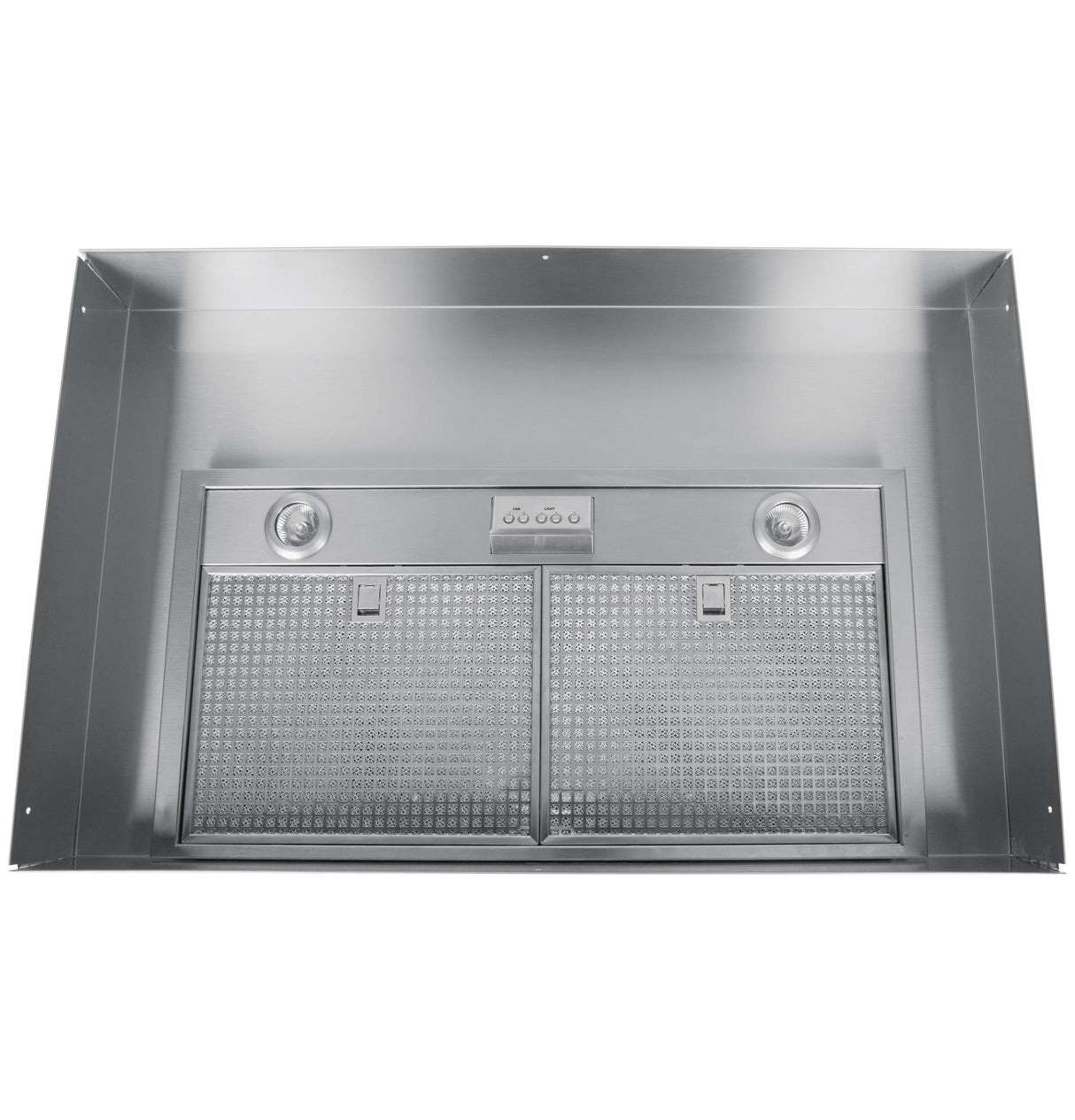

Monogram 36" Custom Hood Insert
Model: ZVC36LSS
Authorized Dealer
1
of
12
Loading...
Authorized Dealer
Monogram 36" Custom Hood Insert
Model: ZVC36LSSQuick Specs
Depth
21 1/4
Height
18
Monogram 36" Custom Hood Insert is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$1,771.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
21 1/4
Height
18
550-CFM blower
Helps effectively remove smoke, grease, odors and moisture
- 550-CFM blower
- Helps effectively remove smoke, grease, odors and moisture
- 4 Lighting Levels
- Adjust to fit your everyday needs
- Controls can be wired remotely
- Variable speed fan control
- Helps draw smoke, grease, odors and moisture out of the kitchen air
- 550-CFM blower
- 4 Lighting Levels
- Controls can be wired remotely
- Variable speed fan control
| APPEARANCE | |
| Custom Insert | Yes |
| Design Style | Custom Panel |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Hertz | 60 |
| Amp Rating at 120V | 5.33 |
| Amps at 110V | 4.90 |
| WARRANTY | |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| ECONOMICAL / QUIET | |
| Venting Type | Externally Vented |

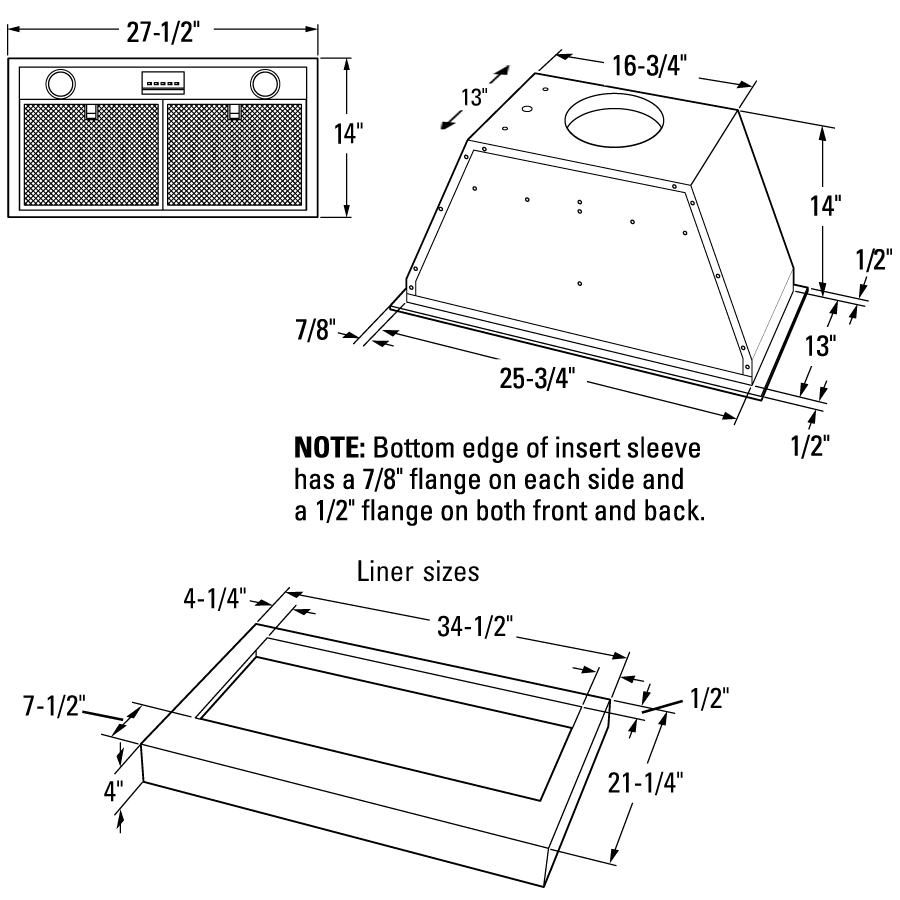

| WEIGHTS & DIMENSIONS | |
| Cabinet Width | 36 in |
| Net Weight | 60 lb |
| Overall Depth | 21.25 in |
| Approximate Shipping Weight | 77 lb |
| Overall Height | 18 in |
| Overall Width | 34.5 in |
| FEATURES | |
| Cooktop Lighting | 2 Halogen |
| Max CFM | 550 |
| Required Duct Size | 8 in. Round |
| Short Description | 36" Custom Hood Insert |
| Removable Stainless Steel Filters | 2 |
| CFM/ Sones Rating | 550/9.0 |
| Exhaust Options | 8 in. Round Duct |
| Product Type | Designer Hood |
| Vertical Exhaust Blower Rating (CFM) | 550 |
| Welded / Finished Seams | Yes |
| Sones Rating : Top Exhaust-Round | 9.0 |
| Variable Speed Fan | Yes |

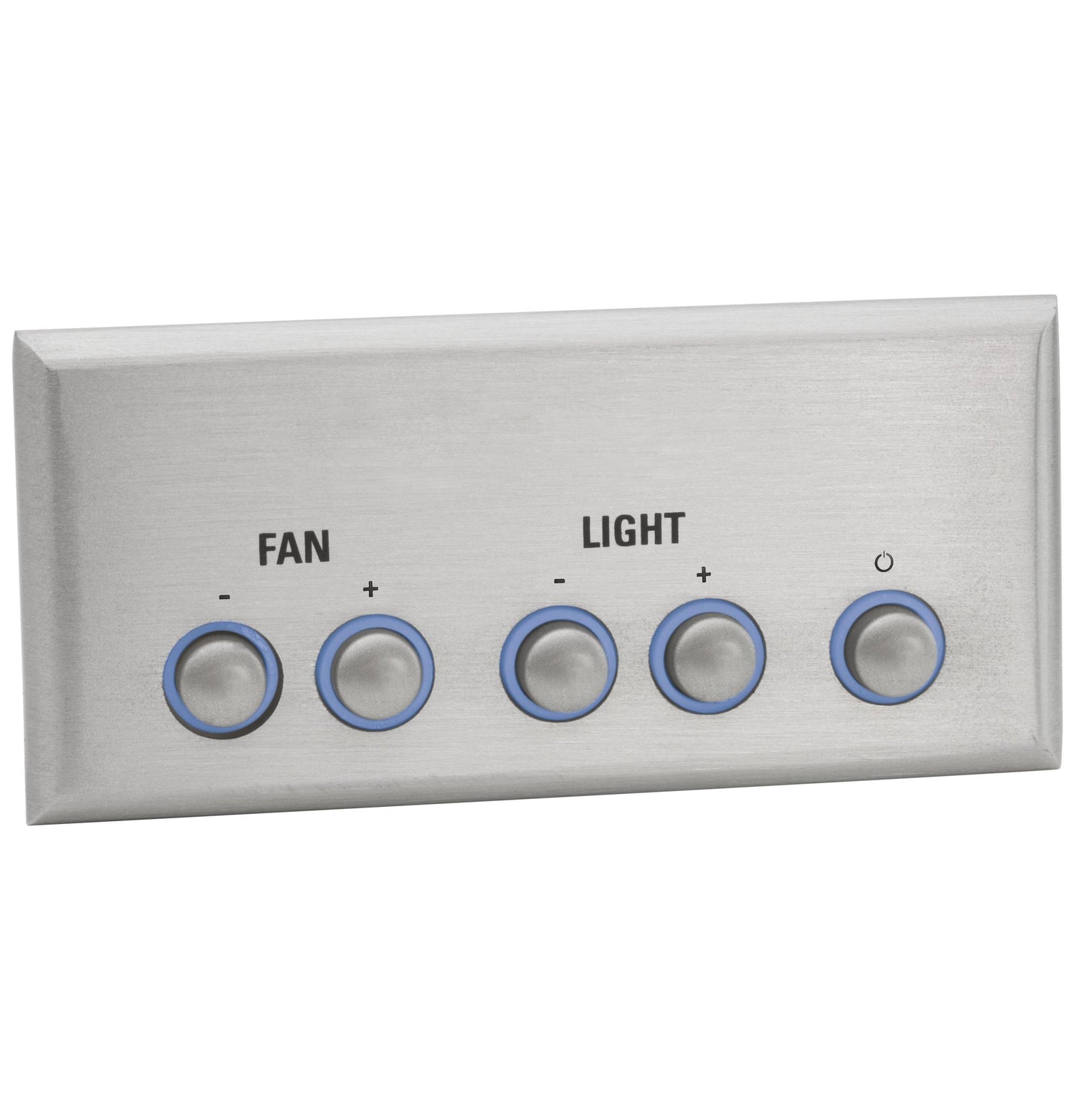

| Control Type | Electronic Pushbutton |
| Lighting Levels | 4 |
| Removable Filter | Yes |
| Indicator Lights | "ON" |
| Blower Type | Internal |
| Recirculating Capable | No |
| Blower Levels | 4 |
- 550-CFM blower
- 4 Lighting Levels
- Controls can be wired remotely
- Variable speed fan control
