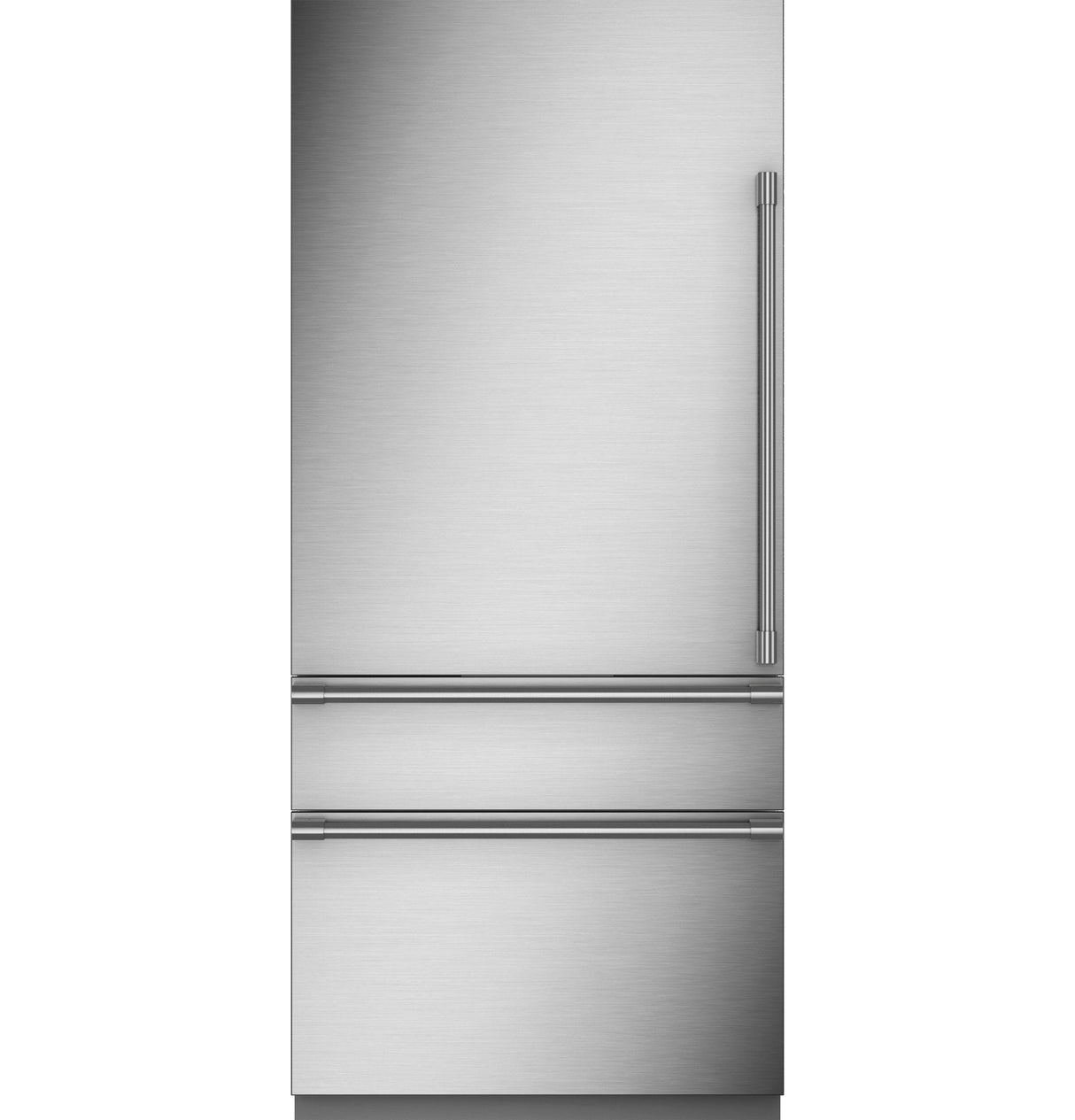

Monogram 36" Panel-Ready Integrated Bottom-Freezer Refrigerator- Left Hinge
Model ZIC363NBVLH
Authorized Dealer
1
of
12
Loading...
Authorized Dealer
Monogram 36" Panel-Ready Integrated Bottom-Freezer Refrigerator- Left Hinge
Model ZIC363NBVLHQuick Specs
Width
35.75"
Depth
24.75"
Height
83.5"
Sabbath
YES
Fresh
13.71
Freezer
2.91
Cu Ft
20.2
Size
20.2
Monogram 36" Panel-Ready Integrated Bottom-Freezer Refrigerator- Left Hinge is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$10,450.00
Regular price
$11,495.00
Unit price
/
Unavailable
You save 9%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
35.75"
Depth
24.75"
Height
83.5"
Sabbath Mode
YES
Fresh food Capacity
13.71
Freezer Capacity
2.91
Capacity (cu ft.)
20.2
Refrigerator Size
20.2
Refrigerator number of Shelves
2
ADA
NO
Dispenser
YES
Icemaker
YES
Wifi Connected
YES
Counter Depth
YES
RPM
-1.0
Energy Star Rated
NO
WiFi Connected Refrigerator
The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app

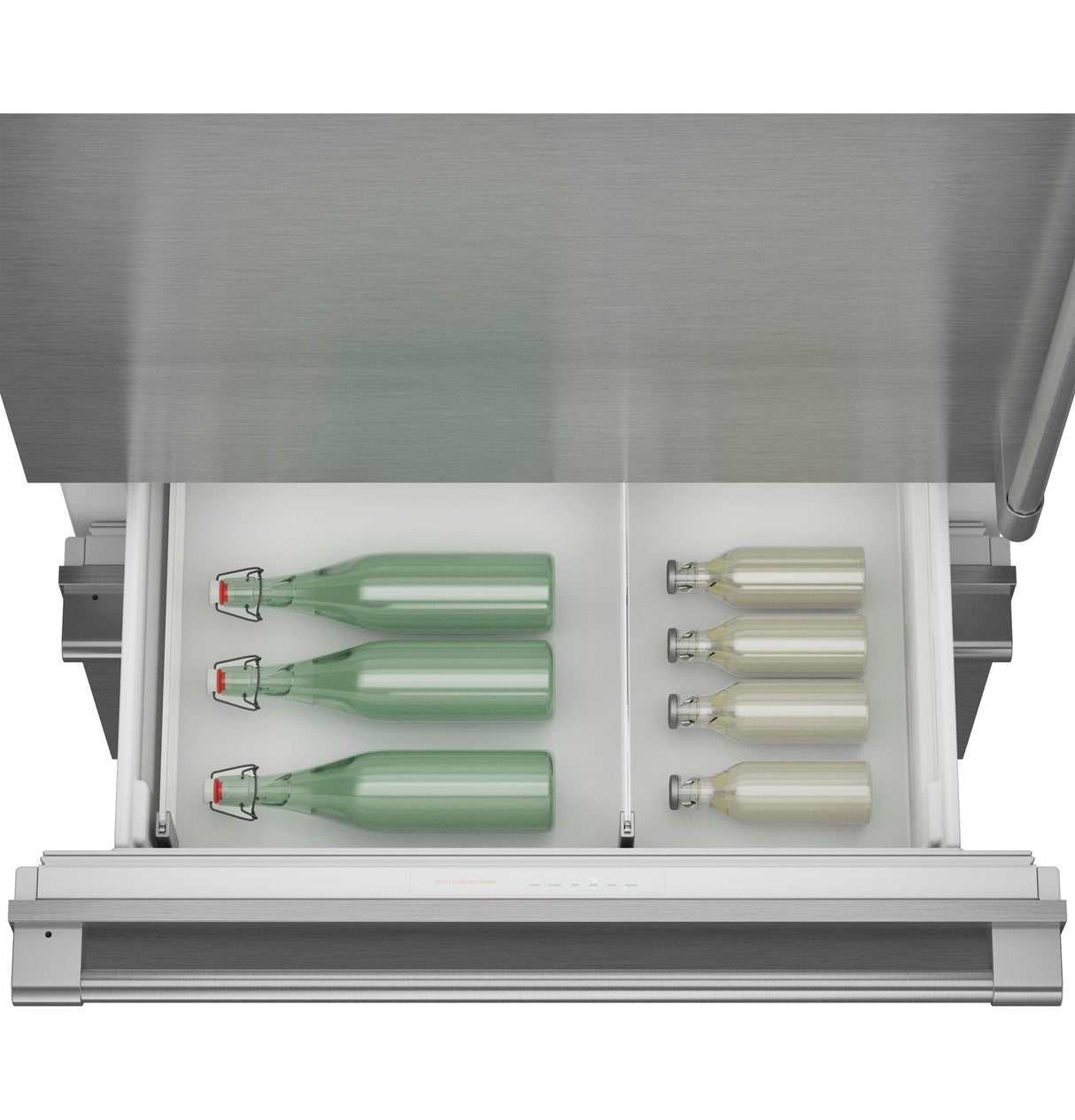

6-Temperature Setting Convertible Drawer
The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items
Statement and Minimalist Collection Refrigerator Handles (sold separately)
Designed to enhance choice and customization with Statement and Minimalist Collection handle options. HANDLES AND STAINLESS PANELS SOLD SEPARATELY.

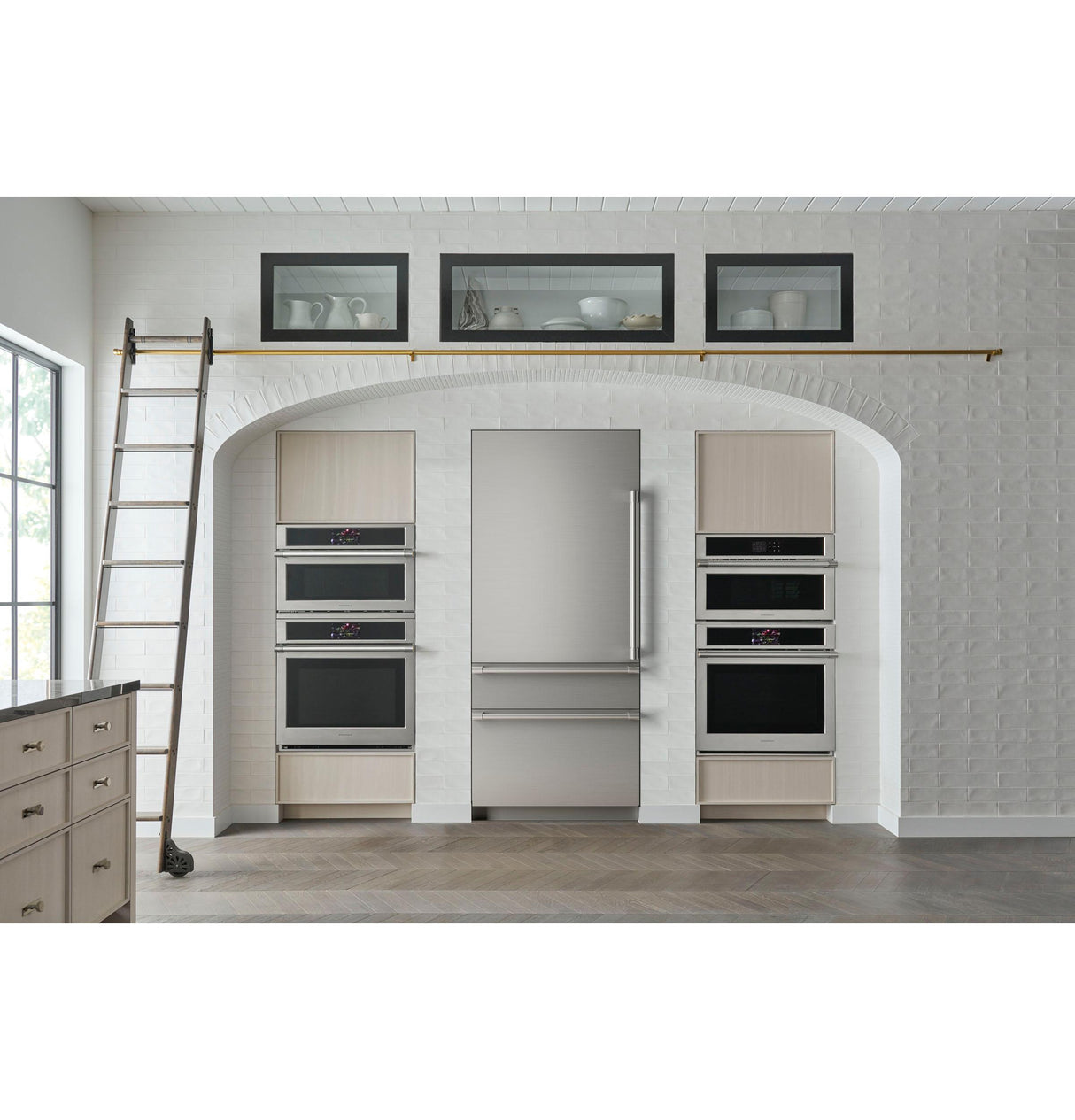

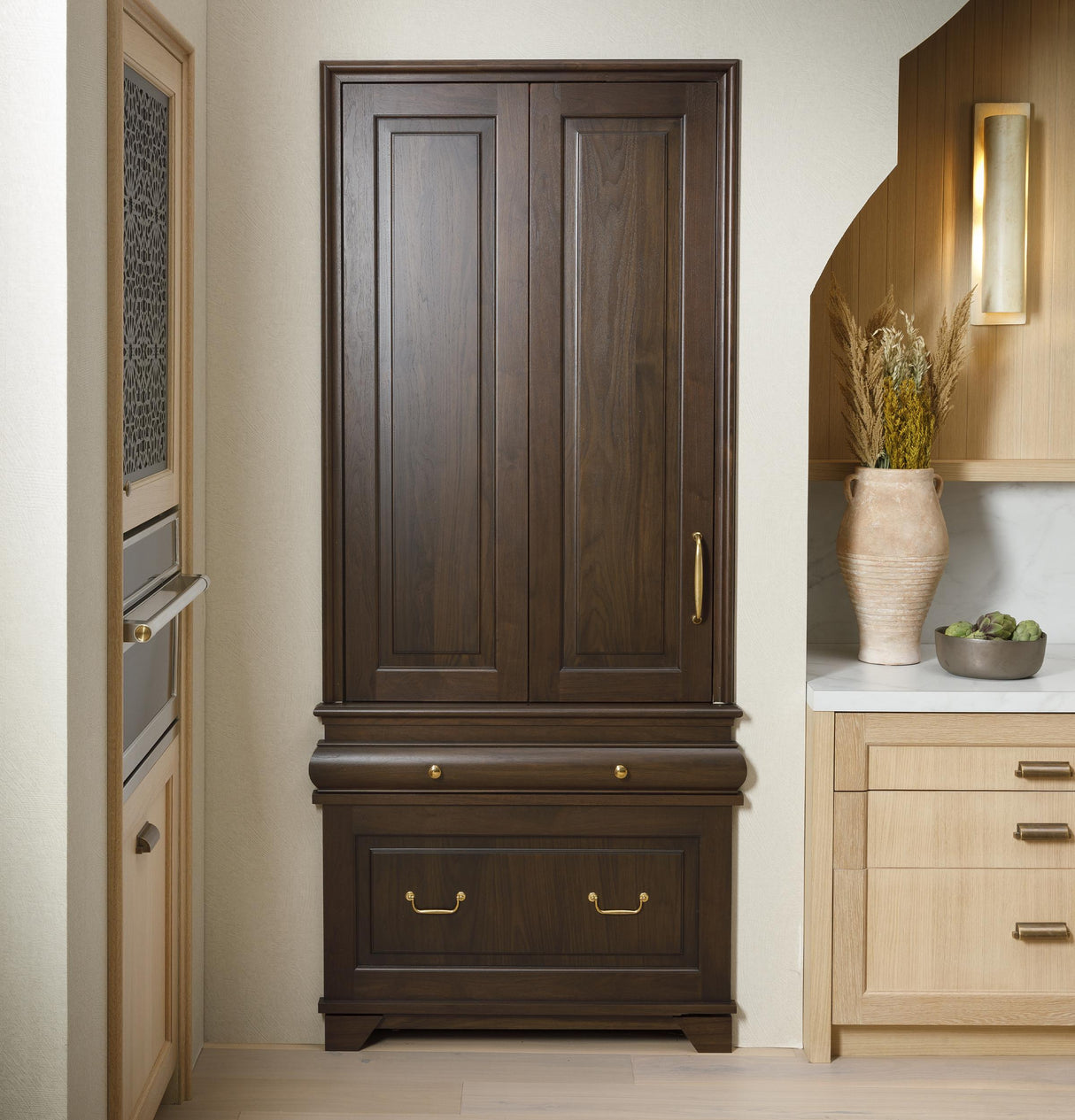

Bottom Freezer with Flush Inset Installation
Sleek design allows the refrigerator to be installed flush with adjacent cabinetry
- Bottom Freezer with Flush Inset Installation
- Sleek design allows the refrigerator to be installed flush with adjacent cabinetry
- 6-Temperature Setting Convertible Drawer
- The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items
- WiFi Connected Refrigerator
- The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app
- 2 Humidity-Controlled Vegetable Drawers
- Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness

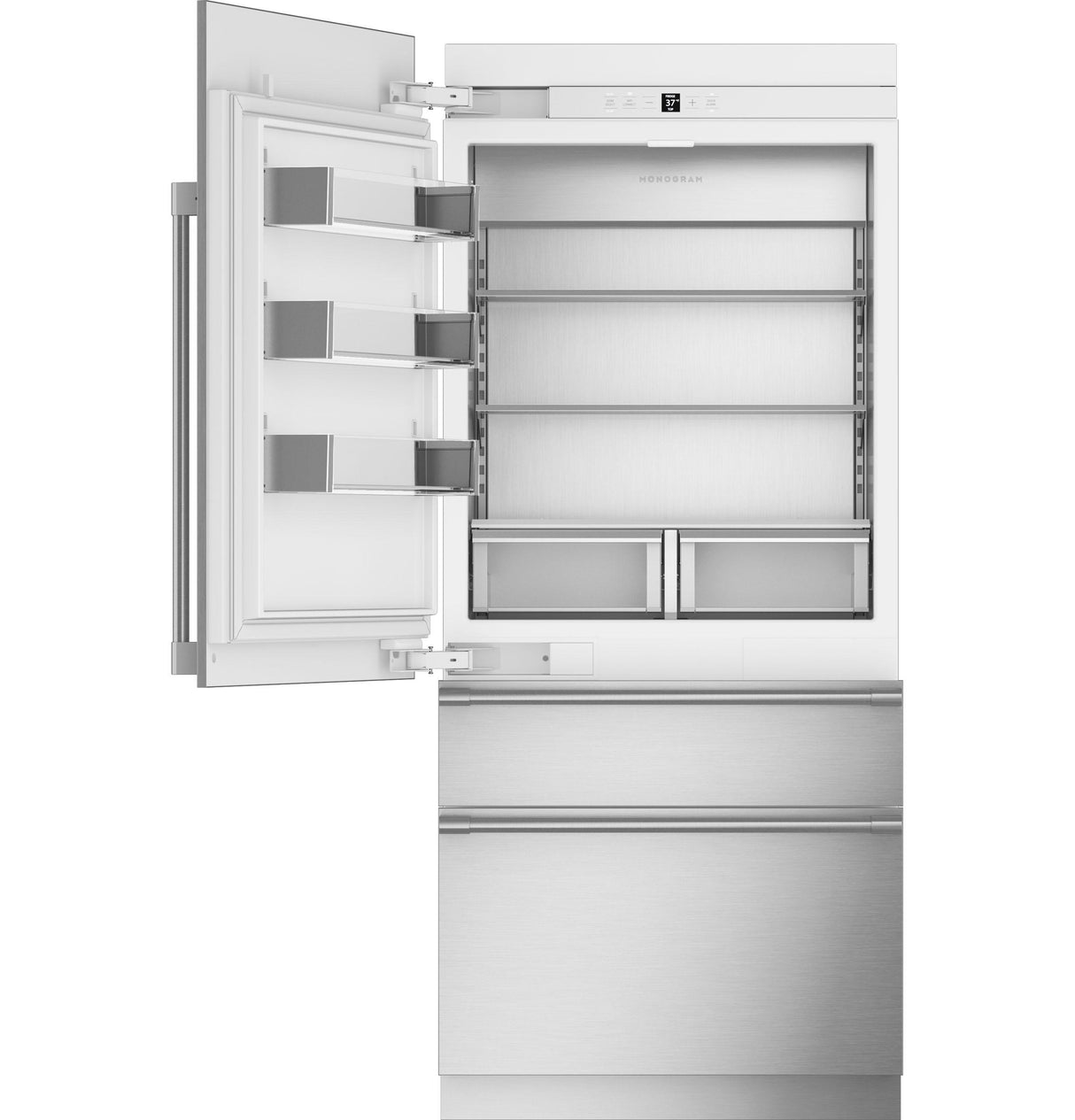

- Refrigerator Shelves
- Edge-to-edge glass shelves provide convenient storage and a clean appearance
- Factory Installed Ice Maker
- Create all the ice you want, anytime you like, with this refrigerator with ice maker
- Statement and Minimalist Collection Refrigerator Handles (sold separately)
- Designed to enhance choice and customization with Statement and Minimalist Collection handle options. HANDLES AND STAINLESS PANELS SOLD SEPARATELY.
- Bottom Freezer with Flush Inset Installation
- 6-Temperature Setting Convertible Drawer
- WiFi Connected Refrigerator
- 2 Humidity-Controlled Vegetable Drawers
- Refrigerator Shelves
- Factory Installed Ice Maker
- Statement and Minimalist Collection Refrigerator Handles (sold separately)
| CAPACITY | |
| Fresh Food Capacity | 13.71 cu ft |
| Total Capacity (cubic feet) | 20.1 cu ft |
| Convertible Drawer Capacity | 2.91 cu ft |
| Freezer Capacity | 3.45 cu ft |
| APPEARANCE | |
| Panel Capability | SS Door Panel Kit ZK3SN369WLH |
| Adjustable Rollers | 2 |
| Door Style | Solid Door |
| Door Stops | 90 Degree and 115 Degree |
| Design Style | Custom Panel & Handles |
| Handle Purchased Separately | Requires Statement Handle Kit (ZKSB3H3PVSS) or Minimalist Handle Kit (ZKSB3H3CVSS) |
| Installation | Fully Integrated Installation |
| Door Swing | Hinges on Left |

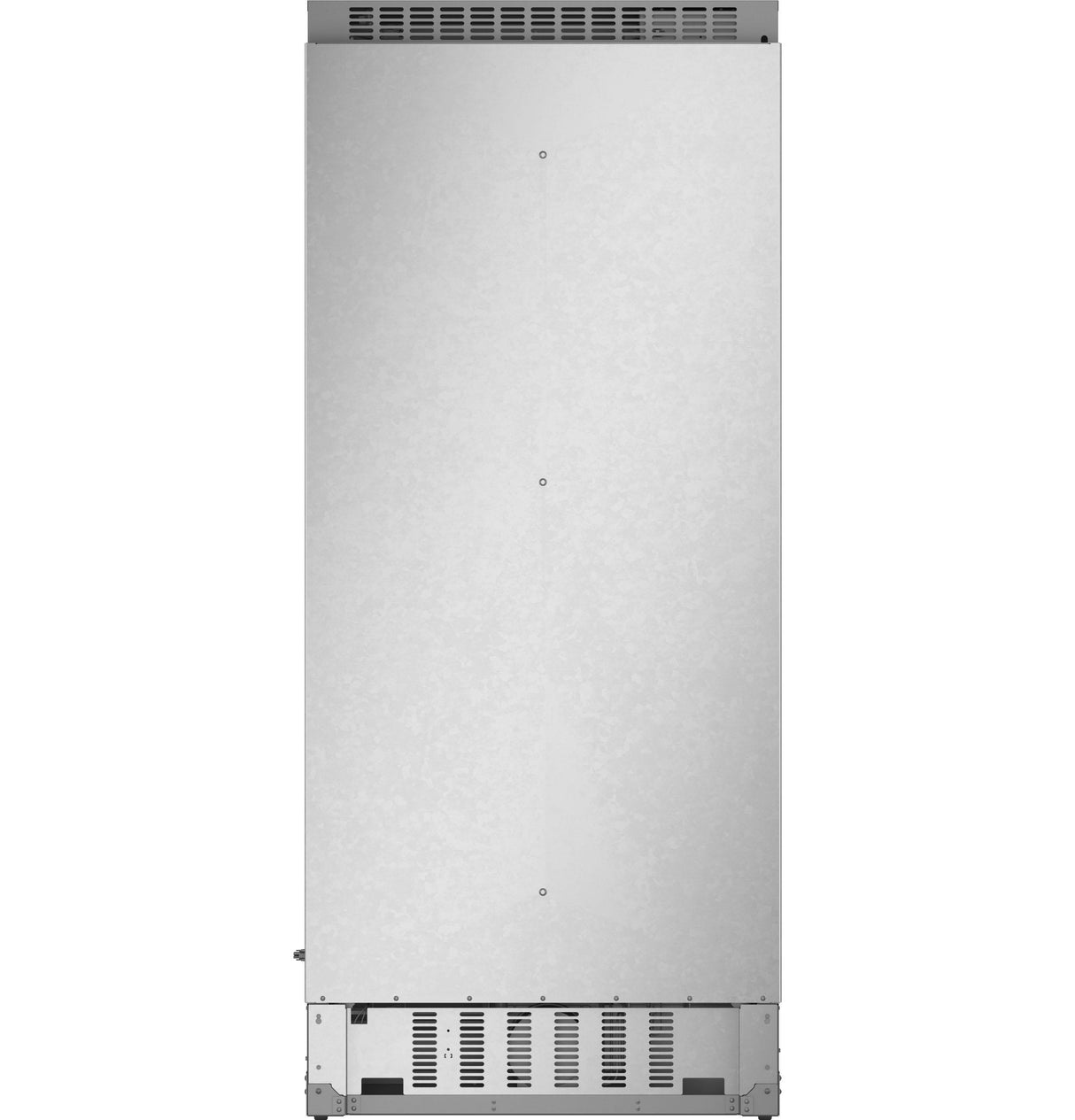

| Coil-Free Back | Yes |
| Color Appearance | Custom Panel and Handle Required |
| Hidden Door Hinge(s) | Yes |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 2-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 12-year sealed refrigerating system parts Limited 2-year entire appliance |
| POWER / RATINGS | |
| Electrical Requirements | 115V; 60Hz; 20A |
| Hertz | 60 |
| ECONOMICAL / QUIET | |
| Quiet Package | 36 dBA |
| ACCESSORIES | |
| Side by Side Install Toe-Kick Kit | 54" ZKK54P 60" ZKK60P 66" ZKK66R 72" ZKK72R |
| Handle Stud Kit | ZKPN |
| Trim Kit | 36" Trim Kit for 24" deep cabinets ZKW36V 72" Trim Kit for 24" deep cabinets ZKW72V |
| SxS Install Heater/Unification Kit | ZKMV |
| WEIGHTS & DIMENSIONS | |

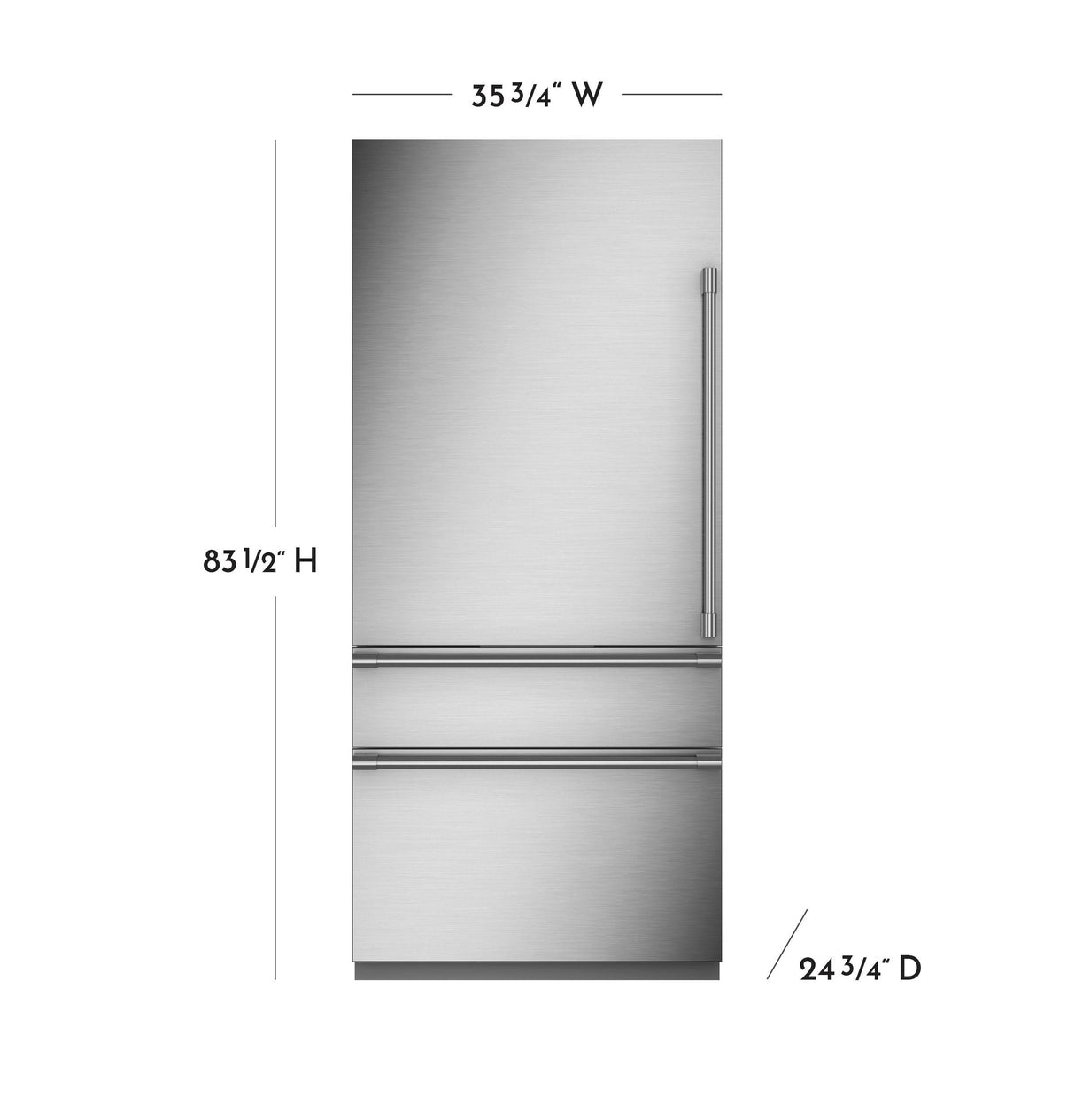

| Overall Depth | 24.75 in |
| Height to Top of Hinge | 83.5 in |
| Net Weight | 500 lb |
| Overall Width | 35.75 in |
| Approximate Shipping Weight | 621 lb |
| Overall Height | 83.875 in |
| FEATURES | |
| Temperature Management Features | Dual Evaporator Independent Temperature Controls Multi-Shelf Air Management Tower |

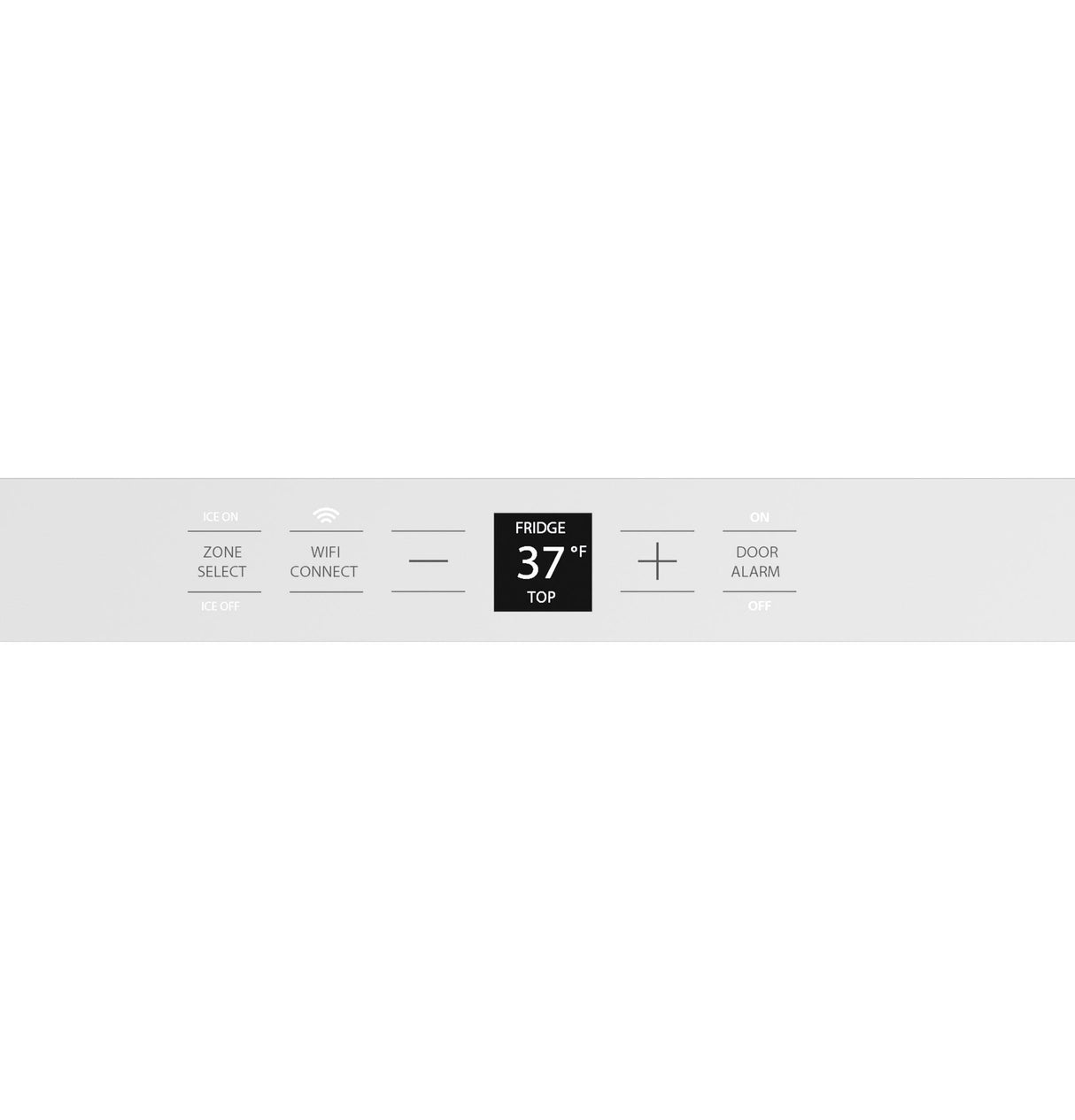

| Control Type | Integrated Upfront Capacitance Touch Controls |
| Custom Panel Ready | Integrated Panels |
| Icemaker | Factory-Installed |
| WiFi Connect | Built-In |
| Filter Change Indicator | Display water filter status @ 90% usage |
| Sabbath Mode | Yes |
| Door Alarm | Yes |
| Interior Lighting | LED |
| Connected Capabilities | Amazon Alexa Google Home |
| Defrost Type | Automatic Defrost |

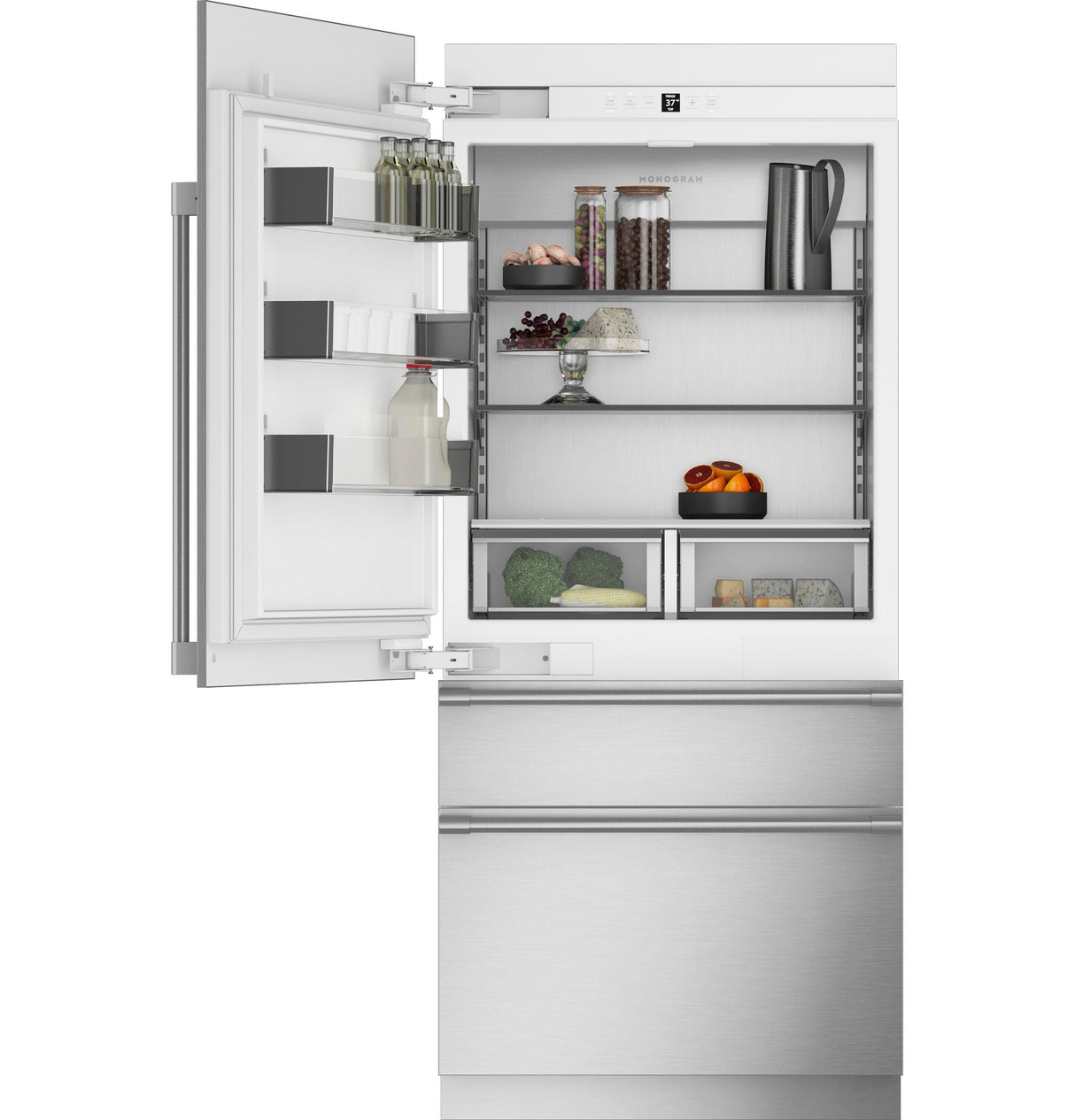

| Fresh Food Door Features | 3 Adjustable Bins Full-Width |
| Leveling System | 4 Point (2 adjustable back rollers, 2 adjustable front legs) |
| Fresh Food Cabinet Shelves | 2 Total - Glass with Trim |
| Middle Drawer | 6 Settings (Hard Freeze [sync w/freezer], Soft Freeze/Gelato, Meats, Cold Beverages, FF/Snack, Produce Yes, Convertible; Plastic Interior |
| Fresh Food Door Bins | 3 Full-Width |
| Freezer Features | Freezer Drawer with Full Extension Slides Soft-Close |
| Exterior Style | Built-In Standard Depth |

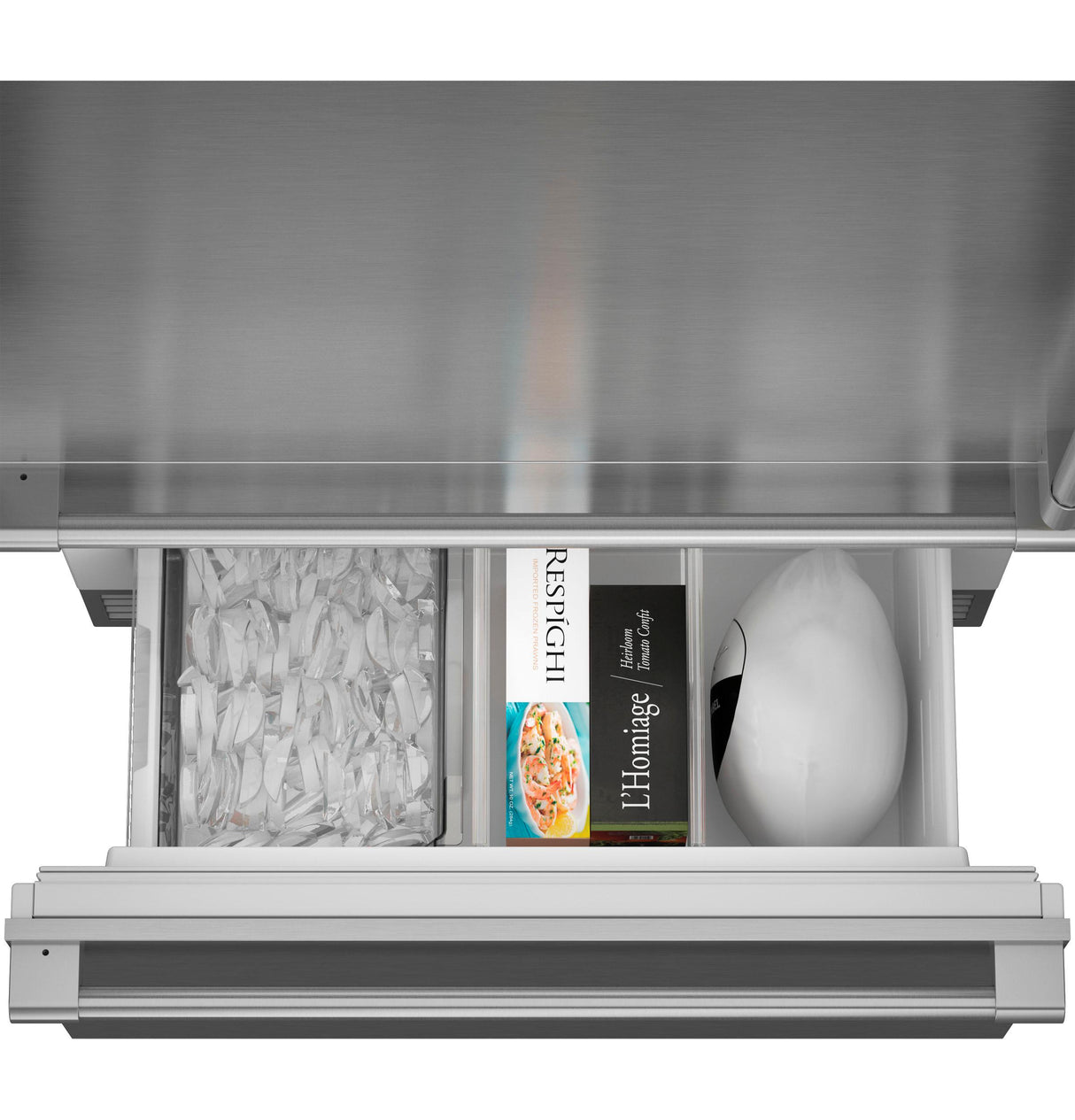

| Bottom Drawer | One Adjustable Divider Plastic Interior Yes, Freezer w/IM |
| Fresh Food Features | Display Temp Setpoint Door Alarm Filter-Change Indicator Interior Lighting - Ramp Up LED 4 Sabbath Mode Status |
| Configuration | Full Door and Double Drawer |
| Refrigerant Type | R600a |
| Dispenser | Non-Dispenser |
| Collection | Minimalist Statement |
| Fresh Food Cabinet Drawers | 2 Half-Width Adjustable Humidity Drawers Full-Extension Soft-Close Slides |

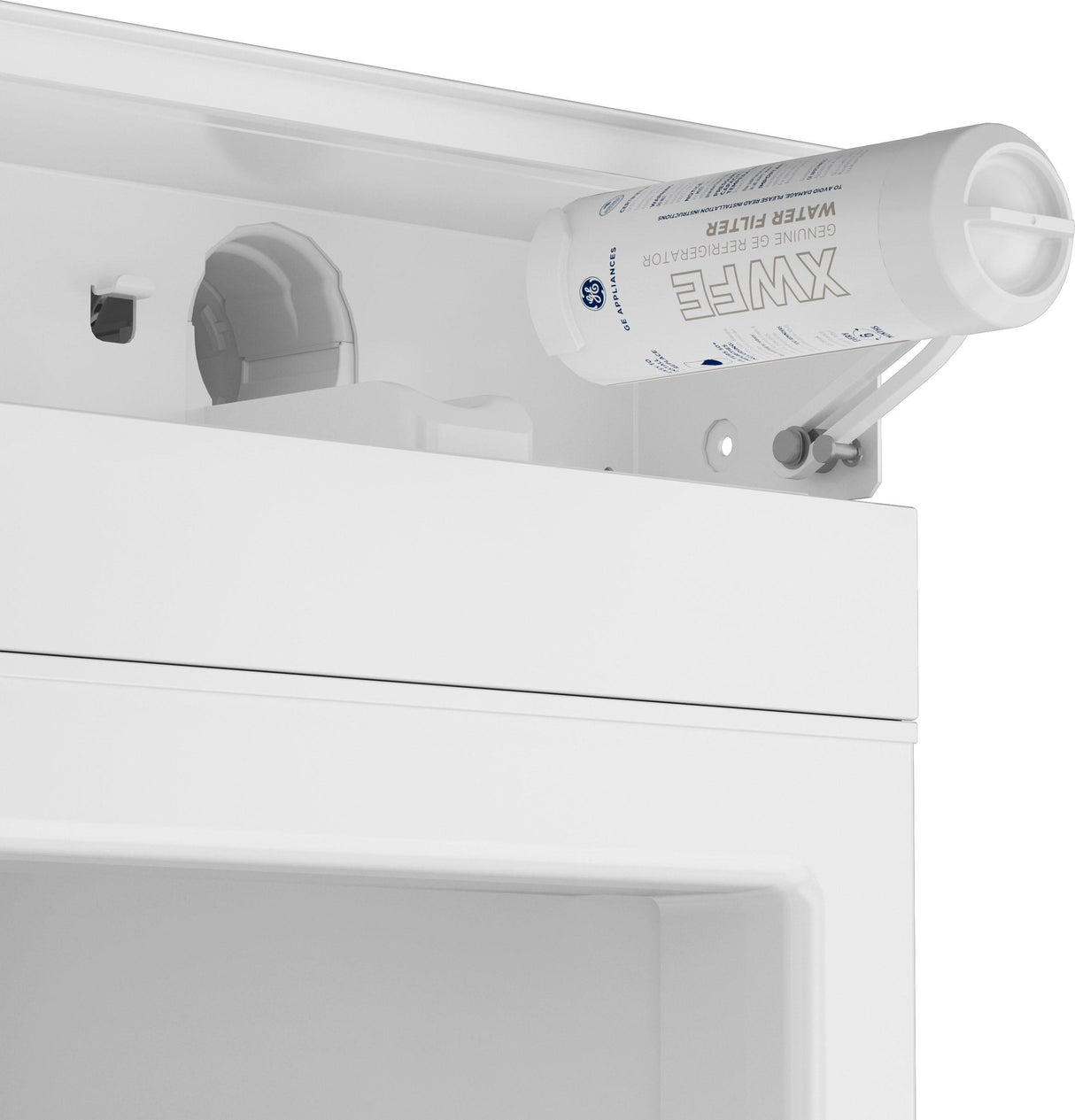

| Water Filtration | GE Water Filtration (XWFE Filter) |
| Product Type | Bottom Freezer Refrigerator Built-In Refrigerator |
| OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
