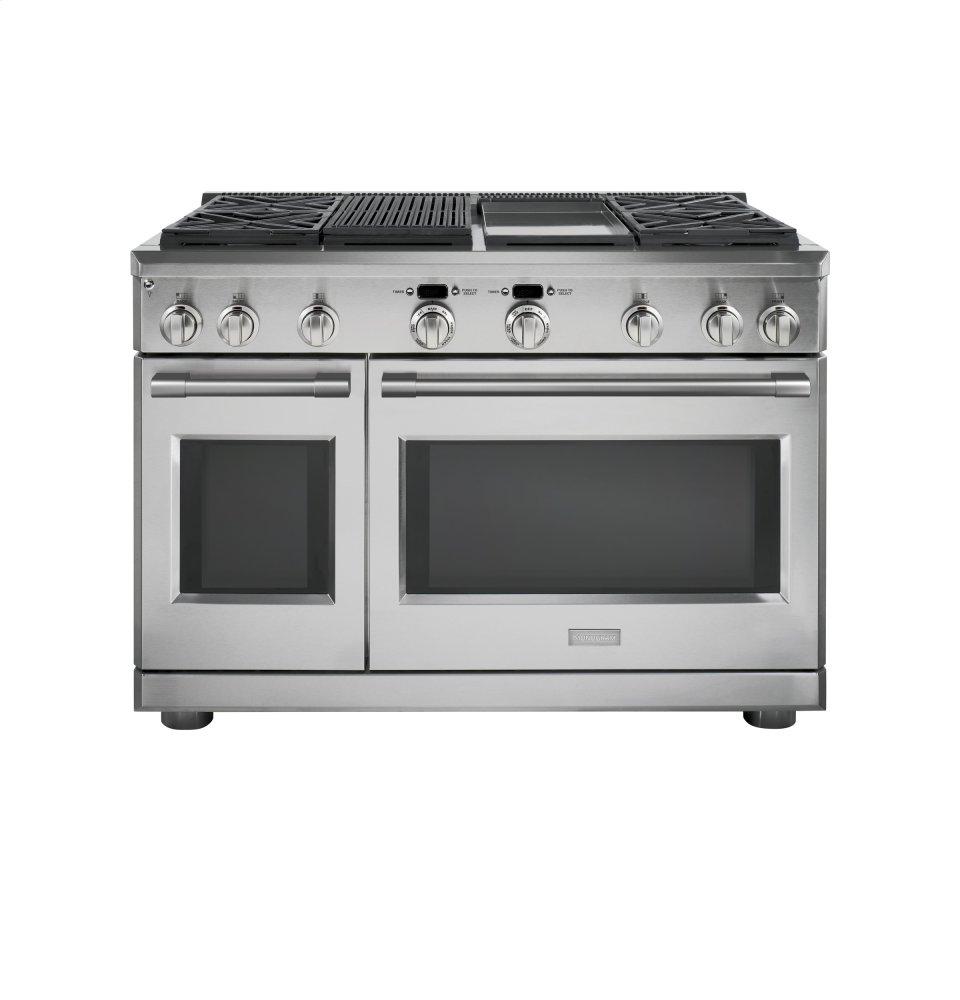

Monogram 48" Dual-Fuel Professional Range with 4 Burners, Grill, and Griddle (Natural Gas)
Model ZDP484NGNSS
Authorized Dealer
1
of
10
Loading...
Authorized Dealer
Monogram 48" Dual-Fuel Professional Range with 4 Burners, Grill, and Griddle (Natural Gas)
Model ZDP484NGNSSQuick Specs
Depth
28 1/4"
Height
35 1/4"
Sabbath
YES
ADA
NO
Wifi
NO
Burner
Sealed
Storage
NO
Warming
NO
Monogram 48" Dual-Fuel Professional Range with 4 Burners, Grill, and Griddle (Natural Gas) is backordered and will ship as soon as it is back in stock.
Regular price
$18,688.56
Unit price
/
Unavailable
Out of stock
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
28 1/4"
Height
35 1/4"
Sabbath Mode
YES
ADA
NO
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
NO
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
YES
Convection
YES
Self Clean
YES
Oven Rack Type
ROLLER
Downdraft Ventilation
NO
Drawer Proof Mode
YES
Dual Fuel
YES
Oven Ignition Type
ELECTRONIC
The Monogram Statement Collection
Edge-to-edge handles, polished stainless steel, smoothly finished edges and large electronic control knobs offer an authentic professional appearance
Monogram professional oven system
Combines European, reverse-air convection technology and six heating elements in each oven to provide superb baking results
Sealed, dual-flame stacked burners
Deliver a full spectrum of heat settings, from an ultra-low 140(degree) F simmer to an intense 18,000 BTU
- The Monogram Statement Collection
- Edge-to-edge handles, polished stainless steel, smoothly finished edges and large electronic control knobs offer an authentic professional appearance
- Sealed, dual-flame stacked burners
- Deliver a full spectrum of heat settings, from an ultra-low 140(degree) F simmer to an intense 18,000 BTU
- Monogram professional oven system
- Combines European, reverse-air convection technology and six heating elements in each oven to provide superb baking results
- Heavy-duty, full-extension racks
- Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle
- Ceramic-infrared grill
- has 14,000 BTUs* of adjustable heat; The cooking grate is grooved on one side to create sear marks and rounded on the other for delicate foods
- Stainless steel and aluminum-clad griddle
- Offers 18,000 BTUs* of cooking power, allowing fast and consistent heating across the entire cooking surface
- LED task lights
- Below the bullnose, provide a functional and theatrical touch
- Star-K certification
- Allows Monogram ranges to operate in Sabbath mode
- A bamboo cutting board
- Included with the range
- Optional full-width stainless steel toekick
- Is included with the range
- Stainless steel grill/griddle covers
- Are included with the range
- Large temperature and time displays
- Make it easy to monitor cooking progress
- Halogen light columns
- Provide a clear view, regardless of rack position
- Everyday oven
- Is just the right size for 9" x 13" casserole dishes
- A caterer's oven
- Is uniquely sized to accommodate three full-size sheet trays
- The Monogram Statement Collection
- Sealed, dual-flame stacked burners
- Stainless steel grill/griddle covers
- Large temperature and time displays
- Halogen light columns
- Everyday oven
- A caterer's oven
- Monogram professional oven system
- Heavy-duty, full-extension racks
- Ceramic-infrared grill
- Stainless steel and aluminum-clad griddle
- LED task lights
- Star-K certification
- A bamboo cutting board
- Optional full-width stainless steel toekick
| CAPACITY | |
| Total Capacity (cubic feet) | 8.25 |
| Capacity (Cu. Ft.) | 5.75 Caterer Oven / 2.5 Everyday Oven |
| APPEARANCE | |
| Control Knobs | Diecast Metallic (Included) |
| Installation | Flush Installation Capable |
| Design Style | Statement Collection |
| Toe kick | Included |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Grill BTU Rating (000's/BTU) - LP Gas | 14.0 |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 15.0, 140 Degree simmer |
| Grill BTU Rating (000's/BTU) - Natural Gas | 14.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Electrical Requirements | 240VAC; 50A |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 18.0, 140 Degree simmer |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance Limited 5-year gas surface burners Limited lifetime of oven racks |
| Labor Warranty | Limited 2-year entire appliance |
| ACCESSORIES | |
| Optional Backguard | 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |
| Grill Accessory (Cast Iron) | UXGRILL |
| Bamboo Cuttingboard | Included (1) |
| LP Conversion Kit | Included |
| Factory-installed island backguard | yes |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 576.0 |
| Height to Cooking Surface (in.) | 35 1/4 to 36 3/4 |
| Overall Depth | 30.875 |
| Height w/Legs Extended - Maximum Height | 36.75 |
| Height With Legs Retracted | 35.25 |
| Overall Width | 47.875 |
| Overall Height | 35.25 |
| Approximate Shipping Weight | 672.0 |
| Cabinet Width | 48.0 |
| FEATURES | |
| Oven Cleaning Type | Self-Clean (Both Ovens) |
| Cooktop Burner Type | 4 Sealed, Dual Flame Stacked |
| Cooktop Burner Grate Features | Continuous Grates Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Cooking System | Reverse Air Convection True European Convection |
| Oven Rack Features | 3 Self-Clean Oven Racks (Caterer Oven), 2 Self-Clean Oven Racks (Everyday Oven) 4 Rack Positions (Everyday Oven) 5 Rack Positions (Caterer Oven) Full-Extension |
| Fuel Type | Dual Fuel (with natural gas) |
| Cleaning Time | 5 Hours (Both Ovens) |
| Cooking Technology | Convection |
| Cooktop Surface | Porcelain-Enamel |
| Indicator Lights | Burner "On" |
| Configuration | 4 Burners; Grill; Griddle |
| Lighting | LED Bullnose Task Lighting |
| Removable Grease Trough | (2) Front of Grill & Griddle |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | Digital Temperature Display with Timer Display (Both Ovens) |
| Oven Cooking Modes | Convection Bake (Both Ovens) Convection Broil (Both Ovens) Convection Roast (Both Ovens) |
| Convection Roasting Rack | Yes |
| Ignition System | Electronic w/Auto Reignition |
| Griddle | 18,000-BTU Stainless Steel and Aluminum Clad Thermostatically Controlled |
| Oven Control Features | Automatic Oven Meat Probe (Both Ovens) Certified Sabbath Mode Delay Clean Option (Both Ovens) Proof Mode (Both Ovens) |
| Stainless Steel Grill / Griddle Covers | 2 |
| Interior Oven Light | 3 Halogen Lamps (Everyday Oven) 6 Halogen Lamps (Caterer Oven) |
| Cooktop Type | Continuous Grates |
| Adjustable Ceramic IR Grill | Yes |
| Broiler Pan and Grid | 2 |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Grill | 14,000-BTU Cast-Iron Reversible Grill Grate |
