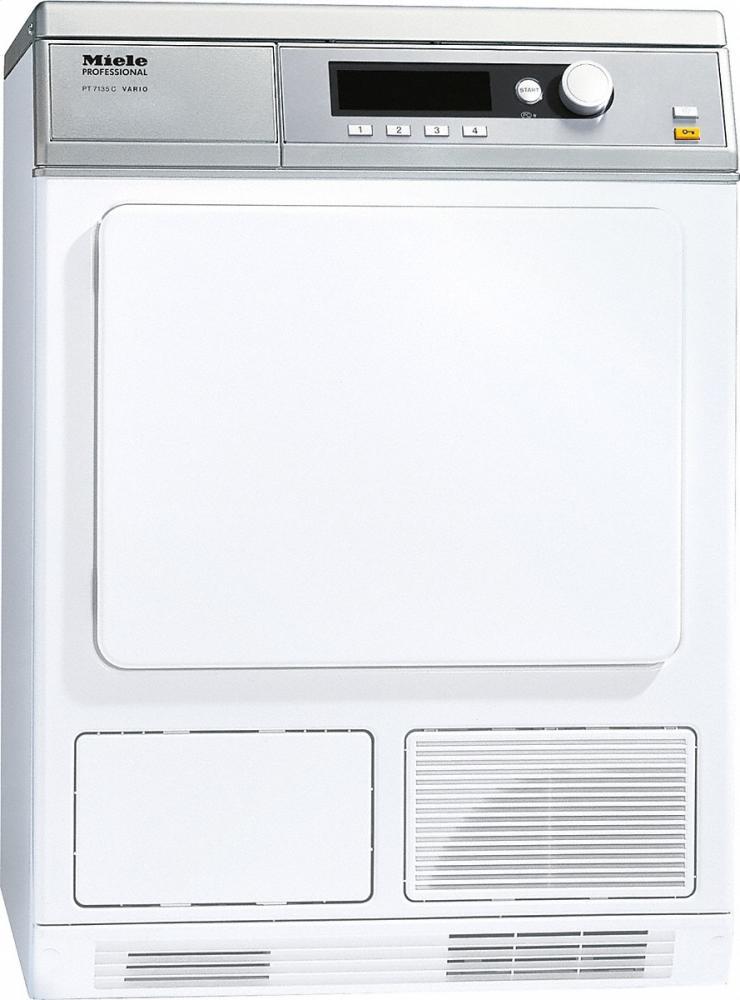

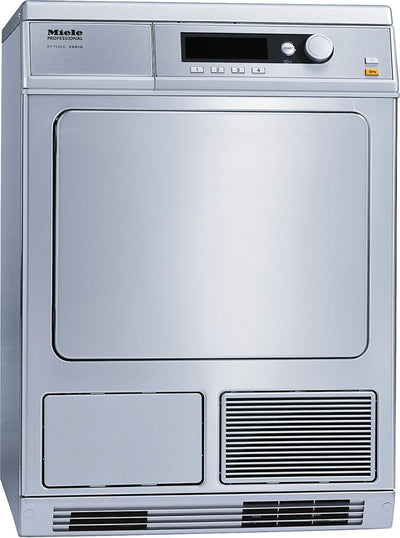

PT 7135 C Vario EL OS Condenser dryers Specially tailored for offshore requirements.
Model PT7135CVARIOELOSLOTOSWHITEENAMELLED
Authorized Dealer
Loading...
Authorized Dealer
PT 7135 C Vario EL OS Condenser dryers Specially tailored for offshore requirements.
Model PT7135CVARIOELOSLOTOSWHITEENAMELLEDQuick Specs
Steam
NO
Color
PT 7135 C Vario EL OS Condenser dryers Specially tailored for offshore requirements. is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Steam Cycle
NO
Excellent durability
The professional technology ensures excellent reliability and durability for daily work routine,
Low consumption values
Economical and efficient: Miele Professional commercial laundry appliances impress with low consumption values.
Patented condensate drainage *
Emptying not necessary: The condensed water can be drained directly via a hose.
Short program cycles
Premium commercial technology allows you to benefit from the shortest program cycles.
SoftLift drum ribs ensure gentle fabric care
The SoftLift drum ribs allow laundry to be dried gently and evenly.
Patented honeycomb drum *
Less folding, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum.
Axial airflow
For perfect drying results, air is passed through the drum according to the principle of longitudinal air flow.
Perfect Anti-crease
The laundry is tumbled regularly after the end of the program to protect it from creasing.
Customized user guidance
Flexible solutions to suit a wide range of customer needs with regard to professional laundry care
Patented PerfectDry system *
Precision drying results are achieved with the patented Miele PerfectDry system.
Delay start up to 24 hours
The program start time can be pre-set up to 24 hours in advance for efficient planning.
Enamelled housing
The enamel housing is scratch, acid and corrosion resistant and is easy to clean.
Countdown indicator
After the program has started, the display shows the cycle time remaining.
Intelligent tumble dryers
Gentle and uniform drying thanks to intelligent technology.
User instructions in a variety of languages
Avoids operating errors: All instructions and processes can be displayed in a variety of languages.
- Drum volume 4.59 (130) l, load capacity 15 (6.5) kg
- Large program variety - application-specific drying programs
- Precision drying of all textiles - Perfect Dry Patented PerfectDry system * Precision drying results are achieved with the patented Miele PerfectDry system. Patented PerfectDry system * Precision drying results are achieved with the patented Miele PerfectDry system.
- Unique, gentle fabric care - patented honeycomb drum Patented honeycomb drum * Less folding, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum.
- Perfect drying results - Intelligent gentle fabric care Intelligent tumble dryers Gentle and uniform drying thanks to intelligent technology. Intelligent tumble dryers Gentle and uniform drying thanks to intelligent technology.
| Model and design | |
| Design | Front-loader, stackable |
| Linie | Professional - Little Giants |
| Front | Lotos white, enamelled |
| Load in lbs.(kg) | 15 (6.5) |
| Fill ratio | 1:20 |
| Drum volume in gal(l) | 4.59 (130) |
| Drying system | Condenser |
| Door opening [ ] in in.(mm) | 16 1/4 (410) |
| Door opening angle in degrees | 167 |
| Door hinging | left |
| Patented honeycomb drum | Patented honeycomb drum * Less folding, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum. |
| Application | |
| Suitable for off-shore use | |
| Suitable for Marine use | |
| Performance data | |
| Specific energy consumption in kWh/kg an d kWh/p | 0.51 |
| Program cycle in min. | 81 |
| Controls | |
| Control system | Profitronic L Vario |
| Programmability | programmable |
| Program controls | Residual moisture controlled |
| Max. delay start in h | 24 |
| Countdown indicator | Countdown indicator After the programme has started, the display shows the cycle time remaining. |
| Program sequence indicator | |
| Choice of display language | User instructions in a variety of languages Avoids operating errors: All instructions and processes can be displayed in a variety of languages. |
| Standard electrical connection | |
| Type of heating | Electrical |
| Number of phases | 3 |
| AC/DC | AC |
| Voltage in V | 230 |
| Frequency in Hz | 60 |
| Electric heater rating in kW | 3.45 |
| Total connected load in kW | 3.68 |
| Fuse rating in A | 16 |
| Possible voltage options | |
| Number of phases | 3 |
| AC/DC | AC |
| Voltage in V | 230 |
| Electric heater rating in kW | 3.45 |
| Total connected load in kW | 3.68 |
| Fuse rating in A | 16 |
| Dimensions and weight | |
| External dimensions, height in in.(mm) | 33 1/2 (850) |
| External dimensions, width in in.(mm) | 23 1/2 (595) |
| External dimensions, depth in in.(mm) | 28 (710) |
| Net weight in lbs.(kg) | 134 (61) |
| Maximum floor loading in p/force | 710 |
| Emission levels | |
| Emissions - sound pressure at workplace | <70 dB(A) re 20 Pa |
| Heat output to the room in Mj/h and BTUs /h | 9.00 |
| Features | |
| Intelligent drum reversal | Intelligent tumble dryers Gentle and uniform drying thanks to intelligent technology. Intelligent tumble dryers Gentle and uniform drying thanks to intelligent technology. |
| Axial airflow | Axial airflow For perfect drying results, air is passed through the drum according to the principle of longitudinal air flow. |
| Fluff filter in the door | Practical fluff filter in the door The filter surface is particularly easy to clean. The positioning in the door ensures easy access. |
| PerfectDry | Patented PerfectDry system * Precision drying results are achieved with the patented Miele PerfectDry system. Patented PerfectDry system * Precision drying results are achieved with the patented Miele PerfectDry system. |
| SoftLift drum ribs | SoftLift drum ribs ensure gentle fabric care The SoftLift drum ribs allow laundry to be dried gently and evenly. |
| Low temperature function | |
| Condensed water drainage | Patented condensate drainage * Emptying not necessary: The condensed water can be drained directly via a hose. European patent: EP 1 186 697 B1 |
| Drum lighting | Drum lighting No laundry item is overlooked when unloading thanks to the perfectly lit honeycomb drum. |
| Appliance-independent accessories | A wide range of accessories * Consistently perfect work processes and efficiency - with a large selection of practical accessories. |
| Efficiency and sustainability | |
| Recycling rate in % | 95 |
| Connection options | |
| Optical interface for service access | |
| Test certificates and symbols | |
| CE | |
| Splash-proof safety rating IPX4. | |
| WEEE | |
| Complies with Machinery Directive 2006/4 2/EC | |
