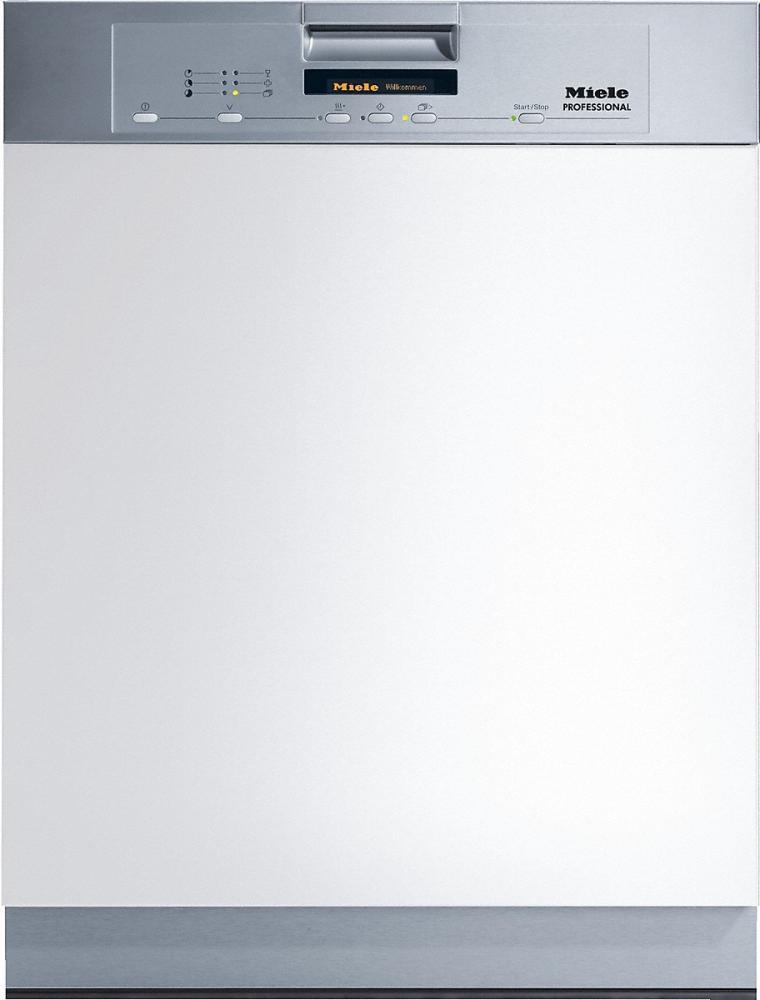

PG 8080 i - 208-240V Integrated dishwasher For dishware mountains in office kitchens, tea rooms and utility areas.
Model PG8080I208240VWITHOUTFRONT
Authorized Dealer
Loading...
Authorized Dealer
PG 8080 i - 208-240V Integrated dishwasher For dishware mountains in office kitchens, tea rooms and utility areas.
Model PG8080I208240VWITHOUTFRONTQuick Specs
Depth
22.5
Height
31.75
SS Tub
NO
Dish Cycles
13
Energy
YES
Controls
NO
PG 8080 i - 208-240V Integrated dishwasher For dishware mountains in office kitchens, tea rooms and utility areas. is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22.5
Height
31.75
Stainless Steel Tub
NO
Dish Cycle Count
13
Energy Star Rated
YES
Fully Integrated Controls
NO
EXTRA COMFORT baskets
Maximum versatility for perfect washing and drying results in any situation.
Spray arm control
If the middle spray arm is obstructed by dishware or cutlery, the display will indicate this.
Powerful cleaning performance on two levels
High capacity: The most diverse items can be arranged safely on two wash levels.
Cutlery basket
Extremely versatile: The cutlery basket fits in any position over the front spikes in the lower basket.
Commercial throughflow heater
A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance.
High rinse temperature
Even the most demanding hygiene requirements are met by using high final rinse temperatures.
Quality you can rely on
Durability: Miele Professional dishwashers are tested for a long service life.
Simplest user interface
Intuitive & easy to operate: All programs can be selected quickly & started at the touch of a button.
- Wash performance: 13 place settings in just 24 minutes * Depending on site conditions (temperature of incoming water / power connection) values given may vary.
- Simple to operate thanks to clear fascia panel design
- Everything completely dry - patented AutoOpen drying Patented AutoOpen drying * Completely dry: The dishwasher door opens automatically at the end of the program. German Patent DE 102 007 008 950 B4
- The best care for your glasses - Perfect GlassCare Perfect GlassCare A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
- Convenient salt replenishment - patented in-door salt container Patented in-door salt container * Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket. European patent EP 1 457 153 B1
| Model and design | |
| Design | Integrated dishwasher |
| Linie | ProfiLine |
| Wash system | Fresh water |
| Number of levels | 2 |
| Front | Without front |
| Side walls | Galvanised |
| Water consumption per wash cycle in gal(l) | 4.5 (17.00) |
| Drying | Additional drying Recirc. turbothermic drying AutoOpen drying |
| Application | |
| Suitable for guest houses | Dishwashers for guesthouses These dishwashers meet the requirements of guesthouses, for example because they are especially easy to use and with their quick cycle times allow several loads per day. |
| Suitable for offices | Dishwashers for offices These dishwashers meet the requirements of kitchens in offices, for example because they are easy and convenient to use and with their quick cycle times allow several loads per day. |
| Suitable for small businesses | Dishwashers for small businesses These dishwashers meet the requirements of small businesses, for example because they are especially easy to use and with their quick cycle times allow several loads per day. |
| Suitable for sports clubs | Dishwashers for sports clubs These dishwashers meet the requirements of sports clubs, for example because they are especially easy to use and with their quick cycle times allow several loads per day. |
| Performance data | |
| Circulation pump, Qmax in l/min. | 190 |
| Shortest program duration in min. Very short cycle times Thanks to intelligent professional technology you can benefit from very short programs and perfect results. Short program cycles With their short cycle times ProfiLine dishwashers are true sprinters. | 24 |
| Maximum final rinse temperature in °F(°C) | 186 (85) |
| Cleaning performance, place settings/cyc le Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature). | 13 |
| Tested operating hours | 7,500 |
| Controls | |
| Control system | Electronic controls |
| Program selection | Programme selector buttons |
| Max. delay start in h | 24 |
| Countdown indicator | |
| Program sequence indicator | |
| Choice of display language | |
| Language-neutral operation | |
| Standard electrical connection | |
| Number of phases | 1 |
| Neutral conductor | N |
| AC/DC | AC |
| Voltage in V | 120 |
| Frequency in Hz | 60 |
| Heater rating in kW | 3.30 |
| Total connected load in kW | 3.50 |
| Fuse rating in A | 30 |
| Length of connection wire in ft(m) | 5 (1.80) |
| Water connection/drainage | |
| Cold or hot water [number] | 1 |
| Required flow pressure in bar | 0,30-10,00 |
| Drain pump [DN] | 22 |
| Maximum delivery head for drain pump in in(cm) | 39 3/8 (100) |
| Integrated water softener | Integrated water softener The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results. |
| Maximum water hardness in mmol/l and gal | 6.50 |
| Dimensions and weight | |
| External dimensions without lid, height in in.(mm) | 31 3/4 (805) |
| External dimensions, width in in.(mm) | 23 5/8 (598) |
| External dimensions, depth in in.(mm) | 22 1/2 (570) |
| Usable space in wash cabinet, height in in.(mm) | 21 3/8 (540) |
| Usable space in wash cabinet, width in in.(mm) | 20 1/8 (510) |
| Usable space in wash cabinet, depth of upper basket in in.(mm) | 17 3/4 (450) |
| Usable space in wash cabinet, depth of lower basket in in.(mm) | 17 3/4 (450) |
| In-feed height above floor in in.(mm) | 8 3/8 (210) |
| Net weight in lbs.(kg) | 122 (55) |
| Maximum floor loading in p/force | 1,000 |
| Emission levels | |
| Emission sound pressure level in workplace (LpA) Emissions - sound pressure at workplace The emission sound pressure level provides a value for the noise emission created by the machine. Miele Professional machines have an extremely low sound pressure level. | 38 dB(A) re 20 Pa |
| Sound power (LwA) in dB(A) re 1 pW | 49.0 |
| Heat output to the room in Mj/h | 2.52 |
| Programs | |
| Universal | |
| Short | |
| Sanitize | |
| Cold/pre-rinse | |
| Glasses | Program for glasses and cutlery To ensure streak-free results without manual polishing, these appliances are equipped with special programs for glassware and cutlery. These Program can use demineralised water for the rinse cycle. |
| Beer glasses | Program for glasses and cutlery To ensure streak-free results without manual polishing, these appliances are equipped with special programs for glassware and cutlery. These Program can use demineralised water for the rinse cycle. |
| Plastic | Program for plastic items Special program with reduced water pressure and optimized drying for delicate plastic items and lightweight dishes. |
| EnergySave/Economy | |
| Intensive | |
| Basket design | |
| EXTRA COMFORT baskets | EXTRA COMFORT baskets Maximum versatility for perfect washing and drying results in any situation. |
| Cutlery basket | Cutlery basket Extremely versatile: The cutlery basket fits in any position over the front spikes in the lower basket. |
| Height-adjustable upper basket | Height-adjustable upper basket The height of the upper basket can be adjusted to suit the items being cleaned. |
| Features | |
| 1 combi dispenser/door for powder and li quid media | |
| Wash cabinet made from high-quality stai nless steel. | |
| In-door salt container | Patented in-door salt container * Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket. European patent EP 1 457 153 B1 |
| AutoOpen drying | Patented AutoOpen drying * Completely dry: The dishwasher door opens automatically at the end of the program. German Patent DE 102 007 008 950 B4 |
| ComfortClose | ComfortClose Convenient: The door can be closed very easily. |
| Perfect GlassCare | Perfect GlassCare A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned. |
| Spray arm monitor for middle spray arm | Spray arm control If the middle spray arm is obstructed by dishware or cutlery, the display will indicate this. |
| Child Child lock | |
| Optical interface | |
| Efficiency and sustainability | |
| Operating noise in dB(a) | 49 |
| Test certificates and symbols | |
| CE | |
| VDE | |
| Interference suppression | |
| EN 1717 | |
| EMC | |
| Complies with Machinery Directive 2006/4 2/EC | |
- Wash performance: 13 place settings in just 24 minutes * Depending on site conditions (temperature of incoming water / power connection) values given may vary.
- Simple to operate thanks to clear fascia panel design
- Everything completely dry - patented AutoOpen drying Patented AutoOpen drying * Completely dry: The dishwasher door opens automatically at the end of the program. German Patent DE 102 007 008 950 B4
- The best care for your glasses - Perfect GlassCare Perfect GlassCare A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
- Convenient salt replenishment - patented in-door salt container Patented in-door salt container * Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket. European patent EP 1 457 153 B1
 | |
|---|---|
