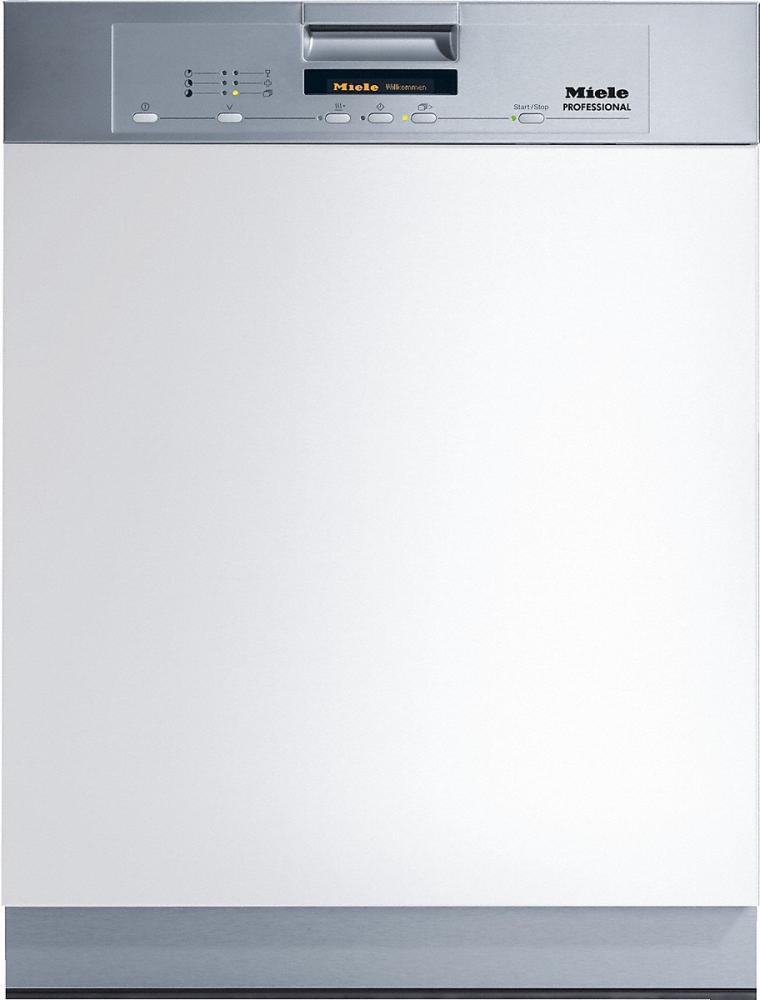

PG 8080 i [120V] Integrated dishwasher ADA compliant, for large loads of dishware in office kitchens and utility areas.
Model PG8080I120VWITHOUTFRONT
![PG 8080 i [120V] Integrated dishwasher ADA compliant, for large loads of dishware in office kitchens and utility areas.](http://www.parkaveappliance.com/cdn/shop/files/frlmqjqeiteu.jpg?v=1784617630&width=1500)
PG 8080 i [120V] Integrated dishwasher ADA compliant, for large loads of dishware in office kitchens and utility areas.
Model PG8080I120VWITHOUTFRONTQuick Specs
PG 8080 i [120V] Integrated dishwasher ADA compliant, for large loads of dishware in office kitchens and utility areas. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Patented AutoOpen drying *
(B)For perfectly dry dishware(/B) The dishwasher door opens automatically at the end of the program. This allows the steam to escape and even difficult to dry crockery such as plastic items is dried optimally.
Extra Comfort baskets
High flexibility for perfect washing and drying results in any situation.
ProfiLine dishwashers
(B)Fast, versatile, and economical(/B) Are very short cycle times and sparkling results important to you? Then the ProfiLine dishwashers are the perfect combination of performance and design for you. With connections for hot water and a 3-phase supply, these machines come with the promise of maximum efficiency. Models with a large cabinet and an integrated cutlery tray are able to gently but thoroughly wash and clean up to 14 standard place settings.
Powerful cleaning performance on two levels
High capacity: The most diverse items can be arranged safely on two wash levels.
Low consumption values
(B)Economical and efficient(/B) Save money and be environmentally friendly: Miele Professional dishwashers offer impressive low consumption values and are known for maximum efficiency. This standard is applied right from the product development stage: Perfect dishwashing results should be achieved by using recyclable materials and no more water, energy and detergent than absolutely necessary.
Cutlery basket
Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket.
Commercial electrical connection
(B)Enhanced performance for large amounts of dishware(/B) Short running times require a high power rating. For this reason, the dishwashers are factory-equipped with a 5-pole connection cable.
Integrated water softener
(B)Ensures the optimum water hardness level(/B) The built-in softener always delivers water with the optimum degree of hardness. The use of soft water allows detergent to be used sparingly and prolongs the life of the appliance. The degree of water hardness is adjusted manually to suit the on-site water quality.
High rinse temperature
Even the most demanding hygiene requirements are met by using high final rinse temperatures.
Powerful heater pump
(B)A strong combination(/B) Excellent cleaning performance: The heater pump combines a powerful circulation pump and integrated heater elements in one compact unit.
Perfect GlassCare
(B)A gentle way to a perfect shine(/B) Soft water is good for cleaning but has an aggressive effect on glass. This is why Miele Professional dishwashers use Perfect GlassCare in the glasses program. This technology adjusts the water hardness precisely, so that all glasses are thoroughly yet gently cleaned.
For businesses
(B)Dishwashing professionals for daily large loads of dishes(/B) The ProfiLine dishwashers are the perfect solution wherever large amounts of dishware need to be washed. Even large amounts of dishware that accumulate during breaks, meetings and events are washed quickly and thoroughly. However, they are also really impressive for private households with a large amount of dishware to deal with.
Spray arm control
If the middle spray arm is obstructed by dishware or cutlery, the display will indicate this.
Highly effective filter system
(B)Professional and effective(/B) The extremely effective filter system in the dishwashers by Miele Professional serves valuable purposes. Permanent filtering of the wash fluid leads to optimum cleaning results with maximum damage protection of the appliance.
Short program cycles
(B)Dishwashing made quick(/B) With their short cycle times ProfiLine dishwashers are the quickest Miele built-in models that can be integrated. Their features are in no way inferior to the domestic built-in appliances.
- Wash performance: 13 place settings in just 57 minutes * Depending on site conditions (temperature of incoming water / power connection) values given may vary.
- Simple to operate thanks to clear fascia panel design
- Everything completely dry - patented AutoOpen drying Patented AutoOpen drying * Completely dry: The dishwasher door opens automatically at the end of the program. German Patent DE 102 007 008 950 B4
- The best care for your glasses - Perfect GlassCare Perfect GlassCare A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
- Convenient salt replenishment - patented in-door salt container Patented in-door salt container * Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket. European patent EP 1 457 153 B1
| Model and design | |
| Design | Integrated dishwasher Integrated dishwasher Apart from the fascia panel, the appliance front can be fitted with a furniture panel to match the existing kitchen units - for a seamless kitchen design. The required niche width is 24". |
| Line | ProfiLine Short program cycles With their short cycle times ProfiLine dishwashers are true sprinters. |
| Wash system | Fresh water Fresh water system Constantly high cleaning performance and filtration thanks to repeated water changes. |
| Number of levels | 2 |
| Front | Without front |
| Side walls | Galvanised |
| Drying | Additional drying Recirc. turbothermic drying AutoOpen drying |
| Application | |
| Suitable for Bed & Breakfast | Dishwashers for guesthouses These dishwashers meet the requirements of guesthouses, for example because they are especially easy to use and with their quick cycle times allow several loads per day. |
| Suitable for offices | Dishwashers for offices These dishwashers meet the requirements of kitchens in offices, for example because they are easy and convenient to use and with their quick cycle times allow several loads per day. |
| Suitable for small businesses | Dishwashers for small businesses These dishwashers meet the requirements of small businesses, for example because they are especially easy to use and with their quick cycle times allow several loads per day. |
| Suitable for sports clubs | Dishwashers for sports clubs These dishwashers meet the requirements of sports clubs, for example because they are especially easy to use and with their quick cycle times allow several loads per day. |
| Performance data | |
| Circulation pump, Qmax in l/min. | 190 |
| Shortest program duration in min. Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature). | 57 |
| Maximum final rinse temperature in °F (°C) | 186 (85) |
| Cleaning performance, place settings/cycle Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature). | 13 |
| Tested operating hours Note Our machines undergo intensive testing under laboratory conditions. The actual operating hours may vary depending on user, maintenance, and handling of the machine. | 7,500 |
| Controls | |
| Control system | Electronic controls |
| Program selection | Programme selector buttons |
| Max. delay start in h | 24 |
| Countdown indicator | |
| Program sequence indicator | |
| Choice of display language | |
| Language-neutral operation | |
| Standard electrical connection | |
| Electrical connection | AC 120V 60HZ |
| Heater rating in kW | 1.30 |
| Total connected load in kW | 1.50 |
| Fuse rating in A | 15 |
| Length of connection wire in ft (m) | 5 (1.80) |
| Water connection/drainage | |
| Cold or hot water [number] | 1 |
| Required flow pressure in bar | 0,30-10,00 |
| Drain pump [DN] | 22 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | Integrated water softener The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results. |
| Maximum water hardness in mmol/l and gal Note For a water hardness above 53 mg/l (3.1 grains/gal), the installation of a pre-connected water softener is recommended if an integrated water softener is not available.. | 6.50 |
| Water consumption per wash cycle in gal (l) | 4.5 (17.00) |
| Dimensions and weight | |
| External dimensions without lid, height in inches (mm) | 31 3/4 (805) |
| External dimensions, width in inches (mm) | 23 5/8 (598) |
| External dimensions, depth in inches (mm) | 22 1/2 (570) |
| Usable space in wash cabinet, height in inches (mm) | 21 3/8 (540) |
| Usable space in wash cabinet, width in inches (mm) | 20 1/8 (510) |
| Usable space in wash cabinet, depth of upper basket in inches (mm) | 17 3/4 (450) |
| Usable space in wash cabinet, depth of lower basket in inches (mm) | 17 3/4 (450) |
| In-feed height above floor in inches (mm) | 8 3/8 (210) |
| Net weight in lbs. (kg) | 122 (55) |
| Maximum floor loading in p/force Maximum floor bearing capacity Maximum floor bearing capacity states the maximum weight (N) that can be placed on the supporting surface on which the appliance is installed. This maximum load bearing capacity is the result of adding up the weight of the machine, the load and the water in it, as well as the dynamic forces that occur during operation. | 1,000 |
| Emission levels | |
| Emission sound pressure level in workplace (LpA) Emissions - sound pressure at workplace The emission sound pressure level provides a value for the noise emission created by the machine. Miele Professional machines have an extremely low sound pressure level. | 38 dB(A) re 20 Pa |
| Sound power (LwA) in dB(A) re 1 pW Sound power level The sound power level depends on the program. | 49.0 |
| Heat output to the room in Mj/h | 2.52 |
| Programs | |
| Universal | Universal program Standard program for normally soiled wash items. |
| Short | Short program "Quick program" for lightly soiled wash items with fresh, easily removed food residues. |
| Sanitize | |
| Cold/pre-rinse | |
| Glasses | Program for glasses and cutlery To ensure streak-free results without manual polishing, these appliances are equipped with special programs for glassware and cutlery. These Programs can use demineralised water for the rinse cycle. |
| Beer glasses | Program for glasses and cutlery To ensure streak-free results without manual polishing, these appliances are equipped with special programs for glassware and cutlery. These Programs can use demineralised water for the rinse cycle. |
| Plastic | Program for plastic items Special program with reduced water pressure and optimized drying for delicate plastic items and lightweight dishes. |
| EnergySave/Economy | |
| Intensive | Intensive program Standard program for heavily soiled wash items and burnt-on, stubborn food deposits. |
| Basket design | |
| EXTRA COMFORT baskets | Extra Comfort baskets High flexibility for perfect washing and drying results in any situation. |
| Cutlery basket | Cutlery basket Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket. |
| Height-adjustable upper basket | Height-adjustable upper basket The height of the upper basket can be adjusted to suit the items being cleaned. |
| Features | |
| 1 Combi dispenser/door for powder and liquid media | |
| Wash cabinet made from high-quality stainless steel. | |
| In-door salt container | Patented in-door salt container * Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket. European patent EP 1 457 153 B1 |
| AutoOpen drying | Patented AutoOpen drying * Completely dry: The dishwasher door opens automatically at the end of the program. German Patent DE 102 007 008 950 B4 |
| ComfortClose | ComfortClose Convenient: The door can be closed very easily. |
| Perfect GlassCare | Perfect GlassCare A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned. |
| Spray arm monitor for middle spray arm | Spray arm control If the middle spray arm is obstructed by dishware or cutlery, the display will indicate this. |
| Child lock | |
| Optical interface | |
| Efficiency and sustainability | |
| Operating noise in dB(a) | 49 |
| Test certificates and symbols | |
| CE | |
| VDE | |
| Interference suppression | |
| EN 1717 | |
| EMC | |
| Complies with Machinery Directive 2006/4 2/EC | |
