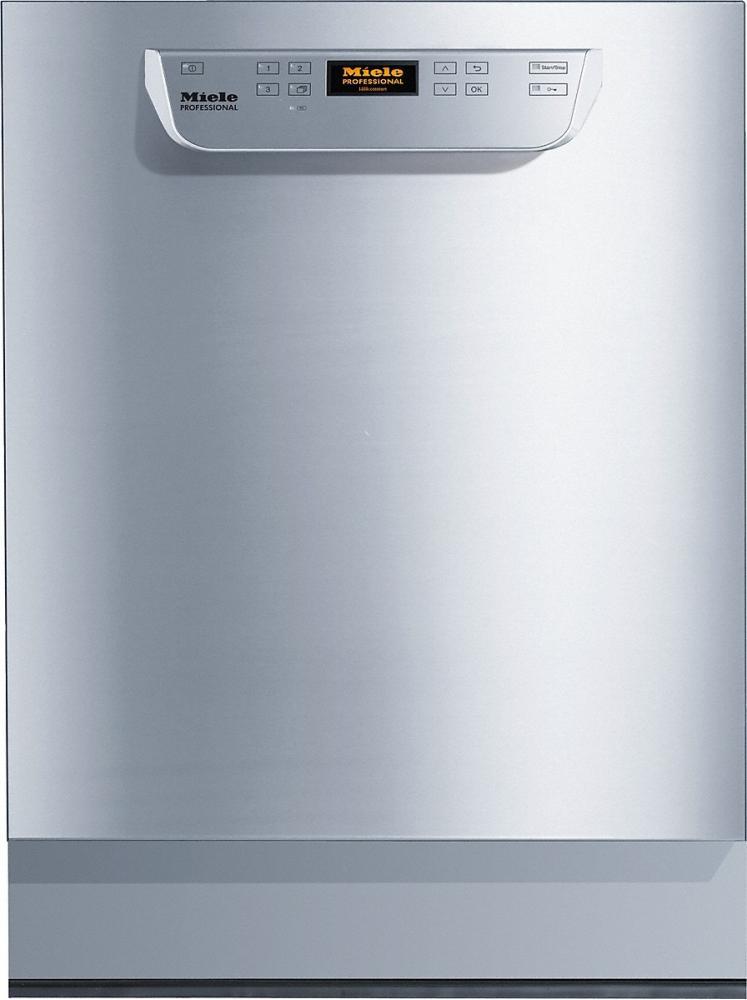

PG 8061 U - 240V 3 Phase Built-under fresh-water dishwasher NSF/ANSI 3 certified for sanitization. Industrial Use only.
Model PG8061U240V3PHASESTAINLESSSTEEL
PG 8061 U - 240V 3 Phase Built-under fresh-water dishwasher NSF/ANSI 3 certified for sanitization. Industrial Use only.
Model PG8061U240V3PHASESTAINLESSSTEELQuick Specs
PG 8061 U - 240V 3 Phase Built-under fresh-water dishwasher NSF/ANSI 3 certified for sanitization. Industrial Use only. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Highly effective filter system
(B)Professional and effective(/B) The extremely effective filter system in the dishwashers by Miele Professional serves valuable purposes. Permanent filtering of the wash fluid leads to optimum cleaning results with maximum damage protection of the appliance.
With Professional baskets
(B)Sparkling results(/B) The Professional baskets feature impressive quality of material and workmanship as well as functional design. Open, plastic-coated wire baskets ensure superb cleaning results and very quick drying of washed items.
Perfect GlassCare
(B)A gentle way to a perfect shine(/B) Soft water is good for cleaning but has an aggressive effect on glass. This is why Miele Professional dishwashers use Perfect GlassCare in the glasses program. This technology adjusts the water hardness precisely, so that all glasses are thoroughly yet gently cleaned.
Integrated water softener
(B)Ensures the optimum water hardness level(/B) The built-in softener always delivers water with the optimum degree of hardness. The use of soft water allows detergent to be used sparingly and prolongs the life of the appliance. The degree of water hardness is adjusted manually to suit the on-site water quality.
Low consumption values
(B)Economical and efficient(/B) Save money and be environmentally friendly: Miele Professional dishwashers offer impressive low consumption values and are known for maximum efficiency. This standard is applied right from the product development stage: Perfect dishwashing results should be achieved by using recyclable materials and no more water, energy and detergent than absolutely necessary.
Cutlery insert, fresh-water dishwashers
Versatile use: If needed, two cutlery inserts can be placed in the upper basket.
Connection for detergent dispenser module
(B)Optional dispensing of liquid agents(/B) An optional liquid dispenser module can be connected for convenient and economical use of liquid cleaning agents. Precise dispensing ensures perfect cleaning results. In addition, automatic liquid dispensing makes handling easier.
Efficient hot water connection
Connection to a hot water supply shortens the program run times, reducing energy consumption.
Patented AutoOpen drying *
(B)For perfectly dry dishware(/B) The dishwasher door opens automatically at the end of the program. This allows the steam to escape and even difficult to dry crockery such as plastic items is dried optimally.
Powerful cleaning performance on two levels
High capacity: The most diverse items can be arranged safely on two wash levels.
Short program cycles
(B)Dishwashing made quick(/B) With their short cycle times ProfiLine dishwashers are the quickest Miele built-in models that can be integrated. Their features are in no way inferior to the domestic built-in appliances.
Perfect integration under countertops
(B)Versatile(/B) For a perfect appearance, the dishwasher can be easily installed under the worktop in a run of kitchen units. The appliance can be adjusted as needed to suit the height of the worktop. The required niche width is 24".
High rinse temperature
Even the most demanding hygiene requirements are met by using high final rinse temperatures.
Fresh water system
(B)Maximum hygiene assurance(/B) Fresh-water dishwashers change the water after each cycle. A thorough final rinse is then carried out using a temperature that has been adjusted to the washed items. This process ensures perfect dishwashing results and a very high standard of hygiene that clearly exceeds the requirements for commercial dishwashers.
Plastic baskets on two levels
(B)Perfect results on all levels(/B) 500 x 500 mm plastic baskets can be used on two levels in Miele Professional dishwashers An optional stainless steel carrier must be used in the upper basket. The basket supplied as standard is used as the carrier on the lower level. The three spray arms allow perfect cleaning results to be achieved on both washing levels.
- Max. cleaning performance * : 152 plates/h Brilliant results in a short time * Thanks to the professional wash system, washed items can be used again quickly. Depending on site conditions (temperature of incoming water / power connection) values given may vary. Depending on site conditions (temperature of incoming water / power connection) values given may vary.
- First-class results thanks to freshwater wash system Fresh water system Constantly high cleaning performance and Filtration thanks to repeated water changes.
- Extremely hygienic results - final rinse temperature 186 (85) (degree)F High rinse temperature Even the most demanding hygiene requirements are met by using high final rinse temperatures.
- Safe and easy operation - automatic door opening AutoOpen function - offers two important benefits. The electronic door lock while the program is running ensures a high level of operating safety. Automatic door opening at the end of the program ensures better drying results.
- Versatile processing of two wire or plastic baskets per cycle Plastic baskets on two levels It is possible to use the plastic baskets on two levels as an option.
| Model and design | |
| Design | Built-under dishwasher Built-under dishwasher For a perfect appearance, the dishwasher can be easily installed under the worktop in a run of kitchen units. The appliance can be adjusted as needed to suit the height of the worktop. The required niche width is 24". |
| Linie | Professional Very short cycle times Thanks to intelligent professional technology you can benefit from very short programs and perfect results. |
| Wash system | Fresh water Fresh water system Constantly high cleaning performance and Filtration thanks to repeated water changes. |
| Number of levels | 2 |
| Front | Stainless steel |
| Lid | Stainless steel |
| Side walls | Stainless Steel |
| Convertible to a freestanding appliance | Stand 1-80, stainless steel Stand 1-80, stainless steel This optional conversion kit (consisting of a plinth panel with two supports, a lid and a rear panel) is designed for converting a built-under dishwasher into a freestanding dishwasher. |
| Drying | AutoOpen drying |
| Application | |
| Suitable for retirement and nursing homes | Dishwashers for retirement and care homes These dishwashers meet the exact requirements of care homes, for example with programs for reliable hygienic results. |
| Suitable for small restaurants/bars | Dishwashers for restaurants These dishwashers meet the requirements of restaurants, for example with especially quick programs for convincing results even at peak times. |
| Suitable for hospitality industry | Dishwashers for hotels These dishwashers meet the requirements of hotels, for example with especially quick programs for excellent results even at peak times. |
| Suitable for guest houses | Dishwashers for guesthouses These dishwashers meet the requirements of guesthouses, for example because they are especially easy to use and with their quick cycle times allow several loads per day. |
| Suitable for canteens | Dishwashers for canteens These dishwashers meet the requirements of canteens, for example with especially quick programs for excellent results even at peak times. |
| Suitable for child care facilities | Dishwashers for nursery schools These dishwashers meet the exact requirements of nursery schools, for example with special programs that clean even plastic dishes quickly and hygienically. |
| Suitable for fast food restaurants | Dishwashers for fast food restaurants These dishwashers meet the requirements of fast food restaurants, for example because they are especially easy to use and guarantee excellent results even at peak times. |
| Performance data | |
| Circulation pump, Qmax in l/min. | 390 |
| Shortest program duration in min. Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature). | 15 |
| Maximum final rinse temperature in °F(°C) | 186 (85) |
| Cleaning performance, plates/h Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature). | 152 |
| Cleaning performance, baskets/h Performance data The values quoted may vary depending on the on-site conditions (power connection/water intake temperature). | 8 |
| Possible to wash plastic baskets on two levels | Plastic baskets on two levels It is possible to use the plastic baskets on two levels as an option. |
| Tested operating hours Note Our machines undergo intensive testing under laboratory conditions. The actual operating hours may vary depending on user, maintenance, and handling of the machine. | 15,000 |
| Controls | |
| Control system | TouchControl |
| Program selection | Touch on Metal |
| Max. delay start in h | 24 |
| Countdown indicator | |
| Program sequence indicator | |
| Choice of display language | |
| Language-neutral operation | |
| Standard electrical connection | |
| Heater rating in kW | 5.40 |
| Total connected load in kW | 5.80 |
| Fuse rating in A | 20 |
| Length of connection wire in ft(m) | 7 (2.20) |
| Possible voltage variant 1 Note If the appliance can be converted to a different voltage option, additional possible values for electrical connection can be found here. The conversion can be done by Miele Service. | |
| Electrical connection | 2 PH. 240V 60HZ |
| Fuse rating in A | 30 |
| Water connection/drainage | |
| Cold water [number] | 1 |
| Hot water [number] | 1 |
| Required flow pressure in bar | 0,10-10,00 |
| Drain pump [DN] | 22 |
| Maximum delivery head for drain pump in in(cm) | 39 3/8 (100) |
| Integrated water softener | Integrated water softener The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results. |
| Maximum water hardness in mmol/l and gal Note For a water hardness above 53 mg/l (3.1 grains/gal), the installation of a pre-connected water softener is recommended if an integrated water softener is not available.. | 10.70 |
| Water consumption per wash cycle in gal(l) | 2.1 (8.00) |
| Dimensions and weight | |
| External dimensions without lid, height in in.(mm) | 32 3/8 (820) |
| External dimensions, width in in.(mm) | 23 5/8 (598) |
| External dimensions, depth in in.(mm) | 23 1/2 (595) |
| Usable space in wash cabinet, height in in.(mm) | 22 1/8 (559) |
| Usable space in wash cabinet, width in in.(mm) | 20 7/8 (530) |
| Usable space in wash cabinet, depth of upper basket in in.(mm) | 18 3/4 (474) |
| Usable space in wash cabinet, depth of lower basket in in.(mm) | 20 (505) |
| In-feed height above floor in in.(mm) | 8 5/8 (216) |
| Net weight in lbs.(kg) | 139 (63) |
| Maximum floor loading in p/force | 1,200 |
| Emission levels | |
| Emission sound pressure level in workplace (LpA) Emissions - sound pressure at workplace The emission sound pressure level provides a value for the noise emission created by the machine. Miele Professional machines have an extremely low sound pressure level. | 45 dB(A) re 20 Pa |
| Sound power (LwA) in dB(A) re 1 pW Note The sound power level depends on the program. | 57.0 |
| Heat output to the room in Mj/h | 1.08 |
| Programs | |
| Universal | |
| Short | |
| Intensive | |
| Basket design | |
| 1 x O 891 upper basket for cups | |
| 1 x U 890 lower basket for inserts | |
| 1 x E 810 insert for dessert plates | |
| 2 x E 816 inserts for plates | |
| 2 x E 165 inserts for cutlery | |
| Height-adjustable upper basket | Height-adjustable upper basket The height of the upper basket can be adjusted to suit the items being cleaned. |
| Features | |
| 1 combi dispenser/door for powder and li quid media | |
| Wash cabinet made from high-quality stai nless steel. | |
| In-door salt container | Patented in-door salt container * Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket. European patent EP 1 457 153 B1 |
| AutoOpen drying | Patented AutoOpen drying * Completely dry: The dishwasher door opens automatically at the end of the program. German Patent DE 102 007 008 950 B4 |
| AutoClose | AutoClose * A light touch is all it takes: With AutoClose the door closes on its own. European patent EP 1 733 675 B1 |
| Perfect GlassCare | Perfect GlassCare A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned. |
| Aerosol steam condenser | Aerosol steam condenser Dry dishes and good room climate are the result of exceptional condensation performance. |
| Adjustable final rinse temperature | |
| Adjustable wash temperature | |
| Adjustable rinse time | |
| Optical interface | |
| A wide range of accessories (optional) | Extensive range of accessories Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps. |
| Connection options | |
| External dispensing module for liquid cl eaning agent | Connection for detergent dispenser module An optional dispenser module can be connected for convenient and economical use of liquid agents. |
| Test certificates and symbols | |
| CE | |
| VDE | |
| Interference suppression | |
| EN 1717 | |
| EMC | |
| Complies with Machinery Directive 2006/4 2/EC | |
- Max. cleaning performance * : 152 plates/h Brilliant results in a short time * Thanks to the professional wash system, washed items can be used again quickly. Depending on site conditions (temperature of incoming water / power connection) values given may vary. Depending on site conditions (temperature of incoming water / power connection) values given may vary.
- First-class results thanks to freshwater wash system Fresh water system Constantly high cleaning performance and Filtration thanks to repeated water changes.
- Extremely hygienic results - final rinse temperature 186 (85) (degree)F High rinse temperature Even the most demanding hygiene requirements are met by using high final rinse temperatures.
- Safe and easy operation - automatic door opening AutoOpen function - offers two important benefits. The electronic door lock while the program is running ensures a high level of operating safety. Automatic door opening at the end of the program ensures better drying results.
- Versatile processing of two wire or plastic baskets per cycle Plastic baskets on two levels It is possible to use the plastic baskets on two levels as an option.
 | |
|---|---|
