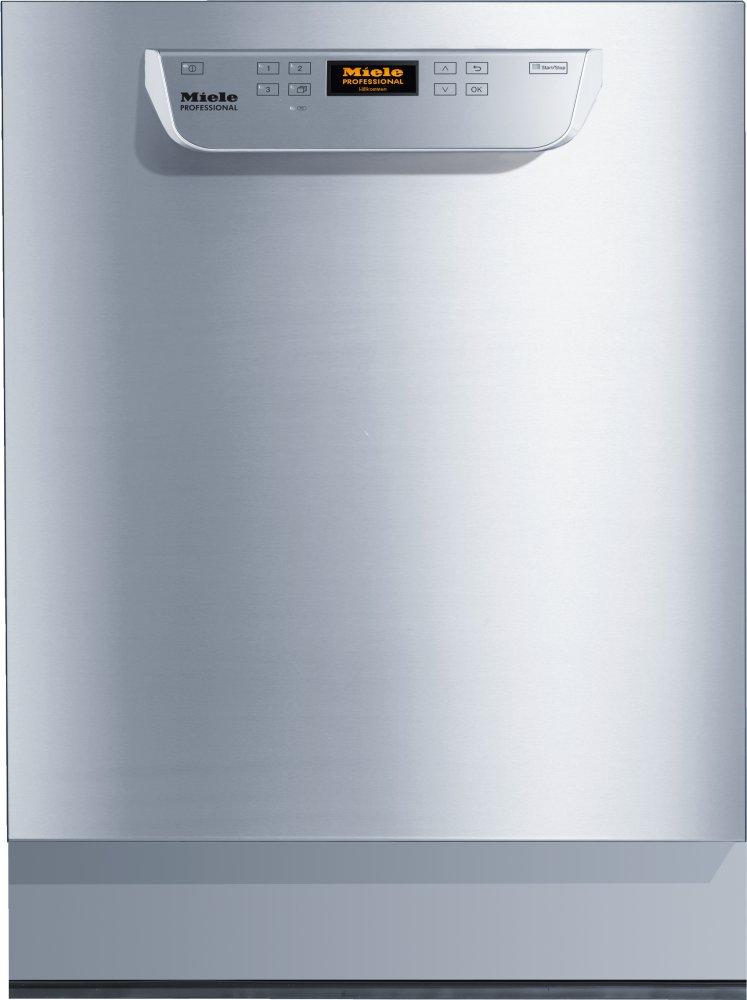

PG 8056 U [208V] - Built-under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies.
Model PG8056U208VSTAINLESSSTEEL
Authorized Dealer
![PG 8056 U [208V] - Built-under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies.](http://www.parkaveappliance.com/cdn/shop/files/frtukhfgaqli.jpg?v=1784617620&width=1500)
![PG 8056 U [208V] - Built-under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies.](http://www.parkaveappliance.com/cdn/shop/files/frnirixmxpew.jpg?v=1784617620&width=1500)
1
of
2
Loading...
Authorized Dealer
PG 8056 U [208V] - Built-under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies.
Model PG8056U208VSTAINLESSSTEELQuick Specs
Depth
22.87"
Height
32.37"
Sabbath
YES
Wifi
NO
SS Tub
YES
Dish Cycles
6
Controls
NO
PG 8056 U [208V] - Built-under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies. is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22.87"
Height
32.37"
Sabbath Mode
YES
Wifi Connected
NO
Stainless Steel Tub
YES
Dish Cycle Count
6
Fully Integrated Controls
NO
Height-adjustable upper basket
The height of the upper basket can be adjusted to suit the items being cleaned.
Delay start and time left display
For maximum flexibility, a delay start time of up to 24 hours can be selected.
Low consumption values
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Touch on Metal
The flush controls on the stainless steel fascia are easy to use and clean.
Simplest user interface
Intuitive & easy to operate: All programs can be selected quickly & started at the touch of a button.
Door salt container
Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.
Choice of display languages
Multi-talented: set various languages on the display so that you fully understand every piece of information.
Extensive range of accessories
Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
Plastic baskets on two levels
It is possible to use the plastic baskets on two levels as an option.

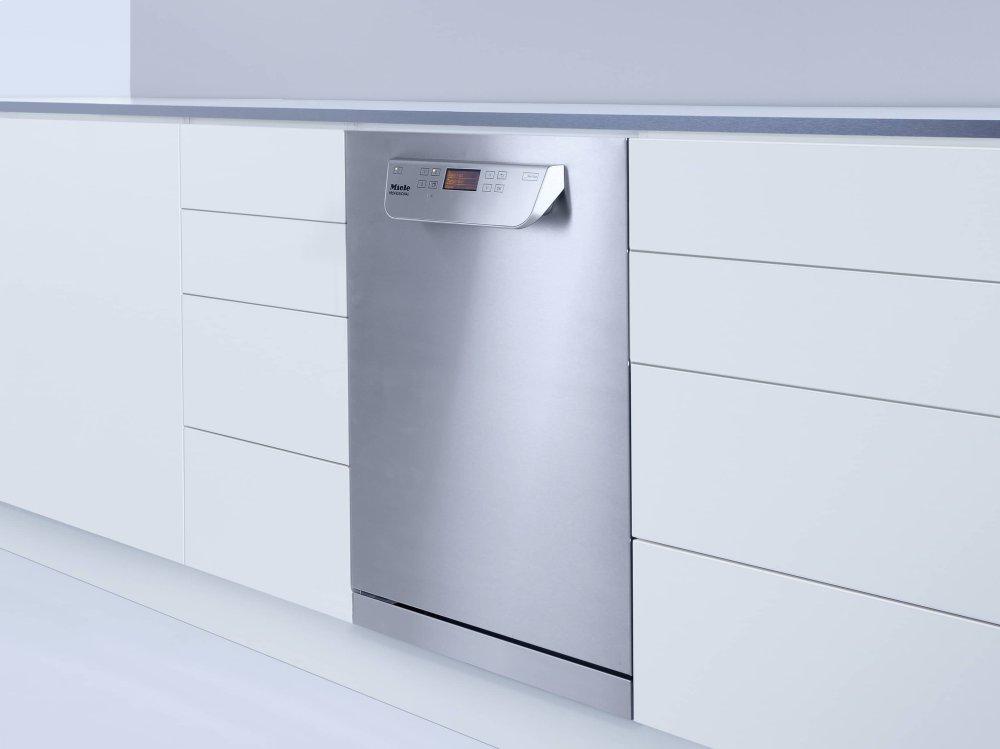

Perfect integration in a run of kitchen units
Perfect appearance thanks to dishwashers that can be built-under.
With Professional baskets
Functional design for superb washing and reliable drying results.
Pure user convenience
All the main information is accessible quickly and easily via the convenient operating display.
Cutlery insert, fresh water dishwashers
High flexibility: if needed, two cutlery inserts can be placed in the lower basket.
Fresh water system
Constantly high cleaning performance and filtration thanks to repeated water changes.
Connection for detergent dispenser module
An optional dispenser module can be connected for convenient and economical use of liquid agents.
- Delay start and time left display
- For maximum flexibility, a delay start time of up to 24 hours can be selected.
- Door salt container
- Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.
- Simplest user interface
- Intuitive & easy to operate: All programs can be selected quickly & started at the touch of a button.
- Extensive range of accessories
- Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
- Touch on Metal
- The flush controls on the stainless steel fascia are easy to use and clean.
- Choice of display languages
- Multi-talented: set various languages on the display so that you fully understand every piece of information.
- Perfect integration in a run of kitchen units
- Perfect appearance thanks to dishwashers that can be built-under.
- Pure user convenience
- All the main information is accessible quickly and easily via the convenient operating display.
- Fresh water system
- Constantly high cleaning performance and filtration thanks to repeated water changes.
- Height-adjustable upper basket
- The height of the upper basket can be adjusted to suit the items being cleaned.
- Plastic baskets on two levels
- It is possible to use the plastic baskets on two levels as an option.
- With Professional baskets
- Functional design for superb washing and reliable drying results.
- Cutlery insert, fresh water dishwashers
- High flexibility: if needed, two cutlery inserts can be placed in the lower basket.
- Connection for detergent dispenser module
- An optional dispenser module can be connected for convenient and economical use of liquid agents.
- Low consumption values
- Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
- Integrated water softener
- The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
- Efficient hot water connection
- Connection to a hot water supply shortens the program run times, reducing energy consumption.
- Quality you can rely on
- Durability: Miele Professional dishwashers are tested for a long service life.
- Very short cycle times
- Thanks to intelligent professional technology you can benefit from very short programs and perfect results.
- Perfect GlassCare
- A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
- Adjustable program parameters
- Adjusting the program parameters as required ensures consistently perfect dishwashing results
- Max. cleaning performance * : 380 plates/h or 20 baskets/h
- Flexible processing of two wire or plastic baskets per cycle
- Simple to operate thanks to clear fascia panel design
- Always the right program - item-specific solutions
- First-class results thanks to fresh water system
| Model and design | |
| Model | Built-under dishwasher |
| Range | Professional |
| Wash system | Fresh water front loader |
| Number of levels | 2 |
| Front | Stainless steel |
| Lid | Stainless Steel |
| Side walls | Stainless steel |
| Convertible to a freestanding appliance | Stand 1-80, stainless steel |
| Application | |
| Suitable for small restaurants/bars | |
| Suitable for hospitality industry | |
| Suitable for Bed & Breakfast | |
| Suitable for canteens | |
| Suitable for small businesses | |
| Suitable for fast food restaurants | |
| Suitable for sports clubs | |
| Performance data | |
| Circulation pump, Qmax in gal/min (l/min) | 103 (390) |
| Shortest program duration in min. | 6 |
| Maximum final rinse temperature in °F (°C) | 158 (70) |
| Cleaning performance, plates/h | 380 |
| Cleaning performance, baskets/h | 20 |
| Possible to wash plastic baskets on two levels | |
| Service life in wash cycles | 15000 |
| Tested operating hours | 15000 |
| Controls | |
| Control system | TouchControl |
| Program selection | Touch on MSetal |
| Max. delay start in h | 24 |
| Countdown indicator | • |
| Program sequence indicator | • |
| Choice of display language | • |
| Language-neutral operation | • |
| Standard electrical connection | |
| Electrical connection | 2 PH. 208V 60HZ |
| Heater rating in kW | 5.40 |
| Total connected load in kW | 5.80 |
| Fuse rating in A | 30 |
| Length of power cord in ft (m) | 5 (1.70) |
| Possible voltage variant 1 | |
| Electrical connection | 3 PH. 208V 60HZ |
| Heater rating in kW | 5.40 |
| Total connected load in kW | 5.80 |
| Fuse rating in A | 20 |
| Water connection/drainage | |
| Cold water [number] | 1 |
| Hot water [number] | 1 |
| Required flow pressure in bar | 0.40-10.00 |
| Drain hose [DN] | 22 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | • |
| Maximum water hardness in gpg (mmol/l) | 10.7 (10.70) |
| Water consumption per wash cycle in gal (l) | 2.1 (8.00) gll (l) |
| Dimensions and weight | |
| External dimensions, net height in inches | 32 5/16 (820) |
| External dimensions, net width in inches | 23 9/16 (598) |
| External dimensions, net depth in inches | 22 7/8 (580) |
| External dimensions, gross height in inches | 37 1/16 (940) |
| External dimensions, gross width in inches | 26 5/8 (675) |
| External dimensions, gross depth in inches | 29 3/8 (745) |
| Usable space in wash cabinet, width in inches (mm) | 22 1/16 (559) |
| Usable space in wash cabinet, height in inches (mm) | 20 7/8 (530) |
| Usable space in wash cabinet, depth of upper basket in inches (mm) | 18 11/16 (474) |
| Usable space in wash cabinet, depth of lower basket in inches (mm) | 19 15/16 (505) |
| In-feed height above floor in inches (mm) | 8 9/16 (216) |
| Net weight [kg] | 139 (63) |
| Gross weight in lbs. | 153 (69) |
| Maximum floor loading in N | 1200 |
| Emissions data | |
| Emission sound pressure level in workplace (LpA) | 47 dB(A) re 20 Pa |
| Sound power (LwA) in dB(A) re 1 pW | 59.00 |
| Heat output to the room in Mj/h | 1.08 |
| Basket design | |
| 1 x O 891 upper basket for cups | • |
| 1 x U 890 lower basket for inserts | • |
| 1 x E 810 insert for dessert plates | • |
| 2 x E 816 inserts for plates | • |
| 2 x E 165 inserts for cutlery | • |
| Height-adjustable upper basket | |
| Features | |
| Drying | without |
| 1 Combi dispenser/door for powder and liquid media | • |
| Wash cabinet made from high-quality stainless steel | • |
| In-door salt container | • |
| Perfect GlassCare | • |
| Adjustable temperature holding time | • |
| Adjustable final rinse temperature | • |
| Adjustable wash temperature | • |
| Adjustable rinse time | • |
| Optical interface | • |
| A wide range of accessories (optional) | • |
| Connection options | |
| External dispensing module for liquid cleaning agent | • |
| Test certificate | |
| CE | • |
| Complies with Machinery Directive 2006/42/EC | • |
| EMC | • |
| Interference suppression | • |
| VDE | • |
| DIN 10512 | • |
| EN 1717 | • |
| ADA compliant | • |
