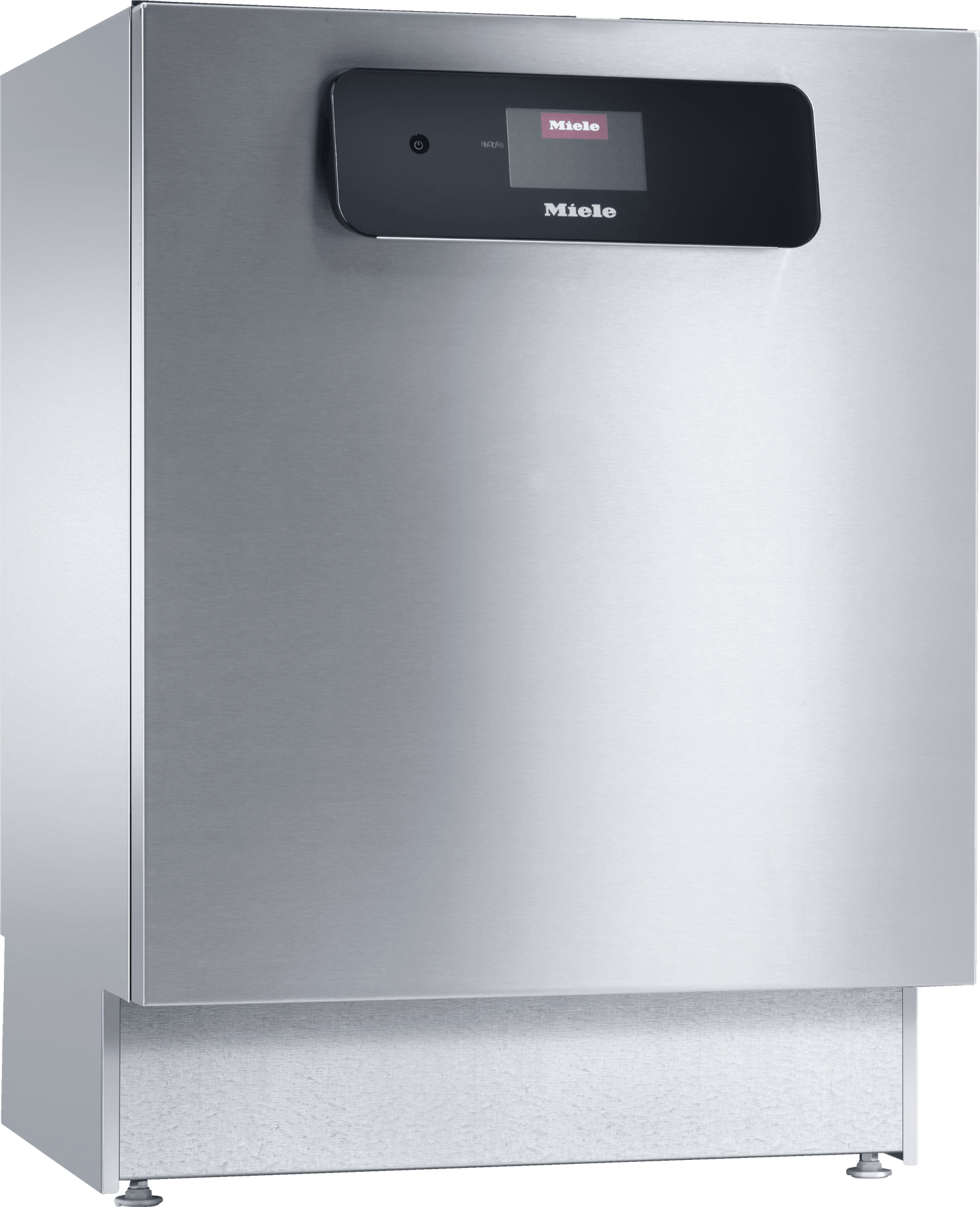

PFD 401 U [240V] - Built-under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies.
Model PFD401U240V
Authorized Dealer
![PFD 401 U [240V] - Built-under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies.](http://www.parkaveappliance.com/cdn/shop/files/frqtfagyguxg.png?v=1784617617&width=1500)
![PFD 401 U [240V] - Built-under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies.](http://www.parkaveappliance.com/cdn/shop/files/frtcaorgntea_679472c3-b194-4c99-905b-076fe5de52b9.png?v=1784617617&width=1500)
1
of
2
Loading...
Authorized Dealer
PFD 401 U [240V] - Built-under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies.
Model PFD401U240VQuick Specs
Depth
29.18"
Height
36.25"
Sabbath
NO
ADA
YES
Wifi
YES
SS Tub
YES
Dish Cycles
11
Controls
NO
PFD 401 U [240V] - Built-under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies. is backordered and will ship as soon as it is back in stock.
Regular price
$12,517.17
Unit price
/
Unavailable
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
29.18"
Height
36.25"
Sabbath Mode
NO
ADA
YES
Wifi Connected
YES
Stainless Steel Tub
YES
Dish Cycle Count
11
Fully Integrated Controls
NO

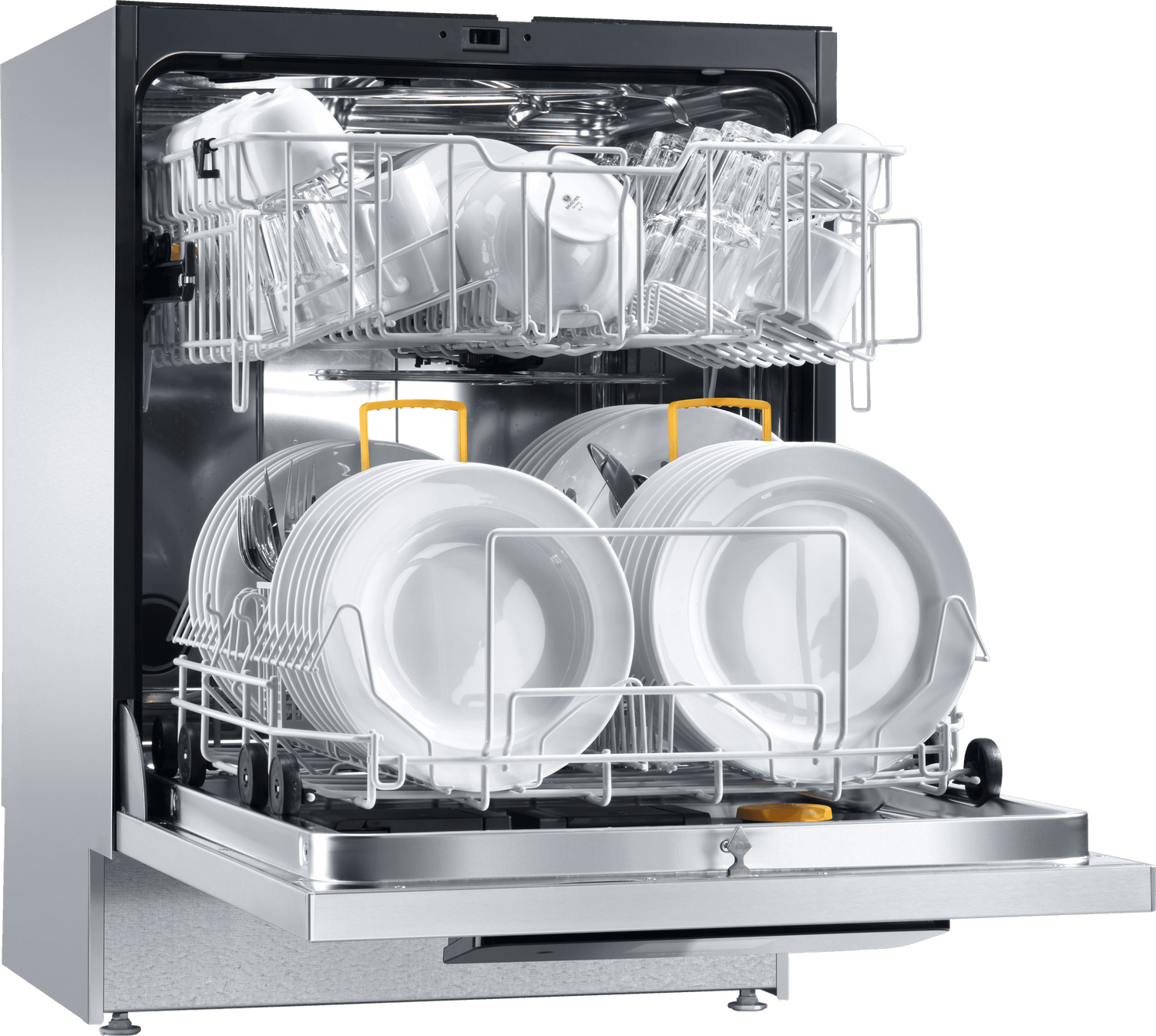

Powerful cleaning performance on two levels
High capacity: The most diverse items can be arranged safely on two wash levels.
Delay start and time left display
For maximum flexibility, a delay start time of up to 24 hours can be selected.
Practical bottle basket
Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.
Fresh water system
Constantly high cleaning performance and filtration thanks to repeated water changes.
Extensive range of accessories
Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
Door salt container
Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.
Proven hygiene
Our dishwashers in the PFD 40x series remove 99.999%
Choice of display languages
Multi-talented: set various languages on the display so that you fully understand every piece of information.
Efficient hot water connection
Connection to a hot water supply shortens the program run times, reducing energy consumption.
Proven hygiene
Our dishwashers in the PFD 40x series remove more than 99.9%
Hygienic cleanliness down to the very last detail
Medication cups and lids can also be cleaned hygienically using inserts that are available separately.
Connection for detergent dispenser module
An optional dispenser module can be connected for convenient and economical use of liquid agents.
Plastic baskets on two levels
It is possible to use the plastic baskets on two levels as an option.
Low consumption values
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Professional baskets
Functional design for superb washing and reliable drying results.
- Delay start and time left display
- For maximum flexibility, a delay start time of up to 24 hours can be selected.
- Door salt container
- Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket.
- Extensive range of accessories
- Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
- Choice of display languages
- Multi-talented: set various languages on the display so that you fully understand every piece of information.
- Fresh water system
- Constantly high cleaning performance and filtration thanks to repeated water changes.
- Proven hygiene
- Our dishwashers in the PFD 40x series remove 99.999%
- Proven hygiene
- Our dishwashers in the PFD 40x series remove more than 99.9%
- Connection for detergent dispenser module
- An optional dispenser module can be connected for convenient and economical use of liquid agents.
- Low consumption values
- Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
- Powerful cleaning performance on two levels
- High capacity: The most diverse items can be arranged safely on two wash levels.
- Efficient hot water connection
- Connection to a hot water supply shortens the program run times, reducing energy consumption.
- Hygienic cleanliness down to the very last detail
- Medication cups and lids can also be cleaned hygienically using inserts that are available separately.
- Plastic baskets on two levels
- It is possible to use the plastic baskets on two levels as an option.
- Professional baskets
- Functional design for superb washing and reliable drying results.
- Practical bottle basket
- Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.
- Very short cycle times
- Thanks to intelligent professional technology you can benefit from very short programs and perfect results.
- Perfect GlassCare
- A gentle way to a perfect shine: With Perfect GlassCare, your glasses are thoroughly and gently cleaned.
- Adjustable program parameters
- Adjusting the program parameters as required ensures consistently perfect dishwashing results
- Perfect integration under countertops
- Perfect appearance thanks to dishwashers that can be built-under.
- Conforms to Machinery Directive
- Miele commercial machines comply with applicable safety regulations.
- Reliable water protection *
- Peace of mind: Your dishwasher is built to prevent water-related mishaps.
- Quality you can rely on
- Durability: Miele Professional dishwashers are tested for a long service life.
- Max. cleaning performance : 380 plates/h or 20 baskets/h
- Flexible processing of two wire or plastic baskets per cycle
- Max. user convenience with M Touch Flex full-touch color display
- Always the the right program - item-specific solutions
- First-class results thanks to fresh water system
- View manufacturer details: Miele & Cie. KG
- Safety information
| Construction type and design | |
| Model | Built-under dishwasher |
| Range | MasterLine |
| Model | Speedplus |
| Wash system | Fresh water front loader |
| Number of levels | 2 |
| Front | Stainless steel |
| Lid | Without lid |
| Side walls | Galvanised |
| Application | |
| Suitable for small restaurants/bars | Yes |
| Suitable for hospitality industry | Yes |
| Suitable for Bed & Breakfast | Yes |
| Suitable for canteens | Yes |
| Suitable for offices | Yes |
| Suitable for small businesses | Yes |
| Suitable for fast food restaurants | Yes |
| Suitable for sports clubs | Yes |
| Performance data | |
| Tested virucidal efficacy | Yes |
| Certified hygiene | Yes |
| Shortest program duration in min. | 6 |
| Maximum final rinse temperature in °F (°C) | 158 (70) |
| Cleaning performance, plates/h | 380 |
| Cleaning performance, baskets/h | 20 |
| Possible to wash plastic baskets on two levels | Yes |
| Service life in wash cycles | 28000 |
| Control | |
| Control system | M Touch Flex |
| Max. delay start in h | 24 |
| Countdown indicator | Yes |
| Dishwashing programs [number] | 11 |
| Program sequence indicator | Yes |
| Choice of display language | Yes |
| Language-neutral operation | Yes |
| Standard electrical connection | |
| Electrical connection | 2 AC 240V 60HZ |
| Heater rating in kW | 5.400 |
| Total connected load in kW | 5.800 |
| Fuse rating in A | 30 |
| Length of power cord in ft (m) | 6 (1.90) |
| NEMA plug: Twist Lock L6-30 | Yes |
| Possible voltage variant 1 * | |
| Electrical connection | 3 AC 240V 60HZ |
| Heater rating in kW | 5.400 |
| Total connected load in kW | 5.800 |
| Fuse rating in A | 20 |
| Water connection/drainage | |
| Cold water [number] | 1 |
| Hot water [number] | 1 |
| Required flow pressure in bar | 0.40-10 |
| Drain hose [DN] | 22 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | Yes |
| Maximum water hardness in gpg (mmol/l) | 62.595 (10.70) |
| Water protection system | Waterproof system |
| Water consumption per wash cycle in gal (l) | 2.1 (8.00) gll (l) |
| Length of water inlet hose in inches (cm) | 67 (170) |
| Length of water drain hose in inches (cm) | 59 1/8 (150) |
| Dimensions and weight | |
| External dimensions, net height in inches | 32 5/16 (820) |
| Maximum height adjustment in inches (mm) | 60 |
| External dimensions, net width in inches | 23 9/16 (598) |
| External dimensions, net depth in inches | 22 7/8 (580) |
| External dimensions, gross height in inches | 36 1/4 (920) |
| External dimensions, gross width in inches | 26 7/16 (670) |
| External dimensions, gross depth in inches | 29 3/16 (740) |
| Usable space in wash cabinet, width in inches (mm) | 22 1/16 (559) |
| Usable space in wash cabinet, height in inches (mm) | 21 1/8 (536) |
| Usable space in wash cabinet, depth of upper basket in inches (mm) | 18 11/16 (474) |
| Usable space in wash cabinet, depth of lower basket in inches (mm) | 20 3/8 (516) |
| In-feed height above floor in inches (mm) | 8 9/16 (216) |
| Required niche width in mm | 23 5/8 (600) |
| Net weight [kg] | 144 (65) |
| Gross weight in lbs. | 166 (75) |
| Maximum floor load in N/m | 1200 |
| Emission values | |
| Emission sound pressure level in workplace (LpA) | 47 dB(A) re 20 Pa |
| Sound power (LwA) in dB(A) re 1 pW | 59 |
| Heat dissipation into the room in MJ/h | 1.44 |
| Programs | |
| Normal Plus | Yes |
| Rapid | Yes |
| Normal | Yes |
| SaniWash | Yes |
| Cold/Pre-wash | Yes |
| Glasses | Yes |
| Beer glasses | Yes |
| Cutlery | Yes |
| Plastic | Yes |
| Intensive | Yes |
| Reactivation | Yes |
| Drainage by pump | Yes |
| Baskets | |
| MasterLine baskets | Yes |
| Height-adjustable upper basket | Yes |
| Combinable with APFD 210 bottle basket | Yes |
| Features | |
| Drying | None |
| Adjustable temperature holding time | Yes |
| Adjustable final rinse temperature | Yes |
| Wi-Fi | Yes |
| 1 Combi dispenser/door for powder and liquid media | Yes |
| In-door salt container | Yes |
| Safe mode | Yes |
| Perfect GlassCare | Yes |
| Highly effective filter system with filter monitoring | Yes |
| Wash cabinet made from high-quality stainless steel | Yes |
| Optical interface | Yes |
| A wide range of accessories (optional) | Yes |
| Connection options | |
| External dispenser module for liquid cleaning agent | Yes |
| Standards, test certificates, and symbols | |
| Complies with Machinery Directive 2006/42/EC | Yes |
| Splash protection IPX1 | Yes |
| EMC radio suppressed | Yes |
| DIN 10512 | Yes |
| DIN EN 17735 | Yes |
| ETL | Yes |
| ADA compliant | Yes |
| EAN | |
| EAN | 4002516577362 |
- Max. cleaning performance : 380 plates/h or 20 baskets/h
- Flexible processing of two wire or plastic baskets per cycle
- Max. user convenience with M Touch Flex full-touch color display
- Always the the right program - item-specific solutions
- First-class results thanks to fresh water system
- View manufacturer details: Miele & Cie. KG
- Safety information
