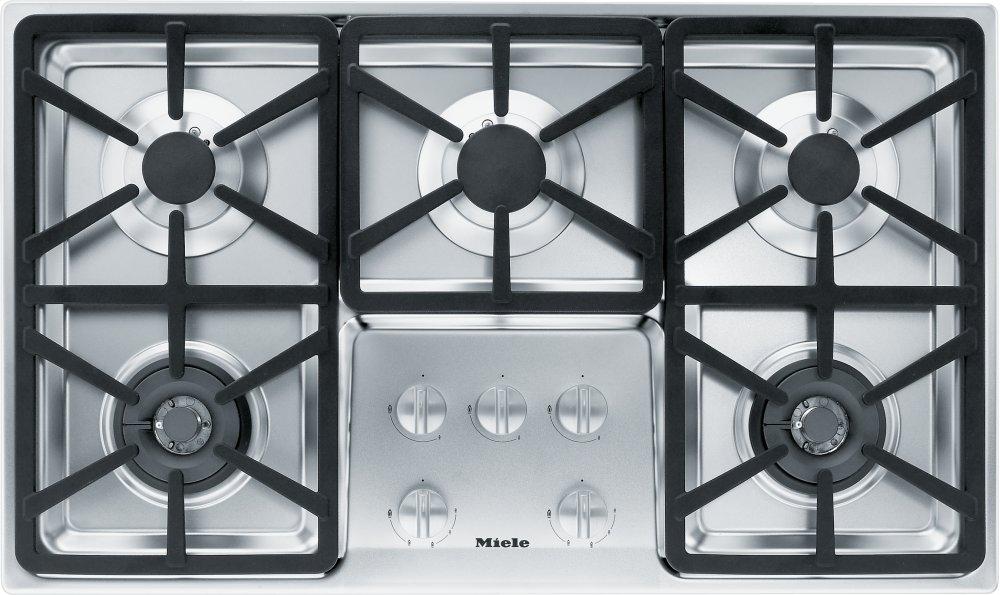

KM 3474 LP - 36-inch gas cooktop with 2 dual wok burners for particularly versatile cooking convenience.
Model: KM3474LP
KM 3474 LP - 36-inch gas cooktop with 2 dual wok burners for particularly versatile cooking convenience.
Model: KM3474LPQuick Specs
KM 3474 LP - 36-inch gas cooktop with 2 dual wok burners for particularly versatile cooking convenience. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Enamelled grates and grates and burner cap
Nothing lasts longer and is easier to clean: enamelled cast-iron grates and burners with PerfectClean.
Comfort handle with integrated controls with knobs
Easy controls to regulate: Convenient power level control via plastic or metal knobs.
QuickStart
No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Individual design
Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.
Gas - efficient and environmentally friendly
With environmental and economic benefits: Cooking with gas
Single-handed electronic ignition
No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.
GasStop and ReStart
Safe cooking: Automatic re-ignition for flame failure If unsuccessful, the gas supply is switched off immediately.
Gas cooktops with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.
Versatile burner configuration
From economical to powerful: There is a suitable burner with the optimum output for every application.
- Enamelled grates and grates and burner cap
- Nothing lasts longer and is easier to clean: enamelled cast-iron grates and burners with PerfectClean.
- Individual design
- Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.
- QuickStart
- No need to press or hold the control: convenient rotary electronic controls switch the burners on.
- Single-handed electronic ignition
- No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.
- Comfort handle with integrated controls with knobs
- Easy controls to regulate: Convenient power level control via plastic or metal knobs.
- Gas - efficient and environmentally friendly
- With environmental and economic benefits: Cooking with gas
- GasStop and ReStart
- Safe cooking: Automatic re-ignition for flame failure If unsuccessful, the gas supply is switched off immediately.
- Gas cooktops with electronic controls
- More safety and convenience: Intelligent features make cooking with gas a great choice.
- Versatile burner configuration
- From economical to powerful: There is a suitable burner with the optimum output for every application.
- Simple controls -single-handed operation via rotary dial control
- Professional design - 36 (914) in (mm) wide stainless steel trough
- Particularly versatile - 5 burners incl. Two dual woks
- Extremely safe - GasStop function
- Easy cleaning - ComfortClean dishwasher-safe grates
| Heating type | |
| Fuel type | Gas |
| Design | |
| Independent of oven | • |
| Design | |
| Stainless steel trough | • |
| Cast iron pot rest (matte black enameled) | • |
| Cooking zone details | |
| No. of rings | 5 |
| Gas burner power rating | |
| Normal burner in kW | 2.60 |
| Normal burner in BTU/h | 9000 |
| Large burner in kW | 3.50 |
| Dual wok burner in kW | 4.50 |
| Dual wok burner in BTU/h | 15300 |
| 1st cooking zone/cooking area | |
| Position | front left |
| Type | Dual wok burner |
| 2nd cooking zone/cooking area | |
| Position | rear left |
| Type | Standard burner |
| 3rd cooking zone/cooking area | |
| Position | rear center |
| Type | High-speed burner |
| 4th cooking zone/cooking area | |
| Position | rear right |
| Type | Standard burner |
| 5th cooking zone/cooking area | |
| Position | front right |
| Type | Dual wok burner |
| User convenience | |
| Operation via knobs | • |
| Electronic ignition with one-handed operation | • |
| QuickStart | • |
| Safety | |
| GasStop & ReStart | • |
| Technical data | |
| Dimensions (W x D) in inches (mm) | 36 (914) x 5 (125) x 21 3/8 (542) |
| Width in in. (mm) | 36 (914) |
| Height in in. (mm) | 5 (125) |
| Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) | 35 (889) x 20 1/2 (518) |
| Depth in in. (mm) | 21 3/8 (542) |
| Cutout dimensions width in in. (mm) with proud-mounted installation | 35 (889) |
| Cutout dimensions depth in in. (mm) with proud-mounted installation | 20 1/2 (518) |
| Weight in lbs. (kg) | 55 (25) |
| Total connected load in kW | 17 |
| Position of gas connection | Hinten links |
| Voltage in V | 120 |
| Frequency in Hz | 60 |
| Power cord length in ft. (m) | 3 (1.2) |
- Simple controls -single-handed operation via rotary dial control
- Professional design - 36 (914) in (mm) wide stainless steel trough
- Particularly versatile - 5 burners incl. Two dual woks
- Extremely safe - GasStop function
- Easy cleaning - ComfortClean dishwasher-safe grates
