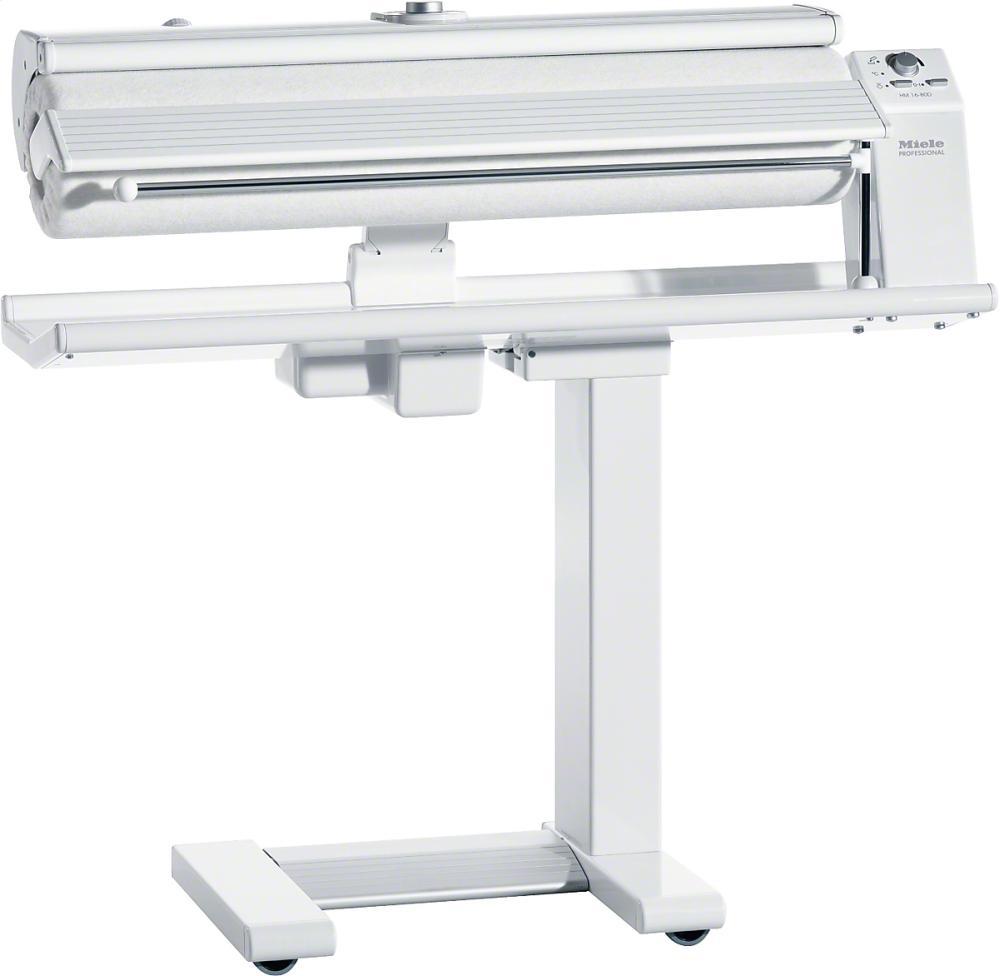

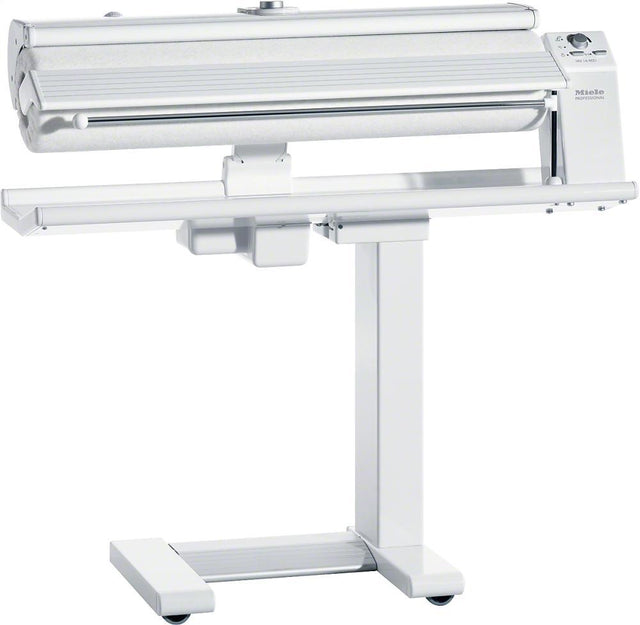

HM 16-80 [D] Rotary iron, electric with steam function for optimum results and maximum convenience.
Model HM1680DLOTUSWHITE
![HM 16-80 [D] Rotary iron, electric with steam function for optimum results and maximum convenience.](http://www.parkaveappliance.com/cdn/shop/files/frebrxhklmgd.jpg?v=1784617279&width=1500)
HM 16-80 [D] Rotary iron, electric with steam function for optimum results and maximum convenience.
Model HM1680DLOTUSWHITEQuick Specs
HM 16-80 [D] Rotary iron, electric with steam function for optimum results and maximum convenience. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Convenient foot switch
The roller is operated via a foot switch. Both hands are free to arrange items.
Low consumption values
(B)Economical and efficient(/B) Save money and be environmentally friendly: (BR)Miele Professional commercial laundry appliances are impressive with very low consumption values and are known for maximum efficiency. This standard is applied right from the product development stage: perfect results by using recyclable materials and no more water, energy and detergents than absolutely necessary.
Perfect laundry finish
Uniform pressure over the entire working width guarantees a perfect laundry finish.
Quick-heating aluminum heater plate
The quick-heating aluminum heater plate ensures the ironer is ready to operate in the shortest time possible.
Temperature selection to suit textiles
The temperature can be set according to the type of fabric, residual moisture level and ironing finish required.
Durable roller cover
The extremely durable ironer covers are particularly long-lasting and heat-resistant.
Steam function
(B)Best results(/B) The steam function adds moisture to dry laundry. The "dual-tank technology" enables steam to be ready quickly and distributed evenly over the entire ironing surface. Up to 40 minutes of steam are available per tank filling - an LED signals when tap water must be added.
Convenient airing bar
The fold-out airing bar allows crease-free cooling and airing of ironed laundry.
Finger guard
A focus on safety: The finger guard is triggered if fingers come too close to the roller when feeding in laundry.
Easy feeding in of laundry
The feed-in board makes it easy to feed the laundry in accurately.
Free, unsupported roller end
The free roller end simplifies ironing of skirts, shirts and blouses.
Convenient return feed
The ironed laundry is automatically returned to the input side.
Space-saving storage
(B)Fits in the smallest niche(/B) When the ironer is not in use, a convenient folding mechanism allows space-saving storage. When folded, the appliance only needs 0.2 ft storage space.
A wide range of accessories *
Consistently perfect work processes and efficiency - with a large selection of practical accessories.
- Capacity 13,0 kg/h * , roller width 6 3/8 (160) mm, roller diameter 32 3/4 (830) mm With 20% residual moisture - performance data according to DIN 11 902: The achievable ironing capacity depends on overall conditions such as, for example, the type of laundry and the experience of the operator.
- Iron comfortably while seated
- Work at your own pace thanks to variable roller speed
- Durable roller padding - aramid needle felt cloth Durable roller cover The extremely durable ironer covers are particularly long-lasting and heat-resistant.
- Easy to store - fold-away function Space-saving storage The appliance only needs 0.2 ft storage space.
| Model and design | |
| Design | Laundry infeed and outfeed to the front Feed-in and return at the front When in use, the ironer requires only a minimum amount of space as it can be installed against a wall. |
| Can be set up again a wall | |
| Linie | Professional |
| Outer casing | Lotus white |
| Drum diameter in in.(mm) | 6 3/8 (160) |
| Working width in in.(mm) | 32 3/4 (830) |
| Heater plate material | Aluminium Quick-heating aluminum heater plate The quick-heating aluminum heater plate ensures the ironer is ready to operate in the shortest time possible. |
| Padding | Polyester needle-felt cloth |
| Ironer cover | ARAMID needle-felt cloth Durable roller cover The extremely durable ironer covers are particularly long-lasting and heat-resistant. |
| Application | |
| Suitable for the hotel and catering indu stry | |
| Suitable for retirement and care homes | |
| Suitable for residential homes and apart ments | Rot. ironers for apartment bl. & res. homes These rotary ironers are suitable for use in apartment blocks and residential homes. These appliances are robust, easy to operate and can be used in combination with payment systems. |
| Suitable for commercial laundries | |
| Suitable for off-shore use | Rotary ironers for offshore use These rotary ironers are suitable for offshore use. These appliances are extremely robust and reliable. |
| Suitable for Marine use | Rotary ironers for use on ships These rotary irons are suitable for shipboard use. These appliances are extremely robust and reliable even on board a ship. |
| Suitable for camp sites | Rotary ironers for camp sites These rotary ironers are suitable for use on camp sites; these robust appliances are easy to operate and suitable for use with payment systems. |
| Suitable for domestic use | |
| Performance data | |
| Max performance at 20% residual moisture in kg/h Performance data in accordance with DIN 11 902 The performance data are based on the maximum values acheived in laboratory tests. The on-site ironing performance depends on the skill and experience of the user, the type and pre-sorting of the laundry, the condition of the heater plate and the requirements for ironing quality. | 13,0 |
| Controls | |
| Control system | Rotary selector |
| Minimum ironer speed, can be set in ft/min Variable roller speed Always the perfect speed when ironing - you decide! | 2.0 |
| Maximum ironer speed, can be set in ft/min Variable roller speed Always the perfect speed when ironing - you decide! | 4.5 |
| Adjustable temperature | In temperature stages Temperature selection to suit textiles The temperature can be set according to the type of fabric, residual moisture level and ironing finish required. |
| Standard electrical connection | |
| Type of heating | Electrical |
| Electrical connection | 2AC 208-240V 50-60HZ |
| Electric heater rating in kW | 2,80-3,70 |
| Boiler heater rating in kW | 0.85 |
| Total connected load in kW | 2,90-3,80 |
| NEMA plug: 6-20 | |
| Dimensions and weight | |
| External dimensions, net height in inches | 37 7/8 (959) |
| External dimensions, net width in inches | 38 7/8 (985) |
| External dimensions, net depth in inches | 15 (380) |
| External dimensions, gross height in inches | 22 1/2 (570) |
| External dimensions, gross width in inches | 44 1/8 (1,120) |
| External dimensions, gross depth in inches | 17 3/4 (450) |
| Net weight in lbs(kg) | 86 (39) |
| Gross weight in lbs. | 100 (45) |
| Maximum floor loading in p/force Maximum floor bearing capacity Maximum floor bearing capacity states the maximum weight (N) that can be placed on the supporting surface on which the appliance is installed. This maximum load bearing capacity is the result of adding up the weight of the machine, the load and the water in it, as well as the dynamic forces that occur during operation. | 382 |
| Features | |
| Steam function | Steam function Powerful against creases: Quick and uniform steam for perfect ironing results. |
| Free, unsupported roller end | Free, unsupported roller end The free roller end simplifies ironing of skirts, shirts and blouses. |
| Fold-away function | Space-saving storage The appliance only needs 0.2 ft storage space. |
| Finger guard | Finger guard A focus on safety: The finger guard is triggered if fingers come too close to the roller when feeding in laundry. |
| Foot switch | Convenient foot switch The roller is operated via a foot switch. Both hands are free to arrange items. |
| Airing bar | Convenient airing bar The fold-out airing bar allows crease-free cooling and airing of ironed laundry. |
| Feed-in board | Easy feeding in of laundry The feed-in board makes it easy to feed the laundry in accurately. |
| Laundry return feed | Convenient return feed The ironed laundry is automatically returned to the input side. |
| Appliance-independent accessories | A wide range of accessories * Consistently perfect work processes and efficiency - with a large selection of practical accessories. All accessories can be purchased as an option. |
| Test certificates and symbols | |
| CSA-C-US | |
- Capacity 13,0 kg/h * , roller width 6 3/8 (160) mm, roller diameter 32 3/4 (830) mm With 20% residual moisture - performance data according to DIN 11 902: The achievable ironing capacity depends on overall conditions such as, for example, the type of laundry and the experience of the operator.
- Iron comfortably while seated
- Work at your own pace thanks to variable roller speed
- Durable roller padding - aramid needle felt cloth Durable roller cover The extremely durable ironer covers are particularly long-lasting and heat-resistant.
- Easy to store - fold-away function Space-saving storage The appliance only needs 0.2 ft storage space.
