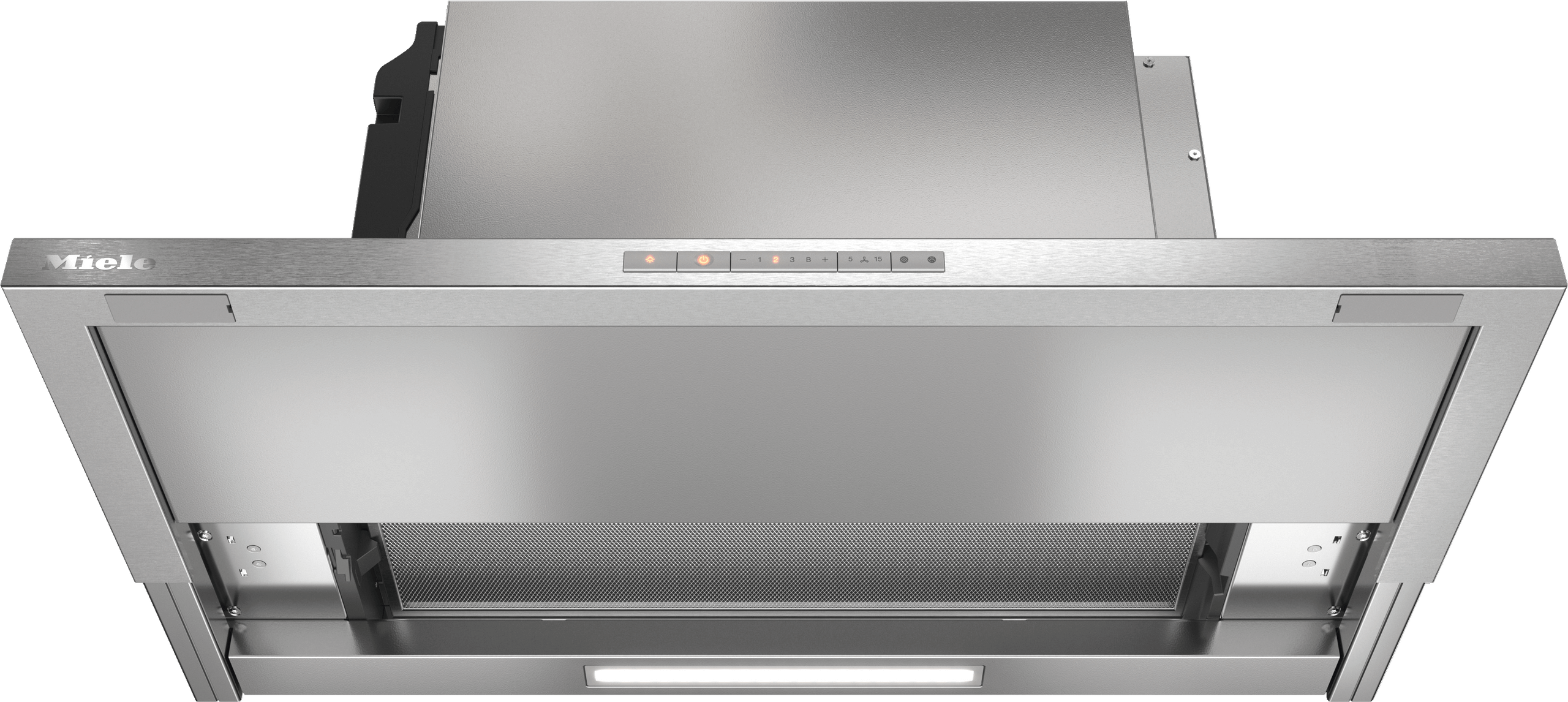

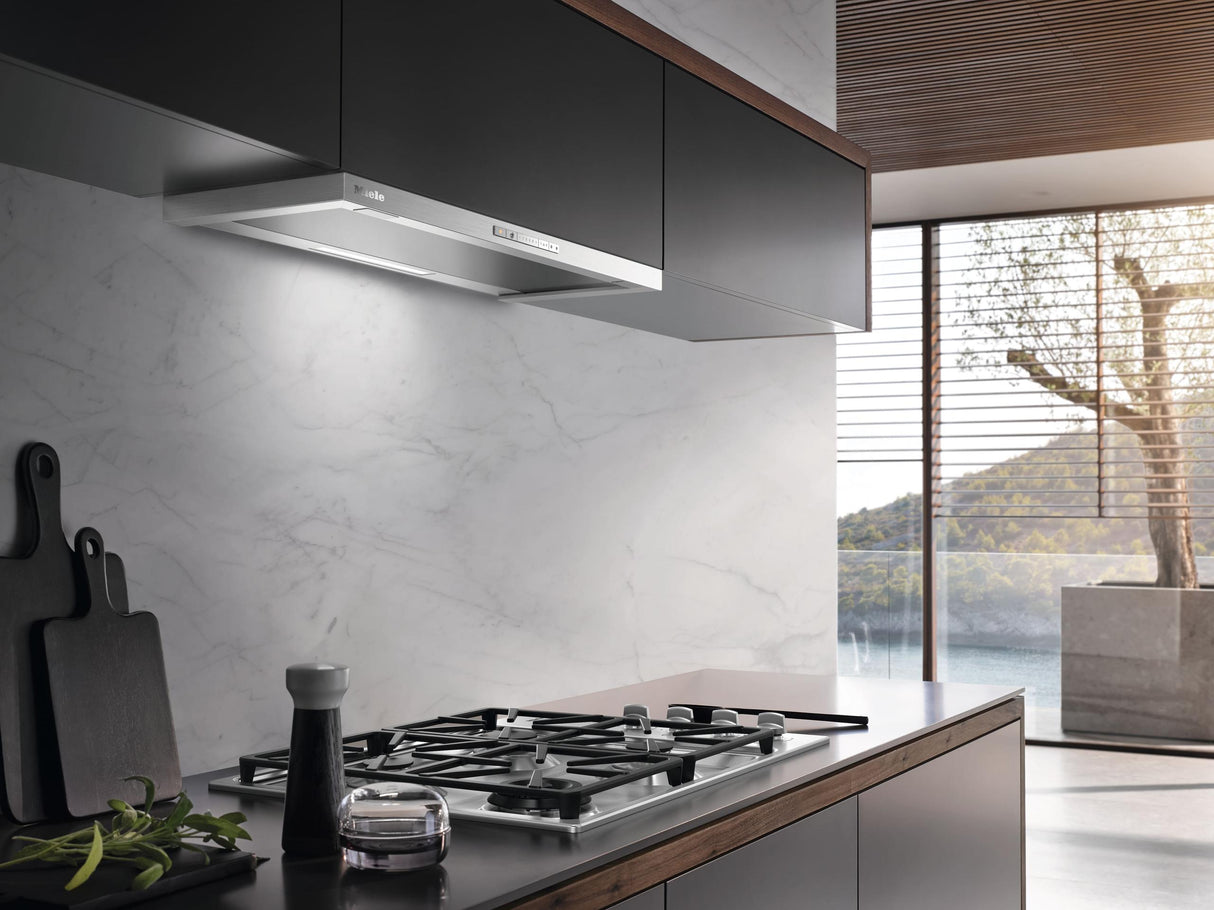

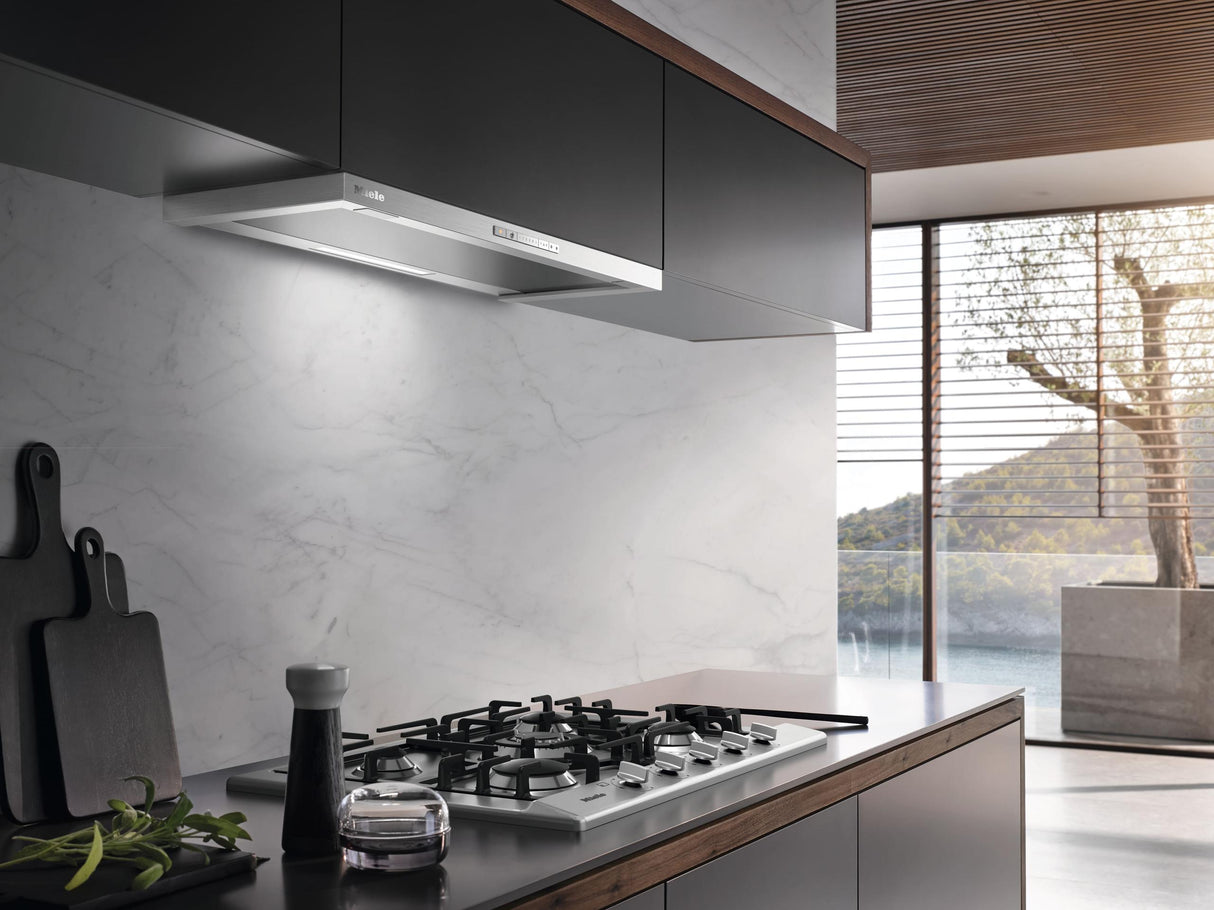

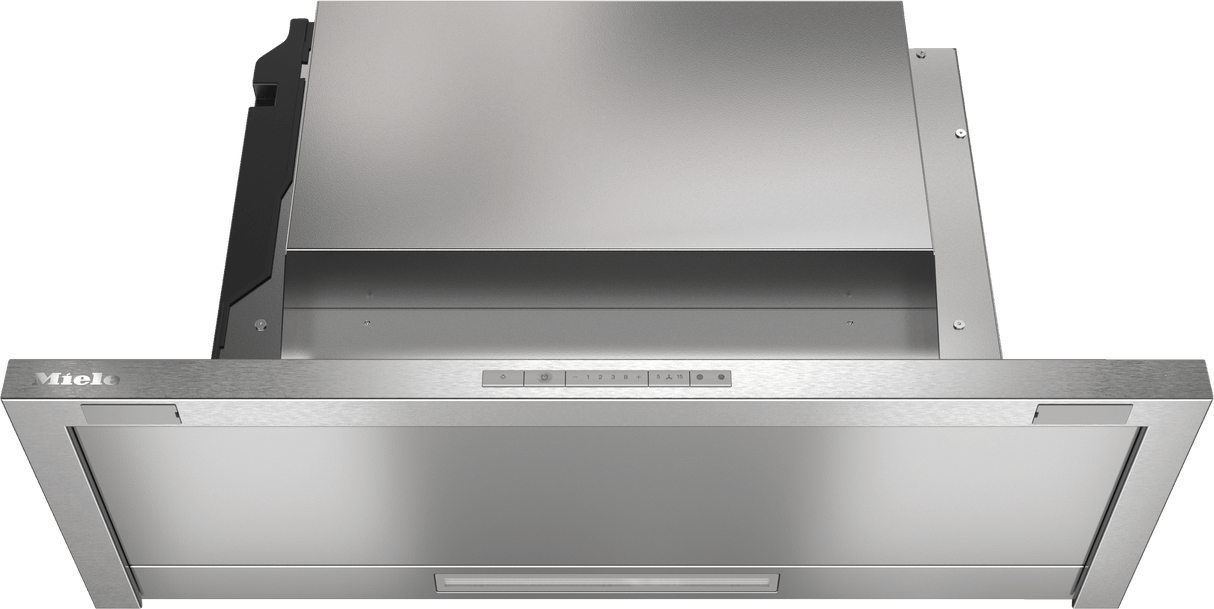

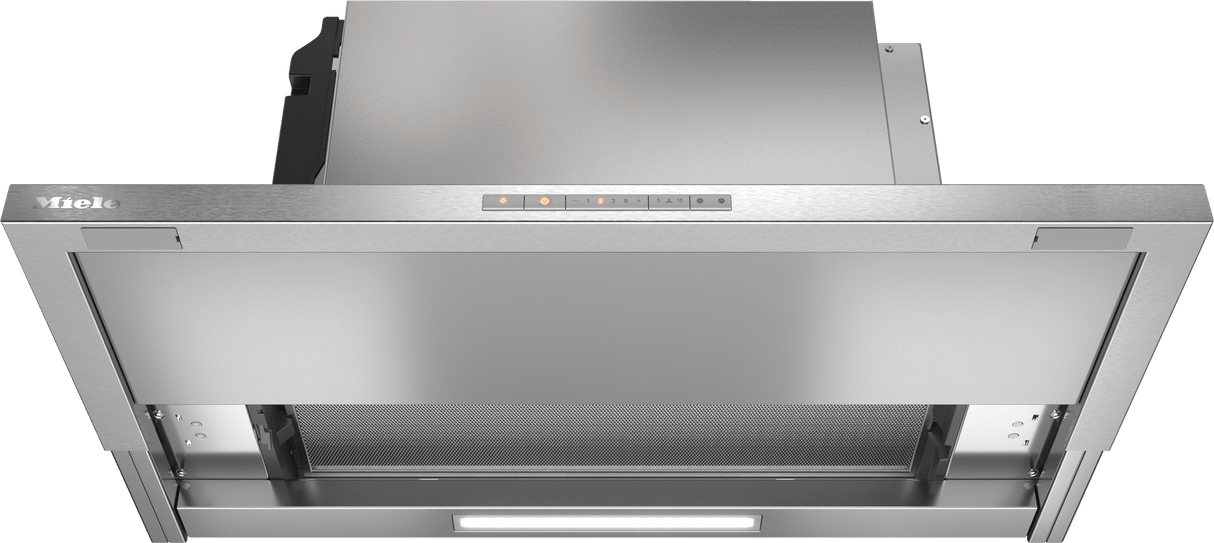

DAS 4720 Stainless steel - Built-in ventilation hood for installation in narrow upper cabinets with EasySwitch controls
Model: DAS4720DAS 4720 Stainless steel - Built-in ventilation hood for installation in narrow upper cabinets with EasySwitch controls
Model: DAS4720Quick Specs
Warranty
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Con@ctivity 3.0
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Delayed shutdown
- Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- filter saturation indicator
- Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
- Con@ctivity
- Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
- Con@ctivity 3.0
- Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
- Stainless-steel grease filters (10-layer)
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover
- Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Classic design - stainless-steel panel, 30" wide
- Unique user convenience - Con@ctivity
- LED strip for uniform lighting
- Efficient filtration- 10-ply stainless steel grease filters
- Recirculation mode - Active AirClean or Longlife AirClean filter
- Manufactured with great care by Miele & Cie. KG
- Safety information
| Design | |
| Built-in ventilation hood | Yes |
| Operating modes | |
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUU 151,DUU 150 |
| OdorFree charcoal filter (order separately) | DKFS 31-R DKFS 31-900 P |
| Design | |
| Color | Stainless steel |
| User convenience | |
| Miele@home | Yes |
| Automatic function | Con@ctivity 3.0 |
| Automatic function Con@ctivity | Yes |
| Electronic controls | Yes |
| EasySwitch | Yes |
| Operation | EasySwitch |
| Booster levels | 1 |
| Delayed shutdown for 5 or 15 minutes | Yes |
| Grease filter saturation indicator | Yes |
| Active charcoal filter saturation indicator | Yes |
| CleanCover | Yes |
| Cleaning convenience | |
| Easy-to-clean canopy interior - CleanCover | Yes |
| Filter system | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 1 |
| Lighting | |
| Number x W | 1 x 3 W |
| Light intensity in Lx | 330 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | Yes |
| Blower | |
| Dual-action blower | Yes |
| Exhaust air | |
| Air throughput in CFM in Booster | 427 |
| Air throughput | Values upon request |
| Air throughput with Booster level 1 (m /h) according to EN 61591 | 497.35 (845) |
| Safety | |
| Safety shut-off | Yes |
| Technical data | |
| Canopy width in in. (mm) | 29 7/8 (758) |
| Canopy height in in. (mm) | 1 1/2 (36) |
| Depth of hood canopy in in. (mm) | 10 3/4 (273) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 36 (16.0) |
| Length of electrical wire in ft. (m) | 2 (0.8) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.353 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | Yes |
| Standard accessories | |
| Non-return flap | Yes |
| EAN | |
| EAN | 4002516495925 |
- Classic design - stainless-steel panel, 30" wide
- Unique user convenience - Con@ctivity
- LED strip for uniform lighting
- Efficient filtration- 10-ply stainless steel grease filters
- Recirculation mode - Active AirClean or Longlife AirClean filter
- Manufactured with great care by Miele & Cie. KG
- Safety information
