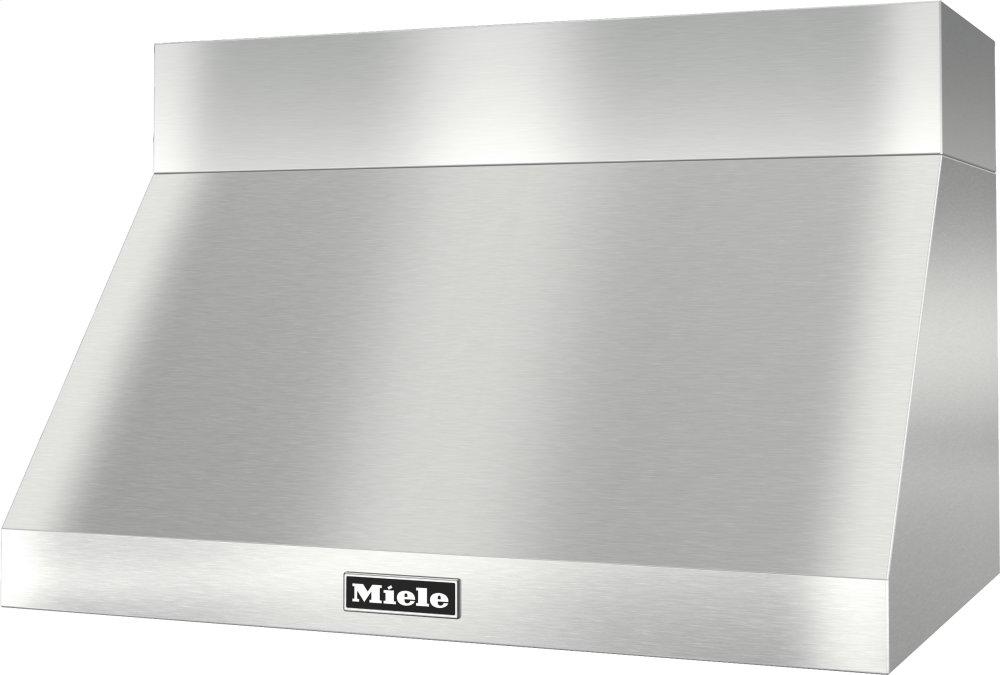

DAR 1230 - Wall ventilation hood for perfect combination with Ranges and Rangetops.
Model DAR1230STAINLESSSTEEL
Authorized Dealer
Loading...
Authorized Dealer
DAR 1230 - Wall ventilation hood for perfect combination with Ranges and Rangetops.
Model DAR1230STAINLESSSTEELQuick Specs
Depth
24.125
Height
18
DAR 1230 - Wall ventilation hood for perfect combination with Ranges and Rangetops. is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
24.125
Height
18
Dishwasher-Safe Stainless Steel Baffle Filters
Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
LED ClearView lighting
Environmentally friendly and long lasting: With up to 3 W they illuminate the cooktop evenly with a warm light.
Knob controls
Matching convenience: Rotary control allow intuitive and easy operation of blower power and LED lighting.
Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Temperature sensor
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
- Dishwasher-Safe Stainless Steel Baffle Filters
- Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
- Knob controls
- Matching convenience: Rotary control allow intuitive and easy operation of blower power and LED lighting.
- LED ClearView lighting
- Environmentally friendly and long lasting: With up to 3 W they illuminate the cooktop evenly with a warm light.
- Temperature sensor
- Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
- Handcrafted in Germany
- Know-how and craftsmanship: Our expertise goes into every ventilation hood, from development to finished product.
- Miele CleanCover
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Professional design - stainless steel hood, 36 (913) in (mm) wide
- Perfect illumination - LED ClearView lighting
- Dishwasher-safe - 3 high-quality stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Auto-vent safety sensor - protects against overheating
| Construction type | |
| Wall ventilation hood | • |
| Required accessories | |
| Blower | • |
| Duct cover | • |
| Operating modes | |
| Recirculated mode | Convertible |
| External operation possible | • |
| Control panel | |
| Rotary knob | • |
| Power levels (number excl. Intensive) | 3 |
| Temperature sensor | • |
| Cleaning convenience | |
| Easy to clean canopy interior CleanCover | • |
| Dishwasher-safe grease collection channel | • |
| Filter system | |
| Number of dishwasher-safe stainless steel baffle filters | 3 |
| Lighting | |
| LED | • |
| Number x W | 3 x 3 W |
| Blower options (to be purchased separately) | |
| DRIB XL internal blower in CFM (m ) | 1189 |
| DRIB XXL internal blower in CFM (m ) | 1869 |
| DREB XL external blower in CFM (m ) | 1189 |
| DREB XXL external blower in CFM (m ) | 1869 |
| Technical data | |
| Canopy width in in.(mm) | 36 (913) |
| Canopy width in inches | 35 15/16 |
| Canopy height in in.(mm) | 18 (457) |
| Canopy depth in in.(mm) | 24 1/8 (611) |
| Net weight in lbs. (kg) | 73 (33.0) |
| Length of electrical wire in ft (m) | 2 (0.8) |
| Standard plug fitted | • |
| Overall height for extraction mode and external mo | 617-1,067 |
| Total connected load in kW | 0.81 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Overall height for recirculation mode cooker hoods | 610-1,219 |
| Installation notes | |
| Vent connection at top | • |
| Diameter of vent connection in in.(mm) | 9 7/8 (250) |
| Optional accessories | |
| Chimney cover (H: 152 mm) | DRDC 3606 |
| Chimney cover (H: 305 mm) | DRDC 3612 |
| Chimney cover (H: 457 mm) | DRDC 3618 |
| Chimney cover (H: 610 mm) | DRDC 3624 |
| Recirculation mode conversion kit | DRUU 36 |
| DRRV 1200 | |
| Rear-wall panel (W: 913 mm) | RBS 36 |
| Rear-wall panel (W: 1218 mm) | RBS 48 |
| Active charcoal filter | DKF 24-1 |
- Professional design - stainless steel hood, 36 (913) in (mm) wide
- Perfect illumination - LED ClearView lighting
- Dishwasher-safe - 3 high-quality stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Auto-vent safety sensor - protects against overheating
 | |
|---|---|
