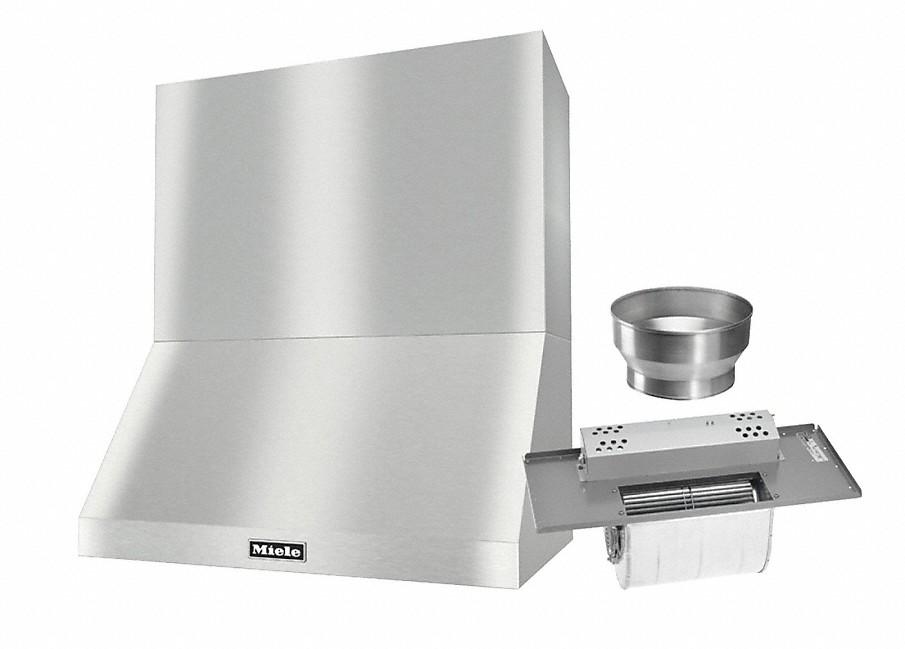

DAR 1230 Set 9 Wall-Mounted Range Hood with Extraction Mode with integrated XL motor including 24" chimney cover
Model DAR1230SET9
DAR 1230 Set 9 Wall-Mounted Range Hood with Extraction Mode with integrated XL motor including 24" chimney cover
Model DAR1230SET9DAR 1230 Set 9 Wall-Mounted Range Hood with Extraction Mode with integrated XL motor including 24" chimney cover is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
knobs
(B)Discreetly integrated(/B) Intuitive and easy-to-use hidden hood controls make operation effortless.
Dishwasher-Safe Stainless Steel Baffle Filters
(B)Esthetically pleasing and highly functional (/B) Miele's high-quality stainless steel Baffle filters are extremely efficient in extracting steam and odors and capturing grease, all while handling the high power of the Blower. These Baffle filters are also very easy to maintain as they are dishwasher-safe and spring back into place.
LED BrilliantLight
(B)Powerful lighting with minimal energy consumption(/B) Specially developed for select Miele Range Hoods, LED lighting shines a more natural light to highlight the pure color and texture of your food, but also saves energy. This long lasting LED lighting is tested to last the 20 year life cycle of your hood.
Temperature sensor
(B)Permanent safety(/B) The temperature sensor is a safety device that constantly monitors the temperature when the cooker hood is switched on. If a certain temperature is exceeded the cooker hood automatically switches to the intensive setting. This avoids unnecessary energy consumption. The temperature sensor provides added peace of mind.
Handmade in Germany
(B)Each Miele cooker hood is unique (/B) Know-how and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, Know-how and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
Miele CleanCover
(B)Convenience and safety in detail (/B) Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
- Professional design - stainless steel hood, 36 (913) Inch wide
- Powerful fan - up to 706.67 (1,200) CF/min
- Perfect illumination - LED ClearView lighting LED BrilliantLight Provides a more natural light - highlighting the color and texture of your food, while also saving energy.
- Dishwasher-safe - 3 high-quality stainless steel baffle filters Dishwasher-Safe Stainless Steel Baffle Filters Extremely efficient in extracting steam, removing odors and capturing grease, while also being dishwasher-safe.
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: a smooth liner inside the canopy prevents exposure to live components.
| Construction type | |
| Wall ventilation hood | |
| Operating modes | |
| Recirculated mode | air extraction Recirculated mode Among other things, Miele offers cooker hoods that can be converted from vented to recirculation mode using a recirculation conversion kit (see optional accessories). |
| Control panel | |
| Electronic controls | |
| Rotary knob | |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Temperature sensor | Temperature sensor Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption. |
| Cleaning convenience | |
| Easy to clean canopy interior CleanCover | Miele CleanCover Miele's unique easy cleaning: a smooth liner inside the canopy prevents exposure to live components. |
| Filter system | |
| Number of dishwasher-safe stainless steel baffle filters | 3 |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput in setting 1 (cfm) | 270.89 (460) |
| Air throughput in setting 2 (cfm) | 400.44 (680) |
| Air throughput in setting 3 (cfm) | 588.89 (1,000) |
| Air throughput in Intensive setting (cfm) | 706.67 (1,200) |
| Technical data | |
| Overall hood height for vented and external in in.(mm) | 42 1/8 (1,067) |
| Canopy width in in.(mm) | 36 (913) |
| Canopy height in in.(mm) | 18 (457) |
| Canopy depth in in.(mm) | 24 1/8 (611) |
| Net weight in lbs. (kg) | 118 (53.1) |
| Length of electrical wire in ft (m) | 2 (0.8) |
| Total connected load in kW | 0.62 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | |
| Vent connection at rear | |
| Vent connection at top and rear | |
| Diameter of vent connection in in.(mm) | 9 7/8 (250) |
| Standard accessories | |
| Internal motor XL | |
| Chimney cover 24" high | |
| Non-return flap | Non-return flap A non-return flap is supplied with every appliance and prevents the backflow of cold and/or warm external air with vented mode cooker hoods. This component is installed in the exhaust socket above the motor in your cooker hood and prevents air from flowing back through the vented ducting when the appliance is not in use. |
- Professional design - stainless steel hood, 36 (913) Inch wide
- Powerful fan - up to 706.67 (1,200) CF/min
- Perfect illumination - LED ClearView lighting LED BrilliantLight Provides a more natural light - highlighting the color and texture of your food, while also saving energy.
- Dishwasher-safe - 3 high-quality stainless steel baffle filters Dishwasher-Safe Stainless Steel Baffle Filters Extremely efficient in extracting steam, removing odors and capturing grease, while also being dishwasher-safe.
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: a smooth liner inside the canopy prevents exposure to live components.
 | |
|---|---|
