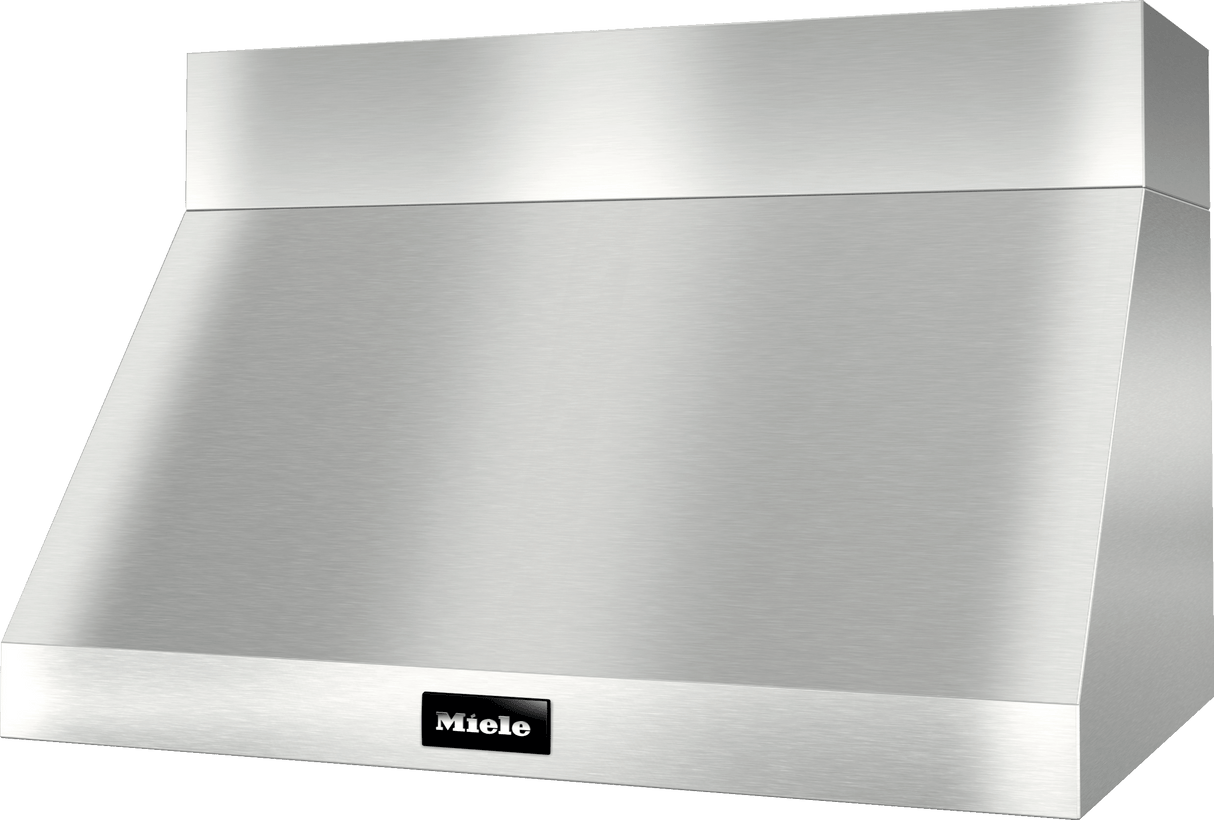

DAR 1230-3 Stainless steel - 36-inch wall-mounted ventilation hood for perfect combination with Ranges and Rangetops.
Model DAR12303
Authorized Dealer
Loading...
Authorized Dealer
DAR 1230-3 Stainless steel - 36-inch wall-mounted ventilation hood for perfect combination with Ranges and Rangetops.
Model DAR12303Quick Specs
Energy
NO
DAR 1230-3 Stainless steel - 36-inch wall-mounted ventilation hood for perfect combination with Ranges and Rangetops. is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 07/01/2026
Regular price
$2,799.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Energy Star Rated
NO
Knob controls
Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
Temperature sensor
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
LED ClearView lighting
Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Knob controls
- Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
- LED ClearView lighting
- Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
- Temperature sensor
- Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
- Miele CleanCover
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Professional design - stainless steel hood, 36 (913) in (mm) wide
- Perfect illumination - LED ClearView lighting
- Dishwasher-safe - 3 high-quality stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Auto-vent safety sensor - protects against overheating
- Manufactured with great care by Miele & Cie. KG
- Safety information
| Design | |
| Wall ventilation hood | Yes |
| Required accessories | |
| Blower | Yes |
| Duct cover | Yes |
| Operating modes | |
| Recirculated mode | Can be retrofitted |
| External operation possible | Yes |
| User convenience | |
| Rotary knob | Yes |
| Power levels (number excl. Intensive) | 3 |
| Temperature sensor | Yes |
| Cleaning convenience | |
| Easy to clean canopy interior CleanCover | Yes |
| Dishwasher-safe grease collection channel | Yes |
| Filter system | |
| Number of dishwasher-safe stainless steel baffle filters | 3 |
| Lighting | |
| Number x W | 3 x 3 W |
| Fan option (buy separately) | |
| DRIB XL internal blower in CFM (m (h) | 1189 |
| DRIB XXL internal blower in CFM (m /h) | 1869 |
| DREB XL external blower in CFM (m /h) | 1189 |
| DREB XXL external blower in CFM (m /h) | 1869 |
| Technical data | |
| Canopy width in in.(mm) | 36 (913) |
| Canopy width in inches | 35 15/16 |
| Canopy height in in.(mm) | 18 (457) |
| Canopy depth in in.(mm) | 24 1/8 (611) |
| Net weight in lbs. (kg) | 73 (33.0) |
| Length of electrical wire in ft (m) | 2 (0.8) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.809 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | Yes |
| Diameter of vent connection in in.(mm) | 9 7/8 (250) |
| Standard accessories | |
| Non-return flap | Yes |
| EAN | |
| EAN | 4002516546948 |
- Professional design - stainless steel hood, 36 (913) in (mm) wide
- Perfect illumination - LED ClearView lighting
- Dishwasher-safe - 3 high-quality stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Auto-vent safety sensor - protects against overheating
- Manufactured with great care by Miele & Cie. KG
- Safety information
