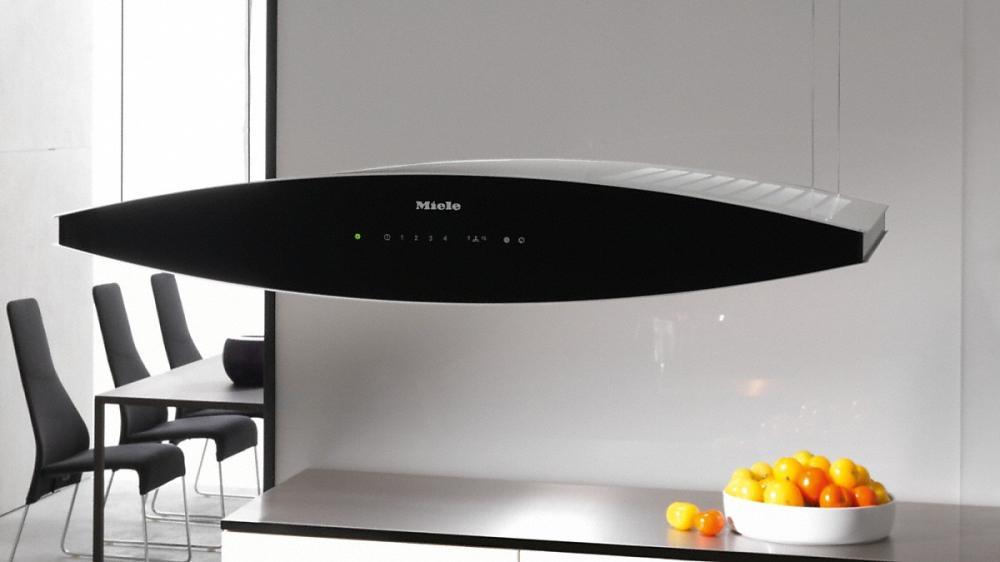

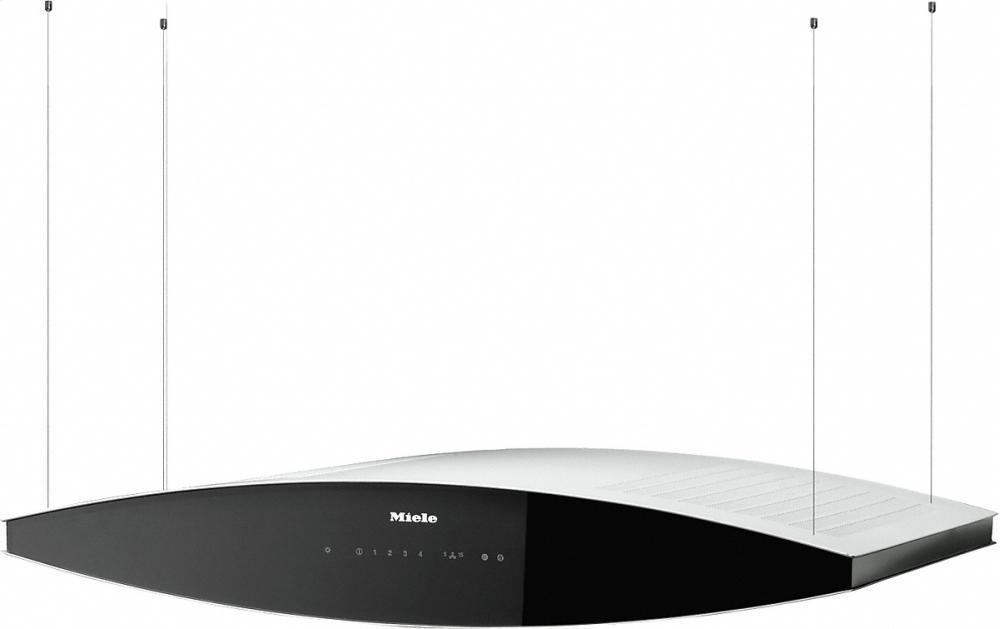

DA 7000 D Aura AM Island d(eback)cor hood with dimmable halogen lighting and touch controls for convenient operation.
Model DA7000DAURAAMBLACK
DA 7000 D Aura AM Island d(eback)cor hood with dimmable halogen lighting and touch controls for convenient operation.
Model DA7000DAURAAMBLACKQuick Specs
DA 7000 D Aura AM Island d(eback)cor hood with dimmable halogen lighting and touch controls for convenient operation. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Active AirClean filter
(B)A completely odor-free kitchen(/B) To remove odors with a Miele recirculation ventilation hood, you can use an OdorFree charcoal filter. This disposable filter has to be replaced on a regular basis.
Safety turn off
(B)Always on the safe side(/B) The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Miele CleanCover
(B)Convenience and safety in detail(/B) Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Stainless-steel grease filters (10-layer)
(B)Esthetically pleasing and highly functional(/B) Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.
Delayed shutdown
(B)Automatic blower run-on(/B) The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.
Handcrafted in Germany
(B)Each Miele ventilation hood is unique(/B) Almost all Miele ventilation hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
filter saturation indicator
(B)Countdown time conveniently in view(/B) If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
- Design - Recirculation ventilation hood, 39 3/8 (1,000) Inch wide
- Efficient - OdorFree charcoal filter Active AirClean filter Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.
- Convenient - programmable charcoal filter saturation indicator filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or OdorFree charcoal filter is saturated.
- Practical - delayed shut down for 5 to 15 minutes Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
| Construction type | |
| Island ventilation hood | |
| Design | |
| Color | Black |
| Operating modes | |
| Recirculated mode | Recirculation |
| Control panel | |
| Electronic controls | |
| Touch controls on glass | |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Programmable 'Intensive' switch-off | |
| Delayed shutdown for 5 or 15 minutes | Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes." |
| Programmable grease filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or OdorFree charcoal filter is saturated. |
| Programmable charcoal filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or OdorFree charcoal filter is saturated. |
| Cleaning convenience | |
| Easy-to-clean CleanCover hood liner | Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor. |
| Filter system | |
| Number of dishwasher-safe stainless steel grease filters Stainless-steel grease filters (10-layer) Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher. | 4 |
| Lighting | |
| Halogen | |
| Light intensity in Lx | 560 |
| Color temperature in K | 3,000 |
| Light dimmer function | |
| Blower | |
| Single-action blower | |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | Safety turn off Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours. |
| Single-ply safety glass (ESG) | |
| Technical data | |
| Overall hood height for recirculation in in.(mm) | 19 3/4 (500) - 59 1/8 (1,500) |
| Canopy width in in.(mm) | 39 3/8 (1,000) |
| Height of hood canopy in in.(mm) | 6 3/8 (160) |
| Depth of hood canopy in in.(mm) | 27 5/8 (700) |
| Minimum distance above electric cooktops in in.(mm) Minimum gaps Please observe the detailed information on minimum gaps in the operating instructions. These are available under Downloads. | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm Use above gas hobs This hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW. | 26 (660) |
| Net weight in lbs. (kg) | 71 (32.0) |
| Length of electrical wire in ft (m) | 5 (1.8) |
| Hard-wired | |
| Total connected load in kW | 0.16 |
| Voltage in V | 120 |
| Fuse rating in A | 10 |
| Number of phases | 1 |
| Installation notes | |
| Installation template | |
| Standard accessories | |
| OdorFree charcoal filter | Active AirClean filter Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly. |
- Design - Recirculation ventilation hood, 39 3/8 (1,000) Inch wide
- Efficient - OdorFree charcoal filter Active AirClean filter Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.
- Convenient - programmable charcoal filter saturation indicator filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or OdorFree charcoal filter is saturated.
- Practical - delayed shut down for 5 to 15 minutes Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
 | |
|---|---|
