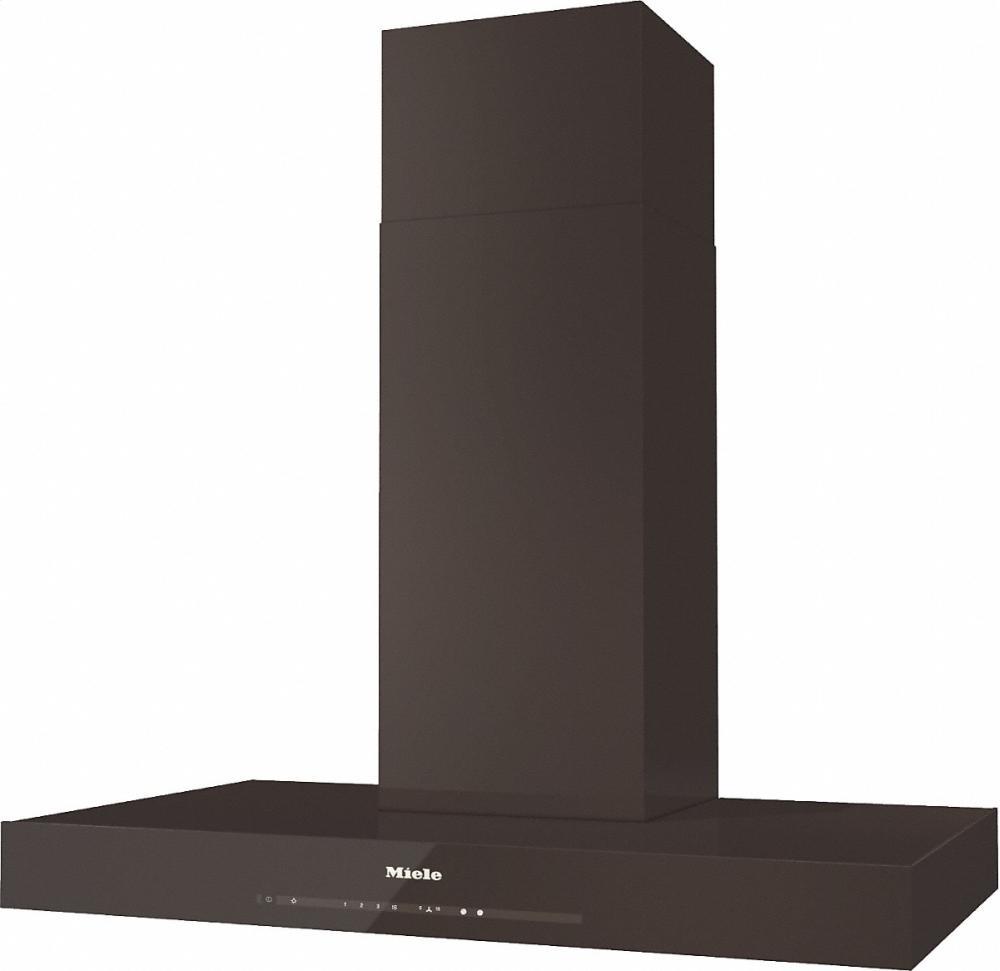

DA 6690 W Puristic Edition 6000 AM Wall ventilation hood with energy-efficient LED lighting and touch controls for simple operation.
Model DA6690WPURISTICEDITION6000AMTRUFFLEBROWN
DA 6690 W Puristic Edition 6000 AM Wall ventilation hood with energy-efficient LED lighting and touch controls for simple operation.
Model DA6690WPURISTICEDITION6000AMTRUFFLEBROWNQuick Specs
Color
DA 6690 W Puristic Edition 6000 AM Wall ventilation hood with energy-efficient LED lighting and touch controls for simple operation. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Safety turn off
(B)Always on the safe side(/B) The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Miele INDIVIDUAL
(B)Customization request(/B) The customer's wishes are the highest priority for Miele. Design preferences, length of the ducting system, room situation, cooking habits, body height, or special requirements - many variables exist when deciding on the specifications of a ventilation hood. At your request, Miele will adapt the chimney length to your requirements. You also have the option of ordering a ventilation system in an RAL color of your choice.
Miele CleanCover
(B)Convenience and safety in detail(/B) Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
LED ClearView Lighting
(B)Powerful lighting with minimal energy consumption(/B) LED ClearView Lighting is an optical highlight and environmentally friendly. A Miele LED spotlight consumes only 3 or 4.5 W and thus saves a lot of electricity. Miele LEDs illuminate the cooktop with a warm, natural and even light.
Design variety
(B)Timeless purism(/B) Miele offers ventilation hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele ventilation hood(s) have unique features without being intrusive. With clean lines, well thought-out functions and timeless design.
High-quality and powerful motors
(B)Particularly powerful(/B) Miele ventilation hood(s) are equipped with high-quality radial blowers that provide suction on two sides. These high-performance units guarantee powerful air throughput at all times as well as optimized vented. "Despite their high performance, the blowers operate at a comfortably low noise level."
Automatic 'Intensive' switch-off
(B)Programmable maximum power(/B) The Booster setting provides very high air flow and is only intended for brief operation, for example, when heavy smoke or strong odors develop when food is burned. The Booster setting can be programmed so that the blower automatically switches back to Setting 3 after 5 minutes. This avoids unnecessary energy consumption.
Tempered glass
(B)Special safety for hoods with a glass canopy(/B) Miele ventilation hood(s) with a material combination of glass and stainless steel feature single-pane safety glass. If broken, this special glass disintegrates into lots of small, blunt pieces. You see: Miele guarantees maximum safety even if the unexpected happens.
Active AirClean filter
(B)A completely odor-free kitchen(/B) Miele ventilation hood(s) always require an Active AirClean filter in addition to the grease filter for recirculation mode. This Miele filter removes odors efficiently and long-term.
Delayed shutdown
(B)Automatic blower run-on(/B) The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.
Handcrafted in Germany
(B)Each Miele ventilation hood is unique(/B) Almost all Miele ventilation hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
filter saturation indicator
(B)Countdown time conveniently in view(/B) If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
Perfect craftsmanship
(B)Visible quality(/B) Miele ventilation hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele ventilation hood(s). Enjoy perfect workmanship!
Con@ctivity 2.0 *
(B)Automatic operation for intelligent blower control(/B) Achieving optimum vented of kitchen vapors and odors - while also saving energy: A Miele cooker hood equipped with Con@ctivity 2.0 does this automatically. Miele Con@ctivity 2.0 enables the cooker hood to communicate with the cooktop. Con@ctivity 2.0 gathers information from the cooktop and transmits it to the controls in the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct blower setting to ensure the optimum room microclimate at all times. So you can concentrate completely on the cooking process. You don't even have to remember to switch off the appliance. With the automatic run-on control, the cooker hood will switch itself off automatically after you have finished cooking so you do not use any more energy than is necessary. In addition, manual operation is possible.
- Family design - geared for Generation 6000 built-in appliances.
- Unique convenience - Con@ctivity 2.0 Con@ctivity 2.0 The Miele automatic function Con@ctivity 2.0 allows the values selected at the cooktop to be captured and communicated to the control of the ventilation hood. Automatic blower power selection ensures the optimum room climate at all times.
- Pleasantly quiet
| Construction type | |
| Wall ventilation hood | |
| Design | |
| Color | Truffle Brown |
| RAL color possible as special order | RAL color by special order Optimum color matching of you Miele ventilation hood to your kitchen furnishings - On request many ventilation hoods can be painted in the desired RAL color. |
| Customization possible on request | Miele INDIVIDUAL Just for you: ventilation hoods can be customized to suit your requirements. |
| Variable height available as special order | |
| Operating modes | |
| Recirculated mode | Convertible |
| Control panel | |
| Electronic controls | |

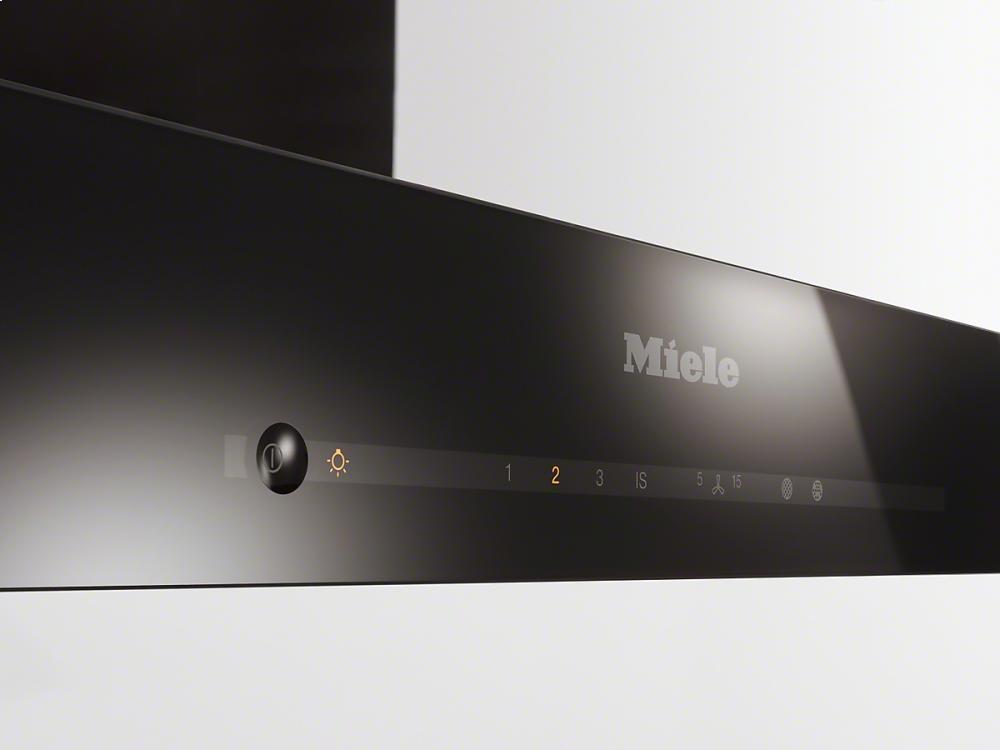

| Touch controls on glass | |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Programmable 'Intensive' switch-off | Automatic 'Intensive' switch-off Full power when required: The Booster setting is efficient at extracting strong cooking vapors and odors. |
| Delayed shutdown for 5 or 15 minutes | Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes." |
| Programmable grease filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated. |
| Programmable charcoal filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated. |
| Acoustic package | Silence Efficient and quiet: The motor, chimney and canopy are specially insulated for effective sound-proofing. |
| Cleaning convenience | |
| EasyClean CleanCover hood liner | Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor. |
| Networking of domestic appliances | |
| Automatic function Con@ctivity 2.0 | Con@ctivity 2.0 * Optimum room climate: The required blower output is automatically controlled by the cooktop settings. Patent application WO 2009/127379 A2 |
| Filter system | |
| Dishwasher-safe stainless steel grease filters | 3 |
| Lighting | |
| LED ClearView lighting | LED ClearView Lighting Environmentally friendly and long lasting: With up to 4.5 W they illuminate the cooktop with a warm light. |
| Light intensity in Lx | 520 |
| Color temperature in K | 3,500 |
| Blower | |
| Dual-action blower | High-quality and powerful motors Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels. |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput and sound emissions | Values upon request |
| Safety | |
| Safety shut-off | Safety turn off Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours. |
| Single-ply safety glass (ESG) | Tempered glass To be on the safe side: If the glass should break, it will shatter into many small, blunt pieces. |
| Technical data | |
| Overall hood height for vented and external in in.(mm) | 28 (710) - 40 5/8 (1,030) |
| Overall hood height for recirculation in in.(mm) | 33 1/8 (840) - 45 3/4 (1,160) |
| Canopy width in in.(mm) | 35 3/8 (898) |
| Height of hood canopy in in.(mm) | 3 3/8 (85) |
| Depth of hood canopy in in.(mm) | 19 3/4 (500) |
| Minimum distance above electric cooktops in in.(mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm Use above gas hobs This hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW. | 26 (660) |
| Net weight in lbs. (kg) | 58 (26.0) |
| Length of electrical wire in ft (m) | 4 (1.5) |
| Standard plug fitted | |
| Total connected load in kW | 0.36 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | |
| Vent connection at top and rear | |
| Diameter of vent connection in in.(mm) | 6 (150) |
| Telescopic chimney | Telescopic chimney "With the telescopic chimney, Miele wall- mounted and island ventilation hoods can be adjusted to the proper height over the cooktop during installation." |
| Telescopic wall bracket | Telescopic wall bracket With the telescopic wall bracket the Miele wall mounted ventilation hoods can be adjusted to the proper height over the cooktop with only one single component. "In addition, unevenness in the wall can be compensated for by a three-way adjustment feature." |
| Standard accessories | |
| Non-return flap | Non-return flap A non-return flap is supplied with every appliance and prevents the backflow of cold and/or warm outside air with vented mode ventilation hoods. This component is installed in the exhaust socket above the motor in your ventilation hood and prevents air from flowing back through the vented ducting when the appliance is not in use. |
| Wireless stick Con@ctivity 2.0 for KM | XKS 3000 Z |
- Family design - geared for Generation 6000 built-in appliances.
- Unique convenience - Con@ctivity 2.0 Con@ctivity 2.0 The Miele automatic function Con@ctivity 2.0 allows the values selected at the cooktop to be captured and communicated to the control of the ventilation hood. Automatic blower power selection ensures the optimum room climate at all times.
- Pleasantly quiet
 | |
|---|---|
