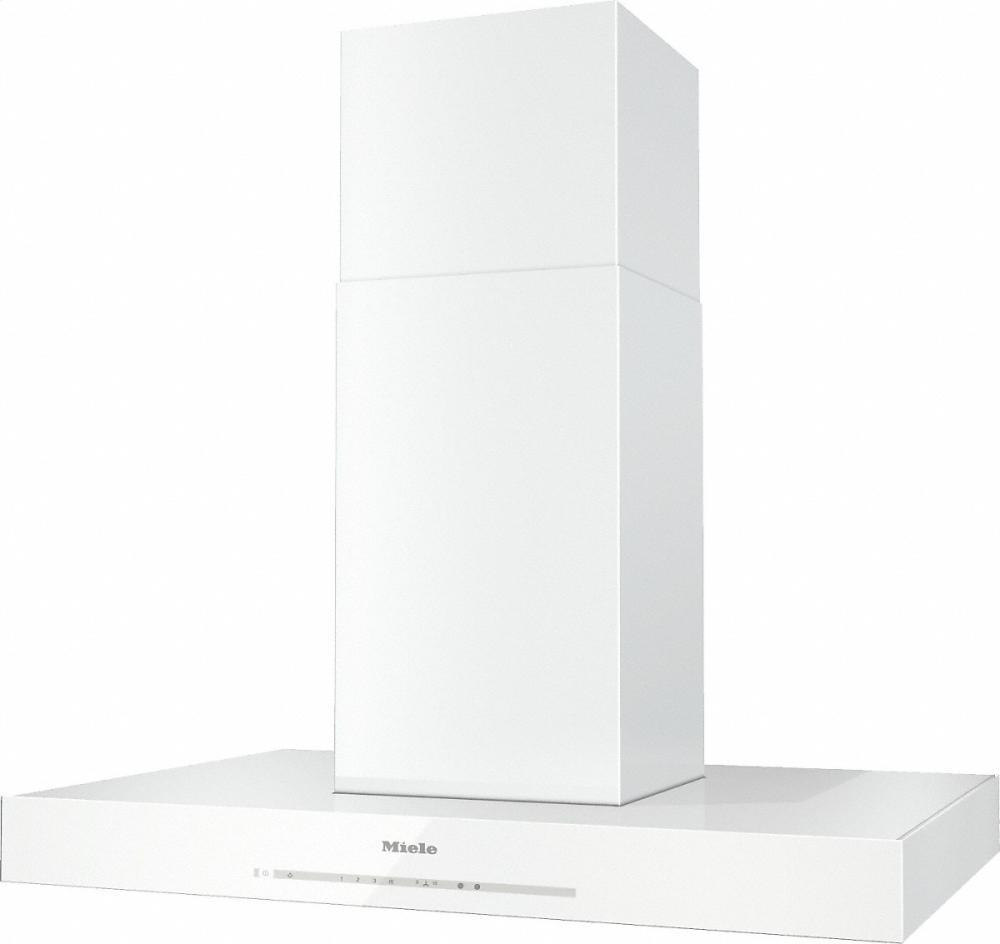

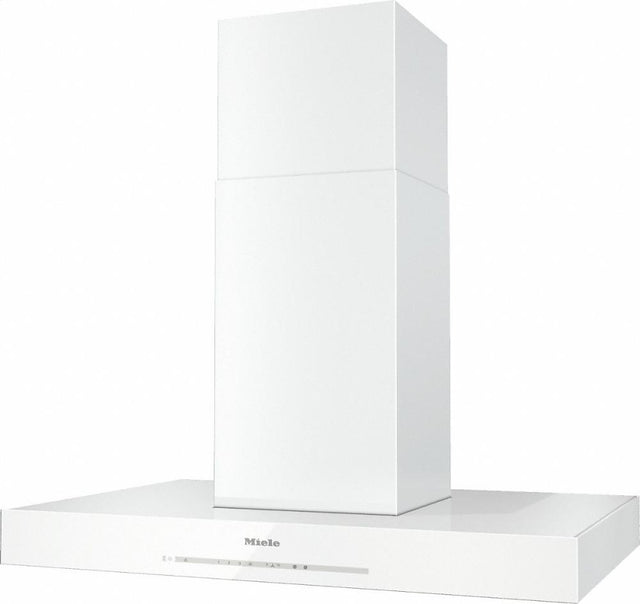

DA 6690 D Puristic Edition 6000 AM Island d(eback)cor hood with energy-efficient LED lighting and touch controls for simple operation.
Model DA6690DPURISTICEDITION6000AMBRILLIANTWHITE
DA 6690 D Puristic Edition 6000 AM Island d(eback)cor hood with energy-efficient LED lighting and touch controls for simple operation.
Model DA6690DPURISTICEDITION6000AMBRILLIANTWHITEQuick Specs
Color
DA 6690 D Puristic Edition 6000 AM Island d(eback)cor hood with energy-efficient LED lighting and touch controls for simple operation. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Delayed shutdown
(B)Automatic blower run-on(/B) The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.
Design variety
(B)Timeless purism(/B) Miele offers ventilation hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele ventilation hood(s) have unique features without being intrusive. With clean lines, well thought-out functions and timeless design.
Active AirClean filter
(B)A completely odor-free kitchen(/B) Miele ventilation hood(s) always require an Active AirClean filter in addition to the grease filter for recirculation mode. This Miele filter removes odors efficiently and long-term.
Miele CleanCover
(B)Convenience and safety in detail(/B) Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Automatic 'Intensive' switch-off
(B)Programmable maximum power(/B) The Booster setting provides very high air flow and is only intended for brief operation, for example, when heavy smoke or strong odors develop when food is burned. The Booster setting can be programmed so that the blower automatically switches back to Setting 3 after 5 minutes. This avoids unnecessary energy consumption.
Handcrafted in Germany
(B)Each Miele ventilation hood is unique(/B) Almost all Miele ventilation hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
High-quality and powerful motors
(B)Particularly powerful(/B) Miele ventilation hood(s) are equipped with high-quality radial blowers that provide suction on two sides. These high-performance units guarantee powerful air throughput at all times as well as optimized vented. "Despite their high performance, the blowers operate at a comfortably low noise level."
filter saturation indicator
(B)Countdown time conveniently in view(/B) If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
Perfect craftsmanship
(B)Visible quality(/B) Miele ventilation hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele ventilation hood(s). Enjoy perfect workmanship!
Con@ctivity
(B)Automatic operation for intelligent blower control(/B) Achieving optimum vented of kitchen vapors and odors - while also saving energy: A Miele cooker hood equipped with Con@ctivity 2.0 does this automatically. Miele Con@ctivity 2.0 enables the cooker hood to communicate with the cooktop. Con@ctivity 2.0 gathers information from the cooktop and transmits it to the controls in the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct blower setting to ensure the optimum room microclimate at all times. So you can concentrate completely on the cooking process. You don't even have to remember to switch off the appliance. With the automatic run-on control, the cooker hood will switch itself off automatically after you have finished cooking so you do not use any more energy than is necessary. In addition, manual operation is possible.
Safety turn off
(B)Always on the safe side(/B) The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Tempered glass
(B)Special safety for hoods with a glass canopy(/B) Miele ventilation hood(s) with a material combination of glass and stainless steel feature single-pane safety glass. If broken, this special glass disintegrates into lots of small, blunt pieces. You see: Miele guarantees maximum safety even if the unexpected happens.
- Family design - based on Miele built-in appliances
- Unique convenience - Con@ctivity 2.0 Con@ctivity 2.0 The Miele automatic function Con@ctivity 2.0 allows the values selected at the cooktop to be captured and communicated to the control of the ventilation hood. Automatic blower power selection ensures the optimum room climate at all times.
- Pleasantly quiet - Miele Silence package
| Construction type | |
| Island ventilation hood | |
| Design | |
| Color | Brilliant white |
| RAL color possible as special order | |
| Customization possible on request | |
| Variable height available as special order | |
| Operating modes | |
| Recirculated mode | Convertible |

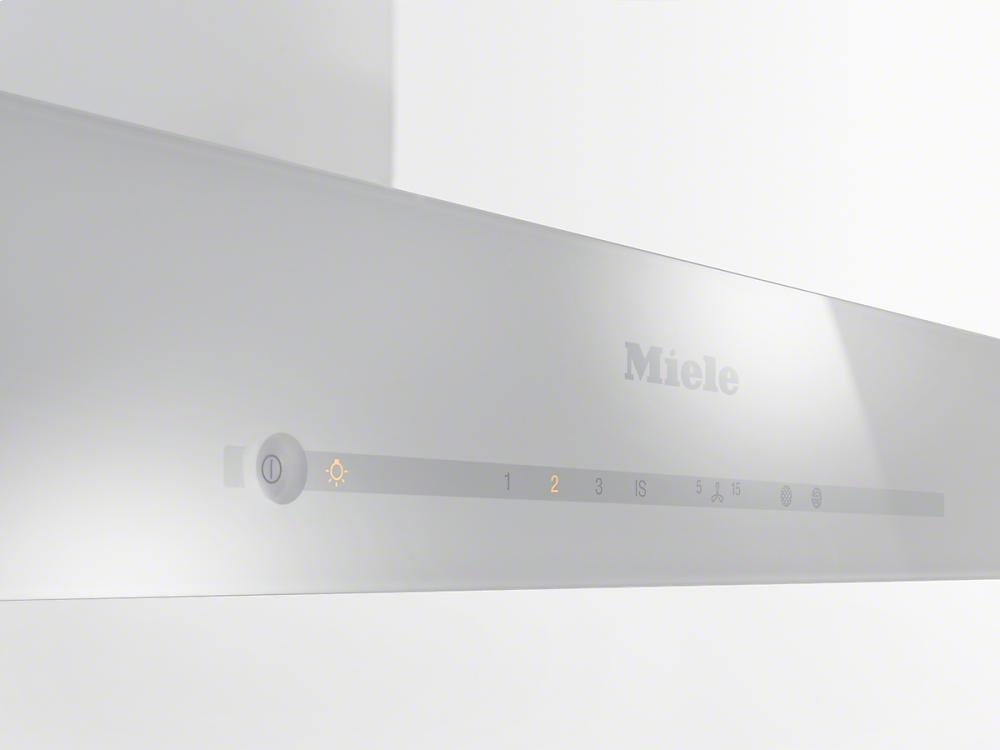

| Control panel | |
| Electronic controls | |
| Touch controls on glass | |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Programmable 'Intensive' switch-off | |
| Delayed shutdown for 5 or 15 minutes | Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes." |
| Programmable grease filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated. |
| Programmable charcoal filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated. |
| Acoustic package | Silence Efficient and quiet: The motor, chimney and canopy are specially insulated for effective sound-proofing. |
| Cleaning convenience | |
| EasyClean CleanCover hood liner | Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor. |
| Networking of domestic appliances | |
| Automatic function Con@ctivity 2.0 (Zigbee) | Con@ctivity 2.0: With Con@ctivity 2.0, communication is established between the hood and cooktop based on RF technology (ZigBee). For Con@ctivity 2.0, an RF stick is required for the cooktop; this is supplied with the ventilation hood. |
| Filter system | |
| Dishwasher-safe stainless steel grease filters Stainless-steel grease filters (10-layer) Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable. | 3 |
| Lighting | |
| LED ClearView lighting | |
| Light intensity in Lx | 640 |
| Color temperature in K | 3,500 |
| Blower | |
| Dual-action blower | High-quality and powerful motors Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels. |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | Safety turn off Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours. |
| Single-ply safety glass (ESG) | Tempered glass To be on the safe side: If the glass should break, it will shatter into many small, blunt pieces. |
| Technical data | |
| Overall hood height for vented and external in in.(mm) | 27 7/8 (705) - 39 5/8 (1,005) |
| Overall hood height for recirculation in in.(mm) | 30 1/8 (765) - 42 3/8 (1,075) |
| Canopy width in in.(mm) | 35 3/8 (898) |
| Height of hood canopy in in.(mm) | 3 3/8 (85) |
| Depth of hood canopy in in.(mm) | 23 5/8 (598) |
| Minimum distance above electric cooktops in in.(mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm Use above gas hobs This hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW. | 26 (660) |
| Net weight in lbs. (kg) | 78 (35.0) |
| Length of electrical wire in ft (m) | 0 (0.0) |
| Hard-wired | |
| Total connected load in kW | 0.36 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | |
| Diameter of vent connection in in.(mm) | 6 (150) |
| Telescopic chimney | Telescopic chimney "With the telescopic chimney, Miele wall- mounted and island ventilation hoods can be adjusted to the proper height over the cooktop during installation." |
| Standard accessories | |
| Non-return flap | Non-return flap The non-return flap is supplied with the appliance and ensures that no hot or cold outside air can enter your kitchen via a vented hood. The component is installed directly on the vent connection above the fan for the ventilation hood and closes the opening between the kitchen and the pipe system leading outside. |
| Wireless stick Con@ctivity 2.0 for KM | XKS 3000 Z |
