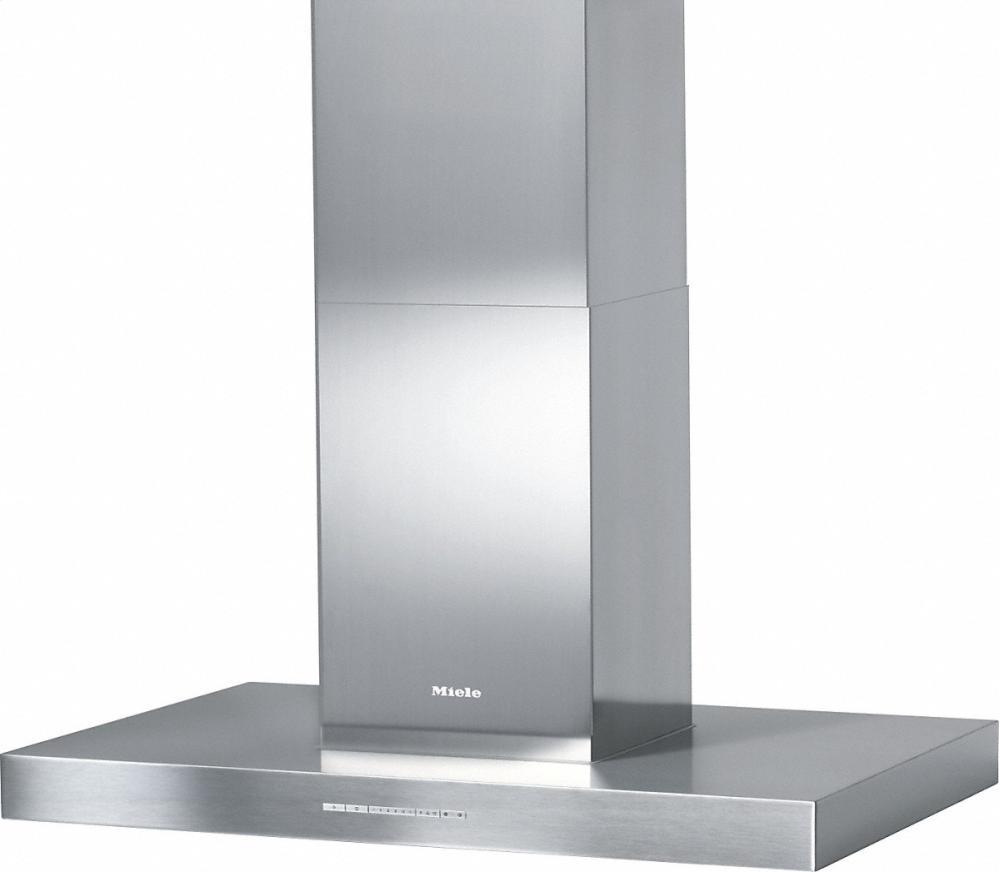

DA 6596 D Puristic Canto AM Island d(eback)cor hood with energy-efficient LED lighting and backlit controls for easy use.
Model DA6596DPURISTICCANTOAMSTAINLESSSTEEL
DA 6596 D Puristic Canto AM Island d(eback)cor hood with energy-efficient LED lighting and backlit controls for easy use.
Model DA6596DPURISTICCANTOAMSTAINLESSSTEELQuick Specs
DA 6596 D Puristic Canto AM Island d(eback)cor hood with energy-efficient LED lighting and backlit controls for easy use. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Miele CleanCover
(B)Convenience and safety in detail(/B) Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Handcrafted in Germany
(B)Each Miele ventilation hood is unique(/B) Almost all Miele ventilation hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
Active AirClean filter
(B)A completely odor-free kitchen(/B) To remove odors with a Miele recirculation ventilation hood, you can use an OdorFree charcoal filter. This disposable filter has to be replaced on a regular basis.
Edge vented
(B)Decorative individual panels tp conceal filters(/B) In ventilation hood(s) with edge vented the commercial-looking metal grease filters are hidden behind a decorative cover. Cooking vapors are extracted around the perimeter, and for hoods with multi-zone vented from the center area of the hoods as well.
Safety turn off
(B)Always on the safe side(/B) The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Stainless-steel grease filters (10-layer)
(B)Esthetically pleasing and highly functional(/B) Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.
Delayed shutdown
(B)Automatic blower run-on(/B) The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.
filter saturation indicator
(B)Countdown time conveniently in view(/B) If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
Con@ctivity

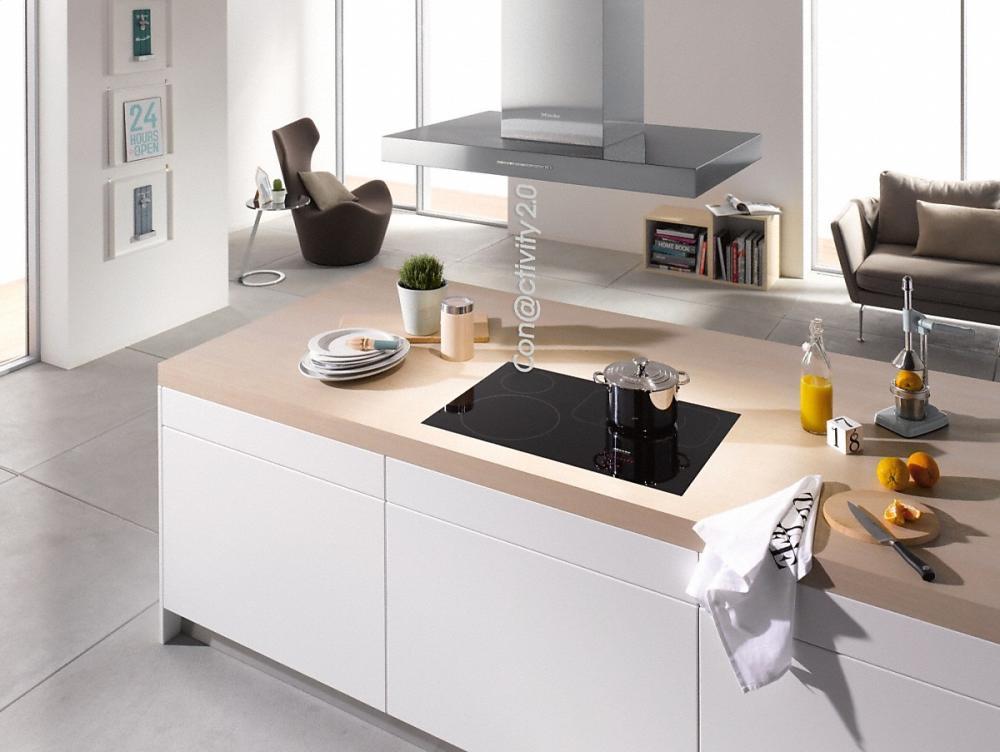

(B)Automatic operation for intelligent blower control(/B) Achieving optimum vented of kitchen vapors and odors - while also saving energy: A Miele cooker hood equipped with Con@ctivity 2.0 does this automatically. Miele Con@ctivity 2.0 enables the cooker hood to communicate with the cooktop. Con@ctivity 2.0 gathers information from the cooktop and transmits it to the controls in the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct blower setting to ensure the optimum room microclimate at all times. So you can concentrate completely on the cooking process. You don't even have to remember to switch off the appliance. With the automatic run-on control, the cooker hood will switch itself off automatically after you have finished cooking so you do not use any more energy than is necessary. In addition, manual operation is possible.
- Timeless design - 35 3/8 (898) Inch wide stainless steel ventilation hood
- Unique convenience - Con@ctivity 2.0 Con@ctivity 2.0 The Miele automatic function Con@ctivity 2.0 allows the values selected at the cooktop to be captured and communicated to the control of the ventilation hood. Automatic blower power selection ensures the optimum room climate at all times.
- Efficient and beautiful - Multi-zone edge extraction Edge vented Efficient and beautiful: With edge vented the grease filters are concealed by a stainless steel or glass panel.
- Variable: edge vented panels made of glass or stainless steel
| Construction type | |
| Island ventilation hood | |
| Design | |
| Color | Stainless steel |
| RAL color possible as special order | |
| Customization possible on request | |
| Multi-zone edge extraction | Multi-zone edge vented The edge vented panels made of glass or stainless steel conceal the grease filters and must be ordered separately from the hood. |
| Operating modes | |
| Recirculated mode | Convertible |
| OdorFree charcoal filter (order separately) | DKF12-900 |
| Decor elements in glass (order separately) | DRP 6590D |
| Control panel | |
| Electronic controls | |
| Light-touch controls | |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Programmable 'Intensive' switch-off | |
| Delayed shutdown for 5 or 15 minutes | Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes." |
| Programmable grease filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or OdorFree charcoal filter is saturated. |
| Programmable charcoal filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or OdorFree charcoal filter is saturated. |
| Acoustic package | Silence Efficient and quiet: The motor, chimney and canopy are specially insulated for effective sound-proofing. |
| Cleaning convenience | |
| Easy-to-clean CleanCover hood liner | Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor. |
| Networking of domestic appliances | |
| Automatic function Con@ctivity 2.0 (Zigbee) | Con@ctivity 2.0: With Con@ctivity 2.0, communication is established between the hood and cooktop based on RF technology (ZigBee). For Con@ctivity 2.0, an RF stick is required for the cooktop; this is supplied with the ventilation hood. |
| Filter system | |
| Number of dishwasher-safe stainless steel grease filters Stainless-steel grease filters (10-layer) Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher. | 3 |
| Lighting | |
| LED ClearView lighting | |
| Light intensity in Lx | 540 |
| Color temperature in K | 3,500 |
| Blower | |
| Dual-action blower | High-quality and powerful motors Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels. |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | Safety turn off Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours. |
| Technical data | |
| Overall hood height for vented and external in in.(mm) | 27 1/4 (690) - 39 (990) |
| Overall hood height for recirculation in in.(mm) | 29 5/8 (750) - 41 3/4 (1,060) |
| Canopy width in in.(mm) | 35 3/8 (898) |
| Height of hood canopy in in.(mm) | 2 7/8 (70) |
| Depth of hood canopy in in.(mm) | 23 5/8 (598) |
| Minimum distance above electric cooktops in in.(mm) Minimum gaps Please observe the detailed information on minimum gaps in the operating instructions. These are available under Downloads. | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm Use above gas hobs This hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW. | 26 (660) |
| Net weight in lbs. (kg) | 75 (34.0) |
| Length of electrical wire in ft (m) | 0 (0.0) |
| Hard-wired | |
| Total connected load in kW | 0.36 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | |
| Diameter of vent connection in in.(mm) | 6 (150) |
| Telescopic chimney | Telescopic chimney "With the telescopic chimney, Miele wall- mounted and island ventilation hoods can be adjusted to the proper height over the cooktop during installation." |
| Standard accessories | |
| Non-return flap | Non-return flap The non-return flap is supplied with the appliance and ensures that no hot or cold outside air can enter your kitchen via a vented hood. The component is installed directly on the vent connection above the fan for the ventilation hood and closes the opening between the kitchen and the pipe system leading outside. |
| Wireless stick Con@ctivity 2.0 for KM | XKS 3000 Z |
- Timeless design - 35 3/8 (898) Inch wide stainless steel ventilation hood
- Unique convenience - Con@ctivity 2.0 Con@ctivity 2.0 The Miele automatic function Con@ctivity 2.0 allows the values selected at the cooktop to be captured and communicated to the control of the ventilation hood. Automatic blower power selection ensures the optimum room climate at all times.
- Efficient and beautiful - Multi-zone edge extraction Edge vented Efficient and beautiful: With edge vented the grease filters are concealed by a stainless steel or glass panel.
- Variable: edge vented panels made of glass or stainless steel
 | |
|---|---|
