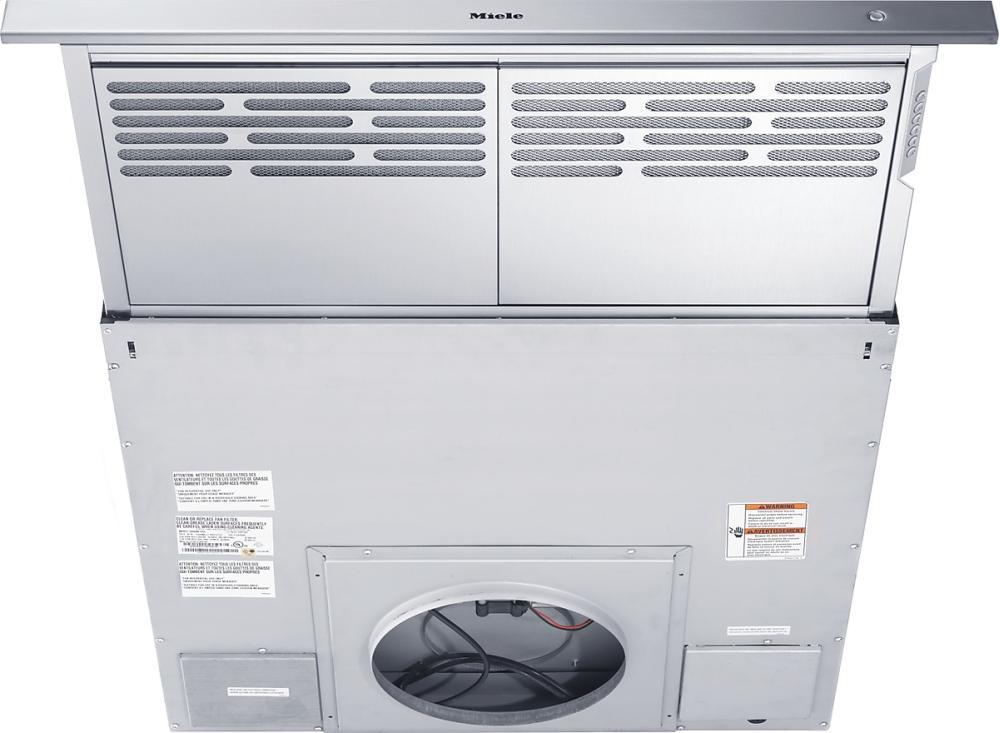

DA 6490 AM Downdraft extractor system optional external or internal blower for maximum versatility.
Model DA6490AMSTAINLESSSTEEL
DA 6490 AM Downdraft extractor system optional external or internal blower for maximum versatility.
Model DA6490AMSTAINLESSSTEELDA 6490 AM Downdraft extractor system optional external or internal blower for maximum versatility. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Design variety
(B)Timeless purism (/B) Miele offers ventilation hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele ventilation hood(s) have unique features without being intrusive. With clean lines, well thought-out functions and timeless design.
Perfect craftsmanship
(B)Visible quality (/B) Miele ventilation hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele ventilation hood(s). Enjoy perfect workmanship!
Edge vented
(B)Decorative individual panels tp conceal filters (/B) In ventilation hood(s) with edge vented the commercial-looking metal grease filters are hidden behind a decorative cover. Cooking vapors are extracted around the perimeter, and for hoods with multi-zone vented from the center area of the hoods as well.
Stainless-steel grease filters (10-layer)
(B)Esthetically pleasing and highly functional (/B) Miele ventilation hood(s) are equipped with a 10-ply dishwasher-safe stainless steelgrease filters. The top layers and filter frame are made of high-quality stainless steel. "When you conveniently clean the grease filters in the dishwasher, no visible discoloring will occur, and the Miele grease filters keep their high-quality appearance for a long time."
Safety turn off
(B)Always on the safe side (/B) The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Handcrafted in Germany
(B)Each Miele ventilation hood is unique (/B) Almost all Miele ventilation hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
Motorized canopy
(B)Miele ventilation hoods in motion (/B) Do you have special requirements? If so, you will be impressed by our motorized ventilation hoods. With our exclusive slimline and downdraft ventilation hoods, the ventilation hood canopy automatically moves into the perfect position for operation and back into the park position when switched off. The motorized island option can be positioned at different heights. The best in ergonomics, highly efficient vented and perfect integration into the kitchen.
- Striking design - telescopic canopy 36 (914) inches wide.
- Practical - 15-minute automatic blower run-on
- Suitable for every home - vented or recirculating
- For perfect functionality - accessories for proper venting
| Construction type | |
| Downdraft extractor system | |
| Design | |
| Color | Stainless steel |
| Edge extraction | |
| Operating modes | |
| Recirculated mode | air extraction |
| Control panel | |
| Electronic controls | |
| Backlit controls | Light-touch switches with LED The light-touch switches with LED lighting provide special convenience. In addition to increasing and decreasing power output and switching the lighting on and off, you will find special features such as a fan run-on function or filter saturation indicator on mid-range appliances and higher. |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Run-on time 15 mins. | |
| Motor-operated cooker hoods | |
| Filter system | |
| Dishwasher-safe stainless steel grease filters | 2 |
| Dishwasher-safe grease filters | 2 |
| Blower | |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput and sound emissions | Values upon request |
| Safety | |
| Safety shut-off | |
| Technical data | |
| Canopy width in in.(mm) | 36 (914) |
| Height of hood canopy in in.(mm) | 28 3/4 (730) |
| Depth of hood canopy in in.(mm) | 2 1/8 (51) |
| Net weight in lbs. (kg) | 39 (17.5) |
| Length of electrical wire in ft (m) | 5 (1.8) |
| Standard plug fitted | |
| Hard-wired | |
| Total connected load in kW | 0.42 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top,rear,side,bottom | |
| Diameter of vent connection in in.(mm) | 6 (150) |
- Striking design - telescopic canopy 36 (914) inches wide.
- Practical - 15-minute automatic blower run-on
- Suitable for every home - vented or recirculating
- For perfect functionality - accessories for proper venting
 | |
|---|---|
