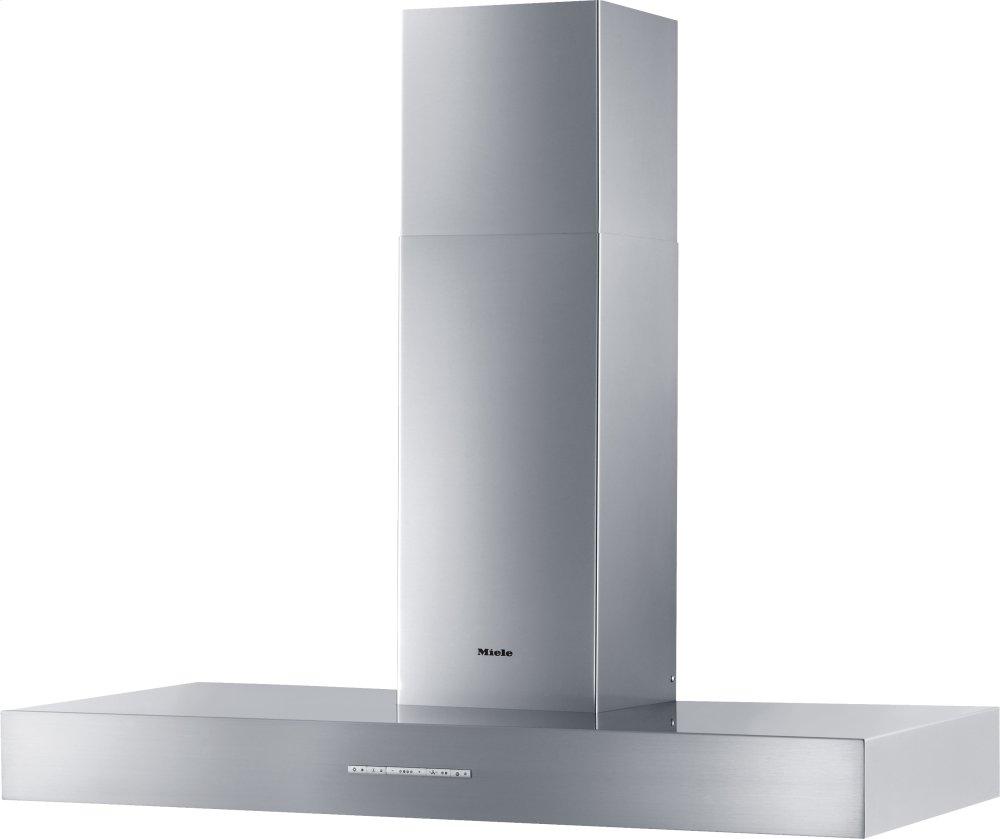

DA 5428 W Puristic Arca Stainless steel - Wall ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model DA5428WSS
DA 5428 W Puristic Arca Stainless steel - Wall ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model DA5428WSSQuick Specs
DA 5428 W Puristic Arca Stainless steel - Wall ventilation hood with energy-efficient LED lighting and backlit controls for easy use. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Silence
Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Con@ctivity 3.0
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Delayed shutdown
- Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- filter saturation indicator
- Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
- Con@ctivity
- Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
- Con@ctivity 3.0
- Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
- Stainless-steel grease filters (10-layer)
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover
- Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Silence
- Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
- Distinctive design - 47 1/4 (1198) in (mm) wide stainless steel ventilation hood
- Unique user convenience - Con@ctivity
- Energy-efficient and quiet
- Safe and easy to clean - Miele CleanCover
- Manufactured with great care by Miele & Cie. KG
- Safety information
| Design | |
| Wall ventilation hood | Yes |
| Operating modes | |
| Recirculated mode | Exhaust air |
| Design | |
| Color | Stainless steel |
| User convenience | |
| Miele@home | Yes |
| Automatic function | Con@ctivity 3.0 |
| Automatic function Con@ctivity | Yes |
| Electronic controls | Yes |
| Operation | Light-touch switches with LEDs |
| Miele@mobile app | Yes |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Delayed shutdown for 5 or 15 minutes | Yes |
| Grease filter saturation indicator | Yes |
| Acoustic package | Yes |
| CleanCover | Yes |
| Cleaning convenience | |
| Easy-to-clean canopy interior - CleanCover | Yes |
| Filter system | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 4 |
| Lighting | |
| Number x W | 4 x 3 W |
| Light intensity in Lx | 400 lx |
| Color temperature in K | 3000 Kelvin |
| Blower | |
| Dual-action blower | Yes |
| Exhaust air | |
| Air throughput in CFM in Booster | 418 |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | Yes |
| Technical data | |
| Overall min. height for vented and external in in. (mm) | 29 3/8 (745) |
| Overall max. height for vented and external in in. (mm) | 41 5/8 (1055) |
| Overall min. height for recirculation in in. (mm) | 34 1/2 (875) |
| Overall max. height for recirculation in in. (mm) | 46 3/4 (1185) |
| Canopy width in in. (mm) | 47 1/4 (1198) |
| Canopy height in in. (mm) | 4 3/4 (120) |
| Depth of hood canopy in in. (mm) | 20 1/2 (520) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 83 (37.5) |
| Length of electrical wire in ft. (m) | 2 (0.8) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.362 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | Yes |
| Vent connection at top and rear | Yes |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Telescopic chimney | Yes |
| Standard accessories | |
| Non-return flap | Yes |
| Reducer from 150 to 125 mm | Yes |
| EAN | |
| EAN | 4002516057390 |
