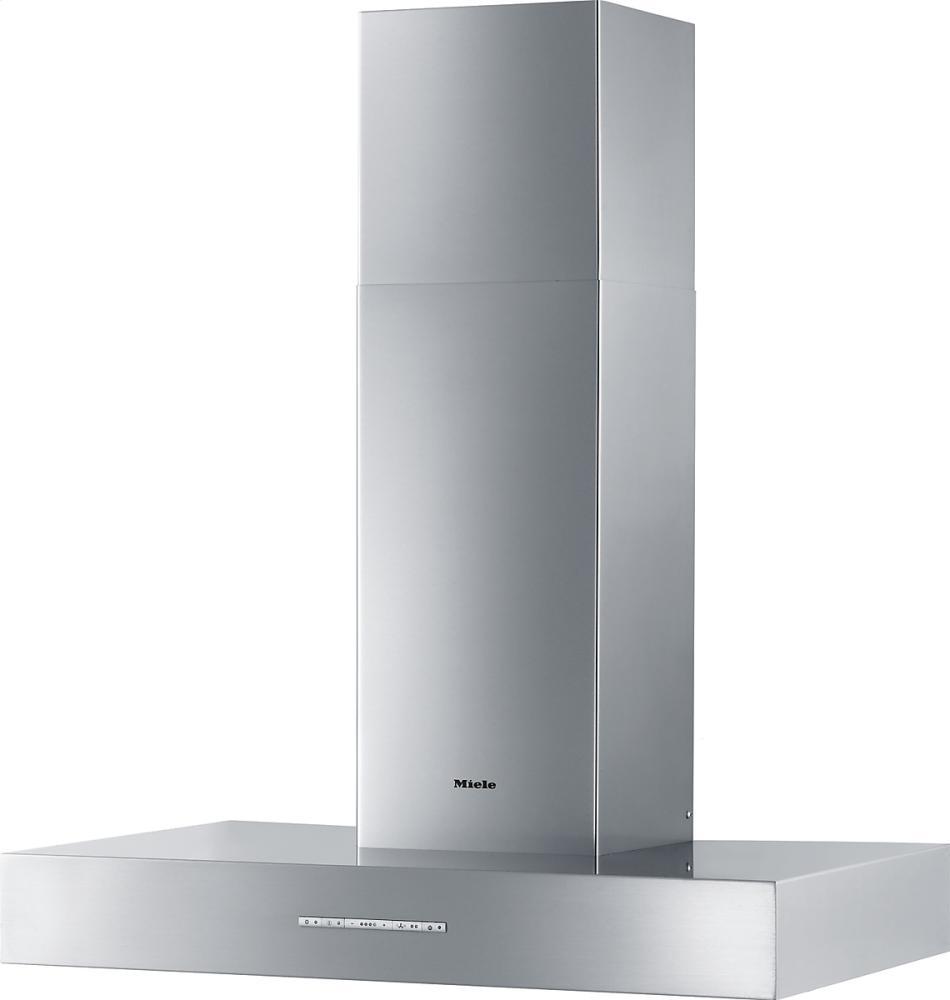

DA 5391 W Puristic Arca Wall ventilation hood with dimmable halogen lighting and light-touch switches for easy operation.
Model DA5391WPURISTICARCASTAINLESSSTEEL
DA 5391 W Puristic Arca Wall ventilation hood with dimmable halogen lighting and light-touch switches for easy operation.
Model DA5391WPURISTICARCASTAINLESSSTEELDA 5391 W Puristic Arca Wall ventilation hood with dimmable halogen lighting and light-touch switches for easy operation. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Distinctive design - 35 3/8 (898) Inch wide stainless steel ventilation hood
- Pleasantly quiet
- Practical - delayed shut down for 5 to 15 minutes Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
(B)DESIGN(/B)(BR)(BR)(B)Design variety(/B)(P)Clear design, intelligent technology: you can choose between many models and features.(/P)(BR)(BR)(B)EFFICIENCY AND SUSTAINABILITY(/B)(BR)(BR)(B)Automatic 'Intensive' switch-off(/B)(P)Full power when required: The Booster setting is efficient at extracting strong cooking vapors and odors.(/P)(BR)(BR)(B)FEATURES(/B)(BR)(BR)(B)Miele CleanCover(/B)(P)Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.(/P)(BR)(B)High-quality and powerful motors(/B)(P)Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels.(/P)(BR)(B)Active AirClean filter(/B)(P)Efficient in absorbing odors: In recirculation mode odors are absorbed and neutralized completely.(/P)(BR)(BR)(B)QUALITY(/B)(BR)(BR)(B)Handcrafted in Germany(/B)(P)Know-how and craftsmanship: Our expertise goes into every ventilation hood, from development to finished product.(/P)(BR)(B)Perfect craftsmanship(/B)(P)Unique characteristics of Miele hoods: precise contours and precision joints.(/P)(BR)(BR)(B)SAFETY(/B)(BR)(BR)(B)Safety turn off(/B)(P)Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours.(/P)(BR)(BR)(B)USER CONVENIENCE(/B)(BR)(BR)(B)Delayed shutdown(/B)(P)Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."(/P)(BR)(B)filter saturation indicator(/B)(P)Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated.(/P)
| Construction type | |
| Wall ventilation hood | |
| Design | |
| Color | Stainless steel |
| Operating modes | |
| Recirculated mode | Convertible |
| Control panel | |
| Electronic controls | |
| Backlit controls | Light-touch switches with LED The light-touch switches with LED lighting provide special convenience. "In addition to increasing and decreasing power output and switching the lighting on and off, you will find special features such as a run-on function or filter saturation indicator on mid-range appliances and higher." |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Programmable 'Intensive' switch-off | Automatic 'Intensive' switch-off Full power when required: The Booster setting is efficient at extracting strong cooking vapors and odors. |
| Delayed shutdown for 5 or 15 minutes | Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes." |
| Programmable grease filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated. |
| Acoustic package | Silence Efficient and quiet: The motor, chimney and canopy are specially insulated for effective sound-proofing. |
| Cleaning convenience | |
| EasyClean CleanCover hood liner | Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor. |
| Filter system | |
| Dishwasher-safe stainless steel grease filters | 3 |
| Lighting | |
| Halogen | |
| Light intensity in Lx | 600 |
| Color temperature in K | 3,000 |
| Light dimmer function | |
| Blower | |
| Dual-action blower | High-quality and powerful motors Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels. |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput and sound emissions | Values upon request |
| Safety | |
| Safety shut-off | Safety turn off Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours. |
| Technical data | |
| Overall hood height for vented and external in in.(mm) | 29 3/8 (745) - 41 5/8 (1,055) |
| Overall hood height for recirculation in in.(mm) | 34 1/2 (875) - 46 3/4 (1,185) |
| Canopy width in in.(mm) | 35 3/8 (898) |
| Height of hood canopy in in.(mm) | 4 3/4 (120) |
| Depth of hood canopy in in.(mm) | 20 1/2 (520) |
| Minimum distance above electric cooktops in in.(mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm Use above gas hobs This hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW. | 26 (660) |
| Net weight in lbs. (kg) | 78 (35.0) |
| Length of electrical wire in ft (m) | 4 (1.5) |
| Standard plug fitted | |
| Total connected load in kW | 0.43 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | |
| Vent connection at top and rear | |
| Diameter of vent connection in in.(mm) | 7 7/8 (200) |
| Telescopic chimney | Telescopic chimney "With the telescopic chimney, Miele wall- mounted and island ventilation hoods can be adjusted to the proper height over the cooktop during installation." |
| Telescopic wall bracket | Telescopic wall bracket With the telescopic wall bracket the Miele wall mounted ventilation hoods can be adjusted to the proper height over the cooktop with only one single component. "In addition, unevenness in the wall can be compensated for by a three-way adjustment feature." |
| Standard accessories | |
| Non-return flap | Non-return flap A non-return flap is supplied with every appliance and prevents the backflow of cold and/or warm outside air with vented mode ventilation hoods. This component is installed in the exhaust socket above the motor in your ventilation hood and prevents air from flowing back through the vented ducting when the appliance is not in use. |
- Distinctive design - 35 3/8 (898) Inch wide stainless steel ventilation hood
- Pleasantly quiet
- Practical - delayed shut down for 5 to 15 minutes Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
 | |
|---|---|
