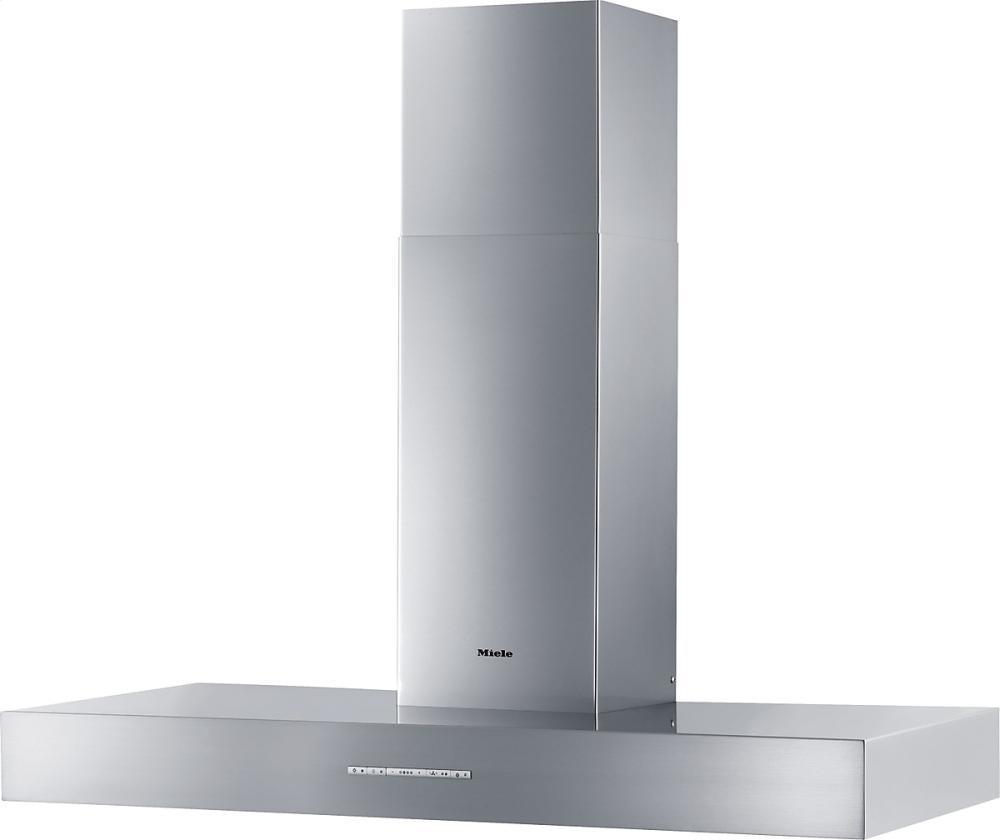

DA 5321 W Puristic Arca Wall ventilation hood with dimmable halogen lighting and light-touch switches for easy operation.
Model DA5321WPURISTICARCASTAINLESSSTEEL
DA 5321 W Puristic Arca Wall ventilation hood with dimmable halogen lighting and light-touch switches for easy operation.
Model DA5321WPURISTICARCASTAINLESSSTEELDA 5321 W Puristic Arca Wall ventilation hood with dimmable halogen lighting and light-touch switches for easy operation. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
filter saturation indicator
(B)Countdown time conveniently in view(/B) If the grease or active charcoal filter of your ventilation hood(s) is saturated, the red LED indicator will light up. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
Design variety
(B)Timeless purism(/B) Miele offers ventilation hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele ventilation hood(s) have unique features without being intrusive. With clean lines, well thought-out functions and timeless design.
Active AirClean filter
(B)A completely odor-free kitchen(/B) Miele ventilation hood(s) always require an Active AirClean filter in addition to the grease filter for recirculation mode. This Miele filter removes odors efficiently and long-term.
Miele CleanCover
(B)Convenience and safety in detail(/B) Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Automatic 'Intensive' switch-off
(B)Programmable maximum power(/B) The Booster setting provides very high air flow and is only intended for brief operation, for example, when heavy smoke or strong odors develop when food is burned. The Booster setting can be programmed so that the blower automatically switches back to Setting 3 after 5 minutes. This avoids unnecessary energy consumption.
Handcrafted in Germany
(B)Each Miele ventilation hood is unique(/B) Almost all Miele ventilation hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
High-quality and powerful motors
(B)Particularly powerful(/B) Miele ventilation hood(s) are equipped with high-quality radial blowers that provide suction on two sides. These high-performance units guarantee powerful air throughput at all times as well as optimized vented. "Despite their high performance, the blowers operate at a comfortably low noise level."
Perfect craftsmanship
(B)Visible quality(/B) Miele ventilation hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele ventilation hood(s). Enjoy perfect workmanship!
Safety turn off
(B)Always on the safe side(/B) The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Delayed shutdown
(B)Automatic blower run-on(/B) The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.
- Distinctive design - 47 1/4 (1,198) Inch wide stainless steel ventilation hood
- Pleasantly quiet - Miele Silence package
- Practical - delayed shut down for 5 to 15 minutes Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
| Construction type | |
| Wall ventilation hood | |
| Design | |
| Color | Stainless steel |
| Operating modes | |
| Recirculated mode | Convertible |
| Control panel | |
| Electronic controls | |
| Backlit controls | Light-touch switches with LED The light-touch switches with LED lighting provide special convenience. "In addition to increasing and decreasing power output and switching the lighting on and off, you will find special features such as a run-on function or filter saturation indicator on mid-range appliances and higher." |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Programmable 'Intensive' switch-off | Automatic 'Intensive' switch-off Full power when required: The Booster setting is efficient at extracting strong cooking vapors and odors. |
| Delayed shutdown for 5 or 15 minutes | Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes." |
| Programmable grease filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated. |
| Acoustic package | Silence Efficient and quiet: The motor, chimney and canopy are specially insulated for effective sound-proofing. |
| Cleaning convenience | |
| EasyClean CleanCover hood liner | Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor. |
| Filter system | |
| Dishwasher-safe stainless steel grease filters | 4 |
| Lighting | |
| Halogen | |
| Light intensity in Lx | 640 |
| Color temperature in K | 3,000 |
| Light dimmer function | |
| Blower | |
| Dual-action blower | High-quality and powerful motors Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels. |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | Safety turn off Sensible, even in case of operating errors: The ventilation hood will switch off automatically after 10 hours. |
| Technical data | |
| Overall hood height for vented and external in in.(mm) | 29 3/8 (745) - 41 5/8 (1,055) |
| Overall hood height for recirculation in in.(mm) | 34 1/2 (875) - 46 3/4 (1,185) |
| Canopy width in in.(mm) | 47 1/4 (1,198) |
| Height of hood canopy in in.(mm) | 4 3/4 (120) |
| Depth of hood canopy in in.(mm) | 20 1/2 (520) |
| Minimum distance above electric cooktops in in.(mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm Use above gas hobs This hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW. | 26 (660) |
| Net weight in lbs. (kg) | 83 (37.5) |
| Length of electrical wire in ft (m) | 4 (1.5) |
| Standard plug fitted | |
| Total connected load in kW | 0.45 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | |
| Vent connection at top and rear | |
| Diameter of vent connection in in.(mm) | 7 7/8 (200) |
| Telescopic chimney | Telescopic chimney "With the telescopic chimney, Miele wall- mounted and island ventilation hoods can be adjusted to the proper height over the cooktop during installation." |
| Telescopic wall bracket | Telescopic wall bracket With the telescopic wall bracket the Miele wall mounted ventilation hoods can be adjusted to the proper height over the cooktop with only one single component. "In addition, unevenness in the wall can be compensated for by a three-way adjustment feature." |
| Standard accessories | |
| Non-return flap | Non-return flap A non-return flap is supplied with every appliance and prevents the backflow of cold and/or warm outside air with vented mode ventilation hoods. This component is installed in the exhaust socket above the motor in your ventilation hood and prevents air from flowing back through the vented ducting when the appliance is not in use. |
- Distinctive design - 47 1/4 (1,198) Inch wide stainless steel ventilation hood
- Pleasantly quiet - Miele Silence package
- Practical - delayed shut down for 5 to 15 minutes Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
 | |
|---|---|
