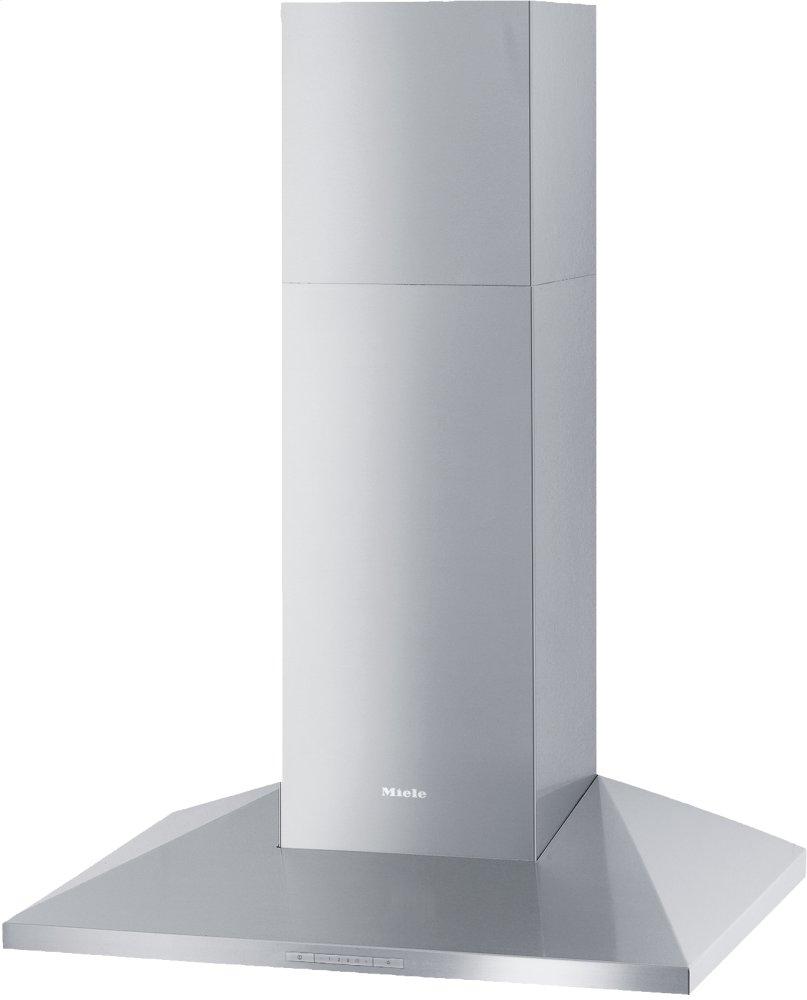

DA 398-7 Classic - 30-inch wall-mounted ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model: DA3987
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
DA 398-7 Classic - 30-inch wall-mounted ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model: DA3987DA 398-7 Classic - 30-inch wall-mounted ventilation hood with energy-efficient LED lighting and backlit controls for easy use. is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$2,597.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
- Stainless-steel grease filters (10-layer)
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover
- Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Design - 29 1/2 (748) in (mm) wide trapezoidal canopy
- Powerful - in Booster level
- Efficient filtration- 10-ply stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Suitable for every home - vented or recirculating
| Design | |
| Wall ventilation hood | • |
| Operating modes | |
| Recirculated mode | Can be retrofitted |
| Recirculation conversion kit (order separately) | DUW 20 |
| OdorFree charcoal filter (order separately) | DKF 12-900 |
| Design | |
| Color | Stainless steel |
| User convenience | |
| Electronic controls | • |
| Operation | Light-touch switches with LEDs |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Programmable Intensive switch-off | • |
| CleanCover | |
| Cleaning convenience | |
| Easy-to-clean CleanCover hood liner | • |
| Filter system | |
| Number of dishwasher-safe stainless-steel grease filters | 2 |
| Lighting | |
| LED ClearView lighting | • |
| Number x W | 2 x 3 W |
| Light intensity in Lx | 300 lx |
| Color temperature in K | 3000 Kelvin |
| Blower | |
| Dual-action blower | • |
| AC motor | • |
| Exhaust air | |
| Maximum air throughput in cfm according to HVI | 418 |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | • |
| Technical data | |
| Overall min. height for vented and external in in. (mm) | 27 3/8 (695) |
| Overall max. height for vented and external in in. (mm) | 40 (1015) |
| Overall min. height for recirculation in in. (mm) | 32 1/2 (825) |
| Overall max. height for recirculation in in. (mm) | 45 1/8 (1145) |
| Canopy width in in. (mm) | 29 1/2 (748) |
| Canopy height in in. (mm) | 4 3/4 (120) |
| Depth of hood canopy in in. (mm) | 20 1/2 (520) |
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 56 (25.1) |
| Length of electrical wire in ft. (m) | 4 (1.5) |
| Standard plug fitted | • |
| Total connected load in kW | 0.356 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | • |
| Vent connection at top and rear | • |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Telescopic chimney | • |
| Standard accessories | |
| Non-return flap | • |
- Design - 29 1/2 (748) in (mm) wide trapezoidal canopy
- Powerful - in Booster level
- Efficient filtration- 10-ply stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Suitable for every home - vented or recirculating
