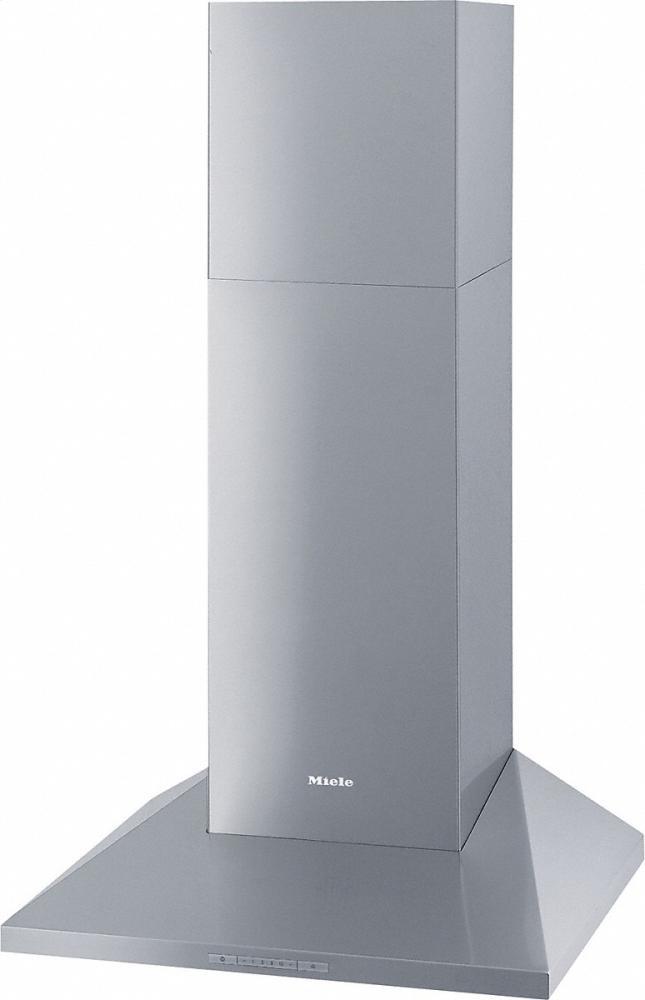

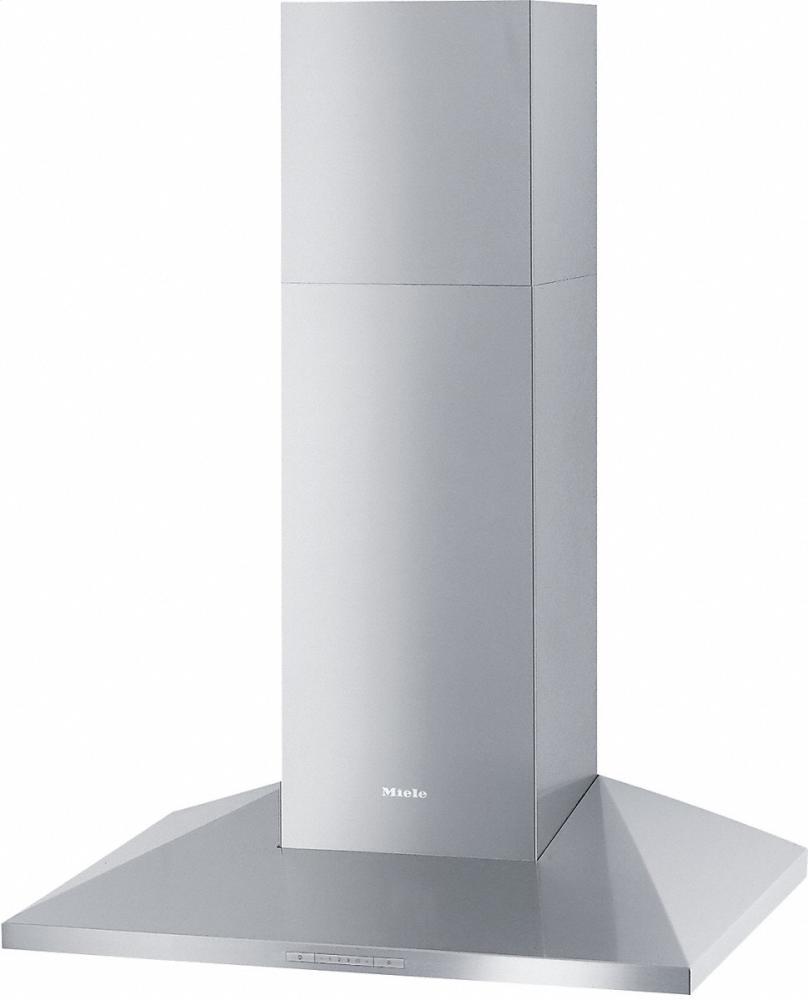

DA 398-6 Classic AM Range wall ventilation hood with halogen lighting and touch controls for convenient operation.
Model DA3986CLASSICAMSTAINLESSSTEEL
DA 398-6 Classic AM Range wall ventilation hood with halogen lighting and touch controls for convenient operation.
Model DA3986CLASSICAMSTAINLESSSTEELDA 398-6 Classic AM Range wall ventilation hood with halogen lighting and touch controls for convenient operation. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Miele INDIVIDUAL
(B)Customization request(/B) The customer's wishes are the highest priority for Miele. Design preferences, length of the ducting system, room situation, cooking habits, body height, or special requirements - many variables exist when deciding on the specifications of a ventilation hood. At your request, Miele will adapt the chimney length to your requirements. You also have the option of ordering a ventilation system in an RAL color of your choice.
High-quality and powerful motors
(B)Particularly powerful(/B) Miele ventilation hood(s) are equipped with high-quality radial blowers that provide suction on two sides. These high-performance units guarantee powerful air throughput at all times as well as optimized vented. "Despite their high performance, the blowers operate at a comfortably low noise level."
Automatic 'Intensive' switch-off
(B)Programmable maximum power(/B) The Booster setting provides very high air flow and is only intended for brief operation, for example, when heavy smoke or strong odors develop when food is burned. The Booster setting can be programmed so that the blower automatically switches back to Setting 3 after 5 minutes. This avoids unnecessary energy consumption.
Design variety
(B)Timeless purism(/B) Miele offers ventilation hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele ventilation hood(s) have unique features without being intrusive. With clean lines, well thought-out functions and timeless design.
Active AirClean filter
(B)A completely odor-free kitchen(/B) Miele ventilation hood(s) always require an Active AirClean filter in addition to the grease filter for recirculation mode. This Miele filter removes odors efficiently and long-term.
Miele CleanCover
(B)Convenience and safety in detail(/B) Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Handcrafted in Germany
(B)Each Miele ventilation hood is unique(/B) Almost all Miele ventilation hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
Perfect craftsmanship
(B)Visible quality(/B) Miele ventilation hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele ventilation hood(s). Enjoy perfect workmanship!
Safety turn off
(B)Always on the safe side(/B) The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
- Design - 29 1/2 (748) Inch wide trapezoidal canopy
- Efficient filtration- 10-ply stainless steel grease filters Stainless-steel grease filters (10-layer) Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Suitable for every home - vented or recirculating
| Construction type | |
| Wall ventilation hood | |
| Design | |
| Color | Stainless steel |
| RAL color possible as special order | RAL colour by special order Optimum colour matching of you Miele cooker hood to your kitchen furnishings - On request many cooker hoods can be painted in the desired RAL colour. |
| Customization possible on request | Miele INDIVIDUAL Just for you: Cooker hoods can be customised to suit your requirements. |
| Variable height available as special order | |
| Operating modes | |
| Recirculated mode | Convertible |
| Control panel | |
| Electronic controls | |
| Backlit controls | Light-touch switches with LED The light-touch switches with LED lighting provide special convenience. In addition to increasing and decreasing power output and switching the lighting on and off, you will find special features such as a fan run-on function or filter saturation indicator on mid-range appliances and higher. |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Programmable 'Intensive' switch-off | Booster setting switch-off Full power when required: The Booster setting is efficient at extracting strong cooking vapours and odours. |
| Cleaning convenience | |
| EasyClean CleanCover hood liner | Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor. |
| Filter system | |
| Dishwasher-safe stainless steel grease filters | 2 |
| Lighting | |
| Halogen | |
| Light intensity in Lx | 1,250 |
| Color temperature in K | 2,900 |
| Blower | |
| Dual-action blower | High-quality and powerful motors Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels. |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput and sound emissions | Values upon request |
| Safety | |
| Safety shut-off | Safety switch-off Sensible, even in case of operating errors: the cooker hood will switch itself off automatically after 10 operating hours. |
| Technical data | |
| Overall hood height for vented and external in in.(mm) | 27 3/8 (695) - 40 (1,015) |
| Overall hood height for recirculation in in.(mm) | 32 1/2 (825) - 45 1/8 (1,145) |
| Canopy width in in.(mm) | 29 1/2 (748) |
| Height of hood canopy in in.(mm) | 4 3/4 (120) |
| Depth of hood canopy in in.(mm) | 20 1/2 (520) |
| Minimum distance above electric cooktops in in.(mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 56 (25.1) |
| Length of electrical wire in ft (m) | 4 (1.5) |
| Standard plug fitted | |
| Total connected load in kW | 0.45 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | |
| Vent connection at top and rear | |
| Diameter of vent connection in in.(mm) | 6 (150) |
| Telescopic chimney | |
| Standard accessories | |
| Non-return flap | Non-return flap A non-return flap is supplied with every appliance and prevents the backflow of cold and/or warm outside air with extraction mode cooker hoods. This component is installed in the exhaust socket above the motor in your cooker hood and prevents air from flowing back through the extraction ducting when the appliance is not in use. |
- Design - 29 1/2 (748) Inch wide trapezoidal canopy
- Efficient filtration- 10-ply stainless steel grease filters Stainless-steel grease filters (10-layer) Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Suitable for every home - vented or recirculating
 | |
|---|---|
