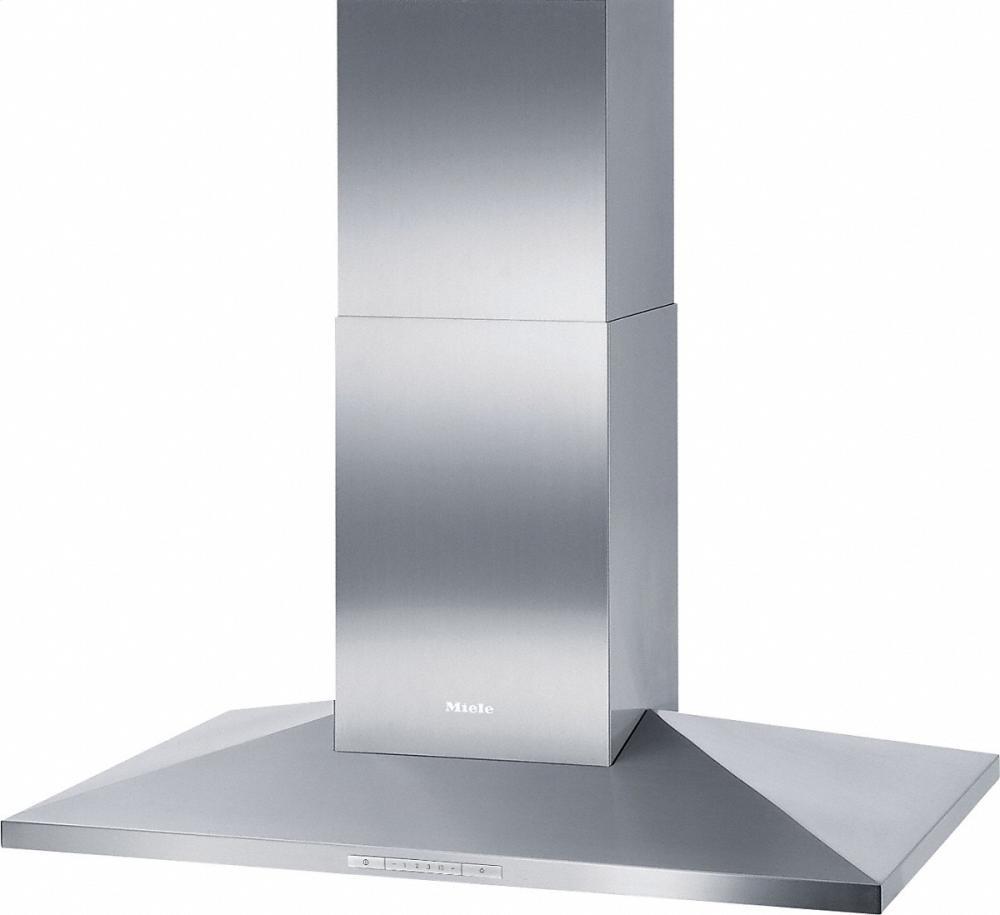

DA 390-6 Classic AM Island D(eback)cor Hood with halogen lighting and touch controls for convenient operation.
Model DA3906CLASSICAMSTAINLESSSTEEL
DA 390-6 Classic AM Island D(eback)cor Hood with halogen lighting and touch controls for convenient operation.
Model DA3906CLASSICAMSTAINLESSSTEELDA 390-6 Classic AM Island D(eback)cor Hood with halogen lighting and touch controls for convenient operation. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Safety switch off
(B)Always on the safe side(/B) The cooker hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
Miele INDIVIDUAL
(B)Customization on request(/B) The customer's wishes are the highest priority for Miele. Design preferences, length of the ducting system, room situation, cooking habits, body height or special requirements - many variables exist when deciding on the specifications of a cooker hood. With Miele you can find your customized and perfect solution. At your request, Miele will adapt the chimney length, canopy width and depth to your requirements.
Miele CleanCover
(B)Convenience and safety in detail(/B) Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Automatic 'Intensive' switch-off
(B)Programmable maximum power (/B) A safety device which activates the Range Hood's intensive setting when the exhaust temperature exceeds a certain temperature. The 'Intensive' level can be programmed so that the blower automatically switches back to level 3 after 10 minutes. This avoids unnecessary energy consumption.
Design variety
(B)Timeless purism(/B) Miele offers cooker hoods in a large variety of designs and functional features - perfect technology for every requirement. Miele cooker hoods have unique features without being intrusive. With clean lines, well thought-out functions and timeless design.
High-quality and powerful motors
(B)Particularly powerful (/B) Miele cooker hoods are equipped with high-quality radial blowers that provide suction on two sides. These high-performance units guarantee powerful air throughput at all times as well as optimized ventilation. Despite their high performance, the blowers operate at a comfortably low noise level.
Stainless-steel grease filters (10-layer)
(B)Esthetically pleasing and highly functional(/B) Miele cooker hoods are equipped with a 10-ply dishwasher-safe stainless steelgrease filters. The top layers and filter frame are made of high-quality stainless steel. When you conveniently clean the grease filters in the dishwasher, no visible discoloring will occur, and the Miele grease filters keep their high-quality appearance for a long time.
Active AirClean filter
(B)A completely odor-free kitchen(/B) For recirculation mode Miele cooker hoods always require an Active AirClean filter in addition to the grease filter. This Miele filter removes odors efficiently and long-term.
Handmade in Germany
(B)Each Miele cooker hood is unique(/B) Know-how and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, Know-how and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
Perfect craftsmanship
(B)Visible quality(/B) Miele cooker hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele cooker hoods. Enjoy perfect workmanship!
- Design - 39 3/8 (998) wide trapezoid canopy
- Efficient filtration- 10-ply stainless steel grease filters Stainless-steel grease filters (10-layer) Extremely efficient in extracting steam, removing odors and capturing grease, while also being dishwasher-safe.
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning, a smooth liner in the canopy prevents exposure to live components and sharp edges.
- Suitable for every home - with vented or recirculating
| Construction type | |
| Island cooker hood | |
| Design | |
| Color | Stainless steel |
| RAL color possible as special order | RAL color by special order Optimum color matching of you Miele cooker hood to your kitchen furnishings - On request many cooker hoods can be painted in the desired RAL color. |
| Customization possible on request | Miele INDIVIDUAL Just for you: Ventilation hoods can be customized to suit your requirements. |
| Variable height available as special order | |
| Variable width available as special order | |
| Operating modes | |
| Recirculated mode | Convertible Recirculated mode Among other things, Miele offers cooker hoods that can be converted from vented to recirculation mode using a recirculation conversion kit (see optional accessories). |
| Control panel | |
| Electronic controls | |
| Light-touch switches with LED | Light-touch switches with LED The light-touch switches with LED lighting provide special convenience. In addition to increasing and decreasing power output and switching the lighting on and off, you will find special features such as a run-on function or filter saturation indicator on mid-range appliances and higher. |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Programmable 'Intensive' switch-off | Automatic 'Intensive' switch-off Full power when required: the Intensive setting is efficient at ventilating strong cooking vapors and odors. |
| Cleaning convenience | |
| EasyClean CleanCover hood liner | Miele CleanCover Miele's unique easy cleaning, a smooth liner in the canopy prevents exposure to live components and sharp edges. |
| Filter system | |
| Dishwasher-safe stainless steel grease filters | 4 |
| Lighting | |
| Halogen | |
| Light intensity in Lx | 480 |
| Color temperature in K | 3,000 |
| Blower | |
| Dual-action blower | High-quality and powerful motors Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels. |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput and sound emissions | Values upon request |
| Safety | |
| Safety shut-off | Safety switch off Sensible, even in case of operating errors: The cooker hood will switch off automatically after 10 hours. |
| Technical data | |
| Overall hood height for vented and external in in.(mm) | 27 1/4 (690) - 38 1/4 (970) |
| Overall hood height for recirculation in in.(mm) | 28 3/4 (730) - 41 (1,040) |
| Canopy width in in.(mm) | 39 3/8 (998) |
| Height of hood carcase in in.(mm) | 4 7/8 (121) |
| Depth of hood carcase in in.(mm) | 27 5/8 (700) |
| Minimum distance above electric cooktops in in.(mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 82 (37.0) |
| Length of electrical wire in ft (m) | 0 (0.0) |
| Hard-wired | |
| Total connected load in kW | 0.43 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | |
| Diameter of vent connection in in.(mm) | 6 (150) |
| Telescopic chimney | Telescopic chimney With the telescopic chimney, Miele wall- mounted and island cooker hoods can be adjusted to the proper height over the cooktop during installation. |
| Standard accessories | |
| Non-return flap | Non-return flap A non-return flap is supplied with every appliance and prevents the backflow of cold and/or warm external air with vented mode cooker hoods. This component is installed in the exhaust socket above the motor in your cooker hood and prevents air from flowing back through the vented ducting when the appliance is not in use. |
- Design - 39 3/8 (998) wide trapezoid canopy
- Efficient filtration- 10-ply stainless steel grease filters Stainless-steel grease filters (10-layer) Extremely efficient in extracting steam, removing odors and capturing grease, while also being dishwasher-safe.
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning, a smooth liner in the canopy prevents exposure to live components and sharp edges.
- Suitable for every home - with vented or recirculating
 | |
|---|---|
