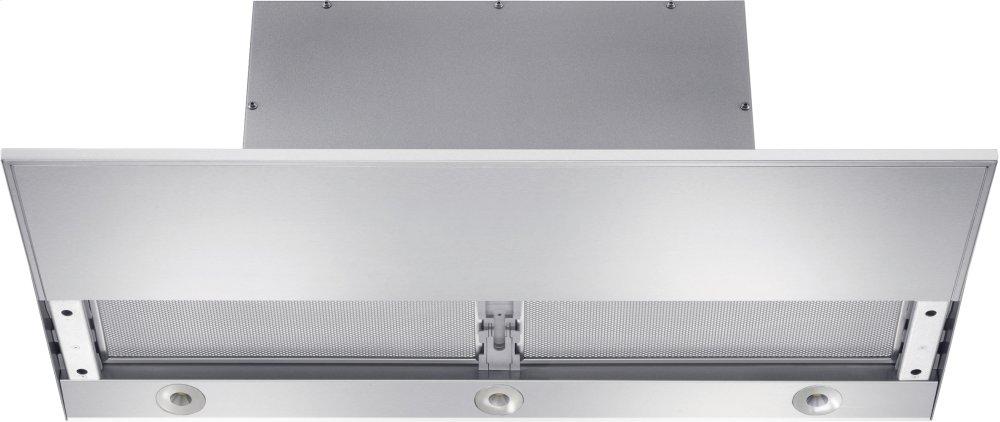

DA 3698 - Built-in ventilation hood with motorized pull-out canopy for maximum convenience.
Model DA3698STAINLESSSTEELQuick Specs
Depth
12 1/4"
Height
1 1/2"
DA 3698 - Built-in ventilation hood with motorized pull-out canopy for maximum convenience. is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
12 1/4"
Height
1 1/2"
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Active AirClean filter
Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.
Economy-Motor
Powerful and economical: The DC motor saves up to 70% electricity compared with conventional motors.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Delayed shutdown
- Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- filter saturation indicator
- Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
- Economy-Motor
- Powerful and economical: The DC motor saves up to 70% electricity compared with conventional motors.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
- Active AirClean filter
- Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.
- Stainless-steel grease filters (10-layer)
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Elegant design - extremely slim canopy with a width of 35 1/8 (892) in (mm)
- Unique user convenience - Con@ctivity

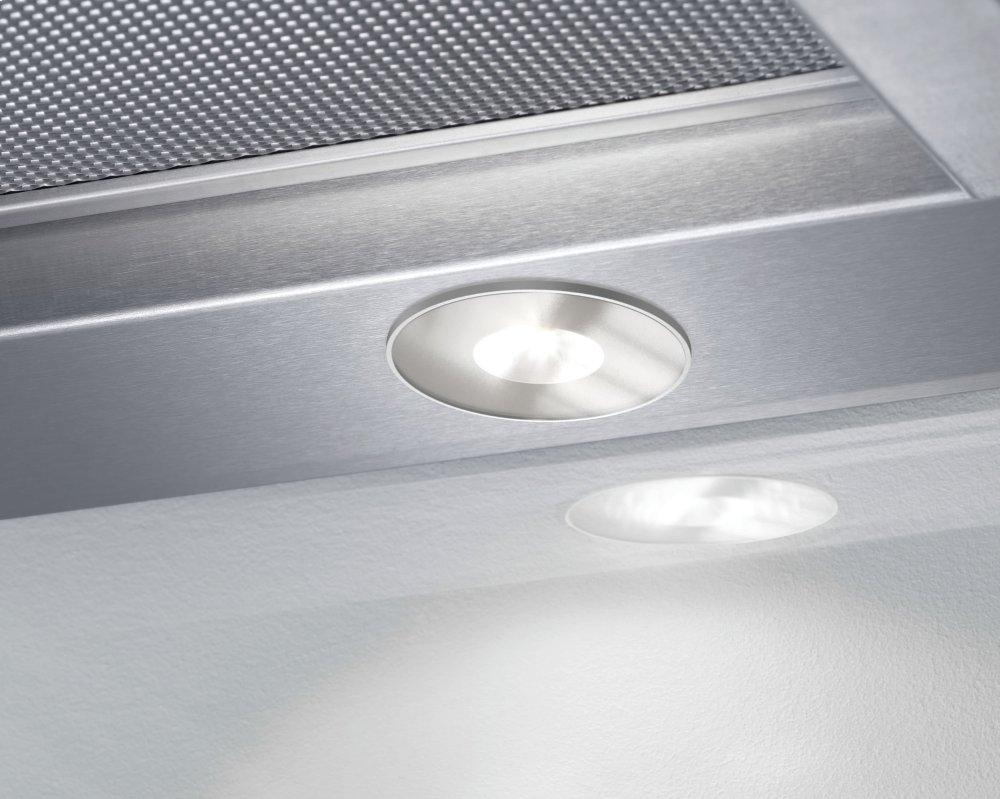

- Energy-efficient and uniform illumination - 3 LED ClearView Lighting
- Powerful - on the booster setting
- Energy-efficient and quiet
| Construction type | |
| Built-in ventilation hood | • |
| Appliance networking | |
| WiFiConn@ct | • |
| Automatic function Con@ctivity 2.0 (Zigbee) | • |
| Operating modes | |
| Recirculated mode | Convertible |
| Recirculation conversion kit (order separately) | DUU 151 |
| OdorFree charcoal filter (order separately) | DKF19-1 |
| Design | |
| Color | Stainless steel |
| Control panel | |
| Miele@home | • |
| Electronic controls | • |
| Light-touch controls | • |
| Power levels (number excl. Intensive) | 3 |
| Programmable Intensive switch-off | • |
| Delayed shutdown for 5 or 15 minutes | • |
| Grease filter saturation indicator | • |
| Programmable grease filter saturation indicator | • |
| Programmable charcoal filter saturation indicator | • |
| Hood in Motion | • |
| CleanCover | • |
| Efficiency and sustainability | |
| PowerManagement system | • |
| ECO motor | • |
| Filter system | |
| Number of dishwasher-safe stainless-steel grease filters | 2 |
| Lighting | |
| LED ClearView lighting | • |
| Number x W | 3 x 3 W |
| Light intensity in Lx | 500 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | • |
| Blower | |
| Dual-action blower | • |
| DC motor | • |
| Safety | |
| Safety shut-off | • |
| Technical data | |
| Canopy width in in. (mm) | 35 1/8 (892) |
| Canopy height in in. (mm) | 1 1/2 (37) |
| Depth of hood canopy in in. (mm) | 12 1/4 (309) |
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 42 (19.0) |
| Length of electrical wire in ft. (m) | 4 (1.5) |
| Standard plug fitted | • |
| Total connected load in kW | 0.36 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | • |
| Vent connection at rear | • |
| Vent connection at top and rear | • |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Combination with WiFi-enabled Miele cooktop | required |
| Optional accessories | |
| OdorFree charcoal filter | No |
- Elegant design - extremely slim canopy with a width of 35 1/8 (892) in (mm)
- Unique user convenience - Con@ctivity
- Energy-efficient and uniform illumination - 3 LED ClearView Lighting
- Powerful - on the booster setting
- Energy-efficient and quiet
 | |
|---|---|
