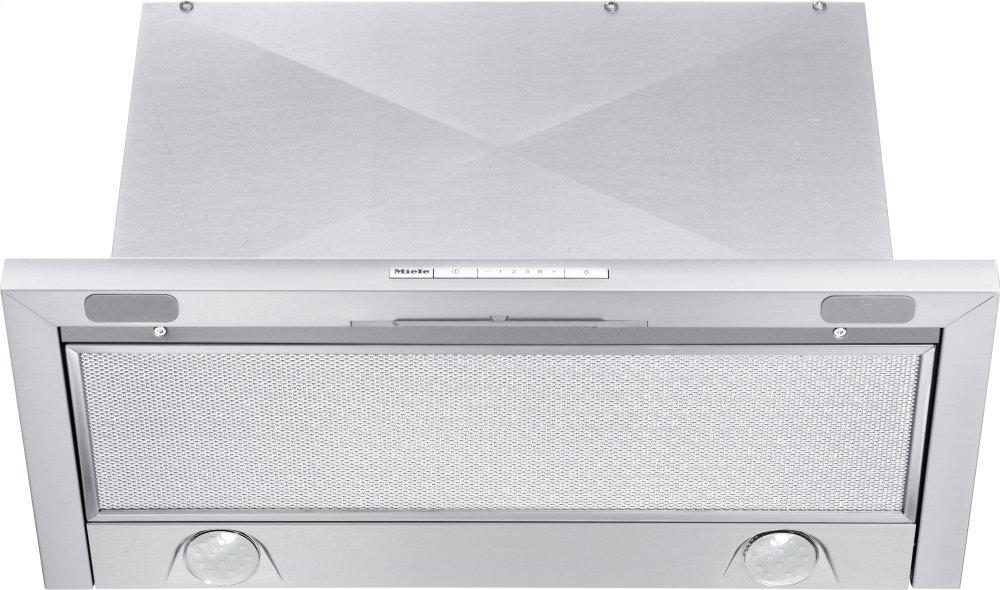

DA 3466 - Built-in ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model DA3466STAINLESSSTEEL
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
DA 3466 - Built-in ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model DA3466STAINLESSSTEELQuick Specs
Depth
10.875
Height
1.375
DA 3466 - Built-in ventilation hood with energy-efficient LED lighting and backlit controls for easy use. is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
10.875
Height
1.375
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Active AirClean filter
Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.
Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
- Active AirClean filter
- Efficient odor absorption: The disposable filter with active charcoal must be replaced regularly.
- Stainless-steel grease filters (10-layer)
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover
- Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Elegant design - slim 23 1/2 (595) in (mm) extractor canopy
- Powerful - on the booster setting
- Efficient filtration- 10-ply stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Suitable for every home - vented or recirculating
| Construction type | |
| Built-in ventilation hood | • |
| Operating modes | |
| Recirculated mode | Convertible |
| Recirculation conversion kit (order separately) | DUU 151 |
| OdorFree charcoal filter (order separately) | DKF13-900 |
| Design | |
| Color | Stainless steel |
| Control panel | |
| Electronic controls | • |
| Light-touch controls | • |
| Power levels (number excl. Intensive) | 3 |
| Programmable Intensive switch-off | • |
| CleanCover | • |
| Filter system | |
| Number of dishwasher-safe stainless-steel grease filters | 1 |
| Lighting | |
| LED ClearView lighting | • |
| Number x W | 2 x 3 W |
| Light intensity in Lx | 320 lx |
| Color temperature in K | 3000 Kelvin |
| Blower | |
| Dual-action blower | • |
| AC motor | • |
| Extraction | |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | • |
| Technical data | |
| Canopy width in in. (mm) | 23 1/2 (595) |
| Canopy height in in. (mm) | 1 3/8 (34) |
| Depth of hood canopy in in. (mm) | 10 7/8 (275) |
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 28 (12.5) |
| Length of electrical wire in ft. (m) | 4 (1.5) |
| Standard plug fitted | • |
| Total connected load in kW | 0.36 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | • |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Optional accessories | |
| OdorFree charcoal filter | DKF 13-900 |
- Elegant design - slim 23 1/2 (595) in (mm) extractor canopy
- Powerful - on the booster setting
- Efficient filtration- 10-ply stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Suitable for every home - vented or recirculating
 | |
|---|---|
