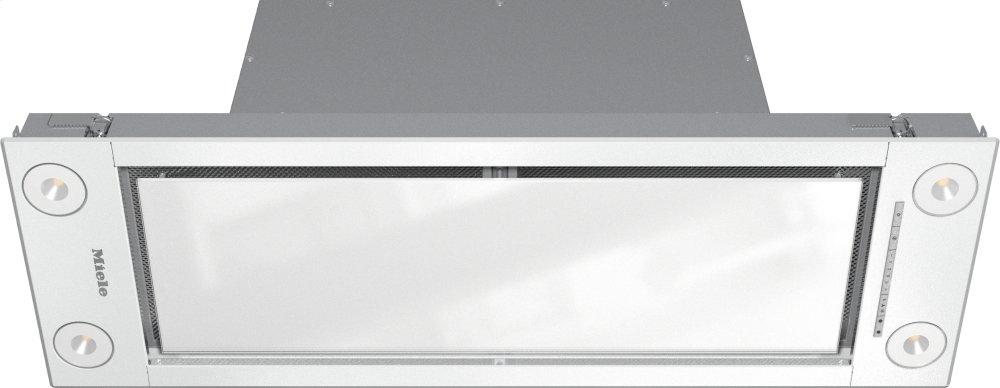

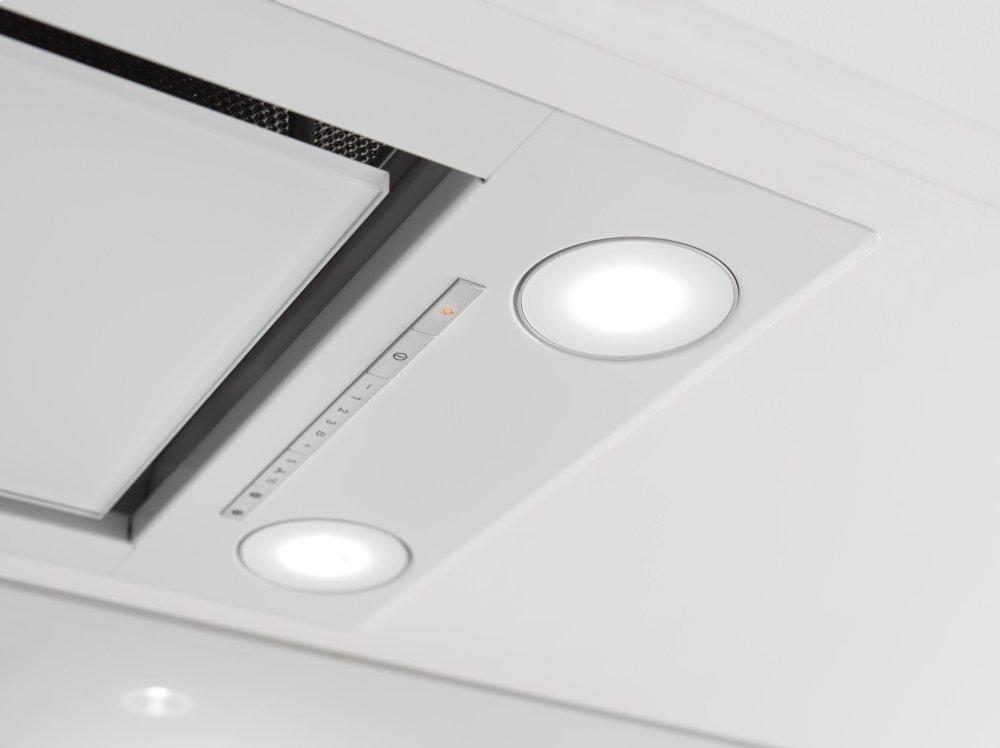

DA 2698 - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model: DA2698BW
DA 2698 - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model: DA2698BWColor
DA 2698 - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
- Delayed shutdown
- Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- filter saturation indicator
- Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
- Con@ctivity
- Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
- Stainless-steel grease filters (10-layer)
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover
- Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Edge vented
- Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
- Customized kitchen design - fully integrated in 34 3/4 (880) in (mm) width
- Unique user convenience - Con@ctivity
- Energy-efficient and quiet
- Elegant and efficient - edge vented panel
| Design | |
| Insert ventilation extractor | • |
| Operating modes | |
| Recirculated mode | Can be retrofitted |
| OdorFree charcoal filter (order separately) | DKF 19-P |
| Design | |
| Color | Brilliant white |
| Edge extraction | • |
| User convenience | |
| Miele@home | • |
| Automatic function Con@ctivity | • |
| Electronic controls | • |
| Operation | Light-touch switches with LEDs |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Programmable Intensive switch-off | • |
| Delayed shutdown for 5 or 15 minutes | |
| Grease filter saturation indicator | • |
| Grease filter saturation indicator | • |
| Active charcoal filter saturation indicator | • |
| CleanCover | |
| Cleaning convenience | |
| Easy-to-clean CleanCover hood liner | • |
| Filter system | |
| Number of dishwasher-safe stainless-steel grease filters | 2 |
| Lighting | |
| LED ClearView lighting | • |
| Number x W | 4 x 3 W |
| Light intensity in Lx | 650 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | • |
| Blower | |
| Dual-action blower | • |
| AC motor | • |
| Exhaust air | |
| Maximum air throughput in cfm according to HVI | 401 |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | • |
| Single-ply safety glass (ESG) | • |
| Technical data | |
| Canopy width in in. (mm) | 34 3/4 (880) |
| Canopy height in in. (mm) | 2 1/2 (63) |
| Depth of hood canopy in in. (mm) | 11 5/8 (293) |
| Minimum distance above electric cooktops in in. (mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 31 (14.0) |
| Length of electrical wire in ft. (m) | 4 (1.5) |
| Standard plug fitted | • |
| Total connected load in kW | 0.363 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | • |
| Vent connection at top and rear | • |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Standard accessories | |
| Non-return flap | • |
| Communication module for Con@ctivity XKM 2000 DA | XKS 3000 Z |
- Customized kitchen design - fully integrated in 34 3/4 (880) in (mm) width
- Unique user convenience - Con@ctivity
- Energy-efficient and quiet
- Elegant and efficient - edge vented panel
