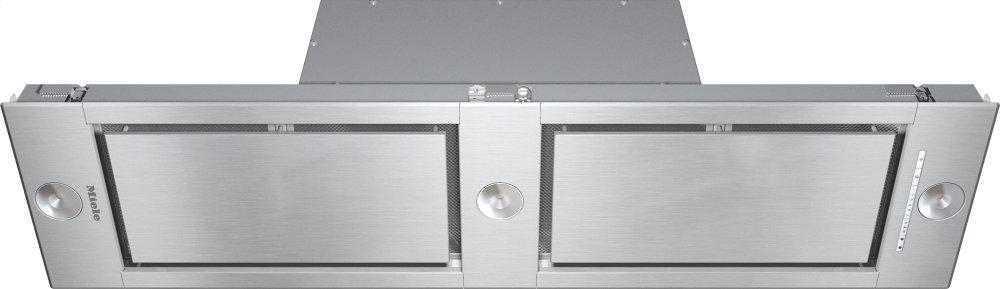

DA 2628 Stainless steel - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model: DA2628DA 2628 Stainless steel - Insert ventilation hood with energy-efficient LED lighting and backlit controls for easy use.
Model: DA2628Quick Specs
Warranty
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
- Delayed shutdown
- Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- filter saturation indicator
- Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
- Con@ctivity
- Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
- Safety turn off
- Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
- Stainless-steel grease filters (10-layer)
- Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
- Miele CleanCover
- Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
- Edge vented
- Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.
- Customized kitchen design - fully integrated in 46 1/2 (1180) in (mm) width
- Unique user convenience - Con@ctivity
- Energy-efficient and quiet
- Elegant and efficient - edge vented panel
- Manufactured with great care by Miele & Cie. KG
- Safety information
| Design | |
| Insert ventilation extractor | Yes |
| Operating modes | |
| Recirculated mode | Exhaust air |
| Design | |
| Color | Stainless steel |
| Edge extraction | Yes |
| User convenience | |
| Miele@home | Yes |
| Automatic function Con@ctivity | Yes |
| Electronic controls | Yes |
| Operation | Light-touch switches with LEDs |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Delayed shutdown for 5 or 15 minutes | Yes |
| Grease filter saturation indicator | Yes |
| CleanCover | Yes |
| Cleaning convenience | |
| Easy-to-clean canopy interior - CleanCover | Yes |
| Filter system | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 4 |
| Lighting | |
| Number x W | 3 x 4,5 W |
| Light intensity in Lx | 700 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | Yes |
| Blower | |
| Dual-action blower | Yes |
| Exhaust air | |
| Air throughput in CFM in Booster | 401 |
| Air throughput | Values upon request |
| Safety | |
| Safety shut-off | Yes |
| Technical data | |
| Canopy width in in. (mm) | 46 1/2 (1180) |
| Canopy height in in. (mm) | 2 1/2 (63) |
| Depth of hood canopy in in. (mm) | 11 5/8 (293) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 34 (15.0) |
| Length of electrical wire in ft. (m) | 4 (1.5) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.363 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | Yes |
| Vent connection at top and rear | Yes |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Standard accessories | |
| Non-return flap | Yes |
| Communication module for Con@ctivity XKM 2000 DA | XKS 3000 Z |
| EAN | |
| EAN | 4002516024439 |
- Customized kitchen design - fully integrated in 46 1/2 (1180) in (mm) width
- Unique user convenience - Con@ctivity
- Energy-efficient and quiet
- Elegant and efficient - edge vented panel
- Manufactured with great care by Miele & Cie. KG
- Safety information
