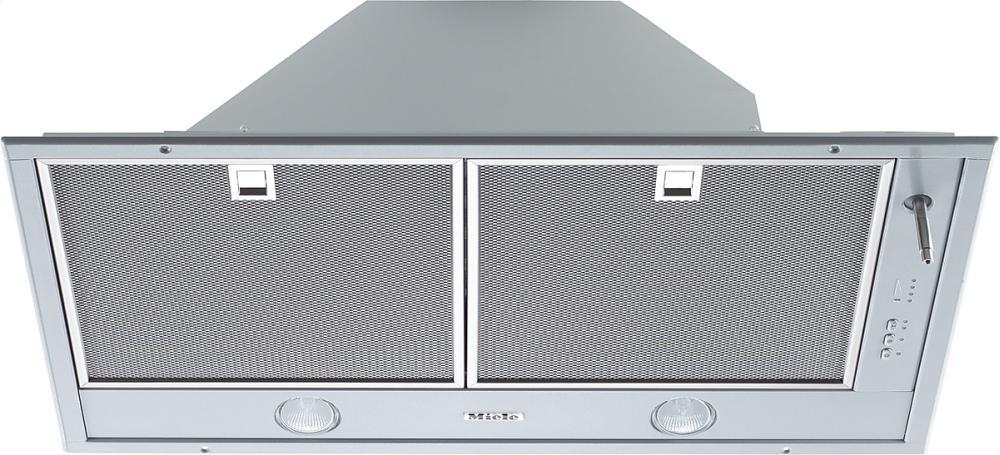

DA 2280 AM Insert ventilation hood with dimmable halogen lighting and joystick for convenient operation.
Model DA2280AM
DA 2280 AM Insert ventilation hood with dimmable halogen lighting and joystick for convenient operation.
Model DA2280AMDA 2280 AM Insert ventilation hood with dimmable halogen lighting and joystick for convenient operation. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Delayed shutdown
(B)Automatic blower run-on (/B) The automatic blower run-on ensures the full vented of steam and odors still in the air after cooking. The ventilation hood can be set to switch off automatically after 5 or 15 minutes.
Miele INDIVIDUAL
(B)customization on request (/B) The customer's wishes are the highest priority for Miele. Design preferences, length of the ducting system, room situation, cooking habits, body height or special requirements - many variables exist when deciding on the specifications of a ventilation hood. With Miele you can find your customized and perfect solution. At your request, Miele will adapt the chimney length, canopy width and depth to your requirements.
High-quality and powerful motors
(B)Particularly powerful (/B) Miele ventilation hood(s) are equipped with high-quality radial blowers that provide suction on two sides. These high-performance units guarantee powerful air throughput at all times as well as optimized vented. "Despite their high performance, the blowers operate at a comfortably low noise level."
Automatic 'Intensive' switch-off
(B)Programmable maximum power (/B) The Booster setting provides very high air flow and is only intended for brief operation, for example, when heavy smoke or strong odors develop when food is burned. The Booster setting can be programmed so that the blower automatically switches back to Setting 3 after 5 minutes. This avoids unnecessary energy consumption.
Design variety
(B)Timeless purism (/B) Miele offers ventilation hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele ventilation hood(s) have unique features without being intrusive. With clean lines, well thought-out functions and timeless design.
Active AirClean filter
(B)A completely odor-free kitchen (/B) Miele ventilation hood(s) always require an Active AirClean filter in addition to the grease filter for recirculation mode. This Miele filter removes odors efficiently and long-term.
Miele CleanCover
(B)Convenience and safety in detail (/B) Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
filter saturation indicator
(B)(/B)
Handcrafted in Germany
(B)Each Miele ventilation hood is unique (/B) Almost all Miele ventilation hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
Perfect craftsmanship
(B)Visible quality (/B) Miele ventilation hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele ventilation hood(s). Enjoy perfect workmanship!
Safety turn off
(B)Always on the safe side (/B) The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Customized kitchen design - fully integrated in 31 5/8 (802) Inch width
- Practical - delayed shut down for 5 to 15 minutes Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- Helpful - programmable filter saturation indicator filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated.
| Construction type | |
| Insert ventilation hood | |
| Design | |
| Color | No colour |
| Customization possible on request | |
| Variable width available as special order | |
| Operating modes | |
| Recirculated mode | Convertible |
| Control panel | |
| Electronic controls | |
| Joystick | Joystick The patented, ergonomic joystick for Miele integrated cooker hoods allows intuitive operation. |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Programmable 'Intensive' switch-off | |
| Delayed shutdown for 5 or 15 minutes | Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes." |
| Programmable grease filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated. |
| Programmable charcoal filter saturation indicator | filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated. |
| Cleaning convenience | |
| EasyClean CleanCover hood liner | Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor. |
| Filter system | |
| Dishwasher-safe stainless steel grease filters | 2 |
| Lighting | |
| Halogen | |
| Light intensity in Lx | 1,500 |
| Color temperature in K | 2,900 |
| Light dimmer function | |
| Blower | |
| Dual-action blower | High-quality and powerful motors Powerful and quiet: Radial blowers on both sides ensure high air throughput and vented with low noise levels. |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput and sound emissions | Values upon request |
| Safety | |
| Safety shut-off | |
| Technical data | |
| Canopy width in in.(mm) | 31 5/8 (802) |
| Height of hood canopy in in.(mm) | 2 (50) |
| Depth of hood canopy in in.(mm) | 15 7/8 (402) |
| Minimum distance above electric cooktops in in.(mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 24 (10.5) |
| Length of electrical wire in ft (m) | 4 (1.5) |
| Standard plug fitted | |
| Total connected load in kW | 0.45 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | |
| Diameter of vent connection in in.(mm) | 6 (150) |
| Standard accessories | |
| Non-return flap | Non-return flap A non-return flap is supplied with every appliance and prevents the backflow of cold and/or warm outside air with extraction mode cooker hoods. This component is installed in the exhaust socket above the motor in your cooker hood and prevents air from flowing back through the extraction ducting when the appliance is not in use. |
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Customized kitchen design - fully integrated in 31 5/8 (802) Inch width
- Practical - delayed shut down for 5 to 15 minutes Delayed shutdown Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
- Helpful - programmable filter saturation indicator filter saturation indicator Easy filter replacement: A red light lets you know when the grease and/or active charcoal filter is saturated.
 | |
|---|---|
