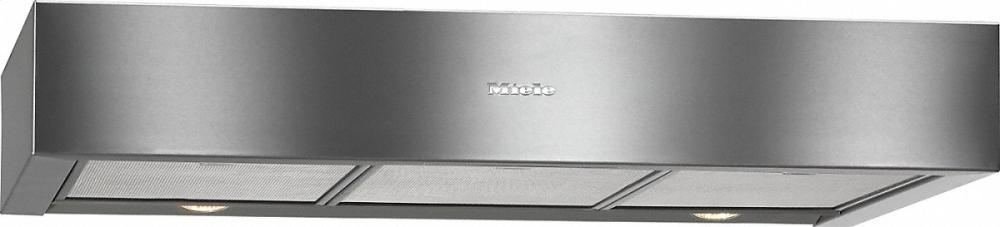

DA 1180 Built-under hood with halogen lighting and slide switch for convenient operation.
Model DA1180STAINLESSSTEEL
DA 1180 Built-under hood with halogen lighting and slide switch for convenient operation.
Model DA1180STAINLESSSTEELDA 1180 Built-under hood with halogen lighting and slide switch for convenient operation. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Design variety
(B)Timeless purism (/B) Miele offers ventilation hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele ventilation hood(s) have unique features without being intrusive. With clean lines, well thought-out functions and timeless design.
Perfect craftsmanship
(B)Visible quality (/B) Miele ventilation hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele ventilation hood(s). Enjoy perfect workmanship!
Active AirClean filter
(B)A completely odor-free kitchen (/B) Miele ventilation hood(s) always require an Active AirClean filter in addition to the grease filter for recirculation mode. This Miele filter removes odors efficiently and long-term.
Miele CleanCover
(B)Convenience and safety in detail (/B) Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Handcrafted in Germany
(B)Each Miele ventilation hood is unique (/B) Almost all Miele ventilation hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
- Minimalist design - 30 (760) Inch wide space saving solution
- Efficient filtration- 10-ply stainless steel grease filters Stainless-steel grease filters (10-layer) Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Suitable for every home - vented or recirculating
| Construction type | |
| Built-under ventilation hood | |
| Design | |
| Color | Stainless steel |
| Operating modes | |
| Recirculated mode | Convertible |
| Control panel | |
| Recessed knob controls | |
| Slide switch | Slide switch The intuitive slide switches make the operation of your cooker hood especially easy. |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Cleaning convenience | |
| EasyClean CleanCover hood liner | Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor. |
| Filter system | |
| Dishwasher-safe stainless steel grease filters | 3 |
| Lighting | |
| Halogen | |
| Light intensity in Lx | 1,500 |
| Color temperature in K | 2,900 |
| Blower | |
| Single-action blower | |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput and sound emissions | Values upon request |
| Technical data | |
| Canopy width in in.(mm) | 30 (760) |
| Height of hood canopy in in.(mm) | 5 (125) |
| Depth of hood canopy in in.(mm) | 19 3/4 (500) |
| Minimum distance above electric cooktops in in.(mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 29 (12.9) |
| Length of electrical wire in ft (m) | 4 (1.5) |
| Standard plug fitted | |
| Total connected load in kW | 0.38 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | |
| Diameter of vent connection in in.(mm) | 6 (150) |
| Installation template | |
| Standard accessories | |
| Non-return flap | Non-return flap A non-return flap is supplied with every appliance and prevents the backflow of cold and/or warm outside air with extraction mode cooker hoods. This component is installed in the exhaust socket above the motor in your cooker hood and prevents air from flowing back through the extraction ducting when the appliance is not in use. |
| Recirculation deflector | Recirculation deflector The directional unit is fitted in the top of the cooker hood tower and directs the air back into the kitchen through the grilles in the tower. A special feature of the Miele directional unit for island cooker hoods is that air is expelled from all four sides. This lowers the air flow velocity and in so doing reduces noise levels. |
- Minimalist design - 30 (760) Inch wide space saving solution
- Efficient filtration- 10-ply stainless steel grease filters Stainless-steel grease filters (10-layer) Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Suitable for every home - vented or recirculating
 | |
|---|---|
