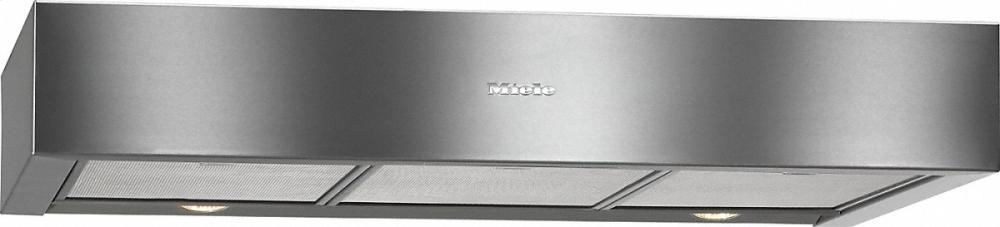

DA 1180 AM Built-under hood with halogen lighting and slide switch for convenient operation.
Model DA1180AMSTAINLESSSTEEL
DA 1180 AM Built-under hood with halogen lighting and slide switch for convenient operation.
Model DA1180AMSTAINLESSSTEELDA 1180 AM Built-under hood with halogen lighting and slide switch for convenient operation. is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Design variety
(B)Timeless purism (/B) Miele offers ventilation hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele ventilation hood(s) have unique features without being intrusive. With clean lines, well thought-out functions and timeless design.
Handcrafted in Germany
(B)Each Miele ventilation hood is unique (/B) Almost all Miele ventilation hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. and craftsmanship: our entire expert knowledge is poured into each and every ventilation hood, from development to the finished product.
Active AirClean filter
(B)A completely odor-free kitchen (/B) Miele ventilation hood(s) always require an Active AirClean filter in addition to the grease filter for recirculation mode. This Miele filter removes odors efficiently and long-term.
Miele CleanCover
(B)Convenience and safety in detail (/B) Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
Perfect craftsmanship
(B)Visible quality (/B) Miele ventilation hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele ventilation hood(s). Enjoy perfect workmanship!
Stainless-steel grease filters (10-layer)
(B)Esthetically pleasing and highly functional (/B) Miele ventilation hood(s) are equipped with a 10-ply dishwasher-safe stainless steelgrease filters. The top layers and filter frame are made of high-quality stainless steel. "When you conveniently clean the grease filters in the dishwasher, no visible discoloring will occur, and the Miele grease filters keep their high-quality appearance for a long time."
- Minimalist design - 30 (760) Inch wide space saving solution
- Efficient filtration- 10-ply stainless steel grease filters Stainless-steel grease filters (10-layer) Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Suitable for every home - vented or recirculating
| Construction type | |
| Built-under ventilation hood | |
| Design | |
| Color | Stainless steel |
| Operating modes | |
| Recirculated mode | Convertible |
| Control panel | |
| Recessed knob controls | |
| Slide switch | |
| Power levels (number excl. Intensive) | 3 |
| Intensive setting | |
| Cleaning convenience | |
| EasyClean CleanCover hood liner | Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor. |
| Filter system | |
| Dishwasher-safe stainless steel grease filters | 3 |
| Lighting | |
| Halogen | |
| Light intensity in Lx | 1,500 |
| Color temperature in K | 2,900 |
| Blower | |
| Single-action blower | |
| AC motor | |
| Air throughput with max. duct diameter in vented mode (not for external version) | |
| Air throughput and sound emissions | Values upon request |
| Technical data | |
| Canopy width in in.(mm) | 30 (760) |
| Height of hood canopy in in.(mm) | 5 (125) |
| Depth of hood canopy in in.(mm) | 19 3/4 (500) |
| Minimum distance above electric cooktops in in.(mm) | 24 1/8 (610) |
| Minimum height above gas cooktop (max. 12.6 kW total power, burner 4.5 kW) in mm Use above gas hobs This hood is not suitable for operation over gas hobs with a total power rating of over 21.6 kW. | 26 (660) |
| Net weight in lbs. (kg) | 29 (12.9) |
| Length of electrical wire in ft (m) | 4 (1.5) |
| Standard plug fitted | |
| Total connected load in kW | 0.38 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation notes | |
| Vent connection at top | |
| Diameter of vent connection in in.(mm) | 6 (150) |
| Installation template | |
| Standard accessories | |
| Non-return flap | |
| Recirculation deflector | |
- Minimalist design - 30 (760) Inch wide space saving solution
- Efficient filtration- 10-ply stainless steel grease filters Stainless-steel grease filters (10-layer) Efficient in extracting steam, The high-quality metal grease filters are dishwasher-safe and extremely durable.
- Safe and easy to clean - Miele CleanCover Miele CleanCover Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
- Suitable for every home - vented or recirculating
 | |
|---|---|
