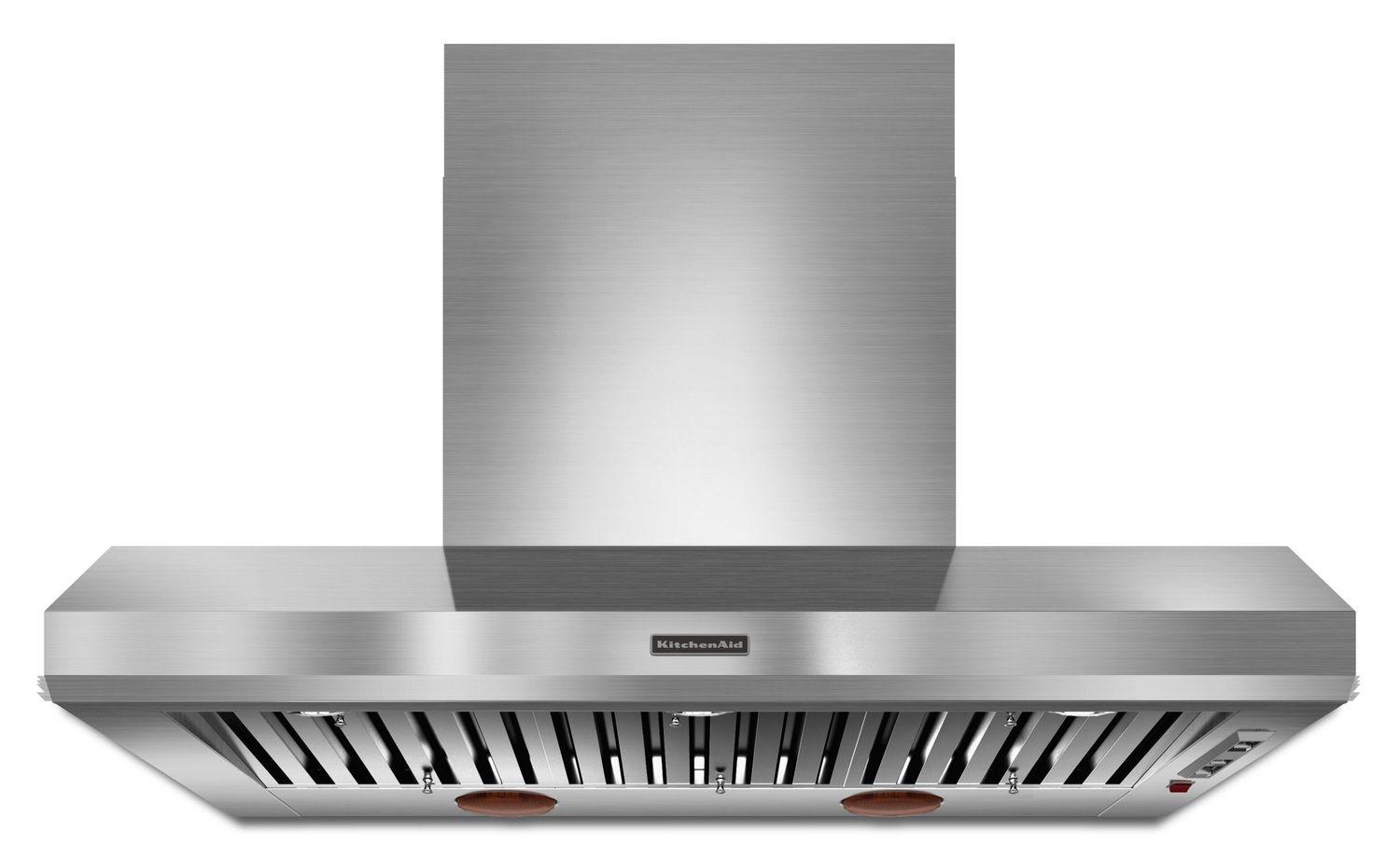

48'' Wall-Mount 600-1200 CFM Canopy Hood, Commercial-Style Stainless Steel
Model: KXW9748YSS
Authorized Dealer
Loading...
Authorized Dealer
48'' Wall-Mount 600-1200 CFM Canopy Hood, Commercial-Style Stainless Steel
Model: KXW9748YSSQuick Specs
Width
48"
Depth
25"
RPM
-1.0
Energy
NO
48'' Wall-Mount 600-1200 CFM Canopy Hood, Commercial-Style Stainless Steel is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$2,241.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
48"
Depth
25"
RPM
-1.0
Energy Star Rated
NO
- 600-1200 CFM
- Allows you to customize the power by choosing either a 600 or 1200 CFM motor (sold separately).
- 90K BTU Threshold
- A ventilation system specification that allows it to be placed over cooking surfaces with a maximum heat output up to 90K BTUs.
- 3-Speed Hidden Slide Control
- Creates an uninterrupted design with hidden controls that make it easy to select fan speed and operate lights.
- Automatic Turn On
- Helps protect your cabinets from damage by automatically turning the vent on when it senses the presence of heat.
- Two 175-Watt Food Warming Lamps
- Allows food to be kept warm until you're ready to plate and serve.
- Three 50-Watt Halogen Lights
- Provide energy efficient operation with brighter, more natural light that increases visibility over the cooking surface.
- Dishwasher Safe Commercial-Style Baffle Filters
- Provide proper filtration of grease to help prevent damage to ceilings and countertops and feature commercial-style construction for long life.
- 600-1200 CFM
- 90K BTU Threshold
- 3-Speed Hidden Slide Control
- Automatic Turn On
- Two 175-Watt Food Warming Lamps
- Three 50-Watt Halogen Lights
- Dishwasher Safe Commercial-Style Baffle Filters
(P) This wall-mounted hood can be installed with a 600 or 1200 CFM motor (not included) depending on your cooking surface. The 48-inch hood has two warming lamps that can help you keep food warm until it's ready to serve. The powerful motor allows installation over the largest commercial-style rangetops and cooktops with outputs up to108K BTU.(/P)
| Certifications | |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Refinement KAD | |
| Cook Up The Savings | Cook Up The Savings |
| Series | Commerical-Style Series |
| Details | |
| Task Light Type | Halogen |
| Material | Stainless Steel |
| Task Lighting | Yes |
| Number of Task Light Settings | 2 |
| Description | |
| Size | 48 |
| Dimensions | |
| Canopy Height | 8.0 in |
| Height | 32-3/8 in |
| Width | 48.0 in |
| Depth | 25.0 in |
| Controls | |
| Control Type | Manual |
| Location of Controls | Hidden |
| Control Location | Hidden |
| Dimensions | |
| Gross Weight | 88-3/5 lbs |
| Refinements | |
| Features | Auto Turn On |
| Features | |
| Number of Task Light Settings | 2 |
| Task Lighting | Yes |
| Configuration and Overview | |
| UL | UL |
| Size | 48 in |
| Hood Type | Wall Mount |
| Ventilation System | |
| Filters | Grease Filters |
| Blower Type | Centrifugal |
| Duct Outlet Size | 10 |
| Duct Direction | Vertical |
| Venting | Exterior |
| Duct Type | Round |
| Blower Motor | Blower Motor to be Purchased Separately |
| Electrical Requirements | |
| Volts | |
| Hz | |
| Amps | |
- 600-1200 CFM
- 90K BTU Threshold
- 3-Speed Hidden Slide Control
- Automatic Turn On
- Two 175-Watt Food Warming Lamps
- Three 50-Watt Halogen Lights
- Dishwasher Safe Commercial-Style Baffle Filters
