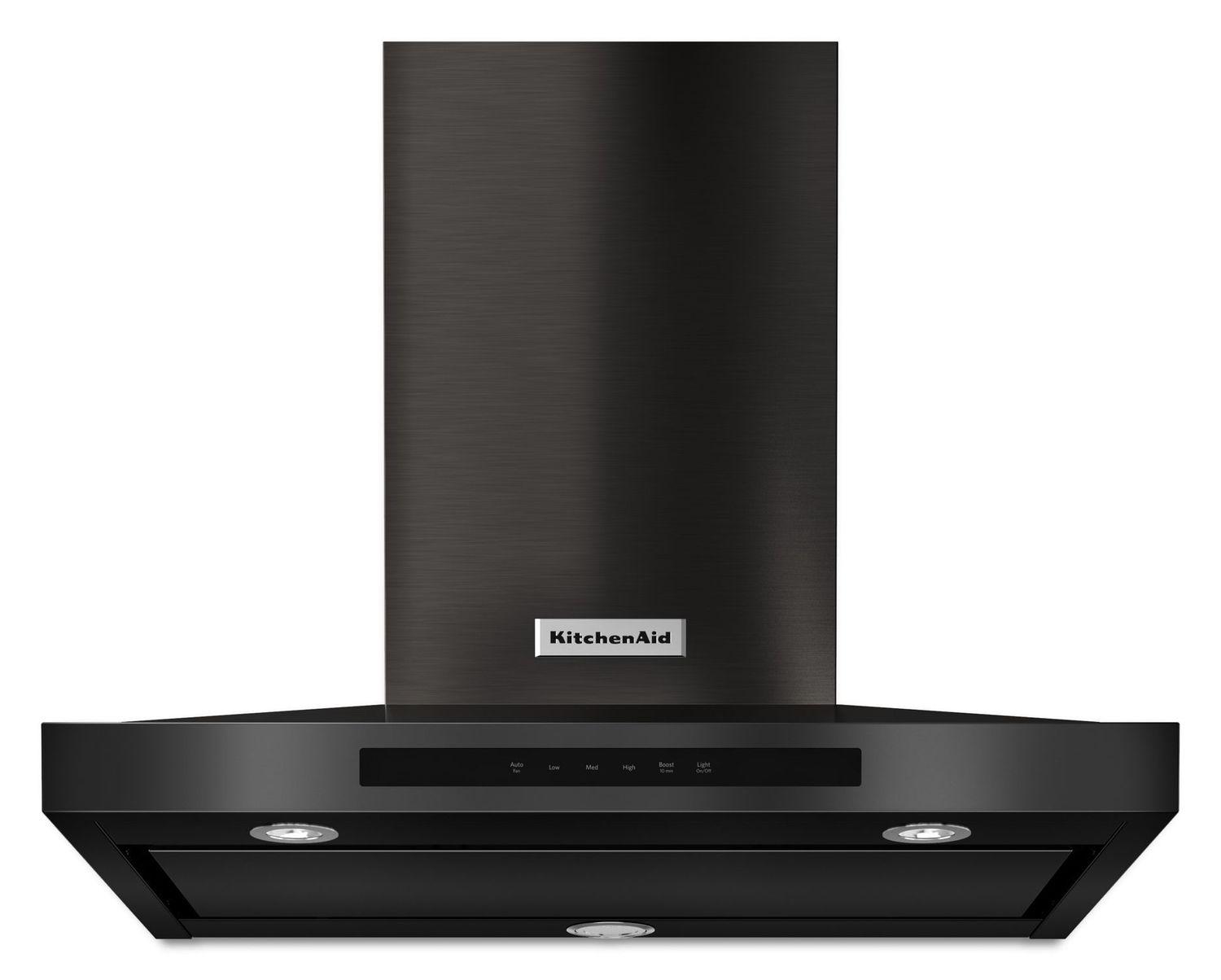

30" Wall-Mount, 3-Speed Canopy Hood Black Stainless Steel with PrintShield™ Finish
Model KVWB600DBS
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
30" Wall-Mount, 3-Speed Canopy Hood Black Stainless Steel with PrintShield™ Finish
Model KVWB600DBSQuick Specs
Depth
19.688
Height
38.75
30" Wall-Mount, 3-Speed Canopy Hood Black Stainless Steel with PrintShield™ Finish is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19.688
Height
38.75
- 600 CFM/65K BTU Threshold
- Allows installation over any KitchenAid regular 36- or 30-inch range or cooktop, and some commercial-style cooking surfaces with outputs up to 65K BTU.
- Perimeter Ventilation
- Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.
- Auto Speed Setting
- Takes the guesswork out of protecting cabinets from steam, grease, and moisture by automatically adjusting fan speed to ventilation needs depending on the heat being produced.
- LED Task Lights
- Provide extra lighting over the cooking surface to help in the cooking process.
- Halogen Night Lights
- Enhances the style of the ventilation system by providing soft, accent lighting in the kitchen.

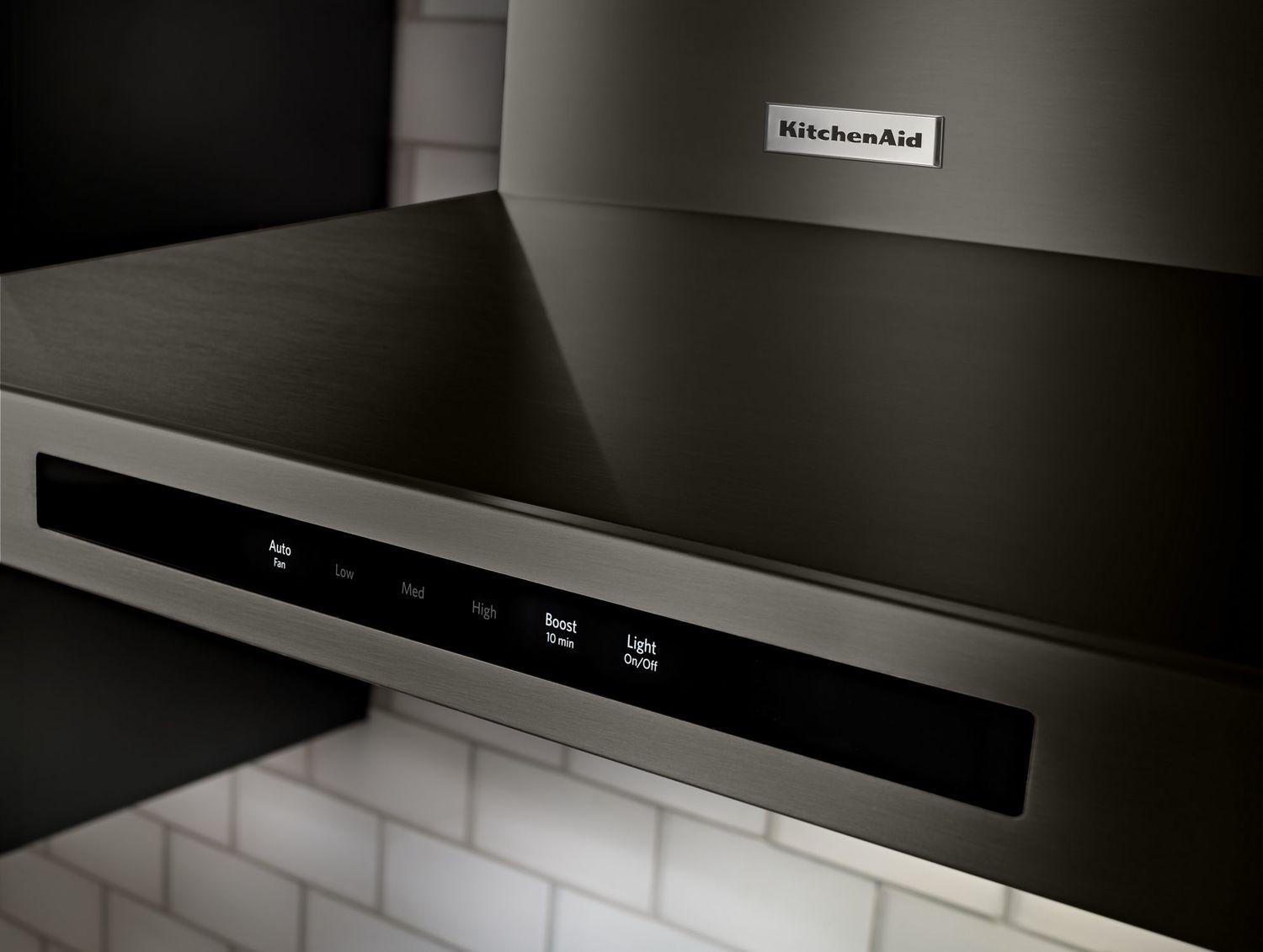

- 3-Speed Electronic Glass Touch Control with Boost Function (10 Min.)
- Provides electronic operation with visual feedback on settings and selections. Enhances performance when using high-temperature cooking techniques by providing a timed, short burst of high-speed ventilation to effectively filter steam, grease, and odors from the air.
- Whisper Quiet® System @ 49 dBA (1.5 sones) at Low Speed
- Ensures that the ventilation system operates at a quiet level so it can be used while entertaining. At maximum speed, sound level is 65 dBA (5.4 sones).
- Dishwasher Safe Grease Filters
- Filter reduces steam, grease, and odor to help avoid contact with ceilings and countertops. The design increases filtration by obstructing the path of vented air to help capture more steam, grease, and odors as they are drawn through the vent.
- Easy In-line Conversion
- Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
- 600 CFM/65K BTU Threshold
- Perimeter Ventilation
- Auto Speed Setting
- LED Task Lights
- Halogen Night Lights
- 3-Speed Electronic Glass Touch Control with Boost Function (10 Min.)
- Whisper Quiet(R) System @ 49 dBA (1.5 sones) at Low Speed
- Dishwasher Safe Grease Filters
- Easy In-line Conversion
(P) This 3-speed vent hood has power to effectively vent an output of up to 65K BTUs. Auto speed sensing keeps the vent at the proper fan speed by sensing the amount of heat coming from the cooktop. This 30-inch wall-mount canopy hood has both LED and halogen lights to brighten almost any work area.(/P)
| Refinement KAD | |
| Perimeter Ventilation | Perimeter Ventilation |
| Certifications | |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Product Hierarchy | |
| Flooring Program Codes | USKADBL |
| Details | |
| Task Light Type | LED |
| Number of Night Light Settings | 1 |
| Night Light Type | Halogen |
| Task Lighting | Yes |
| Night Light | Yes |
| Number of Task Light Settings | 1 |
| EndecaProps | |
| ProductOutletCategories | Cooking |
| Dimensions | |
| Width | 30.0 in |
| Height | 24-5/8 in |
| Depth | 19-11/16 in |
| Refinements | |
| Features | Perimeter Ventilation |
| Dimensions | |
| Gross Weight | 56-1/2 lbs |
| Configuration and Overview | |
| UL | UL |
| Size | 30 in |
| Hood Type | Wall Mount |
| Ventilation System | |
| Filters | Dishwasher-Safe Grease Filters |
| Auto Function | Auto On and Speed Adjust |
| Duct Outlet Size | 6 |
| Blower Type | Centrifugal |
| Duct Direction | Vertical |
| Duct Type | Round |
| Sound Min Speed dBA | 49-1/2 |
| Sound Max Speed Sones | 5-2/5 |
| Number of Speeds | 3 |
| Sound Max Speed Sound Max Speed dBA | 65.0 |
| Sound Min Speed Sones | 1-1/2 |
| Electrical Requirements | |
| Volts | |
- 600 CFM/65K BTU Threshold
- Perimeter Ventilation
- Auto Speed Setting
- LED Task Lights
- Halogen Night Lights
- 3-Speed Electronic Glass Touch Control with Boost Function (10 Min.)
- Whisper Quiet(R) System @ 49 dBA (1.5 sones) at Low Speed
- Dishwasher Safe Grease Filters
- Easy In-line Conversion
 | |
|---|---|
| Design Features | |
Key Features |
|
Product Type |
|
| Dimensions & Capacity | |
Depth |
|
Height |
|
| Appearance & Specifications | |
Configuration |
|
Color |
|
