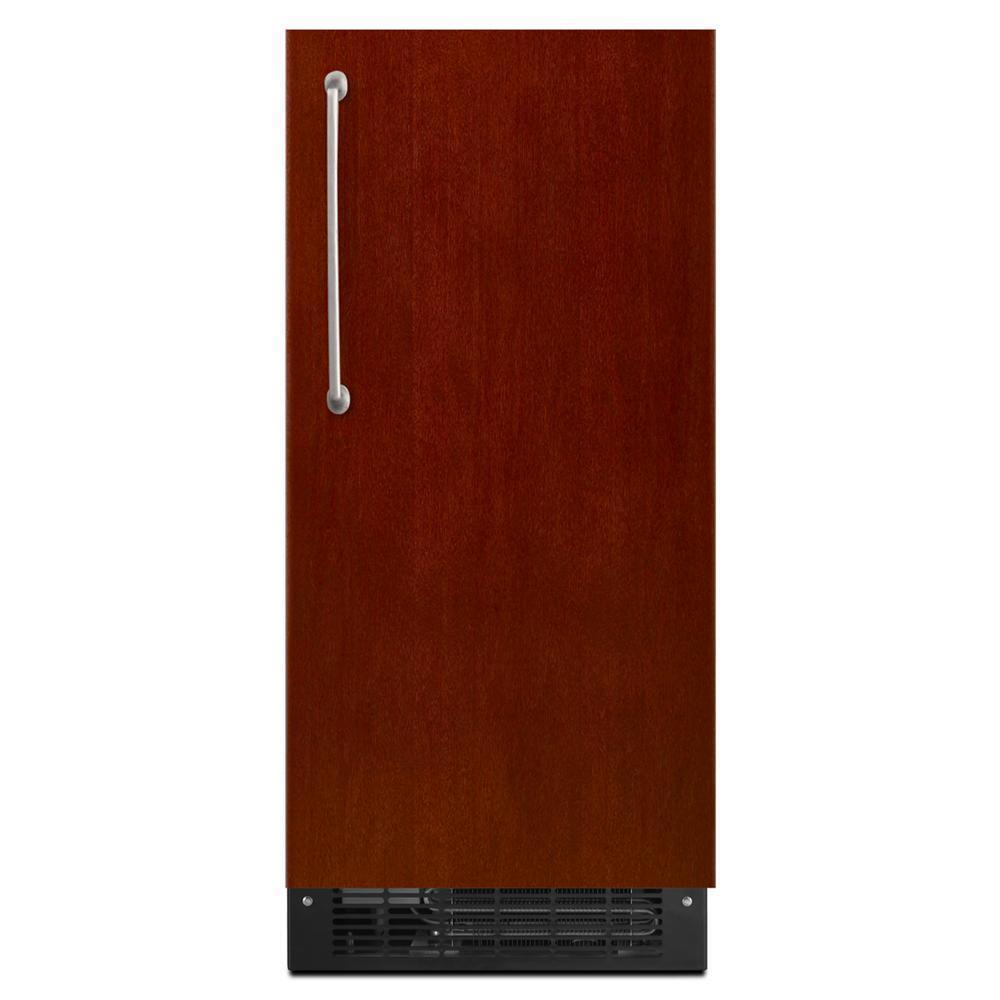

KitchenAid® 15'' Automatic Ice Maker
Model KUIX535HPA
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
KitchenAid® 15'' Automatic Ice Maker

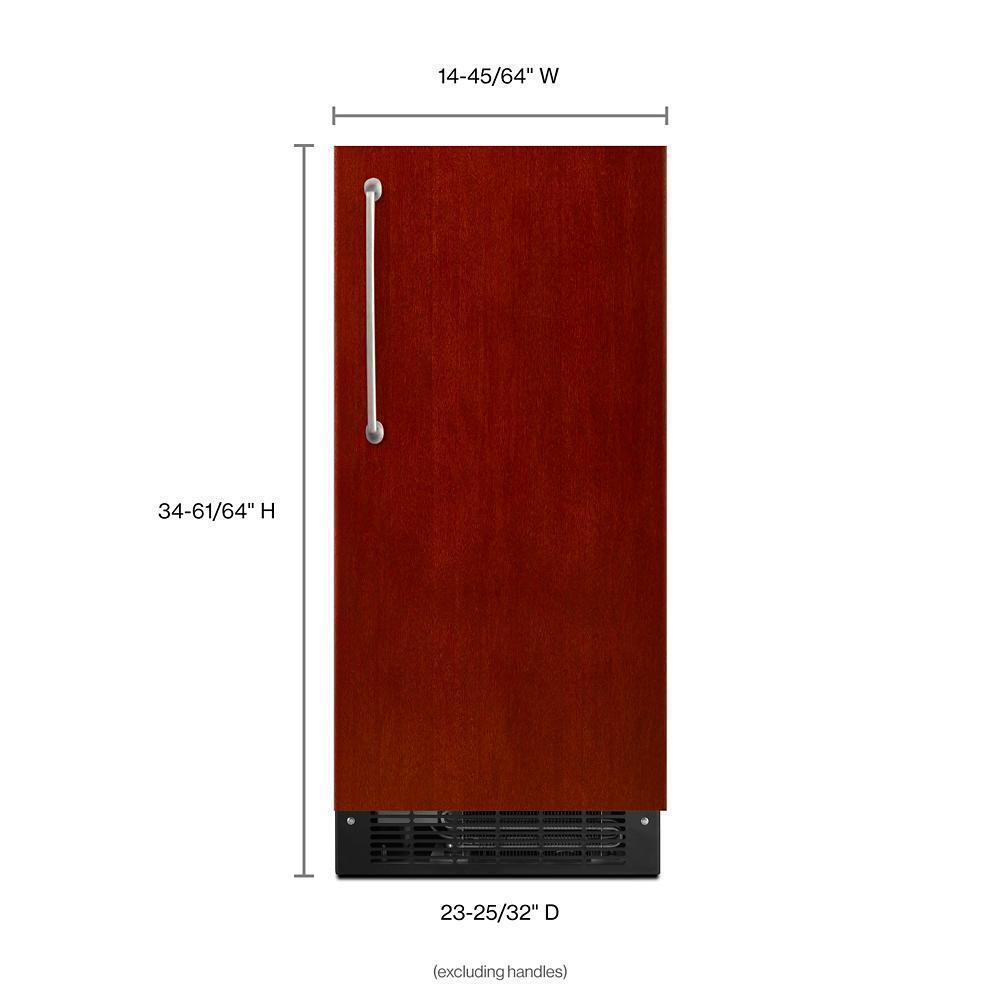

Model KUIX535HPAQuick Specs
Width
14.7"
Depth
26.26
Height
34.95
ADA
NO
Wifi
NO
RPM
-1.0
Energy
NO
Color
KitchenAid® 15'' Automatic Ice Maker is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$2,322.06
Regular price
$3,049.00
Unit price
/
Unavailable
You save 23%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Width
14.7"
Depth
26.26
Height
34.95
ADA
NO
Wifi Connected
NO
RPM
-1.0
Energy Star Rated
NO
PrintShield(TM) Finish
resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
Fully Flush Installation with Articulating Hinge
allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
Self Cleaning Cycle
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
Filter-Ready
provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
- Built-In Drain Pump System
- Allows this ice maker to be installed nearly anywhere in the home within 100 feet of an under-sink drain line, so you can keep a continuous supply of clear ice in your kitchen or entertaining space
- Clear Ice Technology
- provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
- Filter-Ready
- provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
- Fully Flush Installation with Articulating Hinge
- allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
- Holds 25 Pounds of Ice
- ensures a generous supply of fresh ice is conveniently at your fingertips.
- Max Ice
- PrintShield™ Finish
- resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
- Reversible Door
- offers flexible installation options by allowing hinge installation on either side of the door.
- Self Cleaning Cycle
- Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
- Installs nearly anywhere in the home within 100ft of drain line
- Clear Ice Technology for appealing, uniformly shaped cubes
- Filter-Ready for easy water filter install to improve ice quality
- Fully Flush Installation to align with surrounding cabinetry
- Holds 25 pounds of ice in reserve
- Easy-clean PRINTSHIELD finish resists smudges and fingerprints
- Reversible Door that accommodates left- or right-hand swing
| Certifications | |
| Ada Compliant | No |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Ambient Temperature Range | 55F to 110F |
| Control Location | Interior Up Front |
| Control Type | Electronic Touch |
| Details | |
| Door Opening Direction | Right |
| Drain Connection | Rear Access 5/8in. OD |
| Drain Pump | Pump Included |
| Ice Capacity Storage | 25 |
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
| Water Inlet Connection | 1/4in. OD PEX Tubing |
| Water Supply Pressure | 30 - 120 psi |
| Dimensions | |
| Product Height | 34.95 |
| Height To Top of Door Hinge | 34.063 |
| Carton Height | 36.07 |
| Gross Weight | 107 |
| Height To Top of Cabinet | 33.625 |
| Carton Width | 17.25 |
| Product Depth | 26.26 |
| Cutout Depth | 25 |
| Cutout Height | 34.5 |
| Carton Depth | 28.37 |
| Cutout Width | 15 |
| Net Weight | 96.5 |
| Product Width | 14.07 |
| Exterior Details | |
| Cabinet Finish | Textured |
| Cabinet Material | Prepainted Steel |
| Handle Location | Horizontal |
| Reversible Door | Yes |
| Filter Details | |
| Water Filter Indicator/reset | Yes |
| Water Filter Location | Interior |
| Water Filter Part Number | F2WC9I1 |
| Freezer Details | |
| Defrost Type | Automatic Defrost |
| Icemaker Details | |
| Ice Maker On/off | Yes |
| Oven Details | |
| Interior Light | LED |
| Refrigerator Details | |
| Interior Liner Finish | Plastic |
| Liner Color | White |
- Installs nearly anywhere in the home within 100ft of drain line
- Clear Ice Technology for appealing, uniformly shaped cubes
- Filter-Ready for easy water filter install to improve ice quality
- Fully Flush Installation to align with surrounding cabinetry
- Holds 25 pounds of ice in reserve
- Easy-clean PRINTSHIELD finish resists smudges and fingerprints
- Reversible Door that accommodates left- or right-hand swing
